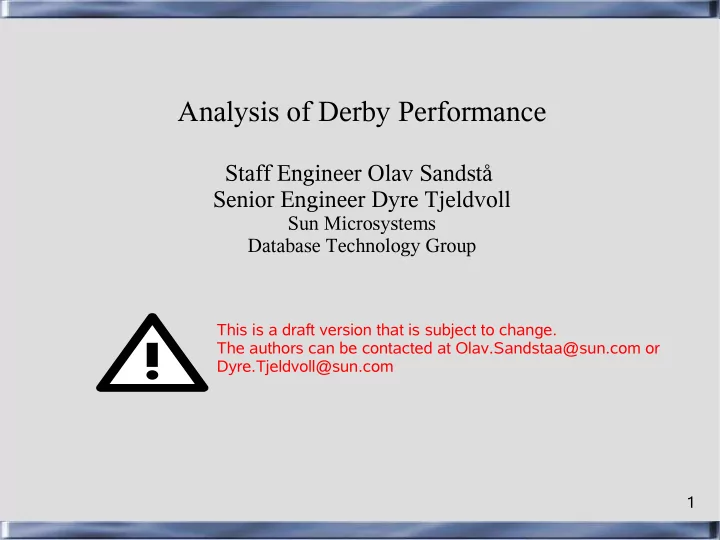

Analysis of Derby Performance

Staff Engineer Olav Sandstå Senior Engineer Dyre Tjeldvoll

Sun Microsystems Database Technology Group

This is a draft version that is subject to change. The authors can be contacted at Olav.Sandstaa@sun.com or Dyre.Tjeldvoll@sun.com

2

• Introduction

– What is a database (DBMS)? – Derby Architecture – What is performance?

• Performance Evaluation of Derby
• Performance Tips
• Comparison with MySQL and PostgreSQL

Overview

3

Introduction

4

Derby Architecture

Storage JDBC SQL Access Appl. Storage JDBC SQL Access Appl. Network server JDBC

• Embedded
• Network Server

5

What Is “Performance”?

• How do you measure database performance?

– Throughput – Response time

• Average?
• Max?
• Median?
• Out-of-the-box or carefully tuned?
• How to compare database systems with different

tuning possibilities?

• Zero administration?

6

Performance Evaluation of Derby

7

Performance Evaluation of Derby

• Evaluation of disk and file system configurations
• Comparing Embedded and Network Server

– Throughput and response times – Resource usage (CPU, network)

• The effects of adjusting the database buffer size

(page cache size)

• The effect of keeping the log on a separate disk

8

Derby Performance Evaluation:

Derby, OS and Hardware Configuration

• Derby configuration:

– “Out of the box” – “Main memory” database – “Disk” database

• Log device:

– Same as data device – Separate log disk

• Disk write cache:

– Enabled – Disabled

9

Disk and File System Configurations

• Hard disk:

– Write cache

• File system:

– Logging/journaling in UFS – Direct I/O (partially evaluated) – File meta-data update (not evaluated)

10

Disk Write Cache: Throughput and Response Time

11

Disk and File System Configurations:

Conclusions

• Disk Write Cache: Do users want high throughput

and low response times, or durability/recoverability? Who are we optimizing for?

• Without write cache on disks a higher number of clients are

needed to get maximum throughput

• Things to evaluate:

– UFS logging – Java NIO – Direct I/O (not available from Java) – Avoid update of file meta-data

12

Comparing Embedded with Network Server:

TPC-B: Throughput and Response Time

13

Comparing Embedded with Network Server:

Single-record SELECT

14

Comparing Embedded with Network Server:

Resource Usage

Derby Embedded: Derby Network Server:

Storage JDBC SQL Access Appl. Storage JDBC SQL Access Appl. Network server JDBC

CPU? Network? CPU? Network?

15

Comparing Embedded and Network Server:

CPU Usage

TPC- B Emb TPC- B CS Insert Emb Insert CS Se- lect Emb Se- lect Cs Up- date Emb Up- date CS 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4

CPU usage per transaction [ms]

User CPU System CPU

16

Comparing Embedded and Network Server:

CPU Usage, cont.

System CPU User CPU Total TPC-B 0.09 64% 0.25 32% 36% Insert 0.04 100% 0.05 21% 33% Select 0.04 133% 0.06 52% 65% Update 0.03 75% 0.04 21% 30%

Increase in CPU usage compared to Embedded:

Message handling (TCP/IP) The Network Server Code

17

Comparing Embedded with Network Server:

Conclusions

• Reduction in throughput of Network Server

compared to Embedded:

– Update operations: 5% – Select operations: 30-40%

• Response time:

– Small increase of about 0.5 ms per SQL operation

• Utilizing the write cache on the disks increases the

difference for update operations

• What can be done?

– Profile to find CPU intensive parts in the Network

Server code

– Optimize

18

Comparing Embedded with Network Server:

Conclusions

• The Network Server adds 30%-60% to the CPU

usage compared to the Embedded version

• The main causes for increased CPU usage:

– System CPU usage:

• Message sending and receiving

– User CPU usage:

• Message parsing (Strings)
• Character set conversions

19

Performance Tips

20

Performance Tips

• Programming:

– Prepared statements

• Database schema design:

– Indices

• Derby configuration:

– durability=test, if recovery is not important

21

Prepared Statements

• Compilation is expensive, especially in Derby

which uses Java byte code generation

• Prepared statements virtually eliminates this cost
• Easy to fall into this trap for beginners (string

concatenation is easy)

• <Example>

22

Indices

• Use indices to optimize much used access paths
• <Example>

23

Relaxed Durability

• Durability is expensive

– Log must be written to disk prior to commit – This becomes a major bottleneck (cf. write cache, log

• n separate device)
• Durability can be disabled

– Setting durability=test disables log flushing at commit – Dramatically increases throughput... – ... but database may be corrupt after a crash – Would be better if Derby could recover to a consistent

state (with some transaction loss)

– An alternative to a main memory database

• <Example>

24

Comparing the Performance of MySQL, PostgreSQL and Derby

25

Performance evaluation:

MySQL, PostgreSQL and Derby

Evaluated performance of:

• MySQL/InnoDB
• PostgreSQL
• Derby Embedded
• Derby Client/Server

26

What is a Database (DBMS)?

• Transactions
• ACID

– Atomicity – Consistency – Isolation – Durability Database Atomicity Consistency Isolation Durability Derby Yes Yes Yes Yes PostgreSQL Yes Yes Yes Yes MySQL, Innodb Yes Yes Yes Yes MySQL, MyIsam No ? Table lock Yes HSQLDB No ? ? No

27

Performance Experiments

• Two configurations:

– “Small” main-memory database: 10 MB data/50MB

database buffer

– “Big” disk-based database: 50 MB data/10MB database

buffer

• Tests:

– TPC-B – Single-tuple operations: select

• Load:

– 1-100 concurrent clients

28

Throughput: TPC-B

200 400 600 800 1000 1200 1400 1600 20 40 60 80 100 Transactions per second Number of clients Derby embedded Derby client/server MySQL (InnoDB) PostgreSQL 50 100 150 200 250 300 350 400 450 500 20 40 60 80 100 Transactions per second Number of clients Derby embedded Derby client/server MySQL (InnoDB) PostgreSQL

“Small” db “Big” db

29

Throughput: Select (“small” db)

5000 10000 15000 20000 25000 20 40 60 80 100 Transactions per second Number of clients Derby embedded Derby client/server MySQL (InnoDB) PostgreSQL

30

Conclusions

• Derby outperforms MySQL on large databases
• MySQL performs better on small main-memory

databases

• No significant performance loss with client/server,

except for SELECT operations

• Need to identify, and reduce the CPU overhead that

limits throughput in CPU-bound configurations

31

Disk IO: “Small” Databases

Derby em- bedded Derby cli- ent/server MySQL PostgreSQL 0.25 0.5 0.75 1 1.25 1.5 1.75 2 2.25 2.5

Db writes per transaction Log writes per transaction

32

Derby client/server MySQL 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

Db writes per transaction Log writes per transaction

Disk IO: “Big” Databases

Why does Derby out-perform MySQL for disk-based databases?

• TPC-B like load
• 50 MB database
• 10 MB buffer

33

JDBC Driver: CPU Usage

Derby MySQL PostgreSQL 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.1 0.11 0.12 0.13 0.14 0.15 0.16

User System

CPU usage per TPC-B transaction [ms]:

34

Conclusions: Resource Usage

• MySQL performs better than Derby when:

– The database is small and fits in the database buffer – Throughput becomes CPU-bound

• Derby performs better than MySQL when:

– The database is large and does not fit in the database

buffer

– Throughput becomes IO-bound

• Derby has focused on maintaining a low footprint
