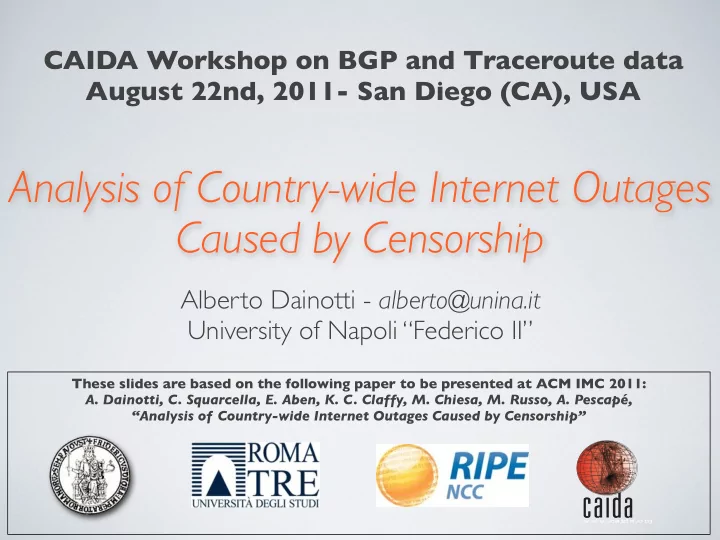

CAIDA Workshop on BGP and Traceroute data August 22nd, 2011- San Diego (CA), USA Analysis of Country-wide Internet Outages Caused by Censorship Alberto Dainotti - alberto@unina.it University of Napoli Federico II These slides are based on

slide-1
SLIDE 1

Alberto Dainotti - alberto@unina.it University of Napoli “Federico II”

Analysis of Country-wide Internet Outages Caused by Censorship

CAIDA Workshop on BGP and Traceroute data August 22nd, 2011- San Diego (CA), USA

These slides are based on the following paper to be presented at ACM IMC 2011:

  • A. Dainotti, C. Squarcella, E. Aben, K. C. Claffy, M. Chiesa, M. Russo, A. Pescapé,

“Analysis of Country-wide Internet Outages Caused by Censorship”

w w w . cai da.

  • r

g

slide-2
SLIDE 2

THE EVENTS

  • Egypt
  • Protests in the country start around January 25th, 2011
  • The government orders service providers to “shutdown” the Internet
  • On January 27th, around 22:34 GMT, several sources report the withdrawal in

the Internet’s global routing table of almost all routes to Egyptian networks

  • The disruption lasts 5.5 days
  • Libya
  • Protests in the country start around 17th February 2011
  • The government controls most of the country’s communication infrastructure
  • Three different connectivity disruptions: February 18th (6.8 hrs), 19th (8.3

hrs), March 3rd (3.7 days)

  • Similar events in other countries but we did not analyze them

Internet Disruptions in North Africa

COMICS Research Group University of Napoli “Federico II” - Italy

slide-3
SLIDE 3

SOME FACTS

Egypt

  • 3165 IPv4 and 6 IPv6 prefixes are delegated to Egypt by AfriNIC
  • They are managed by 51 Autonomous Systems
  • Filtering type: BGP only
  • Filtering dynamic: synchronized; progressive

Libya

  • 13 IPv4 prefixes, no IPv6 prefixes
  • 2 (+ 1) Autonomous Systems operate in the country
  • Filtering type: mix of BGP

, packet filtering, satellite signal jamming

  • Filtering dynamic: testing different techniques; somehow synchronized

Prefixes, ASes, Filtering

COMICS Research Group University of Napoli “Federico II” - Italy

slide-4
SLIDE 4

WHAT WE DID

  • BGP
  • BGP updates from route collectors of RIPE-NCC RIS and RouteViews
  • We combined information from both databases
  • Graphical Tools: REX, BGPlay, BGPviz
  • Active Traceroute Probing
  • Archipelago Measurement Infrastructure (ARK)
  • We underutilized it..
  • Internet Background Radiation (IBR)
  • Traffic reaching the UCSD network telescope
  • Capable of revealing different kinds of blocking

Combined different measurement sources

COMICS Research Group University of Napoli “Federico II” - Italy

w w w . cai da.

  • r

g

slide-5
SLIDE 5

THE DATA

  • IP ranges associated with the country of interest
  • Delegations from Regional Internet Registries (RIR)
  • Commercial geolocation database
  • Gather prefixes to be monitored. For each IP range:
  • We look up the address space in the BGP database of announced prefixes, to find an

exactly matching BGP prefix

  • We find all the more specific (strict subset, longer) prefixes of this prefix
  • If the two previous steps yielded no prefix, we retrieve the longest BGP prefix entirely

containing the address space

  • Every time we refer to an AS we actually refer to the IPs of

that AS that are associated to the country of interest

Geolocation + announced prefixes

COMICS Research Group University of Napoli “Federico II” - Italy

Egypt Libya AfriNIC delegated IPs 5,762,816 299,008 MaxMind GeoLite IPs 5,710,240 307,225

slide-6
SLIDE 6

BGP

  • We reconstruct prefixes losing and regaining reachability
  • we build the routing history of a collector’s peer for each collector
  • using both RIBs and UPDATES
  • we mark a prefix as disappeared if it is withdrawn in each routing history

prefix reachability

COMICS Research Group University of Napoli “Federico II” - Italy 500 1000 1500 2000 2500 3000 3500 20:00 20:30 21:00 21:30 22:00 22:30 23:00 number of visible IPv4 prefixes

500 1000 1500 2000 2500 3000 3500 09:00 09:30 10:00 10:30 11:00 11:30 12:00 number of re-announced IPv4 prefixes

Egyptian disconnection and reconnection [NOTE: IPv6 routes stayed up!]

slide-7
SLIDE 7

BGP

  • A detailed analysis shows there is synchronization among ASes

per-AS analysis

COMICS Research Group University of Napoli “Federico II” - Italy

200 400 600 800 1000 09:00 09:30 10:00 10:30 11:00 11:30 12:00 number of re-announced IPv4 prefixes EgAS1 EgAS4 EgAS2 EgAS5 EgAS3 EgStateAS

slide-8
SLIDE 8

ROUTE CHANGES

BGPlay

COMICS Research Group University of Napoli “Federico II” - Italy

  • The massive disconnection caused some path changes too
slide-9
SLIDE 9

UCSD TELESCOPE

  • Unsolicited traffic - e.g. scanning from conficker-infected hosts -

from the observed country and reaching a (mostly) unused /8 network at UCSD

when malware helps..

COMICS Research Group University of Napoli “Federico II” - Italy

20 40 60 80 100 120 140 1

  • 2

7 : 1

  • 2

8 : 1

  • 2

9 : 1

  • 3

: 1

  • 3

1 : 2

  • 1

: 2

  • 2

: 2

  • 3

: 2

  • 4

: packets per second

Egypt Libya

slide-10
SLIDE 10

UCSD TELESCOPE

  • We classified traffic to the telescope in
  • Conficker-like
  • Backscatter (e.g. SYN-ACKs to randomly spoofed SYNs of DoS attacks)
  • Other

need to dissect traffic

COMICS Research Group University of Napoli “Federico II” - Italy

10 20 30 40 50 60 70 80 01-27 00:00 01-28 00:00 01-29 00:00 01-30 00:00 01-31 00:00 02-01 00:00 02-02 00:00 02-03 00:00 02-04 00:00 packets per second

  • ther

conficker-like backscatter

Egypt: telescope traffic

slide-11
SLIDE 11

TELESCOPE VS BGP

Consistency

COMICS Research Group University of Napoli “Federico II” - Italy 0.1 0.2 0.3 0.4 0.5 0.6 0.7 01-27 00:00 01-28 00:00 01-29 00:00 01-30 00:00 01-31 00:00 02-01 00:00 02-02 00:00 02-03 00:00 02-04 00:00 20 40 60 80 100 packets per second Number of IPv4 prefixes in BGP packet rate of unsolicited traffic visibility of BGP prefixes

  • The sample case of EgAS7shows the consistency between

telescope traffic and BGP measurements

Egypt: disconnection of EgAS7

slide-12
SLIDE 12

TELESCOPE VS BGP

Complementarity

COMICS Research Group University of Napoli “Federico II” - Italy

  • Contrasting telescope traffic with

BGP measurements revealed a mix of blocking techniques that was not publicized by others

  • The second Libyan outage involved
  • verlapping of BGP withdrawals

and packet filtering

Libya

1 2 3 4 5 6 7 8 02-18 12:00 02-19 00:00 02-19 12:00 02-20 00:00 02-20 12:00 02-21 00:00 packets per second 2 4 6 8 10 12 14 02-18 12:00 02-19 00:00 02-19 12:00 02-20 00:00 02-20 12:00 02-21 00:00 number of visible prefixes

slide-13
SLIDE 13

TELESCOPE VS BGP

  • BGP-unreachability doesn’t, in general, prevent outbound traffic
  • We found networks that were BGP-unreachable sending traffic to the telescope
  • and networks BGP-reachable that were not
  • Topology analysis may help to better understand this behavior

Confusion?

COMICS Research Group University of Napoli “Federico II” - Italy

Telescope traffic from two Egyptian ASes

10 20 30 40 50 60 70 80 90 01-27 00:00 01-28 00:00 01-29 00:00 01-30 00:00 01-31 00:00 02-01 00:00 02-02 00:00 02-03 00:00 02-04 00:00 packets per second EgAS4 EgStateAS

slide-14
SLIDE 14

ARK

  • ARK active measurements are consistent with other sources
  • limitation due to frequency of probes and because they target random addresses
  • the first two Libyan outages are not visible
  • we used them only to test reachability, not to analyze topology

active measurements

COMICS Research Group University of Napoli “Federico II” - Italy

! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !

12 14 16 18 20 22 24 26 28 2 4 6 8 10 12 14 Feb Feb Mar Mar 1% 2% 3% 4% 5% Ark traceroute to Libya terminating in Libya

! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !

21 22 23 24 25 26 27 28 29 30 2 3 4 5 6 Jan Jan Feb Feb 5% 10% 15% Ark traceroute to Egypt terminating in Egypt

Egypt Libya

slide-15
SLIDE 15

ARK

confirming telescope’s findings

COMICS Research Group University of Napoli “Federico II” - Italy

! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !

12 14 16 18 20 22 24 26 28 2 4 6 8 10 12 14 Feb Feb Mar Mar 1% 2% 3% 4% 5% Ark traceroute to Libya terminating in Libya

1 2 3 4 5 6 7 8 03-01 00:00 03-02 00:00 03-03 00:00 03-04 00:00 03-05 00:00 03-06 00:00 03-07 00:00 03-08 00:00 packets per second

Libya: ARK (left) , Telescope (right)

  • Third Libyan outage: while BGP reachability was up, most of

Libya was disconnected

  • ARK measurements confirmed the finding from the telescope, plus identified some

reachable hosts, suggesting the use of packet filtering by the censors

slide-16
SLIDE 16

SATELLITE CONNECTIVITY

probable signal jamming

COMICS Research Group University of Napoli “Federico II” - Italy

Libya: Telescope traffic from national

  • perator and satellite-based ISP
  • Third Libyan outage
  • a Libyan IPv4 prefix managed by SatAS1 was BGP-reachable
  • a small amount of traffic from that prefix reaches the telescope

1 2 3 4 5 2

  • 1

9 : 2

  • 2

6 : 3

  • 4

: 3

  • 1

1 : packets per second LyStateAS SatAS1

slide-17
SLIDE 17

CONSIDERATIONS

  • Telescopes can be used for studying macroscopic connectivity

problems and they complement BGP-based measurements

  • BGP-unreachable networks sometimes still *send* unsolicited packets
  • Ark measurements
  • Probing frequency + destination sampling = (too) small resolution
  • Better/more detailed measurements should be triggered by other measurements when

interesting events occur

  • Detection would need both telescope & BGP measurements
  • IPv6 was neglected by the censors
  • We depend on geolocation
  • Time resolution of BGP measurements: can we improve it?
  • We would like to look at AS-level topology
  • We couldn’t study, e.g., Syria cause of very selective filtering

and low volume of unsolicited traffic

COMICS Research Group University of Napoli “Federico II” - Italy

slide-18
SLIDE 18

COMICS Research Group University of Napoli “Federico II” - Italy
