An Interface-fitted Mesh Generator and Polytopal Element Methods for - - PowerPoint PPT Presentation

An Interface-fitted Mesh Generator and Polytopal Element Methods for Elliptic Interface Problems Long Chen University of California, Irvine chenlong@math.uci.edu Joint work with: Huayi Wei (Xiangtan University), Min Wen(UCI) Polytopal Element


slide-1
SLIDE 1

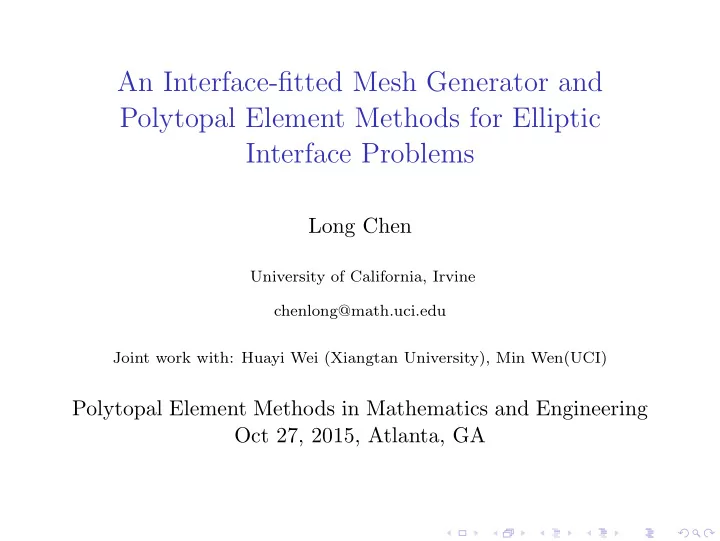

An Interface-fitted Mesh Generator and Polytopal Element Methods for Elliptic Interface Problems

Long Chen

University of California, Irvine chenlong@math.uci.edu Joint work with: Huayi Wei (Xiangtan University), Min Wen(UCI)

Polytopal Element Methods in Mathematics and Engineering Oct 27, 2015, Atlanta, GA

slide-2
SLIDE 2

Outline

Elliptic Interface Problems Interface-fitted Mesh Generation 2D Algorithm 3D Algorithm VEM for Elliptic Interface Problems Weak Formulation Virtual Element Method Weak Galerkin Methods Numerical Results

slide-3
SLIDE 3

ELLIPTIC INTERFACE PROBLEMS

slide-4
SLIDE 4

A Domain with an Interface

Ω + Ω− Γ n

Figure: A square domain Ω with an interface Γ in it.

slide-5
SLIDE 5

Elliptic Interface Problems

Consider −▽ · (β∆u) = f, in Ω\Γ (1) with prescribed jump conditions across the interface Γ: [u]Γ = u+ − u− = q0, [βun]Γ = β+u+

n − β−u− n = q1,

and boundary condition u = g

  • n ∂Ω.
slide-6
SLIDE 6

Existing Work

Two type of numerical methods:

◮ Numerical methods based on Cartesian meshes. ◮ Numerical methods based on interface-fitted meshes.

slide-7
SLIDE 7

Cartesian Mesh Approach

Figure: A Catesian mesh and an interface.

slide-8
SLIDE 8

Cartesian Mesh Approach

Pro:

◮ Mesh generation is very simple

Con:

◮ Need to modify the stencil (FDM) or basis function (FEM)

  • f the vertex near the interface Γ.

◮ The linear system may be non-symmetric and cause

problems in fast solvers.

◮ Convergence analysis is complicated.

slide-9
SLIDE 9

Interface-fitted Mesh

Figure: An interface-fitted mesh in 2D [Wei, Chen, Huang and Zheng,

  • SISC. 2014].
slide-10
SLIDE 10

Interface-fitted Mesh Approach

Pro:

◮ Can use standard finite element methods to discretize the

interface problem.

◮ Symmetric system can be easily solved by fast solver such

as algebraic multigrid solvers.

◮ Relatively easy error analysis.

Con:

◮ Generate interface-fitted meshes, extremely difficult in 3D!

slide-11
SLIDE 11

Our Goal

In the past decade the mesh generation have gotten great

  • progress. Here we aim to
  • 1. Develop effective and robust interface-fitted (polytopal)

mesh generation algorithm.

  • 2. Solve interface problems accurately using conforming FEM

(e.g. Virtual Element method) on polytopal meshes.

  • 3. Solve the resulting algebraic system quickly using

(algebraic) multigrid solver.

slide-12
SLIDE 12

Outline

Elliptic Interface Problems Interface-fitted Mesh Generation 2D Algorithm 3D Algorithm VEM for Elliptic Interface Problems Weak Formulation Virtual Element Method Weak Galerkin Methods Numerical Results

slide-13
SLIDE 13

INTERFACE-FITTED MESH GENERATION

TWO DIMENSIONAL CASE

slide-14
SLIDE 14

Delaunay Triangulation

p1 p2 p3 p4 p5 p6 p7

Figure: A Delaunay triangulation of a set of points is a triangulation satisfying the empty circle condition.

slide-15
SLIDE 15

Delaunay Triangulation

(a) Non Delaunay. (b) Delaunay.

Figure: Empty circle condition: a circle circumscribing any Delaunay triangle does not contain any other input points in its interior.

slide-16
SLIDE 16

2D Interface-fitted Mesh Generation Algorithm

Algorithm 1 2D Interface-fitted Mesh Generation Algorithm INPUT: Grid size: h; Level set function, ϕ(x); Square domain, Ω; OUTOUT: Interface-fitted mesh T ;

1: Find the cut points, the Cartesian mesh points near or on

the interface and some auxiliary points.

2: Construct a Delaunay triangulation on these points. 3: Post processing.

slide-17
SLIDE 17

An Example in 2D: Step 1

Figure: Step 1: Find the cut points (red), the mesh points near or on the interface (black) and the auxiliary points (magenta).

slide-18
SLIDE 18

An Example in 2D: Step 2

Figure: Step 2: Generate a Delaunay triangulation on these points. In MATLAB, it is simply DT = delaunay(x, y).

slide-19
SLIDE 19

An Example in 2D: Step 3

Figure: Step 3: Keep the triangles in the interface elements.

slide-20
SLIDE 20

An Example in 2D: Step 4

Figure: An interface-fitted mesh composed by triangles and squares.

slide-21
SLIDE 21

Features of 2D Mesh Generator

◮ Simple, efficient and semi-unstructured. ◮ Recovery the interface. ◮ The maximum angle is uniformly bounded (135◦).

slide-22
SLIDE 22

Maximum Angle Condition

(a) θmax ≤ 90◦ (b) θmax ≤ 135◦. (c) θmax ≤ 135◦. (d) θmax ≤ 135◦.

Figure: Maximum angles of four types of interface elements. From Semi-Unstructured Grids by C. Pflaum. Computing 2001.

slide-23
SLIDE 23

Interface Recovery

slide-24
SLIDE 24

Interface Recovery

  • We DO NOT code the triangulation case by case. We simply

call DT = delaunay(x, y).

slide-25
SLIDE 25

Interface Recovery

  • We DO NOT code the triangulation case by case. We simply

call DT = delaunay(x, y). We can PROVE the interface will be preserved in the triangulation generated by delaunay and the maximal angle is minimized.

slide-26
SLIDE 26

Lower Convex Hull

(a) Step 1: Lift points to the paraboloid (b) Step 2: Form the lowest convex hull in Rn+1. (c) Step 3: Project the lowest convex hull to Rn.

Figure: Delaunay triangulation is the projection of the lower convex hull of points lifted to the paraboloid f = x2.

slide-27
SLIDE 27

Interface Recovery

  • The lower convex hull when lift to Rn+1 will always connect the

intersection points except ...

slide-28
SLIDE 28

A Degenerate Case

A B C D

Figure: Add an auxiliary point in a rectangle to preserve the interface

slide-29
SLIDE 29

Efficiency

Simple, Efficient and Semi-Unstructured.

◮ The greatest advantage: localization. Only call delaunay

for O( √ N) points near the interface. The complexity will be thus O( √ N) in 2-D which can be ignored comparing with the O(N) complexity for assembling the matrix and solving the matrix equation.

◮ No mesh smoothing is needed. The maximal angle is

bounded by 135◦. Good enough for finite element methods.

◮ The mesh is only unstructured near the interface and the

majority of the mesh is structured which leads to nice properties (superconvergence, multigrid etc).

slide-30
SLIDE 30

INTERFACE-FITTED MESH GENERATION

THREE DIMENSIONAL CASE

slide-31
SLIDE 31

Challenges in Tetrahedra Mesh Generation

Figure: Tetrahedra elements [Shewchuk, 2002].

Most Tetrahedra mesh generation/optimization algorithms cannot guarantee sliver-free for a general 3D domain.

Advertisement: Use ODT mesh smoothing which produces fewer slivers in 3D. L. Chen. Mesh smoothing schemes based on optimal Delaunay triangulations. 2004

slide-32
SLIDE 32

3D Interface-fitted Mesh Generation Algorithm

Algorithm 2 3D Interface-fitted Mesh Generation Algorithm

INPUT: Grid size: h; Level set function, ϕ(x); Cube domain, Ω; OUTOUT: Interface-fitted mesh T ;

1: Find the cut points, the Cartesian mesh points near or on the in-

terface and the auxiliary points.

2: Construct a Delaunay triangulation on these points. 3: Post processing: use polytopal meshes.

slide-33
SLIDE 33

Polytopal Mesh v.s. Tetrahedron Mesh

Figure: Bad tetrahedron elements will be eliminated and part of their faces will become the boundary of polytopes. As a surface mesh, the triangles are more acceptable.

slide-34
SLIDE 34

Features of 3D Mesh Generator

◮ Simple, efficient and semi-unstructured. ◮ Recovery the interface. ◮ The maximum angle of surface mesh is uniformly bounded. ◮ Boundary faces of a polytope is either triangle or square.

slide-35
SLIDE 35

Sphere Interface

Figure: Sphere surface with 3, 128 triangles: maximum angle 112.81◦ and minimum angle 11.37◦.

slide-36
SLIDE 36

Sphere Interface

Figure: The mesh near the interface. Use 0.338 second to generate a mesh with 70, 169 points).

slide-37
SLIDE 37

Heart interface

Figure: Heart surface with 3480 triangles: maximum angle 119.89◦ and minimum angle 4.21◦.

slide-38
SLIDE 38

Heart interface

Figure: The mesh near the interface. Use 0.339 second to generate a mesh with 70, 521 points).

slide-39
SLIDE 39

Quartics interface

Figure: Quartics surface with 44, 512 triangles: maximum angle 123.9◦ and minimum angle 11.2◦.

slide-40
SLIDE 40

Quartics interface

Figure: The mesh near the interface. Use 3.183 second to generate a mesh with 553, 161 points.

slide-41
SLIDE 41

Torus interface

Figure: Torus surface with 37, 600 triangles: maximum angle 121.12◦ and minimum angle 11.11◦.

slide-42
SLIDE 42

Torus interface

Figure: The mesh near the interface. Use 2.991 second to generate a mesh with 1, 045, 061 points.

slide-43
SLIDE 43

Outline

Elliptic Interface Problems Interface-fitted Mesh Generation 2D Algorithm 3D Algorithm VEM for Elliptic Interface Problems Weak Formulation Virtual Element Method Weak Galerkin Methods Numerical Results

slide-44
SLIDE 44

Elliptic Interface Problems

Consider −▽ · (β∆u) = f, in Ω\Γ (2) with prescribed jump conditions across the interface Γ: [u]Γ = u+ − u− = q0, [βun]Γ = β+u+

n − β−u− n = q1,

and boundary condition u = g

  • n ∂Ω.
slide-45
SLIDE 45

Weak Formulation: Case 1

For the elliptic interface problem, if the jump conditions are homogeneous, i.e., q0 = 0 and q1 = 0 on Γ, then the problem is equivalent to that of finding u ∈ H1(Ω) with u = g on ∂Ω such that

β▽u · ▽vdx =

fv dx, ∀v ∈ H1

0(Ω)

(3)

slide-46
SLIDE 46

Weak Formulation: Case 2

If q0 = 0, q1 = 0 on Γ, then the corresponding weak formulation is : (β▽u, ▽v)Ω = (f, v)Ω − q1, vΓ, ∀v ∈ H1

0(Ω).

(4) The jump condition [βun]Γ = q1 holds in H−1/2(Γ) sense.

slide-47
SLIDE 47

Weak Formulation: Case 3

If q0 = 0 on Γ, we can find w− : Ω− → R with w− = q0 on ∂Ω− and w− ∈ H1(Ω−). The zero extension of w− ,denote by w satisfies w ∈ H1(Ω− ∪ Ω+) with w = w− on Ω− and w = 0 on Ω+. The choice of w is not unique. The interface problem is equivalent to: find u = p − w with p ∈ H1

0(Ω) such that:

(β▽p, ▽v)Ω = (f, v)Ω − q1, vΓ + (β▽w, ▽v)Ω−, ∀v ∈ H1

0(Ω).

slide-48
SLIDE 48

Virtual Element Method

Virtual element method is a generalization of the standard conforming FEM on polygon or polyhedra meshes.

◮ L. Beir˜

ao Da Veiga, F. Brezzi, A. Cangiani, G. Manzini, L. D. Marini, and A. Russo. Basic principles of virtual element

  • methods. Mathematical Models and Methods in Applied

Sciences, 23(1):199-214, 2013.

◮ B. Ahmad, A. Alsaedi, F. Brezzi, L. D. Marini, and A. Russo.

Equivalent projectors for virtual element methods. Computers and Mathematics with Applications, 66(3): 376-391, 2013.

◮ Beir˜

ao da Veiga L., Brezzi F., Marini L.D. and Russo A. The Hitchhiker’s Guide to the Virtual Element Method. Math. Models Meth. Appl. Sci. 24:1541-1573(2014).

slide-49
SLIDE 49

Spaces in Virtual Element Methods

We introduce the following space on a simple polygon K Vk(K) := {v ∈ H1(K) : v|∂K ∈ Bk(∂K), ∆v ∈ Pk−2(K)}, where Pk(D) is the space of polynomials of degree ≤ k on D and conventionally P−1(D) = 0, and the boundary space Bk(∂K) := {v ∈ C0(∂K) : v|e ∈ Pk(e) for all edges e ⊂ ∂K}.

VEM k = 1 k = 2 k = 3

slide-50
SLIDE 50

Weak Galerkin Methods

Given a polygon mesh Th and an integer k ≥ 1, we introduce Wh = {v = {v0, vb}, v0|K ∈ Pk(K), vb|e ∈ Pk−1(e) ∀e ⊂ K, ∀K ⊂ Th}. Define a modified weak gradient ∇K

w : Wk(K) → ∇Pk(K) as:

given v = {v0, vb} ∈ Wk(K), define ∇K

w v ∈ ∇Pk(K) such that

(∇K

w v, ∇p)K = −(v0, ∆p)K + vb, n · ∇p∂K

for all p ∈ Pk(K).

  • L. Mu, J. Wang, and X. Ye. A weak Galerkin finite element method

with polynomial reduction. Journal of Computational and Applied Mathematics, 285:45–58, 2015.

slide-51
SLIDE 51

Equivalence

The WG finite element is: find uh ∈ W 0

h such that

aWG(uh, v) = (f, v0) ∀v = {v0, vb} ∈ W 0

h.

where aWG(uh, vh) := (∇wuh, ∇wvh)+

  • K⊂Th

χb(ub−u0|∂K)·χb(vb−v0|∂K). The non-conforming VEM is: find uh ∈ V 0

h such that

¯ aVEM

h

(uh, vh) = (f, Π0

kvh)

∀vh ∈ V 0

h ,

where ¯ aVEM

h

(u, v) := (∇Π∇

k u, ∇Π∇ k v) +

  • K∈Th

χb(u − Π0

ku) · χb(v − Π0 kv).

slide-52
SLIDE 52

Outline

Elliptic Interface Problems Interface-fitted Mesh Generation 2D Algorithm 3D Algorithm VEM for Elliptic Interface Problems Weak Formulation Virtual Element Method Weak Galerkin Methods Numerical Results

slide-53
SLIDE 53

NUMERICAL RESULTS

slide-54
SLIDE 54

Implementation and Errors

Our numerical test was based on MATLAB package iFEM.

  • L. Chen. iFEM: an integrated finite element method package in
  • MATLAB. 2009.

We consider the following errors uI − uhA =

  • β1/2

h

▽(u−

I − u− h )2 0,Ω−

h + β1/2

h

▽(u+

I − u+ h )2 0,Ω+

h

1/2 uI − uh∞ = max(u−

I − u− h )0,∞,Ω−

h , u+

I − u+ h )0,∞,Ω+

h )

uI − uh0 =

  • u−

I − u− h )2 0,Ω−

h + u+

I − u+ h )2 0,Ω+

h

1/2 where uh is the numerical approximation and uI is the nodal interpolation.

slide-55
SLIDE 55

A Cube Domain with a Sphere Interface

We chose the following setting φ(x, y, z) =x2 + y2 + z2 − r2 u+ =10(x + y + z) u− =5ex2+y2+z2 + 20 where r = 0.75. The coefficient β is piecewise constant.

slide-56
SLIDE 56

A Cube Domain with a Sphere Surface

slide-57
SLIDE 57

Numerical Tests: β− = 1 and β+ = 1

#Dof h ||uI − uh||A ||uI − uh||∞ ||uI − uh||0 5489 0.125 0.56436 0.0665034 0.0570874 38481 0.0625 0.237781 0.0204017 0.0147826 285281 0.03125 0.0959572 0.00615071 0.00381557 2189860 0.015625 0.0365602 0.00177001 0.000991932

10

1

10

−2

10

−1

log(1/h) Error

||DuI−Duh|| C1h1.3154 ||uI−uh||∞ C2h1.7634

10

1

10

−3

10

−2

log(1/h) Error

||uI−uh|| C1h1.9494

slide-58
SLIDE 58

Numerical Tests: β− = 1 and β+ = 10

#Dof h ||uI − uh||A ||uI − uh||∞ ||uI − uh||0 5489 0.125 0.548404 0.0606638 0.0416347 38481 0.0625 0.224057 0.0197568 0.0135145 285281 0.03125 0.0900665 0.00623164 0.00378079 2189860 0.015625 0.0339467 0.0019323 0.00103507

10

1

10

−2

10

−1

log(1/h) Error

||DuI−Duh|| C1h1.3356 ||uI−uh||∞ C2h1.677

10

1

10

−3

10

−2

log(1/h) Error

||uI−uh|| C1h1.7828

slide-59
SLIDE 59

Numerical Tests:β− = 1 and β+ = 100

#Dof h ||uI − uh||A ||uI − uh||∞ ||uI − uh||0 5489 0.125 0.853561 0.0600918 0.0403713 38481 0.0625 0.338113 0.0204745 0.0134808 285281 0.03125 0.122999 0.00646717 0.00380721 2189860 0.015625 0.0450448 0.00203136 0.00104888

10

1

10

−2

10

−1

log(1/h) Error

||DuI−Duh|| C1h1.4191 ||uI−uh||∞ C2h1.6667

10

1

10

−3

10

−2

log(1/h) Error

||uI−uh|| C1h1.7623

slide-60
SLIDE 60

Numerical Tests:β− = 1 and β+ = 1000

#Dof h ||uI − uh||A ||uI − uh||∞ ||uI − uh||0 5489 0.125 2.25987 0.0600214 0.0402502 38481 0.0625 0.885157 0.0205811 0.0134799 285281 0.03125 0.298777 0.00649235 0.00380979 2189860 0.015625 0.106891 0.00204206 0.00105082

10

1

10

−2

10

−1

10 log(1/h) Error

||DuI−Duh|| C1h1.4773 ||uI−uh||∞ C2h1.6666

10

1

10

−3

10

−2

log(1/h) Error

||uI−uh|| C1h1.7601

slide-61
SLIDE 61

Numerical Tests: β− = 1 and β+ = 10000

#Dof h ||uI − uh||A ||uI − uh||∞ ||uI − uh||0 5489 0.125 6.99301 0.0600142 0.0402382 38481 0.0625 2.73468 0.0205919 0.0134798 285281 0.03125 0.91165 0.00649489 0.00380979 2189860 0.015625 0.324751 0.0020432 0.00105152

10

1

10

−2

10

−1

10 log(1/h) Error

||DuI−Duh|| C1h1.487 ||uI−uh||∞ C2h1.6666

10

1

10

−3

10

−2

log(1/h) Error

||uI−uh|| C1h1.7597

slide-62
SLIDE 62

Algebraic Multigrid Solvers

#Dof β+ = 1 β+ = 10 β+ = 100 β+ = 1000 β+ = 10000 5489 8 8 8 8 8 38481 8 8 8 8 8 285281 10 10 10 10 10 2189860 11 13 12 12 11 Table: Iteration steps of MGCG using W-cycle and AMG preconditioner with fixed β− = 1 and increased β+.

slide-63
SLIDE 63

Summary

Simple, Efficient and Semi-Unstructured 2-D and 3D Interface-fitted Mesh Generator.

slide-64
SLIDE 64

THANK YOU FOR YOUR ATTENTION!

slide-65
SLIDE 65

THANK YOU FOR YOUR ATTENTION! Supported by NSF DMS-1418934
