slide-1

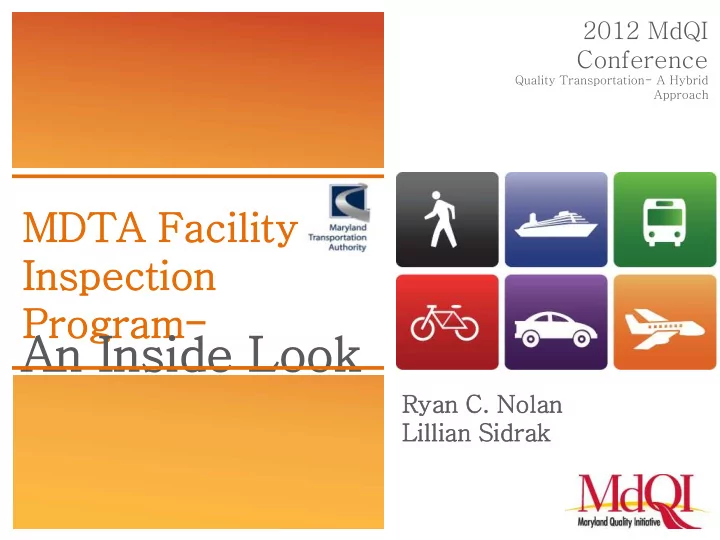

SLIDE 1

MDTA Facil ility In Inspection Program-

An Insid ide Look

2012 MdQI Conference

Quality Transportation- A Hybrid Approach

Ryan C. . Nola lan Lill illian Sidr idrak

slide-2
SLIDE 2

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Agenda

What we own: The Facilities Where we’ve been: Early Inspection Procedures What we did: Evaluation of the System Where we are: Inspection Procedures Inspection Manual Database Management System Where we are going: Maintenance Repairs Preventive Maintenance

slide-3
SLIDE 3

2012 MdQI Conference Quality Transportation- A Hybrid Approach

The Facil ilities

2012 MdQI Conference Quality Transportation- A Hybrid Approach

slide-4
SLIDE 4

2012 MdQI Conference Quality Transportation- A Hybrid Approach

The Facil ilities

William Preston Lane Bridges and Approaches – “Bay Bridge” – US 50 over Chesapeake Bay Harry W. Nice Bridge and approaches – US 301 over Potomac River Thomas J. Hatem Bridge and Approaches – US 40 over Susquehanna River John F. Kennedy Highway – I-95 from Baltimore City to Delaware Line – Includes the Millard E. Tydings Bridge

  • I-95 over Susquehanna River
slide-5
SLIDE 5

2012 MdQI Conference Quality Transportation- A Hybrid Approach

The Facil ilities

Fort McHenry Tunnel and Approaches

– I-95 through Baltimore City

Francis Scott Key Bridge and Approaches

– I-695 over Potapsco River – Includes the draw bridge over Curtis Creek

Baltimore Harbor Tunnel and Approaches

– I-895 from I-95 (Howard County) to I-95 (Baltimore County)

InterCounty Connector

– MD 200 from I-95 to MD 270

slide-6
SLIDE 6

2012 MdQI Conference Quality Transportation- A Hybrid Approach

The Facil ilities

slide-7
SLIDE 7

2012 MdQI Conference Quality Transportation- A Hybrid Approach

The Facil ilities

Assets include:

– All bridges – range in length from 20 feet to 4 miles – Small bridges and culverts (48” in diameter to 19.9’) – Tunnels – Roadways – Traffic and safety features – Sign structures – High mast lights – Toll Plazas, Scales – Drainage – Retaining Walls – Noise Walls

slide-8
SLIDE 8

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Agenda

What we own: The Facilities

Where we’ve been: Early Inspection Procedures

What we did: Evaluation of the System Where we are: Inspection Procedures Inspection Manual Database Management System Where we are going: Maintenance Repairs Preventive Maintenance

slide-9
SLIDE 9

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Early In Inspection Procedures

Trust Agreement

"The MDTA covenants that it will cause independent engineers or engineering firms or corporations having a nationwide and favorable reputation for skill and experience in such work to make an inspection of the Transportation Facilities Projects periodically in accordance with industry standards (but at least annually), to submit to the MDTA a report or reports setting forth their findings as to whether the Transportation Facilities Projects have been maintained in good repair, working

  • rder and condition. Promptly after the receipt of such reports by

the MDTA, copies thereof shall be filed with the Trustee and made available upon request for review to the owner of any Bond issued hereunder."

slide-10
SLIDE 10

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Early In Inspection Procedures

Maintenance Level of Inspections – Visual inspections for defects performed annually – SI&A submitted annually Catastrophic Inspections – Performed every 5 years

  • Met NBI standard for Fracture Critical Members

Underwater Inspections – Performed every 5 years

  • Met NBI standard for Underwater Inspections
slide-11
SLIDE 11

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Early In Inspection Procedures

Defect Oriented Documentation

– Notes only indicated what was wrong – Assumed that if it was not noted, it was inspected and found acceptable

slide-12
SLIDE 12

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Early In Inspection Procedures

  • Compiled in volumes by

facility.

  • Some electronic

information saved on network.

slide-13
SLIDE 13

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Agenda

What we own: The Facilities Where we’ve been: Early Inspection Procedures

What we did: Evaluation of the System

Where we are: Inspection Procedures Inspection Manual Database Management System Where we are going: Maintenance Repairs Preventive Maintenance

slide-14
SLIDE 14

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Evaluation of th the Syste tem

MDTA Discussed New Direction and Improvements to Program.

– Considered comparable owners’ procedures. – Participated in peer reviews. – Need to be Condition Based verses Defect Based. – Need to have “stand alone” inspection reports. – Need to contain greater detail and be more descriptive. – Opportunity to automate the documentation. – Opportunity to directly link findings with repairs.

slide-15
SLIDE 15

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Evaluation of th the Syste tem

Results: Key Outcomes

– Increase funding for inspections to obtain the desired Hands On Inspection in lieu of a Maintenance Inspection. – Establish defined inspection procedures and reporting.

  • Span by span reporting; not just overall bridge

– Develop an Inspection Manual to document procedures and promote consistency. – Develop a Data Management System to record and manipulate findings data.

  • Have the ability to track defects from original finding to repair

and to verified completion.

– Get priority findings addressed rapidly.

slide-16
SLIDE 16

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Agenda

What we own: The Facilities Where we’ve been: Early Inspection Procedures What we did: Evaluation of the System

Where we are: Inspection Procedures Inspection Manual Database Management System

Where we are going: Repairs and Preventive Maintenance

slide-17
SLIDE 17

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Procedures

Inspection Procedures: Funding Inspection contracts increased in number and size

2000: 2- $3 million contracts for 5 years* 2004: 2- $5 million contracts for 5 years* 2008: 3- $8 million contracts for 4 years** 2010: 3- $15 million contracts for 4 years** Funding no longer driving the program.

* M.O.T. provided by MDTA ** M.O.T. provided by Consultants

slide-18
SLIDE 18

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Procedures

Inspection Strategic Action Plan

slide-19
SLIDE 19

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Procedures

For spans less than 40 feet above the ground or water surface, inspection of the superstructure and elevated substructure shall occur from a boat or from the ground. For spans greater than 40 feet above the ground or water surface, the inspectors shall perform a visual inspection of a minimum of 20% of the elements in the span. Access may be gained using catwalks or access equipment.”

Defined Inspection Types and Procedures

– Biennial

  • Hands-on technique
  • Railroad spans on 6 year cycle for hands-on

– Interim

  • Visual technique
  • Hands-on technique where needed.
slide-20
SLIDE 20

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Procedures

Defined Inspection Report

– Biennial

  • Full stand alone document including plans,

condition ratings, condition notes and recommended repairs

  • Typically 40 to 80 pages for a workhorse structure.

For signature structures, can be up to 1500 pages.

– Interim

  • Viewed as a supplement or follow-up to the previous

biennial inspection report.

  • Can be as small as 4 pages for a workhorse bridge
slide-21
SLIDE 21

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Manual

  • Reviewed inspection manuals from numerous other agencies.
  • Consultants responsible for individual portions and cross

checked.

  • Organization of the Manual:

– Chapter 1 – Introduction (General Information) – Chapter 2 – Inspection Documentation – Chapter 3 – SI&A Data – Chapter 4 – Condition Ratings (Items 58-62, 113) – Chapter 5 – Recommendations for Action/Repair – Chapter 6 – Element Ratings (6A, 6B, 6C, 6D, 6E, 6F) – Chapter 7 – Culvert Inspections – Chapter 8 – Highway and Traffic Safety Features – Chapter 9 – Sign Structures and Lighting – Chapter 10 – Tunnel Inspection – Chapter 11 – QA/QC – Appendices

slide-22
SLIDE 22

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Manual

Element Ratings (Chapter 6)

6A – Table of all Elements 6B – Deck (Item 58) 6C – Superstructure (Item 59) 6D – Substructure (Item 60) 6E – Channel Elements (Item 61) 6F – Special Elements Issue Dates: Original September 2010 Revision 1 January 2011 Revision 2 February 2012

slide-23
SLIDE 23

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Manual

slide-24
SLIDE 24

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Manual

slide-25
SLIDE 25

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Manual

slide-26
SLIDE 26

2012 MdQI Conference Quality Transportation- A Hybrid Approach

In Inspection Manual

slide-27
SLIDE 27

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

  • Accessed via RDP
  • Developing internet version

Authority Structural Inspection and Repair

slide-28
SLIDE 28

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

User Work Load

slide-29
SLIDE 29

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

Scheduling of Assets

slide-30
SLIDE 30

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

Structure Inventory

slide-31
SLIDE 31

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

General Information

slide-32
SLIDE 32

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

Inspection Input

slide-33
SLIDE 33

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

Flood Response Input

slide-34
SLIDE 34

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

Emergency Response Input

slide-35
SLIDE 35

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Data ta Management Syste tem

List of Repairs

slide-36
SLIDE 36

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Agenda

2012 MdQI Conference Quality Transportation- A Hybrid Approach

What we own: The Facilities Where we’ve been: Early Inspection Procedures What we did: Evaluation of the System Where we are: Inspection Procedures Inspection Manual Database Management System

Where we are going: Repairs and Preventive Maintenance

slide-37
SLIDE 37

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

2012 MdQI Conference Quality Transportation- A Hybrid Approach

  • Viewing and Creating MDTA Construction On-Call Contracts or New

AE Construction Contracts

  • Viewing and Assigning Consultant Companies to work with the MDTA
slide-38
SLIDE 38

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

– MDTA can view deficiencies that have been unassigned to a Task Order or to a Construction Contract – Deficiencies are linked

slide-39
SLIDE 39

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

Individual Bridge Defects Viewed Task Order Assignments shown Detailed Information is revealed

slide-40
SLIDE 40

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

Primavera and ASIR Working Together Task Order Start and Finish Times Engineers and Construction Estimates

slide-41
SLIDE 41

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

Overview MDTA views defects of a bridge and prioritizes In-house decisions are made

slide-42
SLIDE 42

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

Working with the “Follow-Up” TAB MDTA Takes ACTION to begin the tracking process

slide-43
SLIDE 43

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

Beginning the Defect Tracking Process Overview of the Generalities Category The Contracts Module and the Follow-Up Tab are linked

slide-44
SLIDE 44

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

Status of Deficiencies frequently change until CLOSED by the MDTA

slide-45
SLIDE 45

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

MDTA assigns the priority of the TO addressed. Monies allocated and utilized and percentage of completion for the TO is easily viewed.

slide-46
SLIDE 46

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

  • Defects are triaged by the MDTA engineering group and

repair priorities are able to be changed, if warranted, within the ASIR software. Consultant reports reflect these

  • changes. Example…
  • Defects under a task order that have been tracked and

closed out are no longer viewed in the inspection reports the consultants utilize.

  • The MDTA is able to use one centralized system to handle

facility inspection data from the start of inspection, to the prioritizing of defects, to the repair of these defects.

  • Prioritizing of repairs assists the MDTA in allocating funds.
slide-47
SLIDE 47

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Repairs and Preventive Maintenance

What’s next?

Develop data queries for specific defects to ease in repair packaging. Use inspection data from multiple cycles to trend and monitor costs of inspections. Develop asset health trends to schedule preventive maintenance and system preservation.

slide-48
SLIDE 48

2012 MdQI Conference Quality Transportation- A Hybrid Approach

Questi tions
