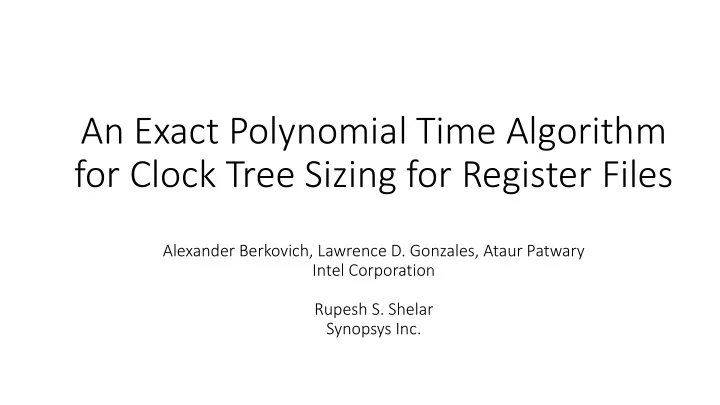

An Exact Polynomial Time Algorithm for Clock Tree Sizing for Register Files

Alexander Berkovich, Lawrence D. Gonzales, Ataur Patwary Intel Corporation Rupesh S. Shelar Synopsys Inc.

Agenda

• Introduction
• Clock Trees for Register Files
• Sizing Algorithm
• Experimental Results & Conclusion

Background

• Memory hierarchy: on-chip, DRAM, SSDs, (X-point), hard drives
• On-chip memory: latch/flop, Register files, SRAM
• Register files for fast on-chip storage
• Employed in processors meant for low power & high performance

applications

• Have been around for decades

Register Files

• Contain bit-cells arranged in rows and columns
• Bit-cell optimized for area, power, speed in each technology
• Circuitry for read-/write address decoding
• Rail-to-rail voltage swing compared to SRAM
• Typically, 8-transistor cells for 1R1W
• Bit-cells are larger
• Use static domino latch instead of sense amplifiers
• Commercial tools available for layout of different configurations

Synchronous Operation

• Most circuits are synchronous
• Register files also accessed in the same fashion
• Requires clock tree sizing considering races
• Commercial tools avoid races by employing self-timed circuits
• Comes at the cost of additional area, power
• May not be desirable for high volume processors

Why clock trees for register files are important

• Clock trees consume significant power, in general
• True for register files also, as all read/write accesses go through clock network
• Bit-cells highly optimized for each technology
• Layout is also optimized using regular arrangement in rows & columns
• Clock trees for RFs have additional constraints, apart from skew, slew
• Races between read & precharge, read & write
• Tedious, time-consuming to size manually

Agenda

• Introduction
• Clock Trees for Register Files
• Sizing Algorithm
• Experimental Results & Conclusion

High-level View

Layout summary of 48 entry x 4-bit array

edgerdpdecc0

rddecsdlc0

vn7inc30ls0v 1

vn7lap00ls0i1

vn7inc30ls0v 1

vn7lap00ls0i1

vn7inc30ls0v 1

vn7lap00ls0i1

vn7inc30ls0v 1

vn7lap00ls0i1

edgewrckdrv

inv Read Address Protection Latches/3:8 Decoder Write Address Protection Latches/3:8 Decoder

RDDECC RDDECC

CKRDM1N22

MCLK

RCB CKWRM2N33 Read Address Protection Latches/3:8 Decoder Write Address Protection Latches/3:8 Decoder RCB

ENTRY 0 ENTRY 47 RDDECC RDDECC RDDECC WRDECC WRDECC WRDECC

Clock Tree Topology

• Clock cell instance naming

convention (for this example only)

• G = Ganged NAND
• B = buffer
• R = RDWL
• P0(1) = L0(1) Precharge
• A = AND
• O = OR
• Numbers in suffix denote the

reverse topological order in which solutions are created

G

RCB

• 55 ar

• 27 ar

G

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

memcell[0] memcell[1] memcell[2] memcell[3] memcell[4] memcell[5] memcell[6] memcell[7]

Earliest L0PCH

Relative Timing Constraints between L0PCH and RDWL

• Relative timing constraint between RDWL & L0PCH
• Rise transition: earliest (latest) L0PCH rise before

earliest of earliest (latest) RDWL receivers

• ENR: Earliest among nearests
• EFR: Earliest among farthests
• Fall transition: latest (earliest) L0PCH falls after

latest of latest (earliest) RDWL receivers

• LNF: Latest among nearests
• LFF: Latest among farthests

Earliest rise and fall Latest rise and fall Latest L0PCH

LFFRDWL EFRRDWL EFRL0PCH LFFL0PCH LNF

RDWL

ENRRDWL ENRL0PCH LNFL0PCH

Additional Constraints for RF Clock Tree Sizing

• Absolute required arrival time at a specific entry
• Relative timing constraints for races between
• L0PCH and RDWL
• L1PCH and RDBL
• RDWL and WRWL
• Approach
• Size one RDWL to the absolute arrival time
• Let the rest of the RDWLs fall as they may
• Size L0PCH, L1PCH, WRWL for relative timing constraints

Agenda

• Introduction
• Clock Trees for Register Files
• Sizing Algorithm
• Experimental Results & Conclusion

Overall Algorithm

• Two stage approach
• Stage 1: Size RDWLs and L0PCH in the 1st stage
• Relative timing constraints for L0PCHs will be met
• Run timing analysis to find arrival times for RDBLs and RDWLs
• Generate constraints for absolute arrival time requirements for L1PCHs and WRWLs
• Stage2: Size L1PCH, WRWLs considering those constraints
• Iterate to account for perturbations of RDWL timing during Stage 2
• Dynamic programming for clock tree sizing considering races
• Specifically, will show how bottom-up solution generation is carried out
• Most critical step
• Also, dominant one from time complexity perspective

Example

• Assume

– Each clock buffer has 3 strengths

• Power = 3 unit, delay = 22 unit
• Power = 2 unit, delay = 24 unit
• Power = 1 unit, delay = 26 unit
• Generate solutions in reverse topological
• rder
• A solution associated with a clock buffer

characterized by a 10-element vector (EFR, LFF, ENR, LNF, RR_spc, RF_spc, Rise-cell- delay, fall-cell-delay, cell-power, total-power)

G

RCB

• 55 ar

• 27 ar

G

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

Bottom-up Solution Generation

• Assume

– required arrival time at the specified entry is 27 unit – L0PCH has to rise/fall before/after RDWL by ≥5 unit

• Initialize the solutions at leaves, i.e., the

receivers of BR1[0:7] and BP01 to (27, 27, 27, 27, 27, 27, 0, 0, 0, 0)

• Create solutions in the following order:

– BR1, GR1, BP01, BR2, GR2, RCB – BP12, OP11, AP11, BP13, BP14, RCB

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

Bottom-up Solution Generation (C (CNTD.)

• 3 steps:

– Combine solutions at the output – Consider sizes for the current clock buffer to create solutions – Prune inferior solutions

G

RCB

• 55 ar

• 27 ar

G

Bottom-up Solution Generation: Combining Solutions at B BR1

• Assume max and min wire-

delay to be 6 and 2 unit

• Combine solutions at the
• utput of BR1

– (27-6, 27-6, 27-2, 27- 2, 27-6, 27-6, 0, 0, 0, 0) = (21, 21, 25, 25, 21, 21, 0, 0, 0, 0) – For 2nd and 3rd iteration, RDWL[i] may have different wire-delays, so use the appropriate

• nes for each BR1[i]

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

G

RCB

• 55 ar

• 27 ar

G

Bottom-up Solution Generation: Considering choices for BR1

• For 1st iteration, assume slope;

use actual values for later ones

• 3 solutions corresponding to 3

choices

– Solution 1: (21-22, 21- 22, 25-22, 25-22, 21- 22, 21-22, 22, 22, 3, 3) = (-1, -1, 3, 3, -1, -1, 22, 22, 3, 3) – Solution 2: (-3, -3, 1, 1,

• 3, -3, 24, 24, 2, 2)

– Solution 3: (-5, -5, -1, - 1, -5, -5, 26, 26, 1, 1)

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

G

RCB

• 55 ar

• 27 ar

G

Bottom-up Solution Generation: Pruning at BR1

• No solution with same

RR_spc, RF_spc, but higher power

• So, keep all 3 solutions

– Solution 1: (21-22, 21- 22, 25-22, 25-22, 21- 22, 21-22, 22, 22, 3, 3) = (-1, -1, 3, 3, -1, -1, 22, 22, 3, 3) – Solution 2: (-3, -3, 1, 1,

• 3, -3, 24, 24, 2, 2)

– Solution 3: (-5, -5, -1, - 1, -5, -5, 26, 26, 1, 1)

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

G

RCB

• 55 ar

• 27 ar

G

Bottom-up Solution Generation: Combining at GR1

• Assuming max-/min wire-delay to be 2

and 6 unit, and for the specific entry wire- delay is 4 unit, we get the following solutions after the result of combine: – Solution 1: (-1-6, -1-6, 3-2, 3-2, - 1-4, -1-4, 22, 22, 3, 3*4) = (-7, -7, 1, 1, -5, -5, 22, 22, 3, 12) – Solution 2: (-3-6, -3-6, 1-2, 1-2, - 3-4, -3-4, 24, 24, 2, 2*4) = (-9, -9,

• 1, -1, -7, -7, 24, 24, 2, 8)

– Solution 3: (-5-6, -5-6, -1-2, -1-2, - 5-4, -5-4, 26, 26, 1, 1*4) = (-11, - 11, -3, -3, -9, -9, 26, 26, 1, 4)

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

Bottom-up Solution Generation: Considering Choices for GR1

• 3 solutions at the output, (-7, -7, 1, 1, -5, -5, 22, 22, 12, 12), (-9, -9, -1, -1, -7, -7, 24, 24, 8, 8), (-11,
• 11, -3, -3, -9, -9, 26, 26, 4, 4), and 3 choices for GR1, Power=3, 2, 1 unit results in 9 solutions as

follows:

• Solution 1 (Power=3 unit): (-7-22, -7-22, 1-22, 1-22, -5-22, -5-22, 22, 22, 3, 12+3) = (-29, -29, -

21, -21, -27, -27, 22, 22, 3, 15)

• Solution 2 (Power=3 unit): (-31, -31, -23, -23, -29, -29, 22, 22, 3, 11)
• Solution 3 (Power=3 unit): (-33, -33, -25, -25, -31, -31, 22, 22, 3, 7)
• Solution 4 (Power=2 unit): (-7-24, -7-24, 1-24, 1-24, -5-24, -5-24, 24, 24, 2, 12+2) = (-31, -31, -

23, -23, -29, -29, 24, 24, 2, 14)

• Solution 5 (Power=2 unit): (-33, -33, -25, -25, -31, -31, 24, 24, 2, 10)
• Solution 6 (Power=2 unit): (-35, -35, -27, -27, -33, -33, 24, 24, 2, 6)
• Solution 7 (Power=1 unit): (-7-26, -7-26, 1-26, 1-26, -5-26, -5-26, 26, 26, 1, 12+1) = (-33, -33, -

25, -25, -31, -31, 26, 26, 1, 13)

• Solution 8 (Power=1 unit): (-35, -35, -27, -27, -33, -33, 26, 26, 1, 9)
• Solution 9 (Power=1 unit): (-37, -37, -29, -29, -35, -35, 26, 26, 1, 5)

√ √ √ X √ X √ X X

• Pruning the solutions with same RR_spc, RF_spc but higher power

results in the following:

• Solution 1 (Power=3 unit): (-29, -29, -21, -21, -27, -27, 22, 22, 3, 15)
• Solution 2 (Power=3 unit): (-31, -31, -23, -23, -29, -29, 22, 22, 3, 11)
• Solution 3 (Power=3 unit): (-33, -33, -25, -25, -31, -31, 22, 22, 3, 7)
• Solution 6 (Power=2 unit): (-35, -35, -27, -27, -33, -33, 24, 24, 2, 6)
• Solution 9 (Power=1 unit): (-37, -37, -29, -29, -35, -35, 26, 26, 1, 5)
• Note, how optimum power solutions are preserved

Bottom-up Solution Generation: Considering Choices for GR1

(CNTD.)

G

RCB

• 55 ar

• 27 ar

G

Bottom-up Solution Generation: Creating Solutions at t BP01

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

• Assume max and min wire-

delay to be 6 and 2 unit

• Combine solutions at the
• utput of BP01

–(27-6, 27-6, 27-2, 27- 2, 27-6, 27-6, 0, 0, 0, 0) = (21, 21, 25, 25, 21, 21, 0, 0, 0, 0)

• BP01 is skewed, so let’s

assume fall is 18 unit slower and that it has 3 sizes with rise/fall delays as follows

• 3 unit, 44/62 unit
• 2 unit, 48/66 unit
• 1 unit, 52/70 unit

G

RCB

• 55 ar

• 27 ar

G

Bottom-up Solution Generation: Creating Solutions at t BP01

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

• 3 Solutions at BP01 as follows:
• Solution 1: (21-44, 21-62, 25-44, 25-

62, 21-44, 21-62, 44, 62, 3, 3) = (-23, - 41, -19, -37, -23, -41, 44, 62, 3, 3)

• Solution 2: (21-48, 21-66, 25-48, 25-

66, 21-48, 21-66, 48, 66, 2, 2) = (-27, - 45, -23, -41, -27, -45, 48, 66, 2, 2)

• Solution 3: (21-52, 21-70, 25-52, 25-

70, 21-52, 21-70, 52, 70, 1, 1) = (-31, - 49, -27, -45, -31, -49, 52, 70, 1, 1)

• Pruning is trivial, so all the solutions

preserved in this case

G

RCB

• 55 ar

• 27 ar

G

Bottom-up Solu lutio ion Generation: Combin inin ing Solu lutions at t fanout of f BR2

• Update the required arrival times for solutions

from BP01 and GR1

• Assume wire-delay from BR2 to BP01 to be 4 units.

So, the solutions from L0PCH path are:

• Sol.1: (-27, -45, -23, -41, -27, -45, 22, 31, 3, 3)
• Sol. 2: (-31, -49, -27, -45, -31, -49, 24, 33, 2, 2)
• Sol. 3: (-35, -53, -31, -49, -35, -53, 26, 35, 1, 1)
• Assume wire-delay from BR2 to GR1 to be 6 unit.

So, the solutions from RDWL path are:

• Sol. 1: (-35, -35, -27, -27, -33, -33, 22, 22, 3, 15)
• Sol. 2: (-37, -37, -29, -29, -35, -35, 22, 22, 3, 11)
• Sol. 3: (-39, -39, -31, -31, -37, -37, 22, 22, 3, 7)
• Sol. 6: (-41, -41, -33, -33, -39, -39, 24, 24, 2, 6)
• Sol. 9: (-43, -43, -35, -35, -41, -41, 26, 26, 1, 5)

BR1 GR1 BP01 BR2 GR2 BP11 BP12 OP11 AP11 BP13 BP14 RCB

Bottom-up Solution Generation: Combining Solutions at fanout of BR2

• Combine solutions from L0PCH path those from RDWL path iff (∆ = 5 units)
• Rise transition: EFRL0PCH ≥ EFRRDWL+ 5 && ENRL0PCH ≥ ENRRDWL+ 5
• Fall transition: LFFL0PCH ≤ LFFRDWL - 5 && LNFL0PCH ≤ LNFRDWL - 5
• 15 possible solutions:
• Combination: Sol. 1L0PCH && Sol. 1RDWLinvalid (ENRL0PCH ≥ ENRRDWL + 5 false)
• Combination: Sol. 1L0PCH && Sol. 2RDWL valid
• Combination: Sol. 1L0PCH && Sol. 3RDWL valid
• Combination: Sol. 1L0PCH && Sol. 6RDWL invalid (LFFL0PCH ≤ LFFRDWL - 5 false)
• Combination: Sol. 1L0PCH && Sol. 9RDWL invalid (LFFL0PCH ≤ LFFRDWL - 5 false)
• Combination: Sol. 2L0PCH && Sol. 1RDWL invalid (EFRL0PCH ≥ EFRRDWL + 5 false)
• Combination: Sol. 2L0PCH && Sol. 2 RDWL invalid (ENRL0PCH ≥ ENRRDWL+ 5 false)
• Combination: Sol. 2L0pCH && Sol. 3RDWL invalid (ENRL0PCH ≥ ENRRDWL+ 5 false)
• Combination: Sol. 2L0PCH && Sol. 6RDWL valid
• Combination: Sol. 2L0pch and Sol. 9RDWLvalid
• Sol. 3L0PCH cannot be combined with any solution from RDWL, since ENRL0PCH ≥ ENRRDWL + 5
• Out of 15 only 4 solutions valid (that’s why problem is more difficult than that without relative timing constraints)
• Also, the combinations of GR1, BR1, and BP01 should be considered simultaneously (LR-like algorithm is

at disadvantage)

• For valid combinations, add total powers and keep RATs due to the solutions from RDWL path

Bottom-up Solution Generation: Combinin ing Solu lutions at fanout of BR2

• 4 Valid combinations:

–

• Sol. 2: (-37, -37, -29, -29, -35, -35, 22, 22, 3, 11+3)

–

• Sol. 3: (-39, -39, -31, -31, -37, -37, 22, 22, 3, 7+3)

–

• Sol. 6: (-41, -41, -33, -33, -39, -39, 24, 24, 2, 6+2)

–

• Sol. 9: (-43, -43, -35, -35, -41, -41, 26, 26, 1, 5+2)
• Consider 3 sizes for BR2 to create 12 possible solutions and then prune, and continue

sizing GR2, RCB

• At the root, choose the solution whose RAT is the closest to that of grid clock arrival
• Next, perform timing analysis and apply the sizing for L1PCH path with absolute arrival

time requirement, and by sizing RCB to the same delay from L0PCH/RDWL sizing iteration (Why? )

• In the next iteration, size L0PCH and RDWL paths…
• Typically, in 3 iterations sizes converge or do not change much

Time Complexity & Limitations

• Time complexity: O(NB2), N = number of clock buffers in the tree; B =

maximum number of size choices for a clock buffer

• Since only part of the clock tree is sized (remaining instantiations get

the same sizes), runtimes are fast, in minutes, excluding timing analysis/extraction, etc.

• Limitation:
• Inaccuracies in delays due to actual slopes - typically, diminish in 3 iterations

Agenda

• Introduction
• Clock Trees for Register Files
• Sizing Algorithm
• Experimental Results & Conclusion

Experimental Results

• Algorithm implemented on top of internal timer
• Employed for clock tree sizing of ~100 register file blocks in 22 nm
• Runs in minutes on these blocks
• Saves ~22% of clock power over traditional sizing

Conclusion

• Algorithm results in power savings and productivity improvement
• Has been proliferated for use in advanced technologies
• Has also been incorporated in proprietary RF automation flow
• Resulted in wide use across microprocessors, from low power to high

performance applications

• Applicable to sizing for races in general, as long as those can be

capturing employing time constraints

Acknowledgments

• Authors would like to thank several of their colleagues for review and

comments

Questions
