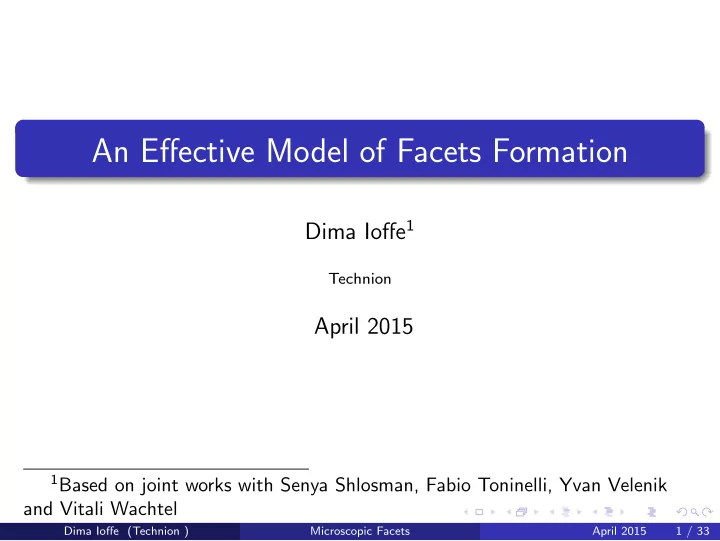

An Effective Model of Facets Formation Dima Ioffe 1 Technion April - - PowerPoint PPT Presentation

An Effective Model of Facets Formation

Dima Ioffe1

Technion

April 2015

1Based on joint works with Senya Shlosman, Fabio Toninelli, Yvan Velenik

and Vitali Wachtel

Dima Ioffe (Technion ) Microscopic Facets April 2015 1 / 33

Plan of the Talk

A macroscopic variational problem. Low temperature 3D Ising model, Wulff shapes and (unknown) structure of microscopic facets. Facets on SOS surfaces with bulk Bernoulli fields. Fluctuations of level lines.

Dima Ioffe (Technion ) Microscopic Facets April 2015 2 / 33

Macroscopic Variational Problem

Surface tension τβ and bulk susceptibility Dβ are coming from an effective SOS-type model at inverse temperature β.

γ7

B = [−1, 1]2

Nested family of loops L = (γ1, . . . , γ7) γ6 γ2 γ1 γ3 γ5 γ4

τβ(γ) =

• γ τβ(ns)ds.

τβ(L) =

ℓ τβ(γℓ).

a(γ) - area inside γ. a(L) =

ℓ a(γℓ).

min

L

• (δ − a(L))2

2Dβ + τβ(L)

• (VPδ)

Dima Ioffe (Technion ) Microscopic Facets April 2015 3 / 33

Macroscopic Variational Problem: Rescaling

Let e be a lattice direction. Set v = δ τβ(e)Dβ , σβ = Dβτβ(e) and τ(·) = τβ(·) τβ(e). (1) Since, (δ − a(L))2 2Dβ + τβ(L) = δ2 2Dβ + τβ(e)

• −va(L) + τ(L) + a(L)2

2σβ

• ,

we can reformulate the family of variational problems (VPδ) as follows: min

L

• −va(L) + τ(L) + a(L)2

2σβ

• .

(VPv)

Dima Ioffe (Technion ) Microscopic Facets April 2015 4 / 33

Geometric Interpretation (Legendre-Fenchel Transform)

τ(a) = min {τ(L) : a(L) = a} Given v ≥ 0, find min

L

• −va + τ(a) + a2

2σβ

• .

(VPv)

τ(a) + a2 2σβ v∗ 2 v∗ 1 v∗ 3 a− 1 a+ 1 a− 2 a+ 2 a− 3 a

If the graph of a → τ(a) +

a2 2σβ

is not convex, then an (infinite) sequence of first

• rder transitions with:

Transition slopes v ∗

1, v ∗ 2, . . . .

Transition areas a±

ℓ .

Dima Ioffe (Technion ) Microscopic Facets April 2015 5 / 33

Wulff Shapes and Wulff Plaquettes Recall B = [−1, 1]2. The rescaled surface tension τ(e) = 1. The Wulff shape W ∂

• x : x · n ≤ τ(n) ∀ n ∈ S1

has radius 1. Consider: min

γ⊂B; a(γ)=b τ(γ)

(STb)

Wb Pb r r

B B

Wulff Plaquette of area b Wulff Shape of area b

Define w = a(W). Wb solves (STb) for b = r 2w ∈ [0, w] Pb solves (STb) for b = 4−r 2(4−w) ∈ [w, 4].

Dima Ioffe (Technion ) Microscopic Facets April 2015 6 / 33

Isoperimetric Stacks

min

L

• −va(L) + τ(L) + a(L)2

2σβ

• .

(VPv)

Define: Sb = Wb1 Ib∈[0,w) + Pb1 Ib∈[w,4] Each nested family L of loops could be recorded as an integer valued function u : B1 → N ∪ 0. Set bℓ = |x : u(x) ≥ ℓ|. Rearrangement: L∗ = {Sb1, Sb2, . . .} - nested family of loops. a(L∗) = a(L) but τ(L∗) ≤ τ(L).

−1 −1 1 1 u u∗

Hence only stacks of Wulff plaquettes and shapes matter.

Dima Ioffe (Technion ) Microscopic Facets April 2015 7 / 33

Regular Isoperimetric Stacks of Type 1 and 2 Recall w = a(W). For any b ∈ (0, w), respectively, b ∈ (w, 4),

d dbτ (Wb) = 1 r(b) and d dbτ (Pb) = 1 r(b).

Which means that optimal stacks of area a could be one of two types: Stacks L1

ℓ(a) of type 1. These contain ℓ − 1 identical Wulff

plaquettes and a Wulff shape, all of the same radius r ∈ [0, 1]. Stacks L2

ℓ(a) of type 2. These contain ℓ identical Wulff plaquettes of

the same radius r ∈ [0, 1].

Set ℓ∗ ∆ =

4 4−w (and assume ℓ∗ ∈ N). Then, relevant area ranges are:

Range(L1

ℓ) =

• [4(ℓ − 1), ℓw],

if ℓ < ℓ∗ [ℓw, 4(ℓ − 1)], if ℓ > ℓ∗ and Range(L2

ℓ) = [ℓw, 4ℓ]

Dima Ioffe (Technion ) Microscopic Facets April 2015 8 / 33

Structure of Solutions to (VPv )

min

L

• −va(L) + τ(L) + a(L)2

2σβ

• .

(VPv)

• If w ≤ 2σβ, then stacks of type 1 are never optimal, and (recall

Range(L2

ℓ) = [ℓw, 4ℓ]):

3w 12 etc v∗ 1 Transition slopes 0 < v∗ 1 < v∗ 2 < . . . L2 1 L2 3 v∗ 4 L2 2 v∗ 3 v∗ 2 w a 4 2w 8

Dima Ioffe (Technion ) Microscopic Facets April 2015 9 / 33

Structure of solutions to (VPv ) Recall ℓ∗ ∆ =

4 4−w ∈ N. For ℓ < ℓ∗ the area ranges are:

Range(L1

ℓ) = [4(ℓ − 1), ℓw] and Range(L2 ℓ) = [ℓw, 4ℓ]

• If w > 2σβ, then then there exists a number 1 ≤ k < ℓ∗

1 − σβ

8

• such

that stacks L1

ℓ show up for any ℓ = 1, . . . , k:

2w a+ 2 a− k Type 2 L2 2 L2 1 L1 1 L1 2 L2 k a+ k kw L1 k a− 1 a w a+ 1 a− 2

Dima Ioffe (Technion ) Microscopic Facets April 2015 10 / 33

3D Ising model

∂ΛN ΛN ⊂ Z3 |ΛN| = N3

The Gibbs State − H−

N = 1

2

• x∼y

σxσy−

• x∈∂ΛN

σx P−

N,β(σ) ∼ e−βH−

N

Low Temperature β ≫ 1 ⇒ m∗(β) > 0. Phase Segregation: Fix m > −m∗ and consider Pm,−

N,β (·) = P− N,β

• ·
• σx = mN3

.

Dima Ioffe (Technion ) Microscopic Facets April 2015 11 / 33

Microscopic 3D Wulff shape

Typical Picture under Pm,−

N,β

ΓN

Volume of the microscopic Wulff droplet |ΓN| ≈ m + m∗ 2m∗ N3 Theorem (Bodineau, Cerf-Pisztora): As N → ∞ the scaled shape

1 N ΓN converges to the macroscopic Wulff shape.

Dima Ioffe (Technion ) Microscopic Facets April 2015 12 / 33

3D Surface Tension and Macroscopic Wulff Shape

n + − M + − n Kβ h

ξβ(n) = − lim

M→∞

| cos n| M2 log Z ±

M

Z −

M

. ξβ = max

h∈∂Kβ h · n

Dilated Wulff Shape Km

β =

m + m∗ 2m∗|Kβ| 1/3 Kβ

Dima Ioffe (Technion ) Microscopic Facets April 2015 13 / 33

Bodineau, Cerf-Pisztora Result

N(Km β + u) ΓN Nu

Define (on unit box Λ ⊂ R3) φN(t) = 1 I{Nt∈ΓN} − 1 I{Nt∈ΓN}. Define χm(t) = 1 I{t∈Km

β} − 1

I{t∈Km

β}

Then, under

• Pm,−

N,β

• ,

lim

N→∞ min u φN(·) − χm(u + ·)L1(Λ) = 0

Dima Ioffe (Technion ) Microscopic Facets April 2015 14 / 33

Macroscopic Facets

Kβ n Fn ξβ - support function of Kβ. Then Fn = ∂ξβ(n). Set ei - lattice direction. Dobrushin ’72, Miracle-Sole ’94: For β ≫ 1 Fei is a proper 2D facet

Dima Ioffe (Technion ) Microscopic Facets April 2015 15 / 33

Microscopic Facets

Zooming Bodineau, Cerf-Pisztora picture, what happens?

NFe1 NFe1 NFe1 ΓN OR ΓN OR ΓN

Dima Ioffe (Technion ) Microscopic Facets April 2015 16 / 33

SOS Model BN = {−N, . . . , N}2

ΓN VN

BN = {−N, . . . , N}2

Ak k ℓN

Bodineau, Schonmann, Shlosman ’05 PN (ΓN = γ) ∼ e−β|γ| Pm

N (·) = PN

• ·
• VN ≥ mN3

Result: There exists a(β) ց 0 such that ℓN = max

• k : Ak ≥ a(β)N2

satisfies AℓN−1 ≥ (1 − a(β))N2.

Dima Ioffe (Technion ) Microscopic Facets April 2015 17 / 33

Effective Model of Microscopic Facets

ΓN VN SN

BN = {−N, . . . , N}2

ps β pv β

Configuration:

• ΓN, {ξv

i }i∈VN ,

• ξs

j

• j∈SN
• .

Total number of particles: ΞN =

• i∈VN

ξv

i +

• j∈SN

ξs

j

|Γ| - area of Γ Bp(ξ) = pξ(1 − p)1−ξ β large

Dima Ioffe (Technion ) Microscopic Facets April 2015 18 / 33

Contour Representation of Γ

Orientation of contours: Positive and negative (holes) α(γ) - signed area. |γ| - length. Compatibility γ ∼ γ′ For Γ = {γi} |Γ| ∼

• |γi|, α(Γ)

∆

=

• α(γi)

Dima Ioffe (Technion ) Microscopic Facets April 2015 19 / 33

Creation of Facets

ps pv α(ΓN)

ΞN - total number of particles EN (ΞN) = ps + pv 2 N3 ∆ = pN3 Consider PA

N (·) = PN

• ·
• ΞN = pN3 + AN2

2D Surface Tension: log P

• α(ΓN) = aN2

≈ −Nτβ(a). Bulk Fluctuations: ∆ = 2(ps − pv), EN

• ΞN
• α(ΓN)
• = pN3 + ∆α(ΓN).

log PN

• ΞN = pN3 + AN2

α(ΓN) = aN2 ≈ −(AN2 − ∆aN2)2 N3R = −N (δ − a)2 2Dβ , where R = ps(1 − ps) + pv(1 − pv), Dβ = R/(2∆2) and δ = A/∆. Hence mina

• (δ−a)2

2Dβ

+ τβ(a)

• .

Dima Ioffe (Technion ) Microscopic Facets April 2015 20 / 33

Surface Tension and Macroscopic Variational Problem

C Nx γ

wβ(γ) = e−β|γ|−

C∼γ Φβ(γ)

Gβ(Nx) =

• γ:0→Nx

wβ(γ). τβ(x) = − lim

N→∞

1 N log Gβ(Nx). τβ(γ) =

• γ

τβ(ns)ds.

Macroscopic Variational Problem

Recall ∆ = 2(ps − pv), R = ps(1 − ps) + pv(1 − pv) , Dβ = R/(2∆2) and δ = A/∆. (VP)δ min

a

(δ − a)2 2Dβ + min

a(L)=a τβ(L)

• .

Dima Ioffe (Technion ) Microscopic Facets April 2015 21 / 33

Reduction to Large Contours Fix β ≫ 1. Bulk fluctuations simplify analysis of PA

• N. Recall the contour

representation Γ = {γi}. Lemma 1 (No intermediate contours). ∀A > 0 there exists ǫ = ǫ(A) > 0 such that PA

N

• ∃γi : 1

ǫ log N ≤ |γi| ≤ ǫN

• = o(1).

Lemma 2 (Irrelevance of small contours) PA

N

• α(γi)1

I{|γi|≤ǫ−1 log N}

• ≫ N
• = o(1).

Definition: γ is large if |γ| ≥ ǫN.

Dima Ioffe (Technion ) Microscopic Facets April 2015 22 / 33

Reduced Model of Large Contours

• A. Fix A > 0 and forget about intermediate contours 1

ǫ log N ≤ |γ| ≤ ǫN.

• B. Expand with respect to small contours |γ| ≤ 1

ǫ log N.

For Γ = {γi} collection of large contours the effective weight is ˆ PN(Γ) ∝ exp

• −β |γi| −

C∼Γ Φβ(C)

• .

The family of clusters C depends on N and A. However cluster weights Φβ(C) remain the same, and they are small: For all β sufficiently large |Φβ(γ; C)| ≤ ce−β(diam(C)+1) Reduced Model of Large Contours and Bulk Particles: ˆ PN (Γ, ξv, ξs) = ˆ PN(Γ)

• i∈ ˆ

VN

Bpv (ξv

i )

• j∈ ˆ

SN

Bps(ξs

j )

Dima Ioffe (Technion ) Microscopic Facets April 2015 23 / 33

Limit Shapes Result (I., Shlosman 2015) Recall: ∆ = 2(ps − pv), R = ps(1 − ps) + pv(1 − pv) , Dβ = R/(2∆2) and δ = A/∆. (VP)δ mina

• (δ−a)2

D

+ mina(L)=a τβ(L)

• .

a+ k∗ A1 A2 A3 Type 2 k∗ Layers Ak∗ a+ 1 a− 1 a− 2 a+ 2 a− k∗

Set: ˆ PA

N (·) = ˆ

PN

• ·
• ΞN = pN3 + AN2

. Then for any ν > 0 and any A ≥ 0, the (random) collection of large contours Γ satisfies: limN→∞ ˆ PA

N

• minL∗−solutions to (VP)δ dH

1

N Γ, L∗

< ν

• = 1

Dima Ioffe (Technion ) Microscopic Facets April 2015 24 / 33

1st Order (Shape) Transitions in Microscopic Models

1

For β ≫ 1 pure 2+1 SOS, conditioned to stay positive and with an additional bulk field h > 0, Chesi-Martinelli (JSP 1996) and Dinaburg-Mazel (JSP 1996) proved a sequence of layering transitions as h ց 0.

2

Spontaneous appearance of a droplet of linear size N2/3 in the context of the 2D Ising model (any β > βc) was established by Biskup, Chayes and Kotecky (CMP’03).

3

For β ≫ 1 pure 2+1 SOS, conditioned to stay positive and with an additional attractive 0-layer boundary field h, Alexander, Dunlop and Miracle-Sol´ e (JSP 2011) proved a sequence of layering transitions as h ց 0.

4

For β ≫ 1 pure 2+1 SOS (without bulk Bernoulli fields) models of interfaces with zero b.c. on ∂BN, and conditioned to stay positive on BN, Caputo, Lubetzky, Martinelli, Sly and Toninelli proved in a series of works 2012-14 that there are ⌊ 1

4β log N⌋ macroscopic facets with asymptotically

different Wulff Plaquette shapes.

Dima Ioffe (Technion ) Microscopic Facets April 2015 25 / 33

Difficulty: Control of Interactions of Contours in Macroscopic Stacks

C γ2 γ1

• C∼γ1∪γ2

Φβ(C) =

• C∼γ1

Φβ(C) +

• C∼γ2

Φβ(C) −

• C∼γ1∩γ2

Φβ(C) As β ր ∞ the interaction becomes small, but fluctuations of contours (level lines) also become small, at least along axis directions. Hence we are dealing with small attraction vrs small entropic repulsion.

Dima Ioffe (Technion ) Microscopic Facets April 2015 26 / 33

Interaction Between ℓ Contours

γ1 γ2 γ3 γℓ

Dima Ioffe (Technion ) Microscopic Facets April 2015 27 / 33

A general Result for Ising Polymers

C3 C4 x y γ C2 C1

wβ(γ) = e−β|γ|+

C∼γ Φβ(γ;C).

Assumption: |Φβ(γ; C)| ≤ ce−χβ(diam(C)+1). Theorem (I, Shlosman, Toninelli , JSP 2015) If χ > 1

2, then repulsion wins over attraction for all β sufficiently large, in

the sense that half-space surface tension equals to the full space surface tension. Remarks:

• a. In the case of SOS interfaces χ = 1.
• b. The theorem takes care of an interaction between one contour and a

hard wall. Interactions between two, and more generally ℓ, ordered contours still has to be worked out.

Dima Ioffe (Technion ) Microscopic Facets April 2015 28 / 33

Effective RW Representation of Ising Polymers Portion of a Contour Between x and y

x y ˆ γ1 ˆ γ2 ˆ γm ξ1 ξ2 x y ξm

eτβ(y−x)Gβ(y − x) ∼ =

m

• ˆ

γ1,...ˆ γm

ρβ(ˆ γi) {ρβ(·)} is a probability distribution on the set of irreducible animals. ξ1 = (T1, X1), ξ2 = (T2, X2), . . . steps of the effective random walk.

Dima Ioffe (Technion ) Microscopic Facets April 2015 29 / 33

Fluctuations of Facets near Flat Boundaries

ΓN VN N Nα

• Bulk fluctuation price for VN is ∼ VNN2

N3

∼ VN

N .

• Repulsion price for staying Nα away from the boundary is N1−2α.

Therefore, N1−2α ∼ VN

N ∼ N1+α N

= Nα gives α = 1/3.

Dima Ioffe (Technion ) Microscopic Facets April 2015 30 / 33

Random Walks under Area Tilts

VN −N N a b X-trajectory of RW

• Partition Function:

Z a,b

N,+,λN =

• X∈T a,b

N,+

e−λNVNp(X)

• Scaling: xN(t) = λ1/3

N X(λ−2/3 N

t).

Dima Ioffe (Technion ) Microscopic Facets April 2015 31 / 33

Random Walks under Area Tilts

VN −N N a b X-trajectory of RW

• Partition Function:

Z a,b

N,+,λN =

• X∈T a,b

N,+

e−λNVNp(X)

• Scaling: xN(t) = λ1/3

N X(λ−2/3 N

t). In general: {Φλ} - family of self-potentials, define Φλ(X) = N

−N Φλ(Xi).

Z a,b

N,+,λN =

• X∈T a,b

N,+

e−ΦλN (X)p(X)

Dima Ioffe (Technion ) Microscopic Facets April 2015 31 / 33

Random Walks under Area Tilts: Ferrari-Spohn Diffusion

VN −N N a b X-trajectory of RW

Φλ(X) =

N

• −N

Φλ(Xi) and Z a,b

N,+,λN =

• X∈T a,b

N,+

e−ΦλN (X)p(X). Scale: H2

λΦλ(Hλ) = 1.

Assumption: limλ→0 H2

λΦλ(Hλr) = q(r) and limr→∞ q(r) = ∞.

Sturm-Liouville operator on R+: Set σ2 =

x x2p(x) and

L = σ2

2 d2 dr2 − q(r). Let ϕ1 - the leading eigenfunction of L.

Theorem (I, Shlosman, Velenik (CMP 2015)) The rescaled walk xN(t) = H−1

λN X(H2 λNt) converges to ergodic diffusion with generator

σ2 2ϕ2

1(r)

d dr

• ϕ2

1(r) d

dr

• .

Dima Ioffe (Technion ) Microscopic Facets April 2015 32 / 33

ℓ Ordered Random Walks under Area Tilts

b2 a2 a1 b1 X2 X1 Xℓ −N N aℓ bℓ

Z a,b

N,+,λN =

• X∈T a,b

N,+

e− ℓ

m=1 ΦλN (Xm)

ℓ

• m=1

p(Xm). Work in Progress: Let ϕ1, . . . , ϕℓ be first ℓ eigenfunctions of L. Define ∆ℓ(r) = det (ϕi(rj)). Then, the rescaled process H−1

λN X(H2 λNt) converges

to ergodic diffusion on {r : 0 < rℓ < · · · < r2 < r1} with generator

σ2 2∆2

ℓ(r)div

• ∆2

ℓ(r)∇

• .

Dima Ioffe (Technion ) Microscopic Facets April 2015 33 / 33
