Ambiguous pattern variables Gabriel Scherer , Luc Maranget, Thomas R efis Northeastern University September 22, 2016 Gabriel Scherer , Luc Maranget, Thomas R efis (Northeastern University) Ambiguous pattern variables September 22, 2016 1

slide-1

SLIDE 1

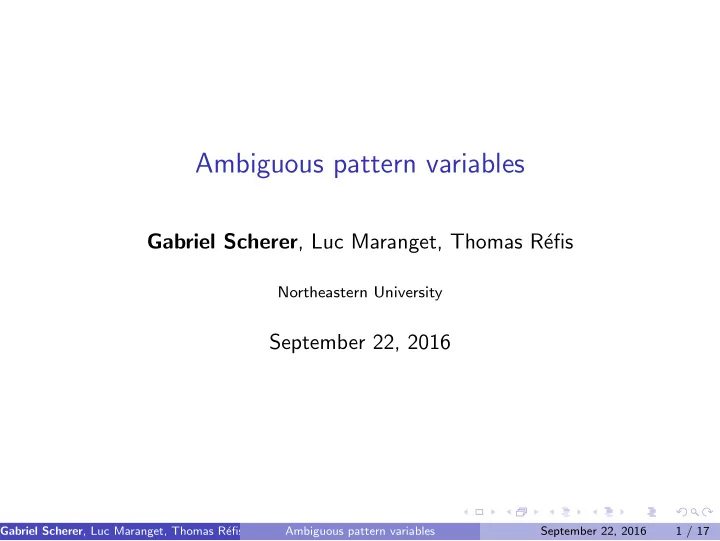

Ambiguous pattern variables

Gabriel Scherer, Luc Maranget, Thomas R´ efis

Northeastern University

September 22, 2016

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 1 / 17

slide-2

SLIDE 2

The problem

type α exp = | Const of α | Mul of α exp * α exp let is_neutral n = (n = 1) let mul a b = match a, b with | (Const n, v) | (v, Const n) when is_neutral n -> v | a, b -> Mul (a, b)

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 2 / 17

slide-3

SLIDE 3

The problem

type α exp = | Const of α | Mul of α exp * α exp let is_neutral n = (n = 1) let mul a b = match a, b with | (Const n, v) | (v, Const n) when is_neutral n -> v | a, b -> Mul (a, b) mul (Const 2) (Const 1)

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 2 / 17

slide-4

SLIDE 4

The problem

type α exp = | Const of α | Mul of α exp * α exp let is_neutral n = (n = 1) let mul a b = match a, b with | (Const n, v) | (v, Const n) when is_neutral n -> v | a, b -> Mul (a, b) mul (Const 2) (Const 1) = Mul (Const 2, Const 1)

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 2 / 17

slide-5

SLIDE 5

ML patterns (formally)

p ::= pattern | wildcard | p as x variable binding | K(p1, ..., pn) constructor pattern | p | q

r-pattern

Variable patterns x are sugar for ( as x). Pair patterns (p, q) are a special case of constructor pattern. A clause of the form | p when g -> e matches p first, then test if g holds, and only then takes the branch to e.

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 3 / 17

slide-6

SLIDE 6

The Clash

(p | q) when g → e readers think the guard g will test both p and q – angelic choice. The specification clearly says otherwise: (p | q) is left-to-right, and only then g is tried.

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 4 / 17

slide-7

SLIDE 7

The Clash

(p | q) when g → e readers think the guard g will test both p and q – angelic choice. The specification clearly says otherwise: (p | q) is left-to-right, and only then g is tried. Note: specifying evaluation order is not always good, after all...

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 4 / 17

slide-8

SLIDE 8

The Clash

(p | q) when g → e readers think the guard g will test both p and q – angelic choice. The specification clearly says otherwise: (p | q) is left-to-right, and only then g is tried. Note: specifying evaluation order is not always good, after all... Note: automatically turning this into (p when g) | (q when g) does not work: changing the semantics of existing code: nope

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 4 / 17

slide-9

SLIDE 9

The Clash

(p | q) when g → e readers think the guard g will test both p and q – angelic choice. The specification clearly says otherwise: (p | q) is left-to-right, and only then g is tried. Note: specifying evaluation order is not always good, after all... Note: automatically turning this into (p when g) | (q when g) does not work: changing the semantics of existing code: nope nested guards don’t exist and would break exhaustivity checking, etc.

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 4 / 17

slide-10

SLIDE 10

The Clash

(p | q) when g → e readers think the guard g will test both p and q – angelic choice. The specification clearly says otherwise: (p | q) is left-to-right, and only then g is tried. Note: specifying evaluation order is not always good, after all... Note: automatically turning this into (p when g) | (q when g) does not work: changing the semantics of existing code: nope nested guards don’t exist and would break exhaustivity checking, etc. side-effects in g would be duplicated

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 4 / 17

slide-11

SLIDE 11

The Clash

(p | q) when g → e readers think the guard g will test both p and q – angelic choice. The specification clearly says otherwise: (p | q) is left-to-right, and only then g is tried. Note: specifying evaluation order is not always good, after all... Note: automatically turning this into (p when g) | (q when g) does not work: changing the semantics of existing code: nope nested guards don’t exist and would break exhaustivity checking, etc. side-effects in g would be duplicated what about nested or-patterns? (p | q) may be deep.

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 4 / 17

slide-12

SLIDE 12

At least complain about it!

Warn when p when g → e and a value may match p in several ways (or-patterns) the test g may depend on which choice is taken: it contains ambiguous pattern variables

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 5 / 17

slide-13

SLIDE 13

At least complain about it!

Warn when p when g → e and a value may match p in several ways (or-patterns) the test g may depend on which choice is taken: it contains ambiguous pattern variables (a, (p | q)) when a < 10 → ...

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 5 / 17

slide-14

SLIDE 14

At least complain about it!

Warn when p when g → e and a value may match p in several ways (or-patterns) the test g may depend on which choice is taken: it contains ambiguous pattern variables (a, (p | q)) when a < 10 → ... (a, p) | (a, q) when a < 10 → ...

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 5 / 17

slide-15

SLIDE 15

At least complain about it!

Warn when p when g → e and a value may match p in several ways (or-patterns) the test g may depend on which choice is taken: it contains ambiguous pattern variables (a, (p | q)) when a < 10 → ... (a, p) | (a, q) when a < 10 → ... (Some v, e) | (e, Some v) when v = 0 → ...

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 5 / 17

slide-16

SLIDE 16

At least complain about it!

Warn when p when g → e and a value may match p in several ways (or-patterns) the test g may depend on which choice is taken: it contains ambiguous pattern variables (a, (p | q)) when a < 10 → ... (a, p) | (a, q) when a < 10 → ... (Some v, e) | (e, Some v) when v = 0 → ... (Some v, None) | (None, Some v) when v = 0 → ...

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 5 / 17

slide-17

SLIDE 17

Our contribution

an algorithm to detect ambiguous pattern variables implemented in OCaml 4.03 (released last April) Demo

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 6 / 17

slide-18

SLIDE 18

How to implement this warning? (Attempts.) As for all pattern matching questions (compilation, exhaustivity, usefulness...): pattern matrices (the take-away of this talk)

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 7 / 17

slide-19

SLIDE 19

Pattern matrix

A matrix: a space of matcheable values that share a common prefix. C1[1, . . . , n] C2[1, . . . , n] . . . Cn[1, . . . , n]      p1,1 p1,2 · · · p1,n p2,1 p2,2 · · · p2,n . . . . . . ... . . . pm,1 pm,2 · · · pm,n      rows: disjunction, alternative columns: sub-patterns matched in parallel contexts: common prefix, possibly different bindings ((S ) as v, ) (S , ( as v)) true N S false

represents

| ((S true) as v, N) | (S , S false as v)

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 8 / 17

slide-20

SLIDE 20

Matrix operation: splitting a row (1)

All head constructors. C1[, ] C2[, ] C3[, ]   N p1,2 S p2,1 p2,2 S p3,1 p3,2  

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 9 / 17

slide-21

SLIDE 21

Matrix operation: splitting a row (1)

All head constructors. C1[, ] C2[, ] C3[, ]   N p1,2 S p2,1 p2,2 S p3,1 p3,2   = ⇒ C1[N, ]

p1,2
C2[S , ]

C3[S , ] p2,1 p2,2 p3,1 p3,2

Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 9 / 17

slide-22

SLIDE 22

Matrix operation: splitting a row (2)

Some head constructors. C1[, ] C2[, ] C3[, ]   N p1,2 x p2,2 S p3,1 p3,2   = ⇒ C1[, ] C2[, ] C3[, ]   N p1,2 (N | S ) as x p2,2 S p3,1 p3,2   = ⇒ C1[, ] C2[ as x, ] C2[ as x, ] C3[, ]     N p1,2 N p2,2 S p2,2 S p3,1 p3,2    

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 10 / 17

slide-23

SLIDE 23

Matrix operation: (3)

No head constructors. C1[, ] C2[, ] C3[, ]   p1,2 x p2,2 p3,2   = ⇒

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 11 / 17

slide-24

SLIDE 24

Matrix operation: (3)

No head constructors. C1[, ] C2[, ] C3[, ]   p1,2 x p2,2 p3,2   = ⇒ C1[ , ] C2[x, ] C3[ , ]   p1,2 p2,2 p3,2  

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 11 / 17

slide-25

SLIDE 25

Typical matrix-based algorithm, simplified

Manipulate sets of matrices. Start from a single matrix (single-element set). Split matrices, repeat. Stop when all matrices are empty. Compute your answer from that.

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 12 / 17

slide-26

SLIDE 26

Our algorithm, on an example (1)

(S v, a) | (a, S v) when is_neutral v → ...

(S v, a) | (a, S v)
Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 13 / 17

slide-27

SLIDE 27

Our algorithm, on an example (1)

(S v, a) | (a, S v) when is_neutral v → ...

(S v, a) | (a, S v)
(S v, a)

(a, S v)

Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 13 / 17

slide-28

SLIDE 28

Our algorithm, on an example (1)

(S v, a) | (a, S v) when is_neutral v → ...

(S v, a) | (a, S v)
(S v, a)

(a, S v)

(, )

(, ) S v a a S v

Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 13 / 17

slide-29

SLIDE 29

Our algorithm, on an example (1)

(S v, a) | (a, S v) when is_neutral v → ...

(S v, a) | (a, S v)
(S v, a)

(a, S v)

(, )

(, ) S v a a S v

(, )

( as a, ) ( as a, )   S v a S S v N S v  

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 13 / 17

slide-30

SLIDE 30

Our algorithm, on an example (1)

(S v, a) | (a, S v) when is_neutral v → ...

(S v, a) | (a, S v)
(S v, a)

(a, S v)

(, )

(, ) S v a a S v

(, )

( as a, ) ( as a, )   S v a S S v N S v   (S , ) (S as a, ) v a S v

(N as a, )
S v
Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 13 / 17

slide-31

SLIDE 31

Our algorithm, on an example (2)

(S v, a) | (a, S v) when is_neutral v → ... (S v, ) (S as a, ) a S v

(N as a, )
S v
Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 14 / 17

slide-32

SLIDE 32

Our algorithm, on an example (2)

(S v, a) | (a, S v) when is_neutral v → ... (S v, ) (S as a, ) a S v

(N as a, )
S v
(S v, ( as a))

(S v, ( as a)) (S as a, )   S N S v   (N as a, )

S v
Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 14 / 17

slide-33

SLIDE 33

Our algorithm, on an example (2)

(S v, a) | (a, S v) when is_neutral v → ... (S v, ) (S as a, ) a S v

(N as a, )
S v
(S v, ( as a))

(S v, ( as a)) (S as a, )   S N S v   (N as a, )

S v
(S v, (S as a))

(S as a, )

v
(S v, N)
·
(N as a, )
S v
Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 14 / 17

slide-34

SLIDE 34

Our algorithm, on an example (3)

(S v, a) | (a, S v) when is_neutral v → ... (S v , (S as a)) (S as a, v ) · ·

(S v, N)
·
(N as a, S v)
·
Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 15 / 17

slide-35

SLIDE 35

Our algorithm, on an example (3)

(S v, a) | (a, S v) when is_neutral v → ... (S v , (S as a)) (S as a, v ) · ·

(S v, N)
·
(N as a, S v)
·
Gabriel Scherer, Luc Maranget, Thomas R´

efis (Northeastern University) Ambiguous pattern variables September 22, 2016 15 / 17

slide-36

SLIDE 36

Actual implementation

No need for sets of matrices: we recursively traverse the set/tree of splits. Long time, but short space. Most algorithms don’t keep contexts, they retain only what they need. In

ur case, variable bindings positions.

See the extended abstract for a more algorithmic presentation.

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 16 / 17

slide-37

SLIDE 37

Conclusion

Arthur Chargu´ eraud, Martin Clochard and Claude March´ e: a problem us: a solution Future work: negative information.

Gabriel Scherer, Luc Maranget, Thomas R´ efis (Northeastern University) Ambiguous pattern variables September 22, 2016 17 / 17
