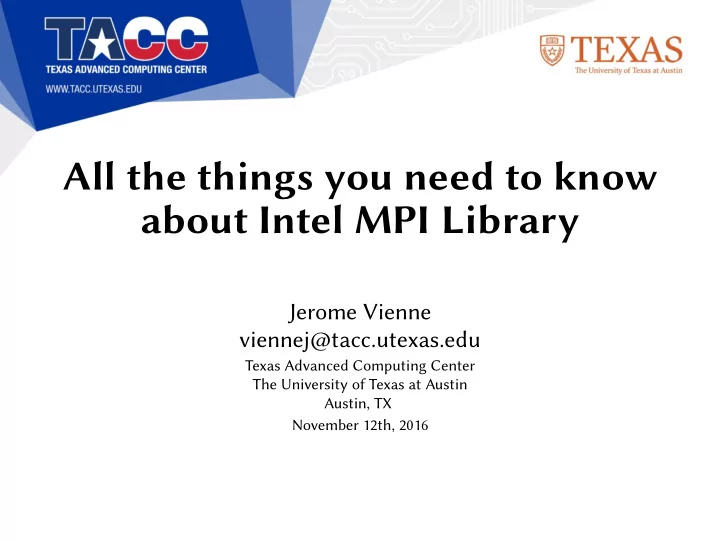

All the things you need to know about Intel MPI Library

Jerome Vienne viennej@tacc.utexas.edu

Texas Advanced Computing Center The University of Texas at Austin Austin, TX November 12th, 2016

slide-2
SLIDE 2

A Heterogeneous Environment

MPI performance depends on many factors

▶ CPUs (Number of cores, Cache sizes, Frequency) ▶ Memory (Amount, Frequency) ▶ Network Speed (10,20,40 … Gbit/s) ▶ Size of the job ▶ Type of code: Hybrid (ex: OpenMP+MPI) or Pure MPI

MPI libraries have to make choices

Why ? Because the number of combinations is too large. Are these choices optimal for my application ? Not necessarily. Can we change them ? Yes, this is why we are there.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 2

slide-3
SLIDE 3

A Heterogeneous Environment

MPI performance depends on many factors

▶ CPUs (Number of cores, Cache sizes, Frequency) ▶ Memory (Amount, Frequency) ▶ Network Speed (10,20,40 … Gbit/s) ▶ Size of the job ▶ Type of code: Hybrid (ex: OpenMP+MPI) or Pure MPI

MPI libraries have to make choices

▶ Why ? Because the number of combinations is too large. ▶ Are these choices optimal for my application ? Not necessarily. ▶ Can we change them ? Yes, this is why we are there.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 2

slide-4
SLIDE 4

Aim of this talk

▶ ”How to tune MPI” cannot be found easily inside books. ▶ Show that MPI libraries are not black boxes. ▶ Describe concepts that are common inside MPI libraries. ▶ Understand the difgerence between MPI libraries. ▶ Provide some useful commands for Intel MPI. ▶ Result: Help you to reduce the time and memory foot print of

your MPI application

All the things you need to know about Intel MPI Library | November 12th, 2016 | 3

slide-5
SLIDE 5

Before to start

Warnings ‼!

▶ Talk based on Intel MPI (few references to MVAPICH2 and

OpenMPI).

▶ All experiments were done on Stampede supercomputer at

TACC.

▶ Tuning options are specific to a MPI library ! But concepts are

common.

▶ Options can have counter-efgects ! ▶ MPI libraries have lot of options for tuning, we will only cover

the most important ones.

▶ Tuning could be time consuming, but long-term, it might be

worth it

All the things you need to know about Intel MPI Library | November 12th, 2016 | 4

slide-6
SLIDE 6

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 5

slide-7
SLIDE 7

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 6

slide-8
SLIDE 8

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 7

slide-9
SLIDE 9

The Choice of Benchmarks

Difgerent MPI library = Tuning Based on Difgerent Benchmarks

▶ Intel MPI: Intel MPI Benchmarks (IMB) ▶ MVAPICH2: OSU Micro-Benchmarks (OMB)

IMB or OMB, which one is the best to use ?

Both are communication intensive without computation Depend on your application The best benchmark is your application ! But… let’s take a look at them in detail !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 8

slide-10
SLIDE 10

The Choice of Benchmarks

Difgerent MPI library = Tuning Based on Difgerent Benchmarks

▶ Intel MPI: Intel MPI Benchmarks (IMB) ▶ MVAPICH2: OSU Micro-Benchmarks (OMB)

IMB or OMB, which one is the best to use ?

▶ Both are communication intensive without computation ▶ Depend on your application ▶ The best benchmark is your application !

But… let’s take a look at them in detail !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 8

slide-11
SLIDE 11

The Choice of Benchmarks

Difgerent MPI library = Tuning Based on Difgerent Benchmarks

▶ Intel MPI: Intel MPI Benchmarks (IMB) ▶ MVAPICH2: OSU Micro-Benchmarks (OMB)

IMB or OMB, which one is the best to use ?

▶ Both are communication intensive without computation ▶ Depend on your application ▶ The best benchmark is your application !

But… let’s take a look at them in detail !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 8

slide-12
SLIDE 12

Intel MPI Benchmarks (IMB)

Details

▶ Originally know as Pallas MPI Benchmarks (PMB) ▶ Support Point-to-Point and Collective operations ▶ 1 program with lot of options for classical MPI functions

(IMB-MPI1)

▶ Root changes afuer each iteration for collectives

All the things you need to know about Intel MPI Library | November 12th, 2016 | 9

slide-13
SLIDE 13

Intel MPI Benchmarks (IMB)

Intel MPI vs MVAPICH2 using IMB Bcast with 256 cores

1 10 100 1000 10000 4 16 64 256 1K 4K 16K 64K 256K 1M 4M Time (us) Message Size (Bytes) Mvapich2 2.2 Intel MPI 2017 All the things you need to know about Intel MPI Library | November 12th, 2016 | 9

slide-14
SLIDE 14

OSU Micro-Benchmarks (OMB)

Details

▶ Very simple to use ▶ Support Point-to-Point and Collective operations ▶ Multiples programs with simple options ▶ Keep the same root during all iterations + use barrier

All the things you need to know about Intel MPI Library | November 12th, 2016 | 10

slide-15
SLIDE 15

OSU Micro-Benchmarks (OMB)

Intel MPI vs MVAPICH2 using OMB Bcast with 256 cores

1 10 100 1000 4 16 64 256 1K 4K 16K 64K 256K 1M Time (us) Message Size (Bytes) Mvapich2 2.2 Intel MPI 2017 All the things you need to know about Intel MPI Library | November 12th, 2016 | 10

slide-16
SLIDE 16

OSU Micro-Benchmarks (OMB)

Tuned Intel MPI vs MVAPICH2 using OMB Bcast with 256 cores

1 10 100 1000 10000 4 16 64 256 1K 4K 16K 64K 256K 1M Time (us) Message Size (Bytes) Mvapich2 2.2 Intel MPI 2017 All the things you need to know about Intel MPI Library | November 12th, 2016 | 10

slide-17
SLIDE 17

Benchmarks: What you need to know

To resume

▶ Don’t trust them ! ▶ They have difgerent behaviors: so, KNOW your benchmark ! ▶ Don’t provide you necessarily the best results by default. ▶ Be sure that you tune things correctly if you want to compare

two MPI libraries

▶ Collective tuning for a particular benchmark/application could

be painful, we will see it later :)

All the things you need to know about Intel MPI Library | November 12th, 2016 | 11

slide-18
SLIDE 18

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 12

slide-19
SLIDE 19

To know what you need to tune first

Why MPI profiling is important ?

▶ To identify which MPI functions are used, you have two

choices:

▶ Look at the code ▶ Profile your application

▶ Profiling provides you all the information regarding MPI

communications (size, time spent, functions called etc…)

▶ Could be integrated in the MPI library (ex: Intel MPI) ▶ Lot of tools can help you to profile your application (TAU,

Scalasca, IPM, mpiP …)

All the things you need to know about Intel MPI Library | November 12th, 2016 | 13

slide-20
SLIDE 20

How to profile ?

With Intel MPI at runtime

mpiexec -genv I_MPI_STATS=ipm I_MPI_STATS_FILE=myprofile.txt ….

Tools

▶ MPI Performance Snapshots (MPS) ▶ Intel Trace Analyzer and Collector (ITAC)

All the things you need to know about Intel MPI Library | November 12th, 2016 | 14

slide-21
SLIDE 21

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 15

slide-22
SLIDE 22

Impact of the hostfile

Example of command:

mpirun -np 4 -hostfile host ./a.out

▶ Hostfile provides the list of nodes that will be used ▶ Depending on the MPI library, the same hostfile could lead to

difgerent results !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 16

slide-23
SLIDE 23

A Qvick Performance Example

NAS SP-MZ on Stampede

2 nodes, 2 MPI tasks/node with 8 OpenMP threads

mpirun -np 4 -hostfile host ./sp-mz.C.4

node1 node2

Mvapich2

Default: 176 sec. Correct Hostfile: 176 sec. + Process Placement: 19 sec.

Intel MPI

Default: 51 sec. Correct Hostfile/Command: 19 sec.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 17

slide-24
SLIDE 24

A Qvick Performance Example

NAS SP-MZ on Stampede

2 nodes, 2 MPI tasks/node with 8 OpenMP threads

mpirun -np 4 -hostfile host ./sp-mz.C.4

node1 node2

Mvapich2

Default: 176 sec. Correct Hostfile: 176 sec. + Process Placement: 19 sec.

Intel MPI

Default: 51 sec. Correct Hostfile/Command: 19 sec.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 17

slide-25
SLIDE 25

A Qvick Performance Example

NAS SP-MZ on Stampede

2 nodes, 2 MPI tasks/node with 8 OpenMP threads

mpirun -np 4 -hostfile host ./sp-mz.C.4

node1 node2

Mvapich2

▶ Default: 176 sec.

Correct Hostfile: 176 sec. + Process Placement: 19 sec.

Intel MPI

Default: 51 sec. Correct Hostfile/Command: 19 sec.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 17

slide-26
SLIDE 26

A Qvick Performance Example

NAS SP-MZ on Stampede

2 nodes, 2 MPI tasks/node with 8 OpenMP threads

mpirun -np 4 -hostfile host ./sp-mz.C.4

node1 node2

Mvapich2

▶ Default: 176 sec. ▶ Correct Hostfile: 176 sec.

+ Process Placement: 19 sec.

Intel MPI

Default: 51 sec. Correct Hostfile/Command: 19 sec.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 17

slide-27
SLIDE 27

A Qvick Performance Example

NAS SP-MZ on Stampede

2 nodes, 2 MPI tasks/node with 8 OpenMP threads

mpirun -np 4 -hostfile host ./sp-mz.C.4

node1 node2

Mvapich2

▶ Default: 176 sec. ▶ Correct Hostfile: 176 sec. ▶ + Process Placement: 19 sec.

Intel MPI

Default: 51 sec. Correct Hostfile/Command: 19 sec.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 17

slide-28
SLIDE 28

A Qvick Performance Example

NAS SP-MZ on Stampede

2 nodes, 2 MPI tasks/node with 8 OpenMP threads

mpirun -np 4 -hostfile host ./sp-mz.C.4

node1 node2

Mvapich2

▶ Default: 176 sec. ▶ Correct Hostfile: 176 sec. ▶ + Process Placement: 19 sec.

Intel MPI

▶ Default: 51 sec.

Correct Hostfile/Command: 19 sec.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 17

slide-29
SLIDE 29

A Qvick Performance Example

NAS SP-MZ on Stampede

2 nodes, 2 MPI tasks/node with 8 OpenMP threads

mpirun -np 4 -hostfile host ./sp-mz.C.4

node1 node2

Mvapich2

▶ Default: 176 sec. ▶ Correct Hostfile: 176 sec. ▶ + Process Placement: 19 sec.

Intel MPI

▶ Default: 51 sec. ▶ Correct Hostfile/Command:

19 sec.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 17

slide-30
SLIDE 30

How the MPI tasks are propagated?

mpirun -np 4 -hostfile host ./a.out on Stampede

node1 node2

Mvapich2

Rank 0 on node1 Rank 1 on node2 Rank 2 on node1 Rank 3 on node2

Open MPI

Rank 0 on node1 Rank 1 on node1 Rank 2 on node2 Rank 3 on node2

Intel MPI

Rank 0 on node1 Rank 1 on node1 Rank 2 on node1 Rank 3 on node1

All the things you need to know about Intel MPI Library | November 12th, 2016 | 18

slide-31
SLIDE 31

How to set correctly your hostfile?

Mvapich2

node1:2 node2:2

Open MPI

node1 slots=2 node2 slots=2

Intel MPI

I_MPI_PERHOST=2

  • r

mpirun -perhost 2

  • r

mpirun -ppn 2

Result

Rank 0 on node1 Rank 1 on node1 Rank 2 on node2 Rank 3 on node2

All the things you need to know about Intel MPI Library | November 12th, 2016 | 19

slide-32
SLIDE 32

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 20

slide-33
SLIDE 33

Generic Way to Map Processes

User-def. Binding Socket Core Preset Binding No Binding MPI Library Compact Scatter

MVAPICH2

Compact-Core

Intel MPI

Scatuer-Shared Socket or Core

Open MPI

Before 1.7.4: No Binding Afuer 1.7.4: Scatuer-Core|Socket

All the things you need to know about Intel MPI Library | November 12th, 2016 | 21

slide-34
SLIDE 34

Qvick Examples with Intel MPI

Osu_latency results between cores

Latency (us) Description Pair 0 byte 8 k-byte 2-4 0.2 1.77 Same socket, shared L3, best performance 0-2 0.2 1.80 Same socket, shared L3, but core 0 handles interrupts 2-10 0.41 2.52 Difgerent sockets, does not share L3 0-8 0.42 2.53 Difgerent sockets, does not share L3, core 0 handles interrupts

NAS SP-MZ (Do you remember it ?)

2 Nodes, 2 MPI Tasks/node with 8 OpenMP threads using MVAPICH2

▶ Default Mapping: 176 seconds ▶ Optimal Mapping: 19 seconds

All the things you need to know about Intel MPI Library | November 12th, 2016 | 22

slide-35
SLIDE 35

Default MPI library mappings of four MPI tasks (each with two OpenMP threads) to the two 4-core processors

  • f a dual-socket node.

S1 S2 HCA

1 2 3

(a) MVAPICH2 2.1

S1 S2 HCA

0 2 1 3

(b) Open MPI 1.8.8

1 3 2

S1 S2 HCA

(c) Intel MPI 5.0.2

All the things you need to know about Intel MPI Library | November 12th, 2016 | 23

slide-36
SLIDE 36

Impact of Mapping (MVAPICH2 /

  • su_latency)

2 4 6 8 10 12 14 4 16 64 256 1K 4K 16K Latency (us) Message Size (Bytes) Core 0 Core 8

All the things you need to know about Intel MPI Library | November 12th, 2016 | 24

slide-37
SLIDE 37

Default MPI library mappings of eight pure MPI tasks to the two 4-core processors of a dual-socket node.

S1 S2 HCA

1 2 3 6 7 4 5

(a) MVAPICH2 2.1

S1 S2 HCA

0 2 4 6 1 3 5 7

(b) Open MPI 1.8.8

S1 S2 HCA

1 2 3 6 7 4 5

(c) Intel MPI 5.0.2

All the things you need to know about Intel MPI Library | November 12th, 2016 | 25

slide-38
SLIDE 38

Setuing the Mapping

Intel MPI

▶ I_MPI_PIN_PROCESSOR_LIST: Define a processor subset and

mapping rules for MPI processes pinning to separate processors of this subset

▶ I_MPI_PIN_DOMAIN (For Hybrid code)

MVAPICH2

▶ MV2_CPU_BINDING_POLICY=bunch|scatter ▶ MV2_CPU_BINDING_LEVEL=core|socket|numanode ▶ Manual: MV2_CPU_MAPPING=0:8:9-15:1-7

All the things you need to know about Intel MPI Library | November 12th, 2016 | 26

slide-39
SLIDE 39

Reporting the Mapping

Most of the MPI libraries provide a mechanism to report the mapping

▶ Intel MPI: -print-rank-map ▶ MVAPICH2: MV2_SHOW_CPU_BINDING=1 ▶ OpenMPI: --report-bindings

Example

c421-502$ mpirun_rsh -np 2 -hostfile hosts MV2_CPU_MAPPING=2-4:10-12 MV2_SHOW_CPU_BINDING=1 ./osu_latency

  • ------------CPU AFFINITY-------------

RANK:0 CPU_SET: 2 3 4 RANK:1 CPU_SET: 10 11 12 All the things you need to know about Intel MPI Library | November 12th, 2016 | 27

slide-40
SLIDE 40

Basic Level

Benchmarking Needed to evaluate the performance and to tune a MPI library, but it is important to know the behavior

  • f the benchmark to do a correct evaluation

Profiling Useful to know where most of the MPI time is spent and to know what you need to tune Hostfile Do it correctly (or use the right command) or your performance will be bad Mapping Important specially for hybrid code. These 4 ’basic’ things are easy to do and can really improve the performance of your code !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 28

slide-41
SLIDE 41

Basic Level

Benchmarking Needed to evaluate the performance and to tune a MPI library, but it is important to know the behavior

  • f the benchmark to do a correct evaluation

Profiling Useful to know where most of the MPI time is spent and to know what you need to tune Hostfile Do it correctly (or use the right command) or your performance will be bad Mapping Important specially for hybrid code. These 4 ’basic’ things are easy to do and can really improve the performance of your code !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 28

slide-42
SLIDE 42

Basic Level

Benchmarking Needed to evaluate the performance and to tune a MPI library, but it is important to know the behavior

  • f the benchmark to do a correct evaluation

Profiling Useful to know where most of the MPI time is spent and to know what you need to tune Hostfile Do it correctly (or use the right command) or your performance will be bad Mapping Important specially for hybrid code. These 4 ’basic’ things are easy to do and can really improve the performance of your code !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 28

slide-43
SLIDE 43

Basic Level

Benchmarking Needed to evaluate the performance and to tune a MPI library, but it is important to know the behavior

  • f the benchmark to do a correct evaluation

Profiling Useful to know where most of the MPI time is spent and to know what you need to tune Hostfile Do it correctly (or use the right command) or your performance will be bad Mapping Important specially for hybrid code. These 4 ’basic’ things are easy to do and can really improve the performance of your code !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 28

slide-44
SLIDE 44

Basic Level

Benchmarking Needed to evaluate the performance and to tune a MPI library, but it is important to know the behavior

  • f the benchmark to do a correct evaluation

Profiling Useful to know where most of the MPI time is spent and to know what you need to tune Hostfile Do it correctly (or use the right command) or your performance will be bad Mapping Important specially for hybrid code. These 4 ’basic’ things are easy to do and can really improve the performance of your code !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 28

slide-45
SLIDE 45

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 29

slide-46
SLIDE 46

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 30

slide-47
SLIDE 47

Eager/Rendezvous protocol I

▶ There are multiple difgerent protocols for sending messages. ▶ We will only focus here on eager / rendezvous protocol. ▶ Switch point between these two protocols can be called

threshold, eager threshold or eager limit.

▶ It is an implementation technique, it is not part of the MPI

standard Eager The sender process eagerly sends the entire message to the receiver. Typically used for ’short’ messages. Rendezvous Based on ’Request To Send’ / ’Clear To Send’ (RTS/CTS) techniques. Typically used for ’long’ messages.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 31

slide-48
SLIDE 48

Eager vs Rendezvous

Osu_latency and MVAPICH2

1 10 100 1000 4 16 64 256 1K 4K 16K 64K 256K 1M 4M Time (us) Message Size (Bytes) Eager Rendezvous All the things you need to know about Intel MPI Library | November 12th, 2016 | 32

slide-49
SLIDE 49

Eager/Rendezvous: Pro/Con

Eager

Pro: Reduces synchronization delays Best for latency Con: Significant bufgering may be required to provide space for messages Can cause memory exhaustion / program termination when receive process bufger is exceeded

Rendezvous

Pro: Scalable Robustness by preventing memory exhaustion Con: Delay due to handshaking between sender and receiver

All the things you need to know about Intel MPI Library | November 12th, 2016 | 33

slide-50
SLIDE 50

Setuing the eager threshold

Intel MPI

I_MPI_EAGER_THRESHOLD= < nbytes >

MVAPICH2

MV2_IBA_EAGER_THRESHOLD= < nbytes >

Open MPI

  • -mca btl_openib_eager_limit < nbytes >
  • -mca btl_openib_rndv_eager_limit < nbytes >

The threshold could be, by default, platform specific (MVAPICH2, OpenMPI) or identical for all platforms (IMPI)

All the things you need to know about Intel MPI Library | November 12th, 2016 | 34

slide-51
SLIDE 51

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 35

slide-52
SLIDE 52

Intra-node optimization

Difgerent mechanisms exist:

With the number of cores per node increasing in modern clusters, an efgicient implementation of intra-node communications is critical for application performance. We will introduce here two difgerent mechanisms:

▶ Shared Memory ▶ Kernel Assisted

All the things you need to know about Intel MPI Library | November 12th, 2016 | 36

slide-53
SLIDE 53

Shared Memory

▶ Used by all MPI implementations ▶ Double-copy implementation involves a shared bufger space

used by local processes to exchange messages.

▶ Best approach for small messages ▶ Not ideal for large messages (tie down CPU, cache pollution)

All the things you need to know about Intel MPI Library | November 12th, 2016 | 37

slide-54
SLIDE 54

Kernel Assisted I

▶ Single copy mechanism ▶ Preferred approach for medium or large messages ▶ You need to use:

▶ Kernel module: LiMIC or KNEM ▶ Kernel feature: CMA All the things you need to know about Intel MPI Library | November 12th, 2016 | 38

slide-55
SLIDE 55

Kernel Assisted II

CMA

▶ Cross Memory Atuach ▶ Introduced with Linux kernel 3.2 and has been back-ported to

some Linux distribution

▶ Available on Stampede, supported by Intel MPI (since 5.0u2),

MVAPICH2, OpenMPI etc…

▶ CMA will be enable automatically for large messages since

5.1u2.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 39

slide-56
SLIDE 56

To resume

Which one is the best ?

▶ For short messages (eager protocol): Shared Memory is betuer ▶ For large messages (rendezvous protocol): Kernel assisted is

betuer

▶ I_MPI_SHM_LMT= shm | direct | ofg

All the things you need to know about Intel MPI Library | November 12th, 2016 | 40

slide-57
SLIDE 57

IMB Pingpong on Compute Node, Intra-socket

1 10 100 1000 10000 4 16 64 256 1K 4K 16K 64K 256K 1M 4M Bandwidth(Mbytes/sec) Message Size (Bytes)

  • ff

shm direct

All the things you need to know about Intel MPI Library | November 12th, 2016 | 41

slide-58
SLIDE 58

NAS results on large memory node with 32 cores using Intel MPI

Benchmark Class Shared (s) CMA (s) Speedup CG C 10.29 9.66 +6.12% EP C 3.89 3.88 +0% FT C 16.04 12.07 +24.75% IS C 1.37 1.04 +24.08% CG D 381.95 382.03

  • 0.02%

EP D 62.07 62.08 +0.8% FT D 365.84 289.32 +20.91% IS D 26.1 20.92 +19.8%

All the things you need to know about Intel MPI Library | November 12th, 2016 | 42

slide-59
SLIDE 59

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 43

slide-60
SLIDE 60

Collective tuning

Collective communications

▶ Used when a communication involves more than 2 MPI tasks ▶ Behind each collective, there are many algorithms (Binomial

Tree, Recursive Doubling, Ring Exchange etc…)

▶ The choice of the algorithm depends on many parameters

(number of cores, network speed, architecture, message size etc…)

▶ Default tuning is not necessarily the best one for you. ▶ MPI libraries provide mechanisms to select which algorithms

need to be used.

All the things you need to know about Intel MPI Library | November 12th, 2016 | 44

slide-61
SLIDE 61
  • su_gather with Intel MPI 256 cores

(I_MPI_ADJUST_GATHER)

1 10 100 1000 10000 100000 4 16 64 256 1K 4K 16K 64K 256K 1M Latency(us) Message Size (Bytes) Ref Algo 1 Algo 2 Algo 3

All the things you need to know about Intel MPI Library | November 12th, 2016 | 45

slide-62
SLIDE 62
  • su_gather with Intel MPI 1024 cores

(I_MPI_ADJUST_GATHER)

1 10 100 1000 10000 100000 1e+06 4 16 64 256 1K 4K 16K 64K 256K 1M Latency(us) Message Size (Bytes) Ref Algo 1 Algo 2 Algo 3

All the things you need to know about Intel MPI Library | November 12th, 2016 | 46

slide-63
SLIDE 63

Intermediate Level

Inter-node You can play with the eager threshold to improve the performance of your communication, but it will cost you more memory ! Intra-node Difgerent mechanisms exist to improve the performance of large messages. Collectives There are difgerent algorithms for each collectives, if you see that your code is spending a lot of time inside

  • ne of them, try to see if changing the algorithm

could help. Inter-node and collective tuning can be time consuming but intra-node optimization could be simple and provides very good results !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 47

slide-64
SLIDE 64

Intermediate Level

Inter-node You can play with the eager threshold to improve the performance of your communication, but it will cost you more memory ! Intra-node Difgerent mechanisms exist to improve the performance of large messages. Collectives There are difgerent algorithms for each collectives, if you see that your code is spending a lot of time inside

  • ne of them, try to see if changing the algorithm

could help. Inter-node and collective tuning can be time consuming but intra-node optimization could be simple and provides very good results !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 47

slide-65
SLIDE 65

Intermediate Level

Inter-node You can play with the eager threshold to improve the performance of your communication, but it will cost you more memory ! Intra-node Difgerent mechanisms exist to improve the performance of large messages. Collectives There are difgerent algorithms for each collectives, if you see that your code is spending a lot of time inside

  • ne of them, try to see if changing the algorithm

could help. Inter-node and collective tuning can be time consuming but intra-node optimization could be simple and provides very good results !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 47

slide-66
SLIDE 66

Intermediate Level

Inter-node You can play with the eager threshold to improve the performance of your communication, but it will cost you more memory ! Intra-node Difgerent mechanisms exist to improve the performance of large messages. Collectives There are difgerent algorithms for each collectives, if you see that your code is spending a lot of time inside

  • ne of them, try to see if changing the algorithm

could help. Inter-node and collective tuning can be time consuming but intra-node optimization could be simple and provides very good results !

All the things you need to know about Intel MPI Library | November 12th, 2016 | 47

slide-67
SLIDE 67

Plan

  • Basic Tuning

The Choice of the Benchmark Profiling Hostfile Process Placement To conclude

  • Intermediate Tuning

Inter-node Point-to-Point Optimization Intra-node Point-to-Point Optimization Collective Tuning To conclude

  • Conclusion

All the things you need to know about Intel MPI Library | November 12th, 2016 | 48

slide-68
SLIDE 68

Conclusion

Every good things has an end…

We saw today a lot of things, don’t panic if you don’t remember of

  • everything. Keep in mind the following things:

▶ Read the documentation :) ▶ MPI libraries behave difgerently ▶ Mechanisms exists to improve easily the performance of your

code (Process Mappping, CMA…)

▶ Mechanisms exists also to reduce the memory footprint of your

MPI library

▶ Don’t be afraid to ask for help

All the things you need to know about Intel MPI Library | November 12th, 2016 | 49
