Algebraic approaches for the Elliptic Curve Discrete Logarithm Problem over Prime Fields Christophe Petit, Michiel Kosters, Ange Messeng University of Oxford, University of California Irvine, University of Passau Christophe Petit - PKC2016 -

slide-1
SLIDE 1

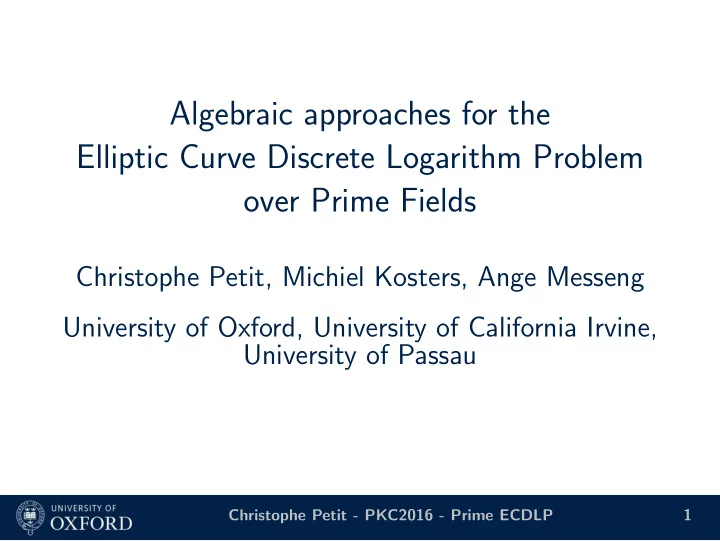

Christophe Petit - PKC2016 - Prime ECDLP 1

Algebraic approaches for the Elliptic Curve Discrete Logarithm Problem

  • ver Prime Fields

Christophe Petit, Michiel Kosters, Ange Messeng University of Oxford, University of California Irvine, University of Passau

slide-2
SLIDE 2

Christophe Petit - PKC2016 - Prime ECDLP 2

Elliptic Curve Discrete Logarithm Problem

◮ Elliptic Curve Discrete Logarithm Problem (ECDLP)

Let K a finite field and let E be an elliptic curve over K. Let P ∈ E(K) and let Q ∈ G :=< P >. Find k ∈ Z such that Q = kP.

◮ In practice K is a prime field, a binary field with prime

degree extension, or Fpn with n relatively small

slide-3
SLIDE 3

Christophe Petit - PKC2016 - Prime ECDLP 2

Elliptic Curve Discrete Logarithm Problem

◮ Elliptic Curve Discrete Logarithm Problem (ECDLP)

Let K a finite field and let E be an elliptic curve over K. Let P ∈ E(K) and let Q ∈ G :=< P >. Find k ∈ Z such that Q = kP.

◮ In practice K is a prime field, a binary field with prime

degree extension, or Fpn with n relatively small

◮ Elliptic Curve Cryptography secure ⇒ ECDLP hard

slide-4
SLIDE 4

Christophe Petit - PKC2016 - Prime ECDLP 3

Is ECDLP hard ?

◮ Can apply generic attacks

slide-5
SLIDE 5

Christophe Petit - PKC2016 - Prime ECDLP 3

Is ECDLP hard ?

◮ Can apply generic attacks ◮ For exceptional parameters, can reduce it to another

discrete logarithm problem

◮ Anomalous attack ◮ Reduction to finite field DLP using pairings ◮ Reduction to a hyperelliptic curve DLP

slide-6
SLIDE 6

Christophe Petit - PKC2016 - Prime ECDLP 3

Is ECDLP hard ?

◮ Can apply generic attacks ◮ For exceptional parameters, can reduce it to another

discrete logarithm problem

◮ Anomalous attack ◮ Reduction to finite field DLP using pairings ◮ Reduction to a hyperelliptic curve DLP ◮ Index calculus approaches being developed since 2004,

but mostly focused on extension fields

slide-7
SLIDE 7

Christophe Petit - PKC2016 - Prime ECDLP 3

Is ECDLP hard ?

◮ Can apply generic attacks ◮ For exceptional parameters, can reduce it to another

discrete logarithm problem

◮ Anomalous attack ◮ Reduction to finite field DLP using pairings ◮ Reduction to a hyperelliptic curve DLP ◮ Index calculus approaches being developed since 2004,

but mostly focused on extension fields

◮ Our goal : extend previous index calculus algorithms

to ECDLP over prime fields

slide-8
SLIDE 8

Christophe Petit - PKC2016 - Prime ECDLP 4

Outline

Previous index calculus algorithms for ECDLP New variants for curves over prime fields

slide-9
SLIDE 9

Christophe Petit - PKC2016 - Prime ECDLP 5

Outline

Previous index calculus algorithms for ECDLP New variants for curves over prime fields

slide-10
SLIDE 10

Christophe Petit - PKC2016 - Prime ECDLP 6

Index Calculus for Elliptic Curves

  • 1. Fix m ∈ Z, and fix V ⊂ K with |V |m ≈ K

Define a factor basis F = {(x, y) ∈ E(K) | x ∈ V }

slide-11
SLIDE 11

Christophe Petit - PKC2016 - Prime ECDLP 6

Index Calculus for Elliptic Curves

  • 1. Fix m ∈ Z, and fix V ⊂ K with |V |m ≈ K

Define a factor basis F = {(x, y) ∈ E(K) | x ∈ V }

  • 2. Compute about |F| relations

aiP + biQ = Pi,1 + Pi,2 + . . . + Pi,m with Pi,j ∈ F

slide-12
SLIDE 12

Christophe Petit - PKC2016 - Prime ECDLP 6

Index Calculus for Elliptic Curves

  • 1. Fix m ∈ Z, and fix V ⊂ K with |V |m ≈ K

Define a factor basis F = {(x, y) ∈ E(K) | x ∈ V }

  • 2. Compute about |F| relations

aiP + biQ = Pi,1 + Pi,2 + . . . + Pi,m with Pi,j ∈ F

  • 3. Linear algebra on relations gives aP + bQ = 0
slide-13
SLIDE 13

Christophe Petit - PKC2016 - Prime ECDLP 7

Relation search : Semaev polynomials

◮ Semaev polynomials relate the x-coordinates of points

that sum up to 0 : Sr(x1, . . . , xr) = 0 ⇔ ∃(xi, yi) ∈ E( ¯ K) s.t. (x1, y1) + · · · + (xr, yr) = 0

◮ Relation search ◮ Compute (X, Y ) := aP + bQ for random a, b ◮ Search for xi ∈ V with Sm+1(x1, . . . , xm, X) = 0 ◮ For any such solution, find corresponding yi values

slide-14
SLIDE 14

Christophe Petit - PKC2016 - Prime ECDLP 8

Existing Variants

◮ Semaev ◮ K = Fp and V contains all “small” elements ◮ No algorithm to solve Sm+1

slide-15
SLIDE 15

Christophe Petit - PKC2016 - Prime ECDLP 8

Existing Variants

◮ Semaev ◮ K = Fp and V contains all “small” elements ◮ No algorithm to solve Sm+1 ◮ Gaudry-Diem ◮ K = Fqn and V = Fq ◮ Reduction to polynomial system over Fq ◮ Generic bounds give Lqn(2/3) complexity if q = Lqn(2/3)

slide-16
SLIDE 16

Christophe Petit - PKC2016 - Prime ECDLP 8

Existing Variants

◮ Semaev ◮ K = Fp and V contains all “small” elements ◮ No algorithm to solve Sm+1 ◮ Gaudry-Diem ◮ K = Fqn and V = Fq ◮ Reduction to polynomial system over Fq ◮ Generic bounds give Lqn(2/3) complexity if q = Lqn(2/3) ◮ Diem, FPPR, P-Quisquater ◮ K = F2n and V a vector space of K over F2 ◮ Reduction to polynomial system over F2 ◮ Experiments suggest system “somewhat easy”

slide-17
SLIDE 17

Christophe Petit - PKC2016 - Prime ECDLP 9

Relation search : Weil Descent

◮ For each relation solve a generalized root-finding problem

Given f ∈ Fqn[x1, . . . , xm] and vector space V ⊂ Fqn, find xi ∈ V such that f (x1, . . . , xm) = 0

slide-18
SLIDE 18

Christophe Petit - PKC2016 - Prime ECDLP 9

Relation search : Weil Descent

◮ For each relation solve a generalized root-finding problem

Given f ∈ Fqn[x1, . . . , xm] and vector space V ⊂ Fqn, find xi ∈ V such that f (x1, . . . , xm) = 0

◮ Solved by Weil Descent : reduction to polynomial system ◮ Fix a basis for V over Fq ◮ Introduce variables xij ∈ Fq with xi =

j xijvj

◮ See single equation f

  • j x1jvj, . . . ,

j xmjvj

  • = 0
  • ver Fqn as a system of n equations over Fq
slide-19
SLIDE 19

Christophe Petit - PKC2016 - Prime ECDLP 10

Limits of previous works

◮ Fields with q = Lqn(2/3) are not used in practice

slide-20
SLIDE 20

Christophe Petit - PKC2016 - Prime ECDLP 10

Limits of previous works

◮ Fields with q = Lqn(2/3) are not used in practice ◮ In binary case asymptotic complexity is not clear,

and practical complexity is poor

slide-21
SLIDE 21

Christophe Petit - PKC2016 - Prime ECDLP 10

Limits of previous works

◮ Fields with q = Lqn(2/3) are not used in practice ◮ In binary case asymptotic complexity is not clear,

and practical complexity is poor

◮ Not clear how to extend to prime fields : no subspace

available and we a priori want small degree equations

slide-22
SLIDE 22

Christophe Petit - PKC2016 - Prime ECDLP 11

Outline

Previous index calculus algorithms for ECDLP New variants for curves over prime fields

slide-23
SLIDE 23

Christophe Petit - PKC2016 - Prime ECDLP 12

Main idea

◮ Find low degree rational maps Lj such that

#{x ∈ Fp | L(x) = Ln′◦. . .◦L1(x) = 0} ≈

  • deg Lj ≈ p1/m

◮ Define V = {x ∈ Fp | L(x) = 0} ◮ Define F = {(x, y) ∈ E(K) | x ∈ V }

slide-24
SLIDE 24

Christophe Petit - PKC2016 - Prime ECDLP 12

Main idea

◮ Find low degree rational maps Lj such that

#{x ∈ Fp | L(x) = Ln′◦. . .◦L1(x) = 0} ≈

  • deg Lj ≈ p1/m

◮ Define V = {x ∈ Fp | L(x) = 0} ◮ Define F = {(x, y) ∈ E(K) | x ∈ V } ◮ Relation search : solve the polynomial system

     Sm+1(x11, . . . , xm1, X) = 0 xi,j+1 = Lj(xi,j) i = 1, . . . , m; j = 1, . . . , n′ − 1 0 = Ln′(xi,n′) i = 1, . . . , m.

slide-25
SLIDE 25

Christophe Petit - PKC2016 - Prime ECDLP 13

Remarks

◮ One can write similar systems in binary cases, and

show they are equivalent to Weil descent systems

◮ Precomputation of the maps Lj can a priori be used for

any DLP defined over any curve over the same field

slide-26
SLIDE 26

Christophe Petit - PKC2016 - Prime ECDLP 13

Remarks

◮ One can write similar systems in binary cases, and

show they are equivalent to Weil descent systems

◮ Precomputation of the maps Lj can a priori be used for

any DLP defined over any curve over the same field

◮ Remaining of the talk : ◮ How to compute the maps Lj ? ◮ How to solve the system ?

slide-27
SLIDE 27

Christophe Petit - PKC2016 - Prime ECDLP 14

Finding good maps : p − 1 “smooth”

◮ Suppose p − 1 = S · N′ with S ≈ p1/m smooth ◮ We want low degree rational maps Lj such that

#{x ∈ Fp | L(x) = Ln′◦. . .◦L1(x) = 0} ≈

  • deg Lj ≈ p1/m
slide-28
SLIDE 28

Christophe Petit - PKC2016 - Prime ECDLP 14

Finding good maps : p − 1 “smooth”

◮ Suppose p − 1 = S · N′ with S ≈ p1/m smooth ◮ We want low degree rational maps Lj such that

#{x ∈ Fp | L(x) = Ln′◦. . .◦L1(x) = 0} ≈

  • deg Lj ≈ p1/m

◮ Take L(X) = X S − 1 and V subgroup of order S in F∗

p

◮ If S = n′

j=1 qj take Lj(X) = X qj and Ln′(X) = X qn′ − 1

slide-29
SLIDE 29

Christophe Petit - PKC2016 - Prime ECDLP 14

Finding good maps : p − 1 “smooth”

◮ Suppose p − 1 = S · N′ with S ≈ p1/m smooth ◮ We want low degree rational maps Lj such that

#{x ∈ Fp | L(x) = Ln′◦. . .◦L1(x) = 0} ≈

  • deg Lj ≈ p1/m

◮ Take L(X) = X S − 1 and V subgroup of order S in F∗

p

◮ If S = n′

j=1 qj take Lj(X) = X qj and Ln′(X) = X qn′ − 1

◮ Remark : NIST P-224 curve satisfies

p − 1 = 296 · N′

slide-30
SLIDE 30

Christophe Petit - PKC2016 - Prime ECDLP 15

Finding good maps : isogeny Kernels

◮ Find an auxiliary curve E ′ with #E ′(Fp) = S · N′

and S = n′

j=1 qj ≈ p1/m smooth

◮ Let G be a subgroup of E ′(Fp) with order S

slide-31
SLIDE 31

Christophe Petit - PKC2016 - Prime ECDLP 15

Finding good maps : isogeny Kernels

◮ Find an auxiliary curve E ′ with #E ′(Fp) = S · N′

and S = n′

j=1 qj ≈ p1/m smooth

◮ Let G be a subgroup of E ′(Fp) with order S ◮ Compute isogenies ϕj such that ϕ = ϕn′ ◦ . . . ◦ ϕ1

has kernel G

slide-32
SLIDE 32

Christophe Petit - PKC2016 - Prime ECDLP 15

Finding good maps : isogeny Kernels

◮ Find an auxiliary curve E ′ with #E ′(Fp) = S · N′

and S = n′

j=1 qj ≈ p1/m smooth

◮ Let G be a subgroup of E ′(Fp) with order S ◮ Compute isogenies ϕj such that ϕ = ϕn′ ◦ . . . ◦ ϕ1

has kernel G

◮ Take Lj the x-coordinate part of ϕj, except for Ln′ taken

in a slightly different way

slide-33
SLIDE 33

Christophe Petit - PKC2016 - Prime ECDLP 16

Finding a smooth order curve

◮ Method 1 : pick random curves ◮ Method 2 : use complex multiplication

slide-34
SLIDE 34

Christophe Petit - PKC2016 - Prime ECDLP 16

Finding a smooth order curve

◮ Method 1 : pick random curves ◮ Method 2 : use complex multiplication ◮ Method 1 needs at most ≈ |F| trials on average ◮ Method 2 more efficient when you can chose p yourself

(kind of trapdoor)

slide-35
SLIDE 35

Christophe Petit - PKC2016 - Prime ECDLP 17

Solving the system

◮ Relation search : solve the polynomial system

     Sm+1(x11, . . . , xm1, X) = 0 xi,j+1 = Lj(xi,j) i = 1, . . . , m; j = 1, . . . , n′ − 1 0 = Ln′(xi,n′) i = 1, . . . , m.

slide-36
SLIDE 36

Christophe Petit - PKC2016 - Prime ECDLP 17

Solving the system

◮ Relation search : solve the polynomial system

     Sm+1(x11, . . . , xm1, X) = 0 xi,j+1 = Lj(xi,j) i = 1, . . . , m; j = 1, . . . , n′ − 1 0 = Ln′(xi,n′) i = 1, . . . , m.

◮ Low degree equations, block triangular structure ◮ mn′ variables and mn′ + 1 equations ◮ Seems reasonable to expect dedicated algorithms, but

here we start with Groebner basis algorithms

slide-37
SLIDE 37

Christophe Petit - PKC2016 - Prime ECDLP 18

Groebner Basis Experiments

◮ Studied comparable size systems in binary and prime cases ◮ Measured average values of degree of regularity ◮ Compared with semi-generic systems

log p

5 10 15 20

degree of regularity

2 4 6 8 10 12 14

binary system binary system p-1 case isogeny kernels semi-generic systems

slide-38
SLIDE 38

Christophe Petit - PKC2016 - Prime ECDLP 19

Solving the system : complexity ?

◮ Algorithm only practical for small parameters ◮ Generic bounds for solving polynomial systems suggest

exponential-time ECDLP algorithm

slide-39
SLIDE 39

Christophe Petit - PKC2016 - Prime ECDLP 19

Solving the system : complexity ?

◮ Algorithm only practical for small parameters ◮ Generic bounds for solving polynomial systems suggest

exponential-time ECDLP algorithm

◮ Experiments using Groebner basis suggest systems easier

than random systems of same size

◮ Sparse, block-triangular structure, and resemblance to the

(polynomial time solvable) root-finding problem suggest to build dedicated algorithms to solve the systems

slide-40
SLIDE 40

Christophe Petit - PKC2016 - Prime ECDLP 19

Solving the system : complexity ?

◮ Algorithm only practical for small parameters ◮ Generic bounds for solving polynomial systems suggest

exponential-time ECDLP algorithm

◮ Experiments using Groebner basis suggest systems easier

than random systems of same size

◮ Sparse, block-triangular structure, and resemblance to the

(polynomial time solvable) root-finding problem suggest to build dedicated algorithms to solve the systems

◮ Open problem !

slide-41
SLIDE 41

Christophe Petit - PKC2016 - Prime ECDLP 20

Conclusion

◮ Suggested an approach to generalize previous ECDLP

algorithms to elliptic curves over prime fields

◮ Like previous ones, algorithm only practical for very small

parameters (Pollard’s rho definitely better for crypto sizes)

◮ Open problems : asymptotic complexity, dedicated

polynomial system solving methods
