SLIDE 1

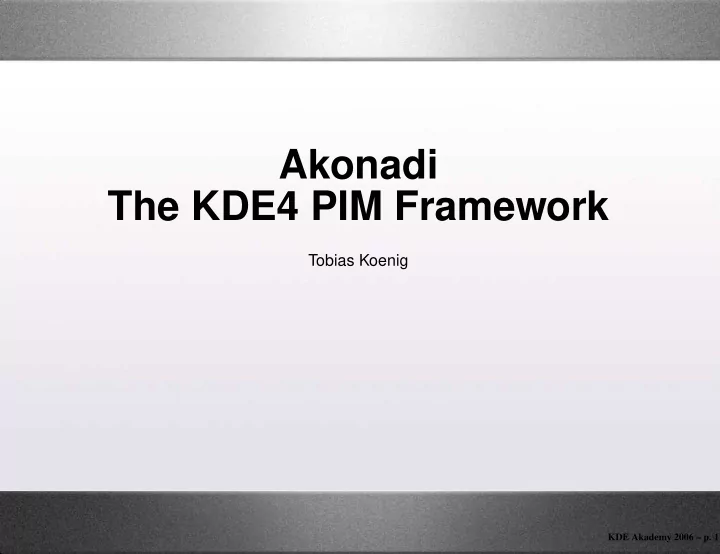

Akonadi The KDE4 PIM Framework
Tobias Koenig
KDE Akademy 2006 – p. 1
Overview
- Why a new PIM Framework
- Akonadi
⊲ History ⊲ Concepts ⊲ Current State ⊲ The Future
- Questions & Answers
KDE Akademy 2006 – p. 2
Akonadi The KDE4 PIM Framework Tobias Koenig KDE Akademy 2006 p. - - PowerPoint PPT Presentation
Akonadi The KDE4 PIM Framework Tobias Koenig KDE Akademy 2006 p. - - PowerPoint PPT Presentation
Akonadi The KDE4 PIM Framework Tobias Koenig KDE Akademy 2006 p. 1 Overview Why a new PIM Framework Akonadi History Concepts Current State The Future Questions & Answers KDE Akademy 2006 p. 2 Problems
SLIDE 2
SLIDE 3
Problems with old Framework
- Bad Performance
- Synchronous Access
- Memory Consumption
- Missing Notifications
- Missing Locking
KDE Akademy 2006 – p. 3
SLIDE 4
Akonadi
- A general storage for PIM data
- Aims to solve the problems of kabc/kcal
- Modular design for robustness and easy integration
KDE Akademy 2006 – p. 4
SLIDE 5
History
- First ideas of a PIM daemon at Osnabrück meeting
2005
- Sample code for address book daemon
- General agreement for PIM service at Osnabrück
meeting 2006
- ’Akonadi’ was born
KDE Akademy 2006 – p. 5
SLIDE 6
Concepts
KDE Akademy 2006 – p. 6
SLIDE 7
Concepts
Storage Agent (Resource) Agent (Resource) Control DBus-Interface Akonadi Server IMAP-Interface Search- Provider Search- Provider libakonadi libkcal libkabc Application Component KDE Akademy 2006 – p. 7
SLIDE 8
The Storage
- Accessible via extended IMAP
=> high performance on data delivery
- Caches all PIM items of the resources
(depending on the policy)
- Informs the Control about changes
- Provides basic search features (IMAP)
- Delegates extended search requests to
SearchProviders
KDE Akademy 2006 – p. 8
SLIDE 9
The Resources
- Applications which synchronize data between the
Storage and an external data source (e.g. groupware server or file)
- Asynchronous communication
- Profiles for grouping Resources together
KDE Akademy 2006 – p. 9
SLIDE 10
The Control
- Starts and monitors the Storage and resource
processes
- Provides D-Bus API for managing resources and
profiles
KDE Akademy 2006 – p. 10
SLIDE 11
The SearchProviders
- External applications which process more complex
search queries
- One SearchProvider for every PIM item type
- Store search results in collections inside the Storage
KDE Akademy 2006 – p. 11
SLIDE 12
Collections
- Virtual containers inside the Storage
- Contain PIM items/references
- Root collection ’/’
- Every Resource provides at least one collection
- Easy to realize virtual folders
/ /resource1 /resource1/calendar /resource1/addressbook /resource2 /search
KDE Akademy 2006 – p. 12
SLIDE 13
Current State
KDE Akademy 2006 – p. 13
SLIDE 14
Current State
- Storage
⊲ Provides all needed IMAP commands ⊲ Stores items in Collections
- Control
⊲ Lifetime management for Storage and Resources ⊲ D-Bus API nearly completed
- Resources
⊲ Simple iCalendar file ⊲ Dummy resource ’Knut’
KDE Akademy 2006 – p. 14
SLIDE 15
Demo...
KDE Akademy 2006 – p. 15
SLIDE 16
TO DO
- Implementing SearchProviders
(mail, calendar, address book)
- Defining asynchronous client library
- Implementing full featured resources
(remote and local file)
- Writing documentation!!!
KDE Akademy 2006 – p. 16
SLIDE 17
The Future
KDE Akademy 2006 – p. 17
SLIDE 18
The Future
- Goal: Components based PIM library
- Components as standalone views and editors of PIM
data
- Plasma applets for calendar and address book
KDE Akademy 2006 – p. 18
SLIDE 19
We need developers!
KDE Akademy 2006 – p. 19
SLIDE 20
Questions?
KDE Akademy 2006 – p. 20
SLIDE 21
Thank you
KDE Akademy 2006 – p. 21
