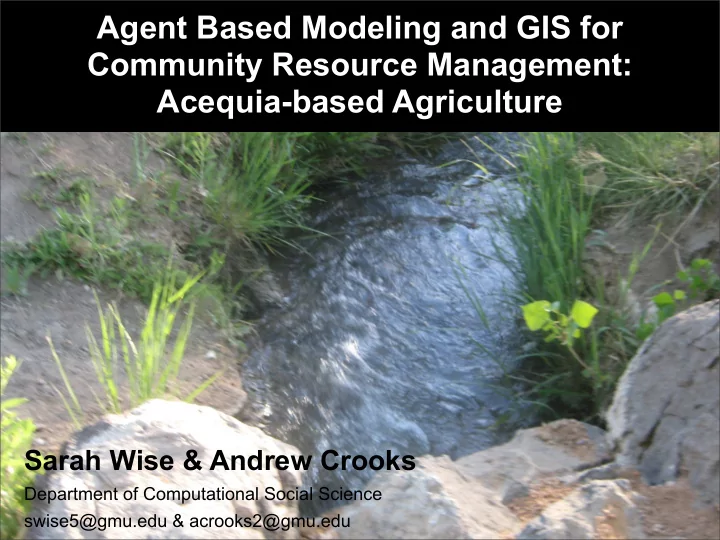

Agent Based Modeling and GIS for Community Resource Management: Acequia-based Agriculture

Sarah Wise & Andrew Crooks

Department of Computational Social Science swise5@gmu.edu & acrooks2@gmu.edu

What are Acequias?

• Traditional system of water management

in northern New Mexico

• Coupled socio-physical system of ditches

and ditch maintenance

• Committee of water right holders with

precise legal conventions for passing on water versus land rights

Purpose of the Model

• Interim goal: to study the viability of acequia-

based agriculture with regard to variations in:

– population pressure – short-term climate – cultural valuation

• Ultimate goal: to support policy work which

requires an understanding of the importance and impact of acequias

Study Area: Taos, New Mexico

• Population: 5,062
• Acreage - 1,444,480 acres in county

– 50.0% Federally controlled – 6.7% State-owned – 4.3% Native American land – 38.2% Privately owned

• Acequias built by 1696, town of Taos formally

settled in 1725

All information from Taos County Chamber of Commerce

Source: Google Maps

Source: Google Maps

Source: Google Maps

Source: Google Maps

Data

• 1. Acequia location and
• wnership
• 2. Land use
• 3. Location of urban centers
• 4. Roads
• 6. Slope/elevation
• 7. Hydrological system
• 8. Population demographics
• Spatial: a raster space measured at 30m sq
• Temporal: one tick per year, for 100 ticks

Resolution

Real-world spatial, temporal, and behavioral processes represented Corresponding modeling methodologies implemented Cultivation and sale of crops Linear programming Real estate market Agent-based model Hydrological system Network Acequia participation (maintenance of ditches, use of water, etc.) Agent-based model

Crop Model

If cropland is adjacent to an acequia which experiences at least some minimum waterflow, crops will grow. Income = Cropprice * Parcelsize

Hydrological Model

• Rainfall

– Fed by a uniform application of rainfall across the environment once a tick

• Propagation

– Water flows downhill until it reaches a hydrological feature, and then along the given (elevation-derived) network. Water flows through the acequia network depending on the permeability of the links

• Sedimentation

– Every year, acequias experience sedimentation and their permeability decreases slightly. This process is reversed by the Parciantes’ annual cleaning efforts

Real Estate Model

• Real estate agents pick random Parciantes and

formulate their bids according to the following properties of the chosen Parciante’s land:

– Constraint = Budget – Transport Cost – Utility = Amenityα * Distanceβ – Offer = Constraint * Utility2/(weight2 + Utility2)

• Approach taken from Filatova et al’s (2009)

model of land markets

Acequia Participation Model

• Every tick, each Parciante agent must pay to maintain

its acequia rights. The cost is proportional to how many rights the agent has, the length of acequia to maintain, and the number of other Parciantes helping them.

Cost = Weight * Rightsnum * Acequialength/ Acequiamembers

• Parciante agents have different cultural valuations of

their participation in the acequia system.

Interactions between different kinds of agents

Verification

• The model was built

as part of an iterative process, so that each component was tested as it was developed

• Example:

– The water network

Verification

• The model was built

as part of an iterative process, so that each component was tested as it was developed

• Example:

– The water network

Sensitivity Test

1.Measured

– Conversion of Agricultural land to Urban – Change in number of Parciantes – Change in number of functioning Acequias

2.Found

– All parameters had the expected impact on the measured variables

Results

• Comparison of three scenarios:

1.Traditionalists with low costs 2.Prodigal Sons with high costs 3.Followers with medium costs

• Constant rainfall, demand profile, and

physical profile

Traditionalists

Traditionalists

Traditionalists

Traditionalists

Prodigal Sons

Prodigal Sons

Prodigal Sons

Prodigal Sons

Followers

Followers

Followers

Conclusions

• The acequia system is sensitive to variations

in cultural valuation among its members

• Changing the cost of acequia maintenance

has a significant impact on how tenable farming is as a lifestyle

• Weather, population pressure in the form of

demand for land, and crop prices influence the system overall

Thank you! Comments, questions, suggestions?

Emails: swise5@gmu.edu Web: css.gmu.edu acrooks2@gmu.edu socialcomplexity.gmu.edu gisagents.blogspot.com

Acknowledgements

• The authors would like to acknowledge of the Department
• f Computational Social Science and the Center for Social

Complexity at George Mason for providing support for this research.

• We are deeply grateful to Michael Cox for sharing his data
• n the Taos, New Mexico acequia system with us.
• This work is inspired by the research of John Paul

Gonzales of the Santa Fe Institute, who is himself an acequia parciante.
