Advances in X-Ray Technology for Semicon Applications Keith Bryant and Thorsten Rother X-Ray Champions, Telspec, Yxlon International Agenda The x-ray tube, the heart of the system Advances in digital detectors Enhancing the image and


slide-1
SLIDE 1

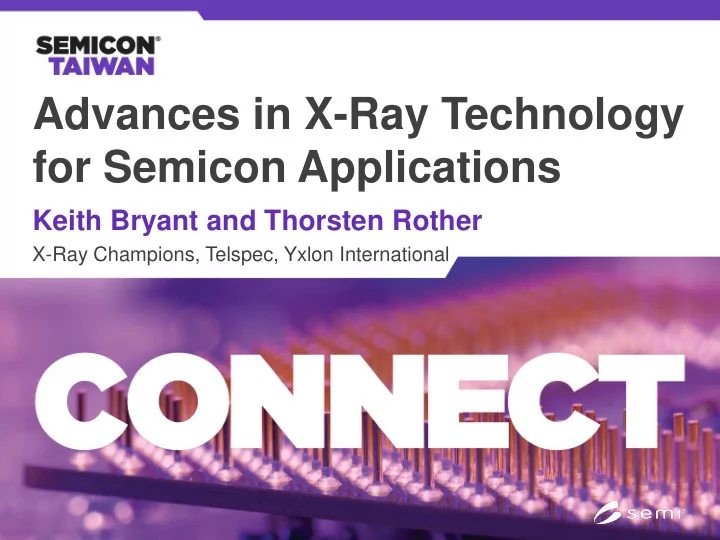

Advances in X-Ray Technology for Semicon Applications

Keith Bryant and Thorsten Rother

X-Ray Champions, Telspec, Yxlon International

slide-2
SLIDE 2

Agenda

  • The x-ray tube, the heart of the system
  • Advances in digital detectors
  • Enhancing the image and automation
  • Advances in computed tomography
  • Challenges of microelectronics

applications

slide-3
SLIDE 3

Introduction

  • X-Ray Technology has been

around for over 100 years mostly in the Medical industry

  • Traditionally Electronics used

components from Medical Systems

  • FeinFocus was the first X-Ray

company in the Electronics industry in the 1980s. Most companies came from here

slide-4
SLIDE 4

The x-ray tube, the heart of any system

  • Most systems for electronics applications use Open

transmission tubes, this technology is 55 years old

  • Open tube technology has improved dramatically in all

key areas over the last 10 years

slide-5
SLIDE 5

Recent Advances in Open Tube Technology

  • Pre-vacuum pumps are maintenance free
  • Vacuum inside the tube is much higher improving

feature recognition

  • Filament lifetime has been extended some 4

times

  • Replacement of the filament can now be done in

a few minutes, as a pre-adjusted quick change unit can be clicked into place, fast and easy

slide-6
SLIDE 6

Recent Advances in Open Tube Technology

Modern high end x-ray systems include the following features and settings:

  • Multifocus x-ray capability for more

flexibility

  • New types of targets, for demanding

applications

  • True X-ray Intensity (TXI) control for stable

and repeatable imaging results

slide-7
SLIDE 7

Multifocus x-ray capability

Microfocus Assembly Applications < 1µm Feature Recognition Nanofocus Semi-conductor Applications < 0.3µm Feature Recognition High Power High Density & Optoelectronics < 3µm Feature Recognition

slide-8
SLIDE 8

New types of targets

  • Open tube design allows the

use of dedicated targets, developed specifically for demanding applications

  • High Power target (diamond

based)

  • High Resolution Power target

(diamond based)

  • High Magnification target
  • Conical target
slide-9
SLIDE 9

True X-ray Intensity (TXI) control

  • Target current is measured

continuously

  • Emission current is adjusted

automatically Benefits include:

  • Consistent results over time
  • Accurate void measurements
  • Better image quality of CT scans

Without TXI With TXI

slide-10
SLIDE 10

Nanofocus Mode with HPR target

X-ray Image of a solder crack in 50μm Cu pillar, Sample size: 300mm wafer X-ray Image of a polymer material, voids and orientation of fibers are easily visible

slide-11
SLIDE 11

TXI + High Power Resolution target

CT scan of a failed Multi-Layer Ceramic Capacitor TXI technology secures extremely stable image quality for each projection High Power Resolution target allows the use of a high target power without decreasing the resolution

slide-12
SLIDE 12

The Detector, the art of the image

  • Early technology was Analogue

using lens’s and a camera

  • Image Intensifiers then improved

using software and better camera technology

  • The Digital Flat Panel was a huge

leap forwards, from 0.3 MPixels to 1 MPixels

  • Now DFP’s are available, designed

and purpose built for our industry

slide-13
SLIDE 13

High End Flat Panel Detector Technology

  • Real-time Imaging
  • Distortion-free Image
  • High-contrast and

highly detailed image

  • 16 Bit Image

processing for great greyscale (65000 shades)

UHD flat-panel detector image of µBGA

slide-14
SLIDE 14

Recent Advances of Flat Panel Technology

  • Panels are now less sensitive to

radiation so their lifetime is extended

  • Frame capture rate is faster so good

images are on screen sooner

  • Pixel size is reduced to make it easier to

see smaller features at high magnification

slide-15
SLIDE 15

High Quality Real Time Digital Imaging

slide-16
SLIDE 16

Enhancing the image chain

The biggest recent improvement has been in special filters which dramatically improve the on-screen image Benefits:  Faster inspection  Easier to see faults  Less operator stress

μHDR live filter

slide-17
SLIDE 17

Automation has to be accurate and repeatable

17 micron gold wires

slide-18
SLIDE 18

Automated wire sweep measurement

red indicates failure

slide-19
SLIDE 19

Computed Tomography Advances

  • Advanced x-ray

systems provide fast scanning

  • QuickScan delivers

almost as good result but much faster, in 3 to 5 minutes versus more than 30 minutes

Conventional µCT (left) and QuickScan (right) of a BGA with volume views (top) and views of a slice (bottom)

slide-20
SLIDE 20

QuickScan Plus

QuickScan Plus - volume view and virtual cross-sections of micro-BGA with micro-vias, wedge bonding

 HPR x-ray tube target  TXI (True Intensity Control)  10-15W target power  Real Time Flat Panel Detector  64bit CT High Speed reconstruction software

slide-21
SLIDE 21

Cracked Passive caused by interfacial voiding

slide-22
SLIDE 22

Challenges of Microelectronics

As component engineers escalate from 2D single die designs to 3D multiple die package solutions, it sets high demands for inspection tools.

slide-23
SLIDE 23

Challenges of Microelectronics

Thinned die cracking

  • Stacked packages must be able

to maintain the Z-height of a standard package, requiring thinned die down to 50μm

  • Thinned dies make stacked

components susceptible to brittle fracture failures

  • Die cracking is a significant

concern with stacked packages

Cracked die

Die cracking

slide-24
SLIDE 24

Challenges of Microelectronics

Flip chip connections

  • In most current 3D packages,

the stacked chips are connected along their edges with wire bonds

  • Also flip chip bumps are used

to create an interconnection between stacked dies

  • Potential defects of flip-chip

bumping – opens and solder voiding

Flip-chip pin grid array, FCPGA Flip chip bump area voiding

slide-25
SLIDE 25

Challenges of Microelectronics

Thru Silicon Via (TSV) connections

  • TSV replaces edge wiring by

creating vertical connections through the body of the chips

  • A TSV is a via hole in a silicon

wafer, which is insulated and filled with a conductive fill, usually copper

Micro void in 30μm diameter TSV

slide-26
SLIDE 26

Head on Pillow, 30µm µBGA balls chip structure easily visible

slide-27
SLIDE 27

35µm µBGA ball with voiding and open circuit (HoP)

slide-28
SLIDE 28

25µm diameter copper pillars 50µm long, 2D angled view

slide-29
SLIDE 29

2D angled view of 20µm TSV µbumps

slide-30
SLIDE 30

Voiding measurement of 15µm copper pillar

slide-31
SLIDE 31

3D image of 6µm diameter TSV’s

slide-32
SLIDE 32

25µm Copper Pillars and 6µm TSV µBump connections

slide-33
SLIDE 33

Automated measurement of blind and buried µvias

slide-34
SLIDE 34
