Additive Manufacturing as an Enabling Technology for Aerospace - - PowerPoint PPT Presentation

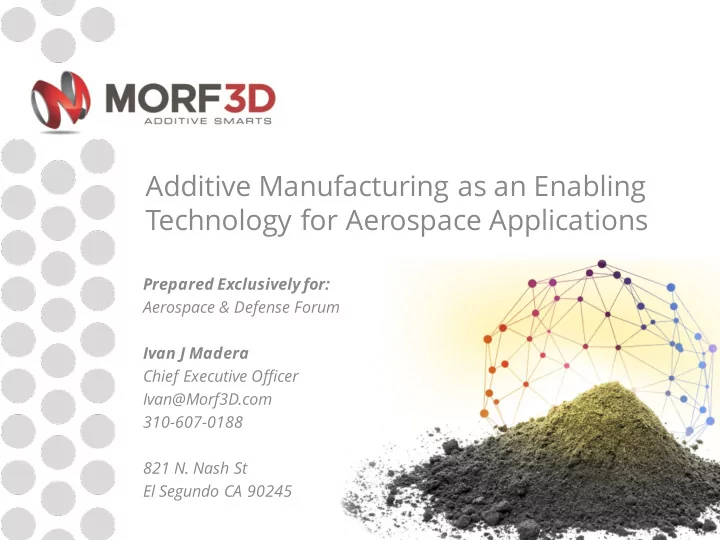

Additive Manufacturing as an Enabling Technology for Aerospace Applications

Prepared Exclusively for: Aerospace & Defense Forum Ivan J Madera Chief Executive Officer Ivan@Morf3D.com 310-607-0188 821 N. Nash St El Segundo CA 90245

2 Morf3D, Inc. Confidential, Privileged Information not for Distribution

A Value Chain Designed for Repeatability

Ab About Morf3D

Morf3D is a fully integrated provider of metal additive manufacturing solutions for the aerospace / defense industry. Our team of interdisciplinary experts is disrupting the way aerospace products are engineered, manufactured, and

• qualified. With a unique and innovative approach we

dramatically reduce the product development lifecycle to fully exploit the benefits of metal additive manufacturing.

3 Conceptualization – Advisory Services assist clients with the inception of an idea and establish expectations for what is and isn’t possible with Additive Manufacturing Design & Part Optimization – Engineering Services provide specialized expertise in additive manufacturing design, improve design for better performance / mass reduction Metallic 3D Printing – Manufacturing Services emergence of initial concept or

• ptimized part from initial prototype

through serialized production – contract manufacturing Post Processing – Finishing Services post- build surface treatment, heat treating, HIPing, and traditional machining and final finishing as required Metallurgy Lab & Inspection – Lab Services test coupons, metallurgical examination for performance, hardness testing, and dimensional quality assessment - R&D of new materials Certification & Data Analysis – Documentation Services collection of quality and build inputs, data analysis and documentation for part qualification and certification

Morf3D, Inc. Confidential, Privileged Information not for Distribution

Mo Morf3D’s Ma Market Offering

Ap Applica cation Overview - Op Opportunity

How ¡additive ¡manufacturing ¡can ¡help ¡companies ¡rethink ¡product ¡design. ¡And ¡the ¡ manufacturing ¡of ¡complex ¡parts ¡-­‑ Opportunity

• Dr

Dramatically reduce product dev evel elopmen ent lif ifecycle le

• In

Increased performance and functionally integrated pa parts

• Ab

Ability to manufacture complex geometries

• Li

Lightweight opportunities – La Lattice, Hollow St Structures

• Im

Improved mechanical properties

• Su

Supply Chain Efficiency

4 Morf3D, Inc. Confidential, Privileged Information not for Distribution

Di Disruptive De Design

5

Morf3D, Inc. Confidential, Privileged Information not for Distribution

Di Disruptive De Design – To

Topology Optimization

6

Morf3D, Inc. Confidential, Privileged Information not for Distribution

41% ¡Weight ¡Reduction, ¡increased ¡stiffness 79% ¡Weight ¡Reduction, ¡increased ¡frequency ¡response 45% ¡Weight ¡Reduction, ¡increased ¡frequency ¡& ¡stiffness

Benefits realized by the use of Additive Manufacturing:

• Dramatic weight reduction
• Increased stiffness
• Increased performance
• Rapid design iterations
• Reduced payload expense
• Volumetric efficiency

(current payload costs reported by NASA are $20,000/kg)

Original Design 1.6kg 88.7Hz 163MPa Final Design 0.936kg 91.5Hz 103MPa

Improved Performance and Weight Reduction of 41%

Bi Bionic Design & Optimization

(C (Customer: European Space Agency ESA - Se Sentinel 1 Sa Satellite )

Pa Path th To

• Qualification
• n

Ne Nesting of Flight Hardware with in-pr process sampl ples

7 Morf3D, Inc. Confidential, Privileged Information not for Distribution

9

Ho Holistic Qualification Process

Ho Holistic Process designed for Additive Manufacturing to insure structurally so sound components. s.

Morf3D, Inc. Confidential, Privileged Information not for Distribution

10

Me Mechanical & Ma Material Verification

De Detail of the Fracture Plane (Horizontal Spe pecimen) Pore in fracture plane is ~30 micron diameter < critical pore size of 150 micron Qu Qualification Testing Methods: Tensile Testing, SEM Microstructural Analysis, CT Geometric Analysis, CT Scanning for Internal Defects, Sine Testing

Morf3D, Inc. Confidential, Privileged Information not for Distribution

11

CT CT Scan n and nd Geometric Validation

Maximum deviation = 280 micron (non critical surface)

CT Scanning Objectives

• Comparison of actual / nominal

geometry

• Porosity size and relative

distribution Results

• No visible porosity within the

resolution of the CT

• No visible defects within the

resolution of the CT

Morf3D, Inc. Confidential, Privileged Information not for Distribution

EN ENVISION – Im Imagine & Discover

Wh What is possible with Additive Manufacturing?

– Where are the opportunities and challenges for a client? New markets; new customers; keeping current customers – What complex design problems can a client solve for its clients? New products; new designs for current products; new processes – Which areas in the supply chain does a client want to disrupt? – What do you want to transform? How you design, how you do business, how you serve your customers? – Can we improve our current level of performance through additive manufacturing? – What materials do you want to print? Many applications exist. – Which end-of-life or new parts could be supported with additive manufacturing?

Morf3D, Inc. Confidential, Privileged Information not for Distribution

Ex Explore the options that create the foundation for the Additive Man Manufac acturing tran ansformat ation:

– What percentage of parts could potentially be designed and produced through AM? – Identify opportunities to reduce product weight using AM? – Explore ways to disrupt the supply chain and improve client services by reducing NPD time by months – Gather and define a your requirements, analysis of which AM technologies may be right for operations – What changes will you need to make to our supply chain? – What added engineering design capabilities do we need in house or with a partner to design, manufacture and support AM? – Plan for Center of Excellence or Innovation Lab strategy to drive investment decisions – Identify a candidate use case – Develop business case

EV EVOLVE E – Pl Plan & Design

13 13 Morf3D, Inc. Confidential, Privileged Information not for Distribution

Re Realize the possibility of what is next. EM EMER ERGE to to make it t real th through pr prototypi ping and d ope perationalization:

– In order to have an impact, commit to implementing the changes identified during the EVOLVE – Confirm approach and timing of pilot process if applicable – Develop prioritized plan for improvement – Determine technology requirements and plan – Define technology partners and operations – Define additive manufacturing capabilities and go-to-market strategies

– Clearly define structures to support the People, Processes, Change, and

Technologies centered on additive manufacturing

EM EMER ERGE E – Pr Proto toty type & Operati tions

14 Morf3D, Inc. Confidential, Privileged Information not for Distribution

In Innovation Center – El El Segundo, CA.

Unfair Advantage

15

Digital Rendering

• Strategically located in El Segundo, CA (Named: The

Aerospace Capital of the World)

• 6,700 S.F. of Collaboration / Mfg.
• Latest AM-Metal DMLS Technology
• Video Walls for hands on design instruction and part
• ptimization
• Metallurgy Lab & Testing Equipment

Digital Rende ring

Morf3D, Inc. Confidential, Privileged Information not for Distribution

Explosion ¡proof ¡enclosure ¡– 2 ¡EOS ¡M290 Engineering ¡and ¡Collaboration ¡Space ¡ Enabling ¡the ¡Future ¡– Summer ¡Interns

16

Additive Smarts.
