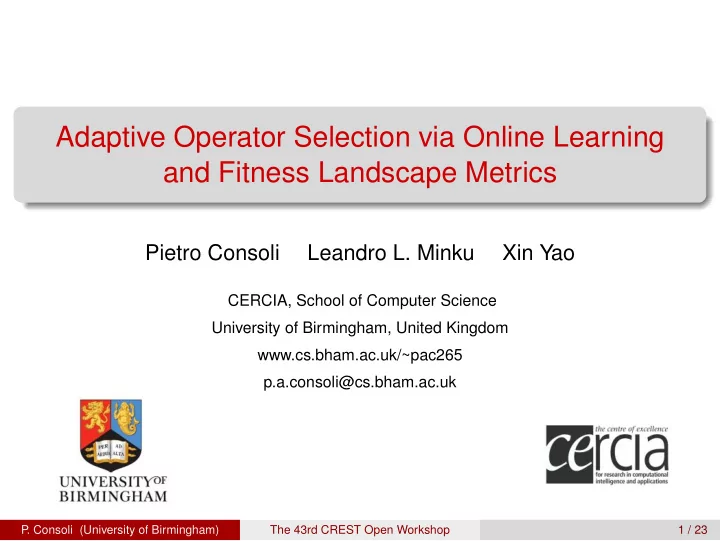

Adaptive Operator Selection via Online Learning and Fitness Landscape Metrics

Pietro Consoli Leandro L. Minku Xin Yao

CERCIA, School of Computer Science University of Birmingham, United Kingdom www.cs.bham.ac.uk/~pac265 p.a.consoli@cs.bham.ac.uk

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 1 / 23

Outline

1

Motivation

2

Adaptive Crossover Selection Fitness Landscape Metrics Online Learning

3

Case Study CARP

4

Experimental Studies Results

5

Future Work

6

Conclusions

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 2 / 23

Adaptive Crossover Selection

Different crossover operators might lead to offspring with different characteristics: Exploration Fitness Good traits transmission We can expect different search results on certain instances

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 3 / 23

Adaptive Crossover Selection

Inst Op A Op B Op C Op D 1 best x x x 2 best x x x 3 x x x best 4 x best x x 5 x x x best 6 x x best x 7 x x best x 8 x x x best ⇒ Inst ACS(Op) 1 A 2 A 3 D 4 B 5 D 6 C 7 C 8 D

Adaptive Crossover Selection

Adaptively select the best crossover operator to use during the search process

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 4 / 23

Adaptive Crossover Selection: Dynamic Scenario

Dynamic scenario: Different periods of the search might have different best crossover operators; Dynamic ACS potentially better than static scenario

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 5 / 23

Research Questions

1

State-of-the art approaches for Credit Assignment consider the use of just one measure (usually fitness). Enough to characterize the current population distribution?

2

What Operator Selection Rule can handle a set of measures?

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 6 / 23

RQ1: Population Charachterization through FLA

Fitness Landscape Analysis (FLA): create a more “aware” snapshot of the current population distribution.

1

perform a set of 4 online FLA techniques during each generation;

1

Average Escape Probability1 (Evolvability);

2

Average ∆−Fitness of the neutral networks 2 (Neutrality);

3

Average neutrality ratio 2 (Neutrality);

4

Dispersion Metric3 (Population Distribution);

2

FLA not to predict hardness but to learn more the current population distribution.

1Lu, G., Li, J., Yao, X. - "Fitness-probability cloud and a measure of problem hardness for

evolutionary algorithms" - 2011

2Vanneschi L., Pirola Y., Collard P

. - "A Quantitative Study of Neutrality in GP Boolean Landscapes" - 2006

3Lunacek M., Whitley D., - "The Dispersion Metric and the CMA Evolution Strategy" - 2006 P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 7 / 23

RQ2: Credit Assignment through Online Learning

Detection of changes analogous to Concept Drift tracking in Online Learning; Concept Drift: change of the underlying distribution of the samples during the learning process; Online learning can be used to learn the relationship between FLA results (input features) and the credit measure (output feature); Dynamic Weighted Majority (DWM) using Regression Trees as base learners.

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 8 / 23

Dynamic Weighted Majority

DWM(p, β, θ,, τ); initialize a set of experts and assign an initial weight wj = 1 to each; create a window of the last training instances wTS(xi); forall the instances (xi, yi) do update wTS; forall the expert ej do λi = predict(ej, xi); if |λi − yi| < τ and i mod p = 0 then wj = β ∗ wj; end if wj < θ and i mod p = 0 then delete expert ej; end normalize weights (maximum weight equal to 1); calculate global prediction σi (weighted average prediction); if |σi − yi| < τ and i mod p = 0 then create new expert ej and train with wTS; end train all experts with the new instance (xi, yi); return σi; end end

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 9 / 23

Capacitated Arc Routing Problem

Case Study: Crossover Operator Selection using the MAENS algorithm for Capacitated Arc Routing Problem 4; Considers the use of a suite of four different crossover

• perators;

Credit Assignment Mechanism: Proportional Reward (PR); we exploit the Local Search of MAENS* to perform the FLA techniques without extra computational cost.

• 4K. Tang, Y. Mei, X. Yao - "Memetic Algorithm with Extended Neighborhood Search for

Capacitated Arc Routing Problems" - 2009

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 10 / 23

Credit Mechanism

Credit Assignment Mechanism: percentage of offspring generated by each operator surviving to the next generation.

Proportional Reward

PR(i)t = |x ∈ popt+1 : x generated by operator i| |popt+1|

Indirect effect of crossover operator; We entrust the selection/ranking operator of the algorithm to evaluate the individuals.

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 11 / 23

CARP - instance

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 12 / 23

CARP - instance

each arc (task) has a service cost and a demand; constraints: number of vehicles and capacity;

• bjective function: minimize the total service cost;

proved NP-Hard in 1981; many real-world applications (e.g. waste collection, road gritting).

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 12 / 23

MAENS*-II

FLA is performed during each iteration; basic Operator Selection Rule: largest instantaneous reward in order to reduce bias

• f previous

performances; Credit Assignment through DWM.

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 13 / 23

Experimental studies

Experiments conducted on a set of 42 non-easy CARP instances belonging to egl, val and Beullen’s benchmark sets; Average fitness values calculated over 30 independent runs; In order to provide a lower bound and a term of comparison for the results, an Oracle using only the Proportional Reward is built;

1

Tested optimization results against MAENS*, Oracle;

2

Tested prediction ability against Oracle.

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 14 / 23

MAENS*-II vs MAENS*

MAENS* - uses MAB and Proportional Reward; MAENS*-II wins the comparisons with MAENS* on 20 instances and loses on 18 out of 42 instances; Wilcoxon signed-rank test over the set of the instances suggests that there is no statistical difference between the results achieved by the two algorithms; 6 instances show statistically different results using Wilcoxon rank-sum test on each couple of results.

Instance MAENS*-II MAENS* avg fitness std avg fitness std D23 767.67 7.39 769.83 12.28 E15 1604.33 5.59 1602.50 6.68 E19 1442.00 4.58 1442.67 4.23 F19 732.50 9.64 735.17 9.35 egl-s1-B 6397.59 12.70 6399.90 16.38 egl-s2-B 13171.41 29.49 13179.07 26.11

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 15 / 23

MAENS*-II vs Oracle

Oracle achieves better results on 40 instances; On 2 instances MAENS*-II managed to achieve better results than the Oracle; If Oracle shows bound using only PR, then the use of FLA+PR can enhance of the optimization ability of the algorithm.

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 16 / 23

Prediction Ability: Oracle

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 13971.10 13519.52 13410.23 13359.21 13329.27 13306.66 13284.98 13266.16 13259.01 13246.96 13238.19 13230.69 13224.19 13219.14 13210.87 13202.81 13198.70 13193.36 13185.43 13178.60 13173.01 13166.71 13162.42 13157.75 13138.98 gsbx grx pbx spbx

Figure: Oracle Selection Rates on instance egl-s2-B

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 17 / 23

Prediction Ability: MAENS*

0.1 0.2 0.3 0.4 0.5 0.6 13977.76 13518.30 13426.18 13372.69 13340.94 13319.99 13303.27 13290.76 13279.41 13269.52 13261.32 13254.27 13247.09 13240.74 13234.68 13228.45 13222.88 13218.08 13213.19 13207.88 13202.49 13194.81 13186.17 13176.59 13162.09 gsbx grx pbx spbx

Figure: MAENS* Selection Rates on instance egl-s2-B

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 18 / 23

Prediction Ability: MAENS*-II

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 13983.50 13517.70 13424.79 13371.06 13331.73 13301.41 13281.70 13269.87 13262.24 13254.12 13245.67 13238.68 13232.95 13228.56 13223.33 13217.34 13212.08 13207.40 13203.44 13198.58 13192.89 13186.89 13179.02 13169.77 13156.15 gsbx grx pbx spbx

Figure: MAENS*-II Selection Rates on instance egl-s2-B

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 19 / 23

Future work

Integrated with a Reinforcement Learning mechanism with concurrent use of the operators; Tested the use of a diversity-based reward measure; Improved results when using RL;

• utperformed state-of-the-art on Large Scale CARP instances.

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 20 / 23

Conclusions

Conclusions: Novel Adaptive Operator Selection strategy based on a set of FLA measures and online learning; Achieved comparable results w.r.t. MAB and outperformed the

• racle in a few instances but still non optimal detection of changes

in environment; Future Directions: Improving the detection of changes in the environment; Test on Software Engineering Problems?

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 21 / 23

References

Consoli, P .; Minku, L. L; Yao, X.; "Dynamic Selection of Evolutionary Algorithm Operators Based on Online Learning and Fitness Landscape Metrics", Proceedings of the 10th International Conference

• n Simulated Evolution And Learning (SEAL

’14), LNCS 8886, pp. 359-370, December 2014 Consoli P ., Yao, X.; "Diversity-Driven Selection of Multiple Crossover Operators for the Capacitated Arc Routing Problem", Evolutionary Computation in Combinatorial Optimisation, Proceedings of the 14th European Conference, EvoCOP 2014, Granada, Spain, April 23-25, 2014, LNCS 8600, 2014, pp 97-108 This work was supported by UK Engineering and Physical Sciences Research Council (EPSRC) (Grant Nos. EP/I010297/1 and EP/J017515/1).

P . Consoli (University of Birmingham) The 43rd CREST Open Workshop 22 / 23
