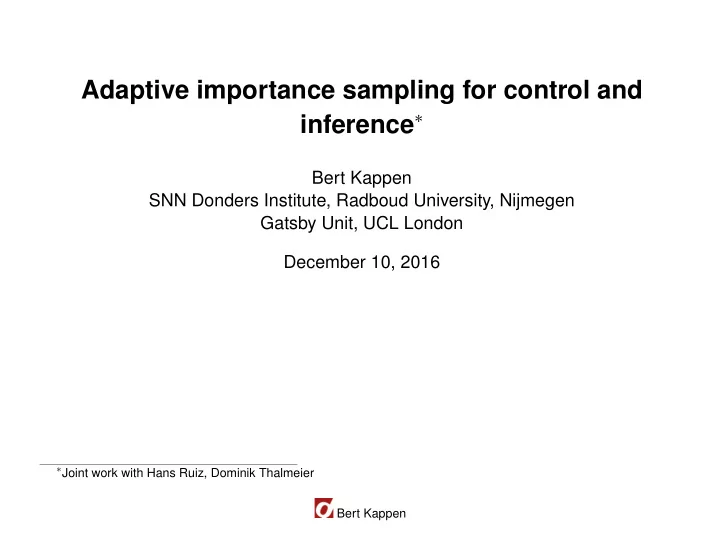

Adaptive importance sampling for control and inference∗

Bert Kappen SNN Donders Institute, Radboud University, Nijmegen Gatsby Unit, UCL London December 10, 2016

∗Joint work with Hans Ruiz, Dominik Thalmeier

Bert Kappen

Optimal control theory

Hard problems:

• a learning and exploration problem
• a stochastic optimal control computation
• a representation problem u(x, t)

Bert Kappen 1/30

PICE: integrating Control, Inference and Learning

Path integral control theory Express a control computation as an inference computation. Compute optimal control using MC sampling

Bert Kappen 2/30

PICE: Integrating Control, Inference and Learning

Path integral control theory Express a control computation as an inference computation. Compute optimal control using MC sampling Importance sampling Accellerate with importance sampling (= a state-feedback controller) Optimal importance sampler is optimal control

Bert Kappen 3/30

PICE: Integrating Control, Inference and Learning

Path integral control theory Express a control computation as an inference computation. Compute optimal control using MC sampling Importance sampling Accellerate with importance sampling (= a state-feedback controller) Optimal importance sampler is optimal control Learning Learn the controller from self-generated data Use Cross Entropy method for parametrized controller

Bert Kappen 4/30

PICE: Integrating control, inference and learning

Massively parallel computation

Bert Kappen 5/30

PICE: Integrating control, inference and learning

Massively parallel computation The Monte Carlo sampling serves two purposes:

• Planning: compute the control for current state
• Learning: improve the sampler/controller for future control computations

Bert Kappen 6/30

Path integral control theory

Uncontrolled dynamics specifies distribution q(τ|x, t) over trajectories τ from x, t. Cost for trajectory τ is S (τ|x, t) = φ(xT) +

T

t dsV(xs, s).

Find optimal distribution p(τ|x, t) that minimizes Ep S and is ’close’ to q(τ|x, t).

Bert Kappen 7/30

KL control

Find p∗ that minimizes

C(p) = KL(p|q) + Ep S KL(p|q) =

• dτp(τ|x, t) log p(τ|x, t)

q(τ|x, t)

The optimal solution is given by

p∗(τ|x, t) = 1 ψ(x, t)q(τ|x, t) exp(−S (τ|x, t)) ψ(x, t) =

• dτq(τ|x, t) exp(−S (τ|x, t)) = Eqe−S

The optimal cost is:

C(p∗) = − log ψ(x, t)

Bert Kappen 8/30

Controlled diffusions

p(τ|x, t) is parametrised by function u(x, t): dXt = f(Xt, t)dt + g(Xt, t)(u(Xt, t)dt + dWt) E(dW2

t ) = dt

C(u|x, t) = Eu

• S (τ|x, t) +

T

t

ds1 2u(Xs, s)2

• q(τ|x, t) corresponds to u = 0.

Goal is to find function u(x, t) that minimizes C.

Bert Kappen 9/30

Solution

The optimal control problem is solved as a Feynman-Kac path integral. The optimal cost-to-go

J(x, t) = − log

• dτq(τ|x, t)e−S (τ|x,t) = − log Eq
• e−S

Optimal control

u∗(x, t)dt = Ep∗(dWt) = Eq

• dWe−S

Eq e−S ψ, u∗ can be computed by forward sampling from q.

Bert Kappen 10/30

Sampling

0.5 1 1.5 2 −10 −5 5 10

Sample trajectories τi, i = 1, . . . , N ∼ q(τ|x)

Eq e−S ≈ 1 N

N

• i=1

e−S (τi|x,t)

Sampling is unbiased but inefficient (large variance).

Bert Kappen 11/30

Importance sampling

−2 2 4 0.2 0.4 0.6 0.8 1 1.2

Consider simple 1-d sampling problem. Given q(x), compute

a = Prob(x < 0) = ∞

−∞

I(x)q(x)dx

with I(x) = 0, 1 if x > 0, x < 0, respectively. Naive method: generate N samples Xi ∼ q

ˆ a = 1 N

N

• i=1

I(Xi)

Bert Kappen 12/30

Importance sampling

−2 2 4 0.2 0.4 0.6 0.8 1 1.2

Consider another distribution p(x). Then

a = Prob(x < 0) = ∞

−∞

I(x)q(x) p(x)p(x)dx

Importance sampling: generate N samples Xi ∼ p

ˆ a = 1 N

N

• i=1

I(Xi)q(Xi) p(Xi)

Unbiased (= correct) for any distribution p!

Bert Kappen 13/30

Optimal importance sampling

−2 2 4 0.2 0.4 0.6 0.8 1 1.2

The distribution

p∗(x) = q(x)I(x) a

is the optimal importance sampler. One sample X ∼ p∗ is sufficient to estimate a:

ˆ a = I(X) q(X) p∗(X) = a

Bert Kappen 14/30

Importance sampling and control

In the case of control we must compute

J(x, t) = − log Eqe−S u∗(x, t) = Eq

• dWe−S

Eq e−S

Instead of samples from uncontrolled dynamics q (u = 0), we sample with p (u 0).

Eqe−S = Epe−S u e−S u = e−S dq dp = e−S −

T

t 1 2u(xs,s)2dt−

T

t

u(xs,s)dWs

We can choose any p, ie. any sampling control u to compute the expectation values.

Bert Kappen 15/30

Relation between optimal sampling and optimal control

Define

αi = e−S u(τi|x,t)) N

j=1 e−S u(τj|x,t)

ES S = 1 N

j=1 α2 j

(1 ≤ ES S ≤ N)

Thm:

• 1. Better u (in the sense of optimal control) provides a better sampler (in the sense
• f effective sample size).
• 2. Optimal u = u∗ (in the sense of optimal control) requires only one sample, αi =

1/N and S u(τ|x, t) deterministic! S u(τ|x, t) = S (τ|x, t) + T

t

dt1 2u(xs, s)2 + T

t

u(xx, s)dWs

Bert Kappen 16/30

So far

• Optimal control can be computed by MC sampling
• Sampling can be accellerated by using ’good’ controls
• The optimal control for sampling is also the optimal control solution

How to learn a good controller?

Bert Kappen 17/30

The Cross-entropy method

pu(x) be a family of probability density function parametrized by u. h(x) be a positive function.

Conside the expectation value

a = E0 h =

• dxp0(x)h(x)

for a particular value of u = 0. The optimal importance sampling distribution is p∗(x) = h(x)p0(x)/a. The cross entropy method minimises the KL divergence

KL(p∗|pu) =

• dxp∗(x) log p∗(x)

pu(x) ∝ −Ep∗ log pu(X) ∝ −E0h(X) log pu(X) = Evh(X)p0(X) pv(X) log pu(X) p0 → p1 → p2 . . .

Bert Kappen 18/30

The CE method for PI control

Sample pu using

dXt = f(Xt, t)dt + g(Xt, t) (u(Xt, t)dt + dWt)

We wish to compute close to optimal control u such that pu is close to p∗. Following the CE argument, we minimise

KL(p∗|pu) = 1 ψ(t, x)Eve−S (t,x,v) T

t

ds1 2

• u(Xs, s) − v(Xs, s) − dWs

ds 2 v is the importance sampling control. Expected value is independent of v, but

variance/accuracy depends on v.

Bert Kappen 19/30

The CE method for PI control

We parametrize the control u(x, t|θ). The gradient is given by:

∂KL(p∗|pu) ∂θ = T

t

(u(Xs, s)ds − v(Xs, s)ds − dWs) ∂u(Xs, s) ∂θ

• v

= − T

t

dWs ∂u(Xs, s) ∂θ

• u

θ := θ − ǫ∂KL(p∗|pu) ∂θ

We refer to the method as PICE (Path Integral Cross Entropy).

Bert Kappen 20/30

Model based motor learning

compute control for k = 0, . . . do

datak = generate data(model, uk)

% Monte Carlo importance sampler

uk+1 = learn control(datak, uk)

% Deep or recurrent learning end for

0.5 1 1.5 2 −10 −5 5 10 0.5 1 1.5 2 −10 −5 5 10

Bert Kappen 21/30

Parallel implementation

Massive parallel sampling on CPUs Massive parallel gradient computation on C/GPU Goal: provide generic solver for any PI control problem to arbitrary precision.

Bert Kappen 22/30

Acrobot

2 DOF, second order, under actuated, continuous stochastic control problem. Task is swing-up from down position and stabilize.

Bert Kappen 23/30

Acrobot

(acrobot.mp4) Neural network 2 hidden layers, 50 neurons per layer. Input is position and velocity. 2000 iterations, with 30000 rollouts per iteration. 100 cores. 15 minutes

Bert Kappen 24/30

More samples per iteration is better :)

Fraction ESS versus IS iteration 100 k samples (green, cyan) 300 k samples (red, blue) 1000 k samples (black, yellow)

Bert Kappen 25/30

Trust region

Initial gradient computation too hard. Introduce (KL) trust region.

Control cost vs. IS iteration. Blue line: small trust region (ESS ≈ 50 %, 30k samples) (= video) Red line: intermediate trust region (ESS ≈ 1 %, 100k samples) Green line: large trust region (ESS ≈ 0.1 %, 300k samples)

Trade-off between speed and optimality.

Bert Kappen 26/30

Discussion

Continuous time SOC is very hard to compute.

• PI control: Control ↔ inference
• Better sampling (ESS) ↔ better control (control objective)
• IS: Learning control solution also increases efficiency of (future) control computations

Bert Kappen 27/30

Discussion

Continuous time SOC is very hard to compute.

• PI control: Control ↔ inference
• Better sampling (ESS) ↔ better control (control objective)
• IS: Learning control solution also increases efficiency of (future) control computations

Continuous time SOC is very hard represent.

• CE for parameter estimation → deep neural network

Bert Kappen 28/30

Discussion

Continuous time SOC is very hard to compute.

• PI control: Control ↔ inference
• Better sampling (ESS) ↔ better control (control objective)
• IS: Learning control solution also increases efficiency of (future) control computations

Continuous time SOC is very hard represent.

• CE for parameter estimation → deep neural network

For robotics? Embed PICE as inner loop and estimate model in outer loop for t = 0, . . . do

dataset = real world samples(ut) model = compute model(model, dataset)

for k = 0, . . . do

datak = generate data(model, uk) uk+1 = learn control(datak, uk)

end for end for

Bert Kappen 29/30

Thank you!

Kappen, Hilbert Johan, and Hans Christian Ruiz. ”Adaptive importance sampling for control and inference.” Journal of Statistical Physics 162.5 (2016): 1244-1266.
