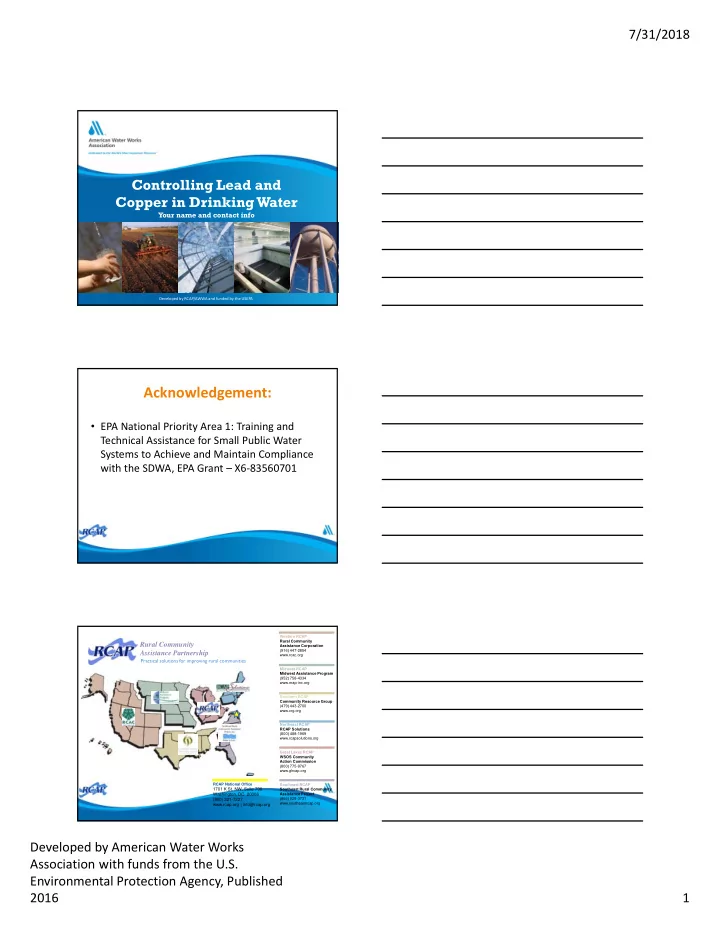

Acknowledgement: EPA National Priority Area 1: Training and - - PDF document

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 1 Controlling Lead and Copper in Drinking Water

Your name and contact info

Your name and contact info

Developed by RCAP/AWWA and funded by the USEPA

• EPA National Priority Area 1: Training and

Technical Assistance for Small Public Water Systems to Achieve and Maintain Compliance with the SDWA, EPA Grant – X6‐83560701

Acknowledgement:

Western RCAP Rural Community Assistance Corporation (916) 447-2854 www.rcac.org Midwest RCAP Midwest Assistance Program (952) 758-4334 www.map-inc.org Southern RCAP Community Resource Group (479) 443-2700 www.crg.org Northeast RCAP RCAP Solutions (800) 488-1969 www.rcapsolutions.org Great Lakes RCAP WSOS Community Action Commission (800) 775-9767 www.glrcap.org Southeast RCAP Southeast Rural Community Assistance Project (866) 928-3731 www.southeastrcap.org RCAP National Office 1701 K St. NW, Suite 700 Washington, DC 20006 (800) 321-7227 www.rcap.org | info@rcap.org

Rural Community Assistance Partnership

Practical solutions for improving rural communities

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 2

4

Purpose/Rationale

This material will:

• Advise you of the requirements for

addressing lead and copper in drinking water (specifically at small water systems)

• Inform you of potential future

standards recommended by the National Drinking Water Advisory Council (NDWAC) regarding lead and copper in drinking water

• Explain how to be more effective in

your efforts to protect public health

5

Learning Objectives

At the end of this course you should be able to:

• Apply the regulatory requirements of the Lead and

Copper Rule to your system

• Calculate the 90th concentration
• Summarize factors that will impact the release of lead

and copper

• Take action to protect consumers from lead and copper

6

Agenda

• 0:00 – 0:05 – Introduction
• 0:06 – 0:46 – Regulations
• 0:47 – 1:12 – Lead and copper basics
• 1:13 – 1:23 – Conducting an inventory
• 1:24 – 1:44 – Monitoring requirements
• 1:45 – 2:00 – Treatment requirements
• 2:01 – 2:06 – Public notification requirements
• 2:07 – 2:22 – Lead service line replacement
• 2:23 – 2:27 – Summary

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 3

7

Pre‐test: Controlling Lead and Copper in Drinking Water

• The pre‐test will be handed out

Module One: Regulations

Module One Learning Objectives

At the end of this module you should be able to…

• Summarize the purpose of the 1991 Lead and Copper

Rule (LCR)

• Name the types of utilities that are subject to LCR

requirements

• Demonstrate how to calculate the “90th percentile” for

your system

• Describe additional requirements that may be triggered

as a result of an Action Level (AL) exceedance

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 4

• Young children and infants tend to absorb more lead

than the average adult. – Impaired mental development – IQ deficits – Shorter attention spans – Low birth weight

• Adults ‐ Increased blood pressure
• EPA set the MCLG at zero.

Why address lead?

• Exposure to copper

can cause stomach and intestinal distress, liver and kidney damage, and complications of Wilson’s disease.

• EPA set an MCLG of

1.3 mg/L

Copper

• Reduction of lead in materials

– The Lead Ban (1986) – The Reduction of Lead in Drinking Water Act (2011)

• Standards and Monitoring Requirements

– The Safe Drinking Water Act (1974) – The Lead Contamination Control Act (LCCA) (1988) – The Lead and Copper Rule (1991, revised 2000, 2007)

Rules that impact lead

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 5

• 1986 – Required use of “lead free” pipe, solder, and

flux – 0.2% lead in flux/solder ‐ “lead free”

• 50% prior to 1986

– <8% lead for pipes and pipe fixtures

• 1998 – Banned fixtures that were not “lead free”
• 2011 – Redefined lead free as 0.25%

Lead Regulations – In materials

• 1974 – MCL ‐ 0.050 mg/L SDWA
• 1988 ‐ Lead Contamination Control Act

– Lead monitoring and reporting requirements for all schools (not enforceable)

• 1991 ‐ Lead and Copper Rule (LCR)

– Action levels ‐ 0.015 mg/L lead, 1.3 mg/L Cu – CWS and NTNCWS – Minor revisions 2000, 2007

• 2017? – Long‐term revisions to the LCR

Lead Regulations – Standards and monitoring requirements

• Maximum Contaminant Level Goals (MCLG)

– Lead – 0 µg/L – Copper – 1.3 mg/L

• Action level based on the 90th percentile

– Lead ‐ 15 µg/L – Copper ‐ 1.3 mg/L

• Requires optimized corrosion control rather

than a Maximum Contaminant Level (MCL)

LCR (1991)

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 6

Actions for Lead Exceedance

• Water quality parameter monitoring
• Corrosion Control Treatment
• Source water monitoring
• Public education
• Lead service line replacement

Lead and Copper Rule 1991 Overview

* Includes systems serving ≤ 50,000 people and (b)(3) systems ** Includes non‐(b)(3) systems serving > 50,000 people, irrespective of their 90th percentile

levels; (b)(2) systems must collect WQPs.

Conduct periodic lead and copper tap monitoring 90th Percentile Exceeds the Lead Action Level (15 μg/L) 90th Percentile Exceeds the Copper Action Level (1.3 mg/L) 90th Percentile Is at or Below Both Action Levels* CWS or NTNCWS Collects Lead and Copper Tap Samples Begin LSLR replace 7%

• f LSLs

per year Begin CCT steps includes WQP monitoring ** Conduct periodic lead and copper tap monitoring Conduct public education due within 60 days Conduct source water monitoring

(Install SOWT, if needed)

• Monitoring – What type systems is the rule

applicable to?

• For public education – Is public education required

when copper action level is exceeded?

• Source water – How frequently must a ground

system monitor?

• Corrosion control treatment – When must a small

system conduct a CCT study.

Activity‐ EPA Quick Reference Guide

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 7

• NDWAC recommendation ‐ Development of a

household action level

• Potentially lowering of the action level
• Requiring lead service line replacement

Potential future standards To calculate the 90th percentile:

• Rank the samples according

to their lead or copper concentrations

• Find the “sample” that:

– 90% of all samples have a lower concentration – 10% of all samples have a higher concentration

Sample # Lead (mg/L) 1 0.004 2 0.005 3 0.005 4 0.006 5 0.006 6 0.006 7 0.009 8 0.010 9 0.011 10 0.017

• Your instructor will distribute handouts for

this activity

Activity: Determining the 90th Percentile

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 8

Module Two: Lead and Copper Basics

Module Two Learning Objectives

At the end of this module, you should be able to:

• Name the two forms of lead that may be

present in drinking water

• Discuss factors that can impact lead

concentrations in drinking water

• Rarely from source water or distribution mains
• Service lines

– Lead service lines, on either side of the meter – Goosenecks or pigtails

• Customer plumbing

– Solder – Plumbing fixtures

Sources of Lead

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 9

Ownership of System Components There are two forms of lead:

• Dissolved lead
• Particulate lead

Forms of lead

• Water quality parameters

– pH, alkalinity, dissolved inorganic carbon, hardness – Chlorine residual levels, – Presence of corrosion inhibitors

• Materials
• Other conditions

– Temperature, Flow velocity, Electrical current

Factors that impact dissolved lead concentrations

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 10

Operations practices that can impact lead levels

• Physical disturbances

⁻ Repairing a main break ⁻ Meter repair

• Hydraulic changes

⁻ Flushing ⁻ Valve/ hydrant testing

Factors that impact particulate lead concentrations

• Change in source water
• Changes in water chemistry
• Change in pH
• Change in chlorine residual levels

Factors that can impact both dissolved and particulate concentrations

What would happen to lead levels if:

• 1. Seasonally switch between a surface water

source and a ground water

• 2. Bring a new well into service
• 3. Repair a water main
• 4. Replace the service line between the main and

meter

Discussion

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 11

Module Three: Conducting an Inventory

At the end of this module, you should be able to:

• Name information sources you can use to

inventory the materials used in your system

• Identify ways to tell whether or not a pipe is

made of lead

Module Three Learning Objectives

• Installation records
• Codes, regulations
• Main renewal records
• Observations during construction
• Observation during meter

replacement

• Customer reporting

Conducting an inventory

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 12

• Scratch test

– Grey or color like a penny? – Easy to scratch?

• Lead swabs
• Shape
• Magnet (will stick to

steel, not lead)

Ways to tell if pipe is lead

Who has lead service lines?

• Have you conducted an inventory?
• What are the ages of homes in your

system?

Question

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 13

Module Four: Monitoring Requirements

Module Four Learning Objectives

At the end of this module, you should be able to:

• Discuss how to properly select sampling sites for a Community

Water System as well as for a Non‐Transient, Non‐Community Water System

• Monitor your system as prescribed by Standard Monitoring

and Reduced Monitoring requirements

• Follow procedures required to properly collect and manage

lead and copper tap samples

• Sampling sites – with highest potential levels
• Frequency – Set by regulation – Reduced

monitoring possible

• Procedures – First‐draw, try to observe the

highest concentrations

Monitoring Requirements

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 14

• Three tier criteria to identify home with the

highest risk

– Tier 1

• Single family
• If lead service lines (50% of the sites)
• Copper pipe and lead solder after 1982 (and before

lead ban 87/88)

– Tier 2 ‐ Building/multi‐family – Tier 3 – Lead solder before 1983

Site selection CWS

• 2 tier criteria

– Tier 1

• Lead service lines or
• Copper pipe and lead solder after 1982 (and before

lead ban 87/88)

– Tier 2

• Lead solder before 1983

NTCNWS

• Systems without enough tiered sites must use

representative sites

• Must identify sites in your monitoring plan
• Best to have more sites than the minimum

required

Minimum number of sites

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 15

Minimum Number of Tap Samples

System Population Number of Sampling Sites (on Routine Monitoring) Number of Sampling Sites (on Reduced Monitoring) >100,000 100 50 10,001 to 100,00 60 30 3,301 to 10,000 40 20 501 to 3,300 20 10 101 to 500 10 5 ≤100 5 5

• Standard monitoring:

– Conducted at 6‐month intervals from January‐June or July‐December

• Reduced monitoring

– Can be annual, triennial, or 9‐year monitoring schedules.

• Conducted during a 4‐month period from June‐September
• Time of normal operation when highest likely lead levels

Monitoring schedules Procedures for sampling

 First‐draw  6‐hour standing time  One‐liter volume

 System or residents can collect  Samples are taken from kitchen/bathroom taps 45

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 16

• No water softeners or POU/POE
• Aerators – Leave on
• Use wide mouth sample bottles (encourages

higher flow rates)

• No pre‐stagnant flushing

Issues and recent recommendations

• Improper sample analysis
• Site selection criteria not met
• Sample container damaged
• Sample subjected to tampering

It’s difficult to invalidate a sample

States may invalidate a sample if

• Customer requested samples should not be

included in the 90th percentile calc. (states are still requiring these to be reported)

• Sampling not required at schools or public

buildings (but recommended)

Other samples

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 17

Activity ‐ Monitoring

• Your instructor will distribute handouts for

this activity

Module Five: Treatment Requirements - Optimal Corrosion Control Treatment (OCCT)

At the end of this module, you should be able to:

• Explain why a small or medium system would decide

to apply Optimal Corrosion Control Treatment (OCCT) techniques

• Summarize the purpose of Water Quality Parameter

(WQP) Monitoring for small and medium systems

Module Five Learning Objectives

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 18

• Chemical treatment designed to reduce the corrosivity of

water – Raising pH to make water less acidic – Adding buffering to make water more stable – Adding corrosion inhibitors to create a barrier to inhibit metals release

• OCCT required for large system
• Required for small/medium systems only if the action level is

exceeded

Optimal corrosion control treatment (OCCT)

• Required when

– < 50,000 that exceed AL – > 50,000 regardless of 90th percentile* *(b)(3) systems not subject to CCT requirements (b)(3) system = 90th percentile lead ‐ highest source water < 0.005 mg/L for 2 consec. 6 mos.

Water Quality Parameter Monitoring WQP Monitoring ‐ Parameters

Typical Water Quality Parameters pH1 Orthophosphate2 Alkalinity Silica3 Calcium Temperature1 Conductivity

1 Measured on‐site. 2 Applies when a phosphate‐containing inhibitor is used. 3 Applies when a silicate‐containing inhibitor is used.

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 19

• To assist in determining water corrosivity
• To identify appropriate corrosion control

treatment

• To determine whether corrosion control

treatment is being properly maintained

Purpose of WQP monitoring

• Study/treatment

recommendation by system

• State treatment

determination

• Treatment installation
• Follow‐up Pb/Cu tap &

WQP monitoring

• State‐specified operating

parameters

Corrosion Control Treatment Steps

• Consult with your primacy agency
• Obtain recommendations of chemical suppliers
• Check with industries, hospitals, clinics, and

wastewater plants

• Check with other water systems
• Don’t experiment on the whole system
• Consider advantages and disadvantages of

storing, handling and feeding various chemicals

Determining The Best Corrosion Control Treatment

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 20

• Has anyone modified corrosion control

practices

Discussion

Module Six: Public Notification Requirements

At the end of this module, you should be able to:

• Comply with the Lead Consumer Notice

requirements as mandated in the 1991 Lead and Copper Rule

• Communicate with consumers regarding

effective strategies to reduce lead exposure

Module Six Learning Objectives

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 21

• Notify consumers of lead tap results
• Consumer Confidence Reports

Without an action level exceedance

• Impacts all CWSs and NTNCWSs
• Requirements (varies by state)

– Provide notice of lead tap water monitoring results

• Regardless of whether sample exceeds lead AL
• To all served by sampling site ‐‐ not just the person who

pays the bills (i.e. renters)

• As soon as practical but within 30 days after receiving

results

• By mail or other State‐approved methods

Lead Consumer Notice

• Flushing – Stagnant water
• Clean aerators
• Get your water tested
• Filters

Consumers tips for reducing lead exposure

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 22

Module Seven: Lead Service Line Replacement

At the end of this module, you should be able to:

• Explain the impacts to public health when

considering lead service line replacements

• Describe the difference between a partial and

a full service line replacement

• Suggest consumer alternatives to service line

replacements

Module Seven Learning Objectives

• Full replacement – From main to inside the

home

• Partial replacement – From the main to the

meter

• Disturbance on the main or service line

Lead service lines – do they need to be replaced

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 23

• What action(s) will you take on returning to

your utility?

• Examples could include:

– Conduct a materials inventory – Review sampling plan and sites selected – Develop notices for consumers – Develop an SOP for when lead service lines are disturbed – Review treatment strategies – Develop a strategy for replacing service lines

Activity

• The primary source of lead are service lines,

solder, and plumbing fixtures. Some of which are not under direct control of the utility.

• The utilities responsibilities are:

– Monitoring – Controlling the corrosivity of the water – Public education and outreach – Operation practices to minimize lead – Programs to get the lead out

Summary

• Have a program to replace lead service lines
• Have a program to help customers monitor

their tap

• Sample schools and other public buildings

You are not required, but recommended to:

7/31/2018 Developed by American Water Works Association with funds from the U.S. Environmental Protection Agency, Published 2016 24

AWWA: http://www.awwa.org EPA Lead and Copper Rule Quick Reference Guide: https://nepis.epa.gov/Exe/ZyPDF.cgi?Dockey=600 01N8P.txt Rural Community Assistance Partnership (RCAP): http://www.rcap.org

Resources

Post‐test: Controlling Lead and Copper in Drinking Water

• Post‐test will be handed out

THANKS FOR ATTENDING!

YOUR NAME CONTACT INFO
