Remote Memory Access A deeper look at RMA Outline Additional MPI RMA concepts - Synchronization modes - Types of epoch - Memory model The other two MPI synchronization calls - Post-Start-Complete-Wait (PSCW) - Locking and unlocking

slide-1
SLIDE 1

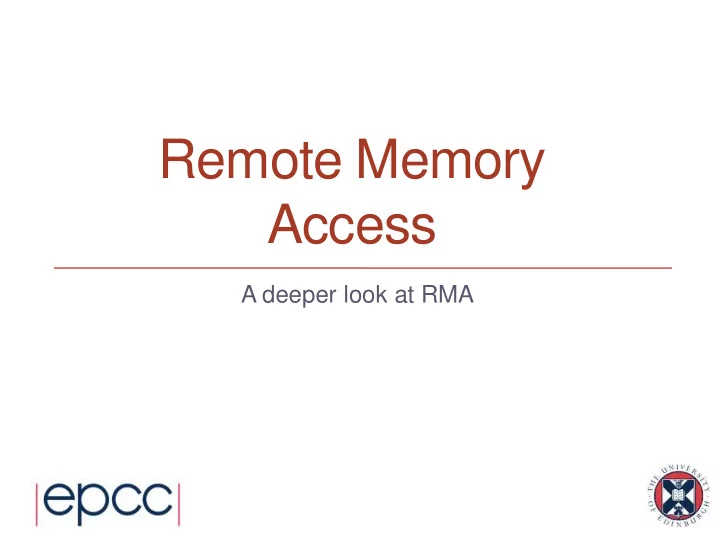

Remote Memory Access

A deeper look at RMA

slide-2
SLIDE 2

Outline

  • Additional MPI RMA concepts
  • Synchronization modes
  • Types of epoch
  • Memory model
  • The other two MPI synchronization calls
  • Post-Start-Complete-Wait (PSCW)
  • Locking and unlocking
  • Some useful MPI-3 extensions
  • Request handles
  • Dynamic windows

2

slide-3
SLIDE 3

Additional MPI RMA concepts

Synchronisation modes, epochs types and memory model

3

slide-4
SLIDE 4

Synchronization modes

  • Active target
  • Both processes are explicitly involved in the data movement. Only
  • ne process issues the data transfer call but all processes issue

the synchronisation.

  • Passive target
  • Only the origin process is involved in the data movement, there are

no calls made on the target process. For instance two origin processes might communicate by accessing the same location in a target window, and the target process (which does not participate) might be distinct from the origin processes.

Fence is an example of active target as each process issues the fence calls

4

slide-5
SLIDE 5

Epoch types

  • Access epoch
  • RMA communication calls (get, put etc) can only be issued inside

an access epoch. This is created by starting the epoch and completed by stopping the epoch.

  • I.e. it is used to access the remote memory of another process.
  • Exposure epoch
  • Used in active target communication, this is required to expose

memory on the target so it can be accessed by other processes’ RMA operations. Fences abstract the programmer from this as they will complete/start both access and exposure epochs automatically as required

5

slide-6
SLIDE 6

RMA Memory model

  • Public and private window copies
  • Public memory region is addressable by other processes (i.e.

exposed main memory)

  • Private memory (i.e. transparent caches or communication buffers)

which is only locally visible but elements from public memory might be stored.

  • Coherent if updates to main memory are automatically

reflected in private copy consistently

  • Non-coherent if updates need to be explicitly

synchronised

6

slide-7
SLIDE 7

RMA Memory model

  • MPI therefore has two models
  • Unified if public and private copies are identical – used if possible, realistic
  • n cache coherent machines. (This was added in MPI v3)
  • Separate if they are not, here there is only one copy of a variable in

process memory but also a distinct public copy for each window that contains it. The old model

Public window copy Public window copy Process memory

  • In the separate model a suitable

synchronisation call (i.e. end of an epoch) must be issued to make these

  • consistent. In the unified model some

synchronisation calls might be

  • mitted for performance reasons
  • The window attribute tells you which

model it follows

Put Get Local write Local read

Illustration of separate model

7

slide-8
SLIDE 8

AMPP Lecture stops here!

  • Additional slides included for completeness
  • All you need to know:
  • you can do point-to-point synchronisation in MPI RMA as well as

global synchronisation with fences

  • it is called “Post-Start-Complete-Wait” - PSCW
  • you do not need to know any more details than this!
  • you can lock windows
  • this is called “passive target synchronisation” as the target process does

not need to make any RMA calls

  • model is something like: lock / put / unlock
  • you do not need to know any more details than this!

8

slide-9
SLIDE 9

The other two synchronization calls

Post-start-complete-wait and locking & unlocking

9

slide-10
SLIDE 10

Post-start-complete-wait (PSCW)

  • The programmer explicitly handles different types of

epoch

  • post creates an exposure epoch, wait ends an exposure epoch
  • start creates an access epoch, complete ends an access

epoch

  • Groups of processes are provided to post and wait

calls to support synchronising over a subset of processes in the communicator. Assertions also provided if you want.

  • post will not block, start may or may not block
  • wait will block until all matching complete calls and

guarantees target RMA completion

  • complete will block until RMA communications of that epoch

have completed and guarantees origin RMA completion

10

slide-11
SLIDE 11

Post-start-complete-wait (PSCW)

These can overlap, i.e. you can have an exposure epoch and also create an access epoch. Remember wait will block for its matching complete, so you must have complete and then wait Dashed arrows illustrate synchronization, solid arrows data transfer

11

slide-12
SLIDE 12

PSCW example

int ranks[]={0,1,2}; if (rank == 0) { MPI_Win_create(buf, sizeof(int)*3, sizeof(int), MPI_INFO_NULL, MPI_COMM_WORLD, &win); } else { MPI_Win_create(NULL, 0, sizeof(int), MPI_INFO_NULL, MPI_COMM_WORLD, &win); } if (rank == 0) { MPI_Group_incl(comm_group, 2, ranks+1, &group); MPI_Win_post(group, 0, win); MPI_Win_wait(win); } else { MPI_Group_incl(comm_group, 1, ranks, &group); MPI_Win_start(group, 0, win); MPI_Put(buf, 1, MPI_INT, 0, rank, 1, MPI_INT, win); MPI_Win_complete(win); }

Group contains ranks 1 and 2 Start exposure epoch Stop exposure epoch Group contains rank 0 Start access epoch Stop access epoch

Based on an example at cvw.cac.cornell.edu/MPIoneSided/pscw

12

slide-13
SLIDE 13

Locks and unlocks

  • PSCW is an example of active target synchronisation as

the target must still explicitly create an exposure epoch

  • Locks/unlocks are an example of passive synchronisation

where only the origin takes part.

int MPI_Win_lock(int lock_type, int rank, int assert, MPI_Win win) int MPI_Win_unlock(int rank, MPI_Win win)

  • Inside the epoch (i.e. between lock & unlock) then RMA

communication calls as normal, these complete for both the origin and target on the corresponding unlock. Starts an access epoch Stops the access epoch

13

slide-14
SLIDE 14

Locks and unlocks

  • The lock type argument to lock is either:
  • MPI_LOCK_SHARED where multiple processes may access the

target window at any one time

  • MPI_LOCK_EXCLUSIVE where only one process may access the

target window at any one time

  • MPI 3 also added lock_all and unlock_all variants

which control access to all processes associated with a window.

  • There is also
  • flush to flush outstanding RMA operations on the window to the

target rank

  • sync to synchronise public & private window copies (separate

memory model)

14

slide-15
SLIDE 15

Lock and unlock example

MPI_Win win; if (rank == 0) { MPI_Win_create(NULL,0,1,MPI_INFO_NULL,MPI_COMM_WORLD,&win); MPI_Win_lock(MPI_LOCK_SHARED,1,0,win); MPI_Put(buf,1,MPI_INT,1,0,1,MPI_INT,win); MPI_Win_unlock(1,win); MPI_Win_free(&win); } else { MPI_Win_create(buf,2*sizeof(int),1, MPI_INFO_NULL, MPI_COMM_WORLD, &win); MPI_Win_free(&win); }

Based on an example at cvw.cac.cornell.edu/MPIoneSided/lul

Start access epoch Stop access epoch Communication call 15

slide-16
SLIDE 16

Some other MPI v3 extensions

Request handles, dynamic windows

16

slide-17
SLIDE 17

Request handles

  • There is also an R variant of all communication calls

which associate a request handle with the operation

  • i.e. Rget, Rput and Raccumulate
  • Importantly only valid in passive target synchronisation
  • This request handle is then used as you would any other

request handle (you can call MPI_test, MPI_wait etc

  • n it.)
  • Tracks origin’s RMA completion only.
  • For a put/accumulate guarantees that the origin’s buffer can be
  • verwritten (but not that data has arrived)
  • For a get guarantees that data is available in the origin’s buffer
  • Different to an unlock or a flush in this respect

17

slide-18
SLIDE 18

Dynamic windows

  • Traditional windows allocation required that memory is

attached at window creation

  • But what if we don’t know the amount of memory needed at that

point?

  • Dynamic windows allow memory can be exposed without

additional synchronisation

int MPI_Win_create_dynamic(MPI_Info info, MPI_Comm comm, MPI_Win *win)

  • Memory is then attached with

int MPI_Win_attach(MPI_Win win, void *base, MPI_Aint size)

  • Detached with

int MPI_Win_detach(MPI_Win win, const void *base)

18

slide-19
SLIDE 19

Dynamic windows

  • Memory being attached can not overlap with any other

memory that is already attached

  • The target displacement argument of the origin’s

communication call is the address at the target

  • You can use MPI_Get_Address on the target to retrieve this
  • Must ensure that the memory has been attached on the

target process before the origin issues any RMA calls referencing it

19

slide-20
SLIDE 20

Summary

  • We have covered a large proportion of the RMA calls
  • All the underlying concepts
  • All three synchronisation mechanisms
  • There are some additional, less frequently used communication calls and

window management functions.

  • There are a number of rules related to correctness where you can omit explicit

synchronisation calls for unified windows. We have covered a “safe” approach here which works fine for both types.

  • Many resources available online
  • MPI version 3 standard is very comprehensive
  • https://cvw.cac.cornell.edu/MPIoneSided is a good resource
  • https://htor.inf.ethz.ch/publications/img/mpi3-rma-overview-and-model.pdf
  • http://www.mpich.org/static/docs/v3.2/www3/
  • You will get best experience of this by considering the applicability of

RMA to your existing codes

20
