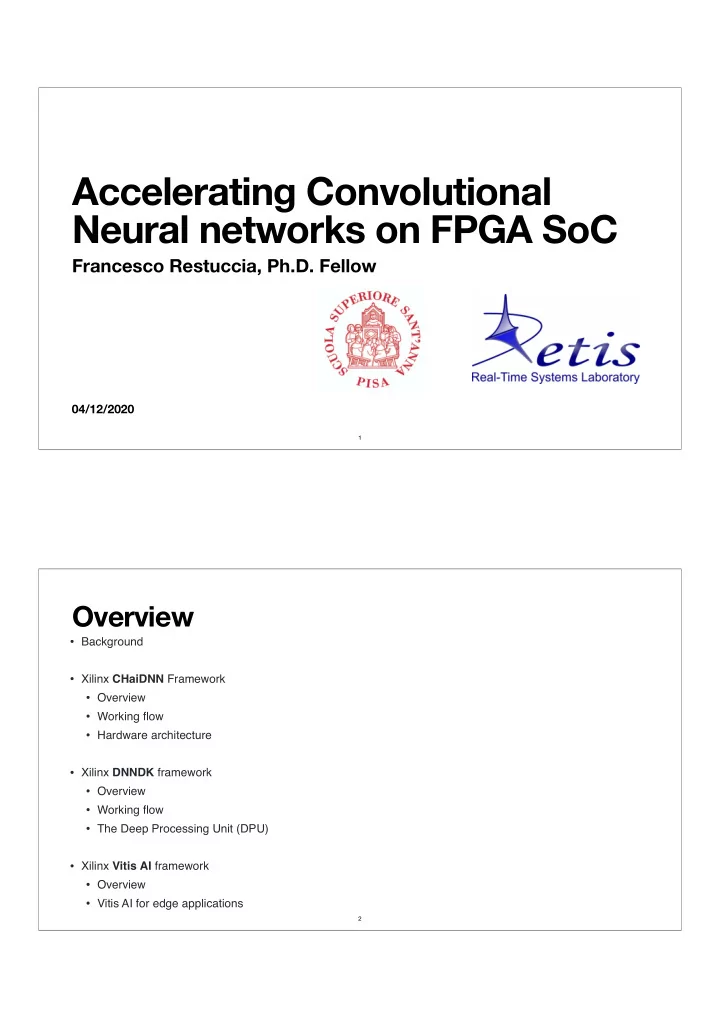

Accelerating Convolutional Neural networks on FPGA SoC

Francesco Restuccia, Ph.D. Fellow

Overview

• Background
• Xilinx CHaiDNN Framework
• Overview
• Working flow
• Hardware architecture
• Xilinx DNNDK framework
• Overview
• Working flow
• The Deep Processing Unit (DPU)
• Xilinx Vitis AI framework
• Overview
• Vitis AI for edge applications

Background

FPGA SoC Architecture

FPGA Programmable Logic

FPGA SoC Architecture - 2

ARM-based Processing System

FPGA SoC Architecture - 3

Hardware accelerators Interconnect (AXI based) DRAM controller ARM processors FPGA-PS interfaces

What’s a hardware accelerator?

• Piece of hardware developed to compute a specific

functionality

• Placed in the Programmable Logic (FPGA)
• Master Slave Interface for interconnection (AXI standard)
• Can be described in different ways

What’s a hardware accelerator? - 2

• Hardware accelerators (HWA) development method:
• Hardware description languages (VHDL, Verilog,

SystemVerilog, …)

• Hardware construction language (Chisel)
• High-level description (HLS)
• Buy one as Intellectual Property block (IP block)

FPGA SoC are used to run inference!

• FPGA SoC and FPGA MPSoC are mainly used for embedded applications
• FPGA MPSoC and SoC have good performance for inference
• In some case, comparable with GPU SoC (fps)
• Better power efficiency
• The training of neural networks is generally made on big GPUs
• We will assume in the following slides to have a pre-trained neural network as starting point
• The network model (.prototxt Caffe)
• The trained weight (.model Caffe)

Considered platforms

Xilinx Zynq Ultrascale+ MPSoC

• Processing System
• 4 General Purpose Cortex A53
• 2 Cortex R-5 (real-time)
• Programmable Logic (huge)
• Zynq Ultrascale+ logic
• Xilinx ZYNQ Z-7000 (PYNQ Z-7020)
• Processing System
• 2 General Purpose Cortex A9
• Programmable Logic
• Artix 7-Series FPGA

Xilinx CHaiDNN

ChaiDNN: Overview

• Open source deep Neural Network library for the acceleration of deep neural networks
• Designed for Xilinx UltraScale+ MPSoC
• Designed to accelerate convolutional Neural Networks on images
• High-level synthesis based accelerators
• Compatible with multiple popular neural networks for classification (AlexNet, GoogleNet, ResNet, etc.)

ChaiDNN: Install

Official Github https://github.com/Xilinx/CHaiDNN Download the network model Prepare the SD card image

Flash the source into the SD card

Build the software Build the hardware accelerator Use the prebuilt-system Build the system

How does CHaiDNN works?

• Given a Caffe model and weights files (.prototxt

and .model)

• Model is parsed runtime by the CHaiDNN application
• Initializes the hardware accelerators and data

structure

• Schedules the operation between processors and

the hardware accelerators

• Issues the call for acceleration using the CHaiDNN

API

Caffe Model Parsed by the ChaiDNN application Scheduler Execute on processors Hardware accelerators Call to the CHaiDNN API

Some important considerations

• FPGA SoC has limited on-chip memory resources
• Neural Network models in general use 16 or 32-bit floats -> too expensive for FPGA SoCs!
• Moving data from/to off-chip memory (DRAM) is very expensive
• Increase the power consumption
• Performance drop
• The gain in execution (acceleration) would be lost in moving the data (weights) from/to the off-chip

memory

Quantization process

• To achieve good performance, the neural network model must be quantized to run on FPGA SoC!
• CHaiDNN provides a tool for quantization, XportDNN
• Better performance, at the cost of accuracy loss (“minimal” according to CHaiDNN developers)
• CHaiDNN supports 6-bit and 8-bit quantized data integer
• CHaiDNN provides some quantized model for popular networks (ModelZoo)

Playing with the modelZoo

• Ready-to-run popular neural network models (quantized)

Alexnet GoogleNet VGG

ResNet50

FPGA SoC VS GPU SoC

Why FPGA SoC for NN acceleration?

• HWA Development is not trivial
• Execution on FPGA is highly

predictable

• Lower power consumption
• Highly suitable for critical embedded

applications!

• Easy to program (CUDA)
• Time predictability is poor
• Lower power efficiency

VS

GPU SoC

Accelerate your own network

• Just for convolutional neural network operating on

images

• Quantize the neural network (XportDNN)
• Build the CHaiDNN code
• Cross-compile the code
• Model and executable on the SD
• The hardware accelerator does not change with

the Network!

Caffe Model (float) Quantization (XportDNN) Build the CHaiDNN code Compile (cross- compile) the code Execute the network

The CHaiDNN hardware architecture

CHaiDNN block design from Xilinx Vivado 2018.2

The CHaiDNN hardware architecture

ZYNQ UltraScale+ PS

ZYNQ Processing System

• Runs the CHaiDNN application
• Schedules the operations
• Issues the request for hardware acceleration
• The Processing System executes
• L2 Normalization
• Permute
• Inner Product
• SoftMax
• Fully connected layers

Hardware Accelerators

Hardware accelerators

PoolTop accelerator

• High-Level Synthesis synthesized block
• Custom adapter for AXI Interconnect
• Operation:
• Pooling (max average)

Convolution accelerator

• High-Level Synthesis synthesized block
• Custom adapter for AXI Interconnect
• Operation:
• Convolution
• Normalization
• Scale and bias
• Element-wise addition
• ReLu

DeConvolution accelerator

• High-Level Synthesis synthesized block
• Custom adapter for AXI Interconnect
• Operation:
• Deconvolution

AXI Interconnects

Control AXI Interconnect

AXI Interconnects

Data AXI Interconnect

Final remarks on CHaiDNN

• The Processing System and the hardware accelerators cooperate to execute the network
• The hardware accelerators are not “custom-made" for the network
• The Processing System schedules the operation
• The Processing System issues the requests for hardware acceleration
• Hardware accelerators are autonomous in reading/writing data to/from the memory
• In some cases, the performances (inference) are comparable with GPU SoC

Xilinx DNNDK

DNNDK: Overview

• Deep Neural Network Development Kit (DNNDK) is a

full-stack deep learning SDK for the Deep learning Processor Unit (DPU)

• Designed for Xilinx UltraScale+ MPSoC and

ZYNQ-7000 platforms

• Designed to accelerate convolutional Neural Networks
• n images
• Compatible with multiple popular neural networks for

classification (AlexNet, GoogleNet, ResNet, etc.)

The Deep Learning Processing Unit

• The Deep Processing Unit (DPU) is the hardware

accelerator for DNNDK

• Placed in the Programmable Logic
• Custom size, to fit Xilinx UltraScale+ MPSoC and

ZYNQ-7000 platforms

• Designed to accelerate popular convolutional neural

network (VGG, GoogleNet, ResNet, YOLO, etc.)

DPU hardware architecture

• Computing array of Hybrid Processing Elements
• Local On-chip support memory
• Instruction fetch unit to fetch the instruction from

memory

• On board scheduler
• Autonomous High-speed data access

What’s the difference with CHaiDNN?

DNNDK

• The Deep Learning Processing Unit defines

its own instruction set

• Instructions are generated by the DNNDK

tools and fetched from the DRAM memory

• The scheduler for the hardware operations is

internal

• Custom size, to fit both Xilinx UltraScale+

MPSoC and ZYNQ-7000 platforms CHaiDNN

• Hardware accelerator is a collection of AXI MM

devices (no instruction set)

• The hardware accelerators is managed directly

by the PS

• The scheduler for the hardware operation runs in

the Processing System

• Fixed-size, not configurable.

Customize the DPU

• Change the number of DPU core on the board
• Parallelism of the convolutional unit
• Total amount of on-chip memory
• ReLu type
• Hardware softmax implementation
• … changing these features has an impact on

performance and resource consumption!

DNNDK workflow

• Compress the neural network model (DECENT)
• Compile the neural network model (DNNC)
• Build the DPU executable
• Build the software application
• DNNDK API
• Compile and link the hybrid DPU application
• Run the hybrid DPU executable

Caffe Model (float) Quantization & pruning (DECENT) Build the DPU executable (DNNC) Build the software app Cross-compile & linking

DNNDK workflow

• Compress the neural network model (DECENT)

Caffe Model (float) Quantization & pruning (DECENT) Build the DPU executable (DNNC) Build the software app Cross-compile & linking

DECENT: network quantization

• Deep compression tool for pruning and quantization, run on the Host Linux PC
• Input: Caffe model (float)
• Pruning of the network (removes useless nodes)
• Convert the float input & weights into 8-bit integer
• Output: Quantized 8-bit integer network (input and weights)

DNNDK workflow

• Compress the neural network model (DECENT)
• Compile the neural network model (DNNC)
• Build the DPU executable

Caffe Model (float) Quantization & pruning (DECENT) Build the DPU executable (DNNC) Build the software app Cross-compile & linking

DNNC tool

• Tool for network compilation for the DNNDK framework. Runs on the host Linux PC
• Input:
• Quantized 8-bit neural network (from DECENT)
• Output:
• DPU kernel, the executable which will run on the DPU
• The list of not supported layers (that must be deployed in CPU)

• Compress the neural network model (DECENT)
• Compile the neural network model (DNNC)
• Build the DPU executable
• Build the software application
• DNNDK API
• Compile and link the hybrid DPU application
• Run the hybrid DPU executable

DNNDK workflow

Caffe Model (float) Quantization & pruning (DECENT) Build the DPU executable (DNNC) Build the software app Cross-compile & linking

Building the DNNDK software

• Executable for the DPU is ready (DNNC)
• Build the executable for the CPU
• Initialize the data structure
• Initialize the DPU
• Implement the layer not supported by the DPU
• Add the pre-processing and post-processing

(if needed)

• Linking the hybrid executable
• Run the network on the FPGA SoC platform!

Final remarks on DNNDK

• DNNDK is a full-stack framework to accelerate Neural Network on FPGA SoCs
• DNNDK differs from CHaiDNN in the execution paradigm
• DNNDK framework has been incorporated in the new Xilinx VITIS AI framework
• DPU is the state-of-the-art hardware accelerator for NN in FPGA SoC by Xilinx
• DPU is used also in VITIS AI framework

Xilinx Vitis AI

VITIS AI: Overview

• State-of-the-art framework for deep neural

network acceleration on Xilinx SoC and cards

• Two different flow:
• Cloud flow
• Edge flow
• Derives directly from DNNDK
• Currently, designed to accelerate convolutional

neural networks operating on images

• Compatible with popular neural networks

VITIS is not VITIS AI!

• Vitis is a unified software platform for the development of

Xilinx FPGA SoC, MPSoC, and cards

• Edge application (embedded systems)
• Cloud applications
• Includes HLS, frameworks, RTL based accelerators,

etc.

• Vitis AI is the Xilinx’s development platform for AI

inference on Xilinx platforms,

• Edge applications (SoC and MPSoC)
• Cloud applications (Alveo cards)

DPU hardware architecture for cloud

• Previously known as Xilinx xDNN
• Different structure compared with DPU for

Edge

• Designed for Xilinx Alveo FPGA Cards

• The same architecture as DNNDK
• Vitis AI is back-compatible with DNNDK

applications

DPU hardware architecture for Edge

• Quantize the neural network model
• vai_q_caffe and vai_q_tensorflow
• output: quantized and pruned network
• Compile the neural network model
• vai_c_caffe and vai_c_tensorflow
• output: executable for the DPU
• Create the Vitis AI application
• Unified API with DNNDK
• Implement layers not supported by the DPU
• Cross-compile & link the hybrid application
• Run on the FPGA SoC or MPSoC

Vitis AI working flow (Edge)

Network model (float) Quantization (vai_q_caffe) Compile for DPU (vai_c_caffe) Create the software app Cross-compile & linking

• Quantize the neural network model
• vai_q_caffe and vai_q_tensorflow
• output: quantized and pruned network

Vitis AI working flow (Edge)

Network model (float) Quantization (vai_q_caffe) Compile for DPU (vai_c_caffe) Create the software app Cross-compile & linking

• Same approach of DNNDK
• vai_q_caffe and vai_q_tensorflow tools for pruning and quantization
• From floating-point neural network model to quantised 8-bit model

AI Optimizer and AI Quantizer

• Quantize the neural network model
• vai_q_caffe and vai_q_tensorflow
• output: quantized and pruned network
• Compile the neural network model
• vai_c_caffe and vai_c_tensorflow
• output: executable for the DPU

Vitis AI working flow (Edge)

Network model (float) Quantization (vai_q_caffe) Compile for DPU (vai_c_caffe) Create the software app Cross-compile & linking

• Again, same approach seen in DNNDK
• vai_c_caffe and vai_c_tensorflow tools
• From quantized and pruned network to DPU executable (DPU instructions)

AI Compiler

• Quantize the neural network model
• vai_q_caffe and vai_q_tensorflow
• output: quantized and pruned network
• Compile the neural network model
• vai_c_caffe and vai_c_tensorflow
• output: executable for the DPU
• Create the Vitis AI application
• Unified API with DNNDK
• Implement layers not supported by the DPU
• Cross-complile & link the hybrid application
• Run on the FPGA SoC or MPSoC

Vitis AI working flow (Edge)

Network model (float) Quantization (vai_q_caffe) Compile for DPU (vai_c_caffe) Create the software app Cross-compile & linking

Final remarks

• Three different frameworks for hardware acceleration of Neural Network on FPGA SoC
• ChaiDNN is the only open source framework
• However, it’s not updated by Xilinx anymore (last commit 2 years ago)
• Currently, DNNDK and Vitis AI are the two most supported frameworks by Xilinx
• Acceleration is based on Deep Learning Processing Unit (DPU)
• Makes hardware acceleration easier for the developer
• However, the general-purpose accelerator (DPU) is not customized for the network
• Tradeoff between performance and time for development

References

• The CHaiDNN official github, Xilinx

https://github.com/Xilinx/CHaiDNN

• DNNDK User Guide, Xilinx, UG1327(v1.5)

https://www.xilinx.com/support/documentation/user_guides/ug1327-dnndk-user-guide.pdf

• Vitis AI User Guide, Xilinx UG1414(v1.0)

https://www.xilinx.com/support/documentation/sw_manuals/vitis_ai/1_0/ug1414-vitis-ai.pdf

Thanks for the attention

francesco.restuccia@santannapisa.it
