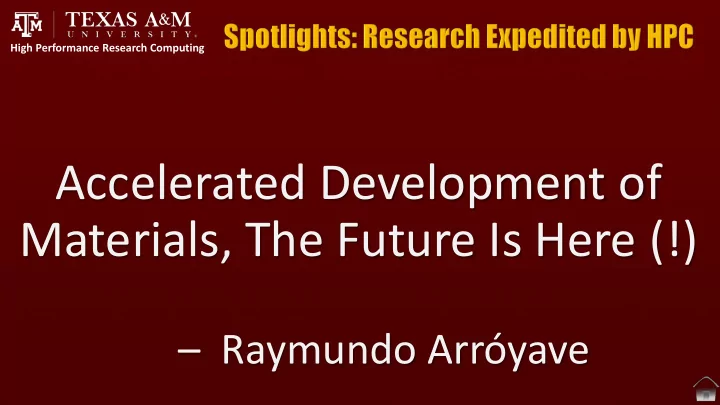

Accelerated Development of Materials, The Future Is Here (!)

– Raymundo Arróyave

High Performance Research Computing

slide-2
SLIDE 2

Materials Science and Engineering

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-3
SLIDE 3

Some Definitions: Materials Science & Engineering

Structure Property Processing Performance

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-4
SLIDE 4

Some Definitions: Processing

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-5
SLIDE 5

Some Definitions: Structure

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

http://www..dierk-raabe.com/biological-natural-materials/chitin/

slide-6
SLIDE 6

Some Definitions: Properties/Performance

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

http://www..tangram.co.uk/TI-Polymer-High_temperature_plastics.html

slide-7
SLIDE 7

Materials Development

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-8
SLIDE 8

A Bit of History: Materials Development through Time

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-9
SLIDE 9

Materials Performance over Time:

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

  • For 99% of history, materials development and performance was gradual
  • Once materials science was developed as a discipline, materials performance has

evolved exponentially (although right now we have reached saturation)

slide-10
SLIDE 10

Materials Development has reached Saturation in Many Applications:

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-11
SLIDE 11

Materials Development

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

  • In prehistory:
  • Materials development is completely accidental
  • ‘Wheel’ is perhaps discovered millions of times
  • Antiquity (begining of our civilization):
  • Development of rules and ‘recipes’ based on empirical observation
  • Nice example: ritual followed by master Japanese swordsmiths
  • Modern Age:
  • Knowledge is organized/systematized
  • Development of Scientific Method (experiment, observation,

development of hypotheses)

  • Recognition of Materials Classes
  • Today:
  • Integration of three ‘kinds’ of knowing: experiment, theory, computation

(within an informatics framework)

slide-12
SLIDE 12

What Materials Science is About

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-13
SLIDE 13

The Challenge: Materials are Multi-Scale Systems!

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-14
SLIDE 14

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

Typical Time Frame ~ 15- 20 years!!! Goal: Reduce Cost and Time by Half The Materials Genome Initiative: Current activities:

Materials Genome Initiative

slide-15
SLIDE 15

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

Materials Genome Initiative

High-throughput Computation/Experiments Multi-Scale Modeling Materials Informatics Database Development

SPS, PVD High-Performance Computing

slide-16
SLIDE 16

Multi-Scale Modeling

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-17
SLIDE 17

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

[Lagoudas]

Multi-Scale Computational Materials Science

slide-18
SLIDE 18

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

Multi-scale Modeling Example: Discontinuous Precipitation

From DFT to Microstructure Evolution: Discontinuous Precipitation in Metallic Alloys Alloy trapped in metastable states:

slide-19
SLIDE 19

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

Multi-scale Modeling Example: Discontinuous Precipitation

Discontinuous Precipitation in U-Nb Alloys DFT Phase Diagrams Diffusivities Microstructure Evolution via Phase Field Modeling

slide-20
SLIDE 20

High-throughput DFT

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-21
SLIDE 21

High-Throughput DFT

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

  • DFT- First Principles Calculations
  • High computational cost
  • Increased computational resources make it

possible to do ‘high throughput’ computational analysis

  • Tool Development: TAMMAL

[Materials Project, MIT]

slide-22
SLIDE 22

High-Throughput DFT

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

  • Many (relatively small) problems
  • Massively parallel computing

tasks (e.g. high-throughput ab initio)

  • Embarrassingly parallel

simulations (e.g. Monte Carlo)

slide-23
SLIDE 23

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

HT Engine: TAMMAL

slide-24
SLIDE 24

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

Example: MAX Phases

slide-25
SLIDE 25

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

10,000’s calculations !

Example: MAX Phases

slide-26
SLIDE 26

Materials Modeling as a Tool for Design

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-27
SLIDE 27

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

  • 1. Elimination of Cu and Cu6Sn5
  • 2. Scallop-like morphology (Cu6Sn5)
  • 3. Isolated “lakes” of Sn and Thickness ratio of Cu6Sn5 and

Cu3Sn

  • 4. Column-like morphology of Cu3Sn

Extrapolation to other Geometries

slide-28
SLIDE 28

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

Simulation-Assisted Interconnect Design

Packaging Application Interconnect Formation/Evolution

Computational Investigation Multi-Physics Phase Field Modeling

IMC Impingement Electromigration Microelasticity Segregation Void Formation

[1] [2] [3] [4] [6] [7] [8]

slide-29
SLIDE 29

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

Simulation-Driven Process/Damage Maps

Cu-Sn TLP [Park 2014] Ag-Sn TLP [Lis 2014] (solidification time)

slide-30
SLIDE 30

Connecting Alloying/Processing-Microstructure-Properties

w(C), % T, Kelvin 0.2 0.4 0.6 0.8 950 1000 1050 1100 1150 Austenite+Ferrite Austenite Austenite+Ferrite+Cementite

Inputs: Composition, Heat Treatment, Thermo-Mechanical Processing Performance Strength Ductility

Synthesis/Design

1200 800 400 True stress, MPa 0.30 0.20 0.10 0.00 True strain, mm/mm

As-cast After optimization

Attributes Phase Constitution Microstructure

Analysis/Discovery

Experiments Simulations (?)

Mechanical Response Models

Simulations/Exp eriments

Inverse Mapping Thermo/ Kinetic Models Inverse Mapping

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-31
SLIDE 31

Putting Everything Together: Synergies between Experiments + Simulations

24 20 16 12 8 4

True Uniform Strain, %

20 18 16 14 12 10 8

C/Va

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-32
SLIDE 32

A New Framework for Materials Design:

  • Heat Treatment Design
  • Genetic Algorithm-based Alloy Design
  • Experimental

Characterization

1400 1200 1000 800 600 400 200 True Stress, MPa 0.30 0.20 0.10 0.00 True Strain, mm/mm

Optimized Not optimized Not optimized As homogenized

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-33
SLIDE 33

Materials Informatics

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-34
SLIDE 34

2016 Agrawal (APL)

The Fourth Paradigm:

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-35
SLIDE 35

Materials Informatics

  • Identify correlations between materials

descriptors and performance indicators

  • Correlations between multi-dimensional

data points

  • Use sophisticated informatics

approaches (i.e. classification/regression)

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-36
SLIDE 36

Connections Along Materials Science Paradigm

2016 Agrawal (APL)

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-37
SLIDE 37

Data-Enabled Materials Discovery

2016 Agrawal (APL)

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-38
SLIDE 38

Materials Informatics in my Group

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-39
SLIDE 39

Current Challenges

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-40
SLIDE 40

Computational Materials Science

  • Multi-scale problem must be explicitly

tackled.

  • Some progress in length-scale bridging. Not

much on bridging time scales

  • No unified code. Need to create interfaces

among multiple codes

  • Full multi-scale approach is still incredibly

expensive

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-41
SLIDE 41

Materials Informatics

  • Materials Science’s Big Data Flavor is

mostly of the ‘Variety’ Kind

  • Do not have (yet) materials informatics

infrastructure.

  • Materials data is scarce and difficult to

come by.

  • It is not clear that ‘data’ on its own is
  • sufficient. There is no free lunch

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-42
SLIDE 42

Beyond Computer-Aided Materials Design

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-43
SLIDE 43

Adaptive Materials Discovery

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-44
SLIDE 44

Source-Agnostic Materials Discovery

Thanks to: D. Allaire and A. Srivastava

  • Forget about ‘experiments’, ’computations’ and ‘data’
  • Everything is essentially an ‘information source’
  • There may be ways of fusing information that

exploits strengths of different ways of learning about materials while minimizing weaknesses

  • This is still completely unexplored

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-45
SLIDE 45

Fusing Multiple Sources Together

Source 1: Expensive Multi- scale Model Source 2: Cheap Effective Model Source 3: Statistical Model Source 4: Theory

HOW?????

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-46
SLIDE 46

Conclusions

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University

slide-47
SLIDE 47
  • Materials Development is a Hard Problem
  • Recent advances in computational resources

(hardware/software) have made computer-aided materials development possible

  • Recent emphasis on data-driven materials development

promises even more dramatic advances

  • There are limitations in these approaches, that can be

alleviated if we instead go source-agnostic

Conclusions

Accelerated Development of Materials, The Future Is Here (!)

Raymundo Arróyave Department of Materials Science and Engineering, Texas A&M University
