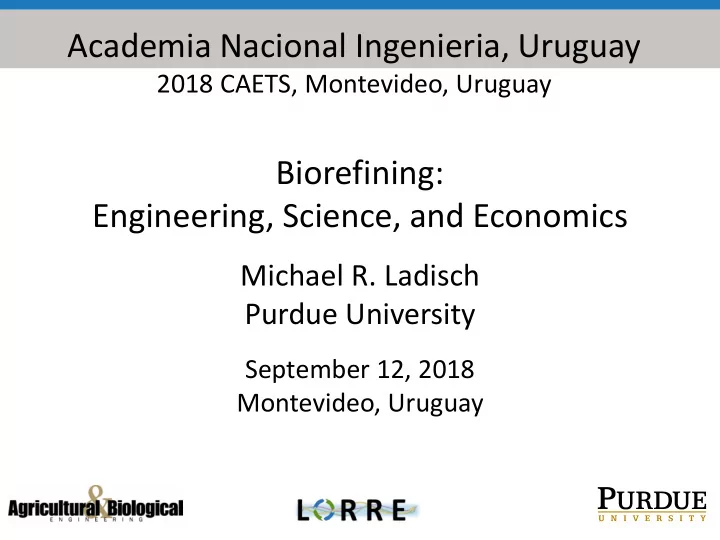

Biorefining: Engineering, Science, and Economics

Michael R. Ladisch Purdue University

September 12, 2018 Montevideo, Uruguay

Academia Nacional Ingenieria, Uruguay

2018 CAETS, Montevideo, Uruguay

National Academy of Engineering, US National Academy of Engineering, Uruguay Purdue University College of Engineering College of Agriculture

Acknowledgements

Grand Challenges

Water Energy Food

Society

3

Make solar energy economical Provide energy from fusion Develop carbon sequestration methods Manage the nitrogen cycle Provide access to clean water Restore and improve urban infrastructure Advance health informatics Engineer better medicines Prevent nuclear terror Secure cyberspace Enhance virtual reality Advance personalized learning Engineer the tools of scientific discovery Reverse engineer the brain

The Grand Challenges for Engineering

Engineering for the Future, The Third Global Grand Challenges Summit, July, 2017

Atmospheric greenhouse gas concentrations, global temperatures, and risks to human populations are all increasing, stated Ding

• Extreme weather and climate events
• Failure to mitigate and adapt to climate change
• Large-scale loss of biodiversity and collapse of ecosystems
• Large-scale natural disasters
• Anthropogenic environmental damage and disasters

GLOBAL CLIMATE CHANGE AND SUSTAINABLE CITIES

Engineering for the Future, The Third Global Grand Challenges Summit, July, 2017

America’s Energy Future: Technology Opportunities, Risks, and Tradeoffs July 2009

October 2008

• Est. September, 2009

http://w w w.nationalacademies.org/energy May 20, 2009 June 15, 2009

Basic Concerns/Motivations

• Environmental concerns emanating from the burning
• f fossil fuels with inadequate accounting for the

serious externalities involved.

• National security concerns emanating from our

falling production of petroleum, our dependence on fragile supply chains, the vulnerability of our electrical grid and transportation sector, and nuclear safety and proliferation.

• Economic competitiveness in the face of volatile

prices for energy supplies and uncertainties that surround the various supply chains.

2

National Academies, 2009

AEF “Global” Conclusion The only way to meet the concerns identified given our initial conditions is to embark on a sustained effort to transform the manner in which we produce and consume energy. Transforming the Energy Sector The AEF committee carefully considered some of the critical technological options (including their costs and limitations) that might be deployed in pursuing a transformation of the energy sector that would meet the identified economic, environmental and national security concerns.

4

National Academies, 2009

Economics: Oil Price Trends are Uncertain

$ / Bbl – EIA International Energy Outlook

Oil Prices Fluctuate

http://www.macrotrends.net/1369/crude-oil-price-history-chart

CPI Correlates to Oil Prices

http://www.macrotrends.net/1373/oil-prices-vs-the-cpi-historical-chart

Energy Consumption in other Countries is Increasing

(in Quadrillion Btu)

Renaissance in US Oil Production

Global Energy Sources (and Consumption) are Increasing

Pearl Gas-to-Liquid Plant, Qatar

Fossil: Oil, Coal, Gas Renewables Hydro Nuclear

World Energy Council, 2013

TPES = total primary energy supply Mtoe = millions of tons of oil equivalent Renewables = wind, solar, PV, biomass “Negajoule” = energy saved

Global CO2 Emissions are Increasing

Scripps Institute: http://www.climatecentral.org/gallery/graphics/keeling_curve

Keeling Curve

The Wall Street Journal, 5/22/17

Future of Liquid Transportation Fuels?

Two Approaches to Reduce Liquid Fuels Emissions

Engine Technology More miles with less fuel More fuel with less carbon – advanced low carbon biofuels Cellulosic materials: low carbon and with long term sustainability. Combined with efficient biofuel engines, emission reductions result.

Shaver, 2014, Kakosimos, 2016; Allen, 2015

Biorefining

18

sustainable processing of biomass into bio-based products: food feed chemicals materials and bioenergy: biofuels power and/or heat

IEA Bioenergy Task 42 on Biorefineries, 2017

https://www.iea-bioenergy.task42-biorefineries.com/en/ieabiorefinery.htm

Houghton, Weatherwax, Ferrell, DOE SCE 0095, 2006

Agricultural Residues: Collection and storage must be efficient

with permission, Shinners, 2009

US Corn Stover 1 to 2 tons (dry basis)/acre 300 million tons / year stover Some Residue left on ground

Corn

Brazil Sugar Cane 7 to 10 tons (dry basis)/acre; Green residue: 3 tons /acre 300 million tons / year bagasse

Unica Report, 2010

Corn Stover - stalks Sugarcane and bagasse

Iowa Cornstover Collection Study, 2008-2012

20 Biomass Program Overview, Poet / DSM 2008-2012

Corn Cobs: Large scale harvest and storage

Yinbu Qu, Shandong U., 12/4/2008

200,000 tons / year in the Yucheng area - China

Global Agriculture = Water

Irrigation = 70% of global fresh water consumption Research: drought tolerance or submergence (water) tolerance Nitrogen (Fertilizer) via Haber – Bosch Process (uses 3% of global gas production) 118 million metric tonnes / yr ($100 Bn / yr) ammonia Research: nitrogen fixing crops (plants and soils) Phosphorous Bioavailable orthophosphate; only 30 % of amount applied is actually used by plants (reacts with soils) Research: increase efficiency of phosphorous use and delivery of fertilizer Holistic Approach: Research: Precision Agriculture, Phenotyping, Genotyping, Stacked Traits

Jez et al, Science, 353, 6305, 1241, 2016; Farinas, 2016; Plaut, 2015

Requires Large Amounts of Water (Rainfall and Irrigation) Fertilizer, biotechnology (traits of productive crops)

SOIL HEALTH PRACTICES (Sequester Carbon)

Crop Rotation Biosolids Application No Till Rotational Grazing

National Academies Land Management Practices for CO2 Removal…, 2018

Soil Carbon Sequestration

2-3 times more carbon in soil than in atmospheric (Stocker et al., 2013) 1.4 billion metric tonnes (G + C) can be stored annually agricultural soils 80% of potential G + C could be reached at $100 / ton CO2 (Smith et al., 2008) But soil organic carbon will only increase over a finite period until new equilibrium occurs

National Academies Land Management Practices for CO2 Removal…, 2018

Gen 2 Second Generation (Cellulosic) Biofuels

Major sources of uncertainty for cellulosic biofuels: Future oil prices, Feedstock costs and availability by region, Conversion costs and efficiencies, Environmental impacts, Government policy. The combination of all of these uncertainties makes analysis of biofuels impacts highly uncertain. Current condition of the financial markets causes difficult conditions for cellulosic biofuel investment

Tyner, 2013

David Dayton, NREL, IEA, 2007

• 1. Biochemical vs Chemical Conversion

Composition of Lignocellulosic Biomass

Glucan 44% Xylan 17% Lignin 32%

Acetyl groups 3% Ash 2% Extractive 2%

Hardwood composition Similar Compositions Corn residue Sugar Cane Bagasse Switch grass Hardwoods Lignin under-utilized Inhibits hydrolysis Protects structural carbohydrates

Ko, Kim, 2014

Biochemical Conversion of Cellulose

6 Combustion or Gasification 5 4 3 2 1

CO2

Co-products Pretreatment Hydrolysis Fermentation Feedstock Preparation

Feedstock

Catalysts Enzymes Microbes (Yeast, Bacteria) Separations Fuel, Chemicals Residue Energy

Aqueous based, microbial/protein catalysts, mild conditions

• 2. Pretreatment

Pretreatment disrupts biomass for better enzyme access Approximately 18% of total cost

Mosier et al., 2005

29

Feedstock preprocessing needed for operability

Liquefy (from slurry) if possible Minimize addition of chemicals Simplify pumps / pumping Understand inhibition / inhibitors Minimize hydrolysis during liquefaction (minimizes enzyme) Chose microorganism wisely Modeling of liquefaction of lignocellulosic biomass (to start in 2018)

Pictures of corn stover at 22% weight of solids / volume of water

Ladisch, Kim, Ximenes 2009; Ximenes et al 2010,2011; Cuhna, 2014; Ladisch, Wassgren, Mosier, Sharma, et al 2017

Addition of BSA to Enzyme High Yield at Lower Enzyme Loading and High Severity

BSA Added No BSA Added No Pretreatment Cellic Ctec2 of 5 FPU (8 mg protein)/g glucan, pH 4.8, in 50 mM citrate buffer, 50°C, 200 rpm for 168 hrs. Equivalent to 3.5 mg/g total solids prior to pretreatment

Kim et al, 2014

32

Diluting Enzyme with Non Catalytic Protein Increases Yield

As specific activity decreases, conversion increases Cellulase loading fixed at 1.8 FPU / g glucan, equivalent to 1.3 FPU / g pretreated solids

Kim et al, 2014

Pretreatment and Cost Effective Enzymes are Key

Pretreatment:

• makes substrate susceptible
• decreases enzyme usage (increases yield)
• releases enzyme inhibitors (increases enzyme usage)

xylo-oligosaccharides phenols, tannic acids

• may form fermentation inhibitors

acetic acid aldehydes (fufural) phenols Science led to strategies for managing inhibition due to lignin. Engineering reduced enzyme requirement (and cost) by 5X.

33

Biorefining: Common Denominators

Biomass derived sugars (glucose, xylose) are a key intermediate Major Current Products: Ethanol, biodiesel, aviation biofuels Amino acids (food, nutritional and animal supplements) Enzymes (detergents, biocatalysts) Some moderate volume chemicals being scaled up Mainly organic acids, glycerol Lactic acid (polylactate) Glycerol derived from biodiesel co-product, sugars Many small volume / high value candidates (precursor molecules)

• n pathway to commercialization

34

Ethanol, Glycerol, Sorbitol

35

B-P Criteria of 9 / 9 (i.e., renewable with documentable commercial potential) Sorbitol: 500,000 tons / yr.; major use is as sweetner and food additive Glycerol: (converted to products mainly via catalytic routes ) Hydrogenolysis to ethylene glycol, propylene glycol, acetol, lactic acid Dehydration to hydroxypropionaldehyde and acrolein Being researched for biochemical conversion to 1,3 propanediol (PDO, Dupont SeronaTM ). Glucose is a feedstock for 1,3 PDO fermentation. Ethanol: 15.8 billion gal per year in 2017; may be converted to ethylene Chemistry, chemical catalysis, and biochemical technology for bioproduct manufacture in processes that require hydrogen may evolve using biological approaches (living microbial catalysts) in the future.

Bozell and Petersen, Green Chem., 2010, 12, 539-554.

Sustainability: Industrial Biology / Biotechnology

Biobased Products 50 million tons / yr worldwide US Economic activity of $353 billion / yr (2.2 % of GDP ) – major growth potential

Industrialization of Biology, NAS 2015

Not yet Commercial Commercial

36

Conclusions

Sustainability, Food, Energy: inter-dependent – and dependent on - agriculture. Factors that impact food, energy, and chemicals production are:

• 1. Land
• 2. Seeds
• 3. Productivity
• 4. Energy
• 5. Technology

The chemical and energy enterprises are needed to provide production tools to agriculture, either in the field or in the plant. Distribution of resources / population tipping point are unknowns.

Economics: the driver
