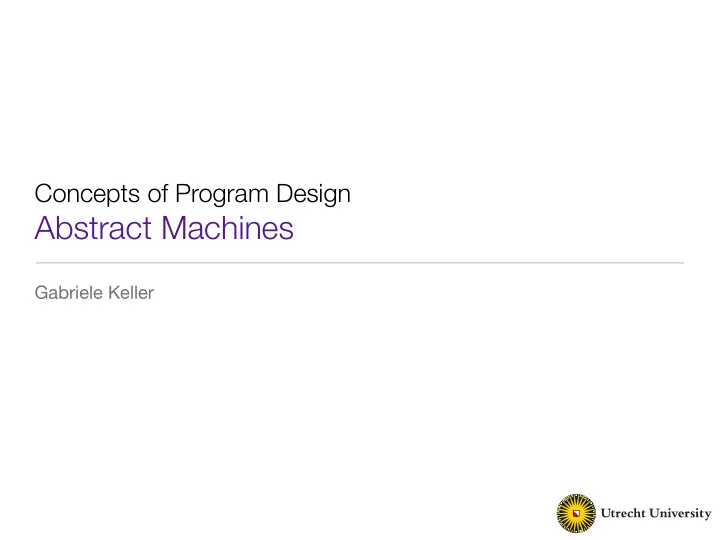

Concepts of Program Design

Abstract Machines

Gabriele Keller

Abstract Machines

• What is an abstract machine?
• a set of legal states
• final and initial states as subset
• A set of instructions altering the state of the machine
• it should be possible to implement the operations on a real machine in

a finite (preferably constant) number of steps

• Why use abstract machines at all?
• specifies the semantics of a programming languages
• facilitates porting to other architectures
• mobile code (e.g., Java Virtual Machine)
• We have seen this before
• similar to SOS, but with Abstract Machines, we care about performance

Control Flow

• Base line: the M-machine
• small step semantics for MinHs
• transition system embodies essentially a very high-level (= concise, but

inefficient) abstract machine

• we call it the M-machine
• Characteristics of the M-machine
• substitution as “machine operation”
• why is that bad?
• can be avoided by using an environment
• control-flow is not explicit
• the search rules determine next subexpression to be evaluated
• why is that bad?

Plus(Plus(Num 3)(Num 2))(Num 4) ↦ Plus(Num 5)(Num 4) Plus(Plus(Plus(Num 3)(Num 2))(Num 4))(Num 6) ↦ Plus(Plus(Num 5)(Num 4))(Num 6)

Control Flow

• Example:

(Plus (Num n) (Num m)) ↦ Num (n+m) (Plus e1 e2) ↦ (Plus e1’ e2) e1 ↦ e1’ (Plus(Num n) e2) ↦ (Plus (Num n) e2’) e2 ↦ e2’ Plus(Num 3)(Num 2) ↦ Num 5

depending on the size & nesting depth of the expression, searching for the next reducible subexpression can be very expensive!!!

Control Flow

• Single-step evaluation in Haskell:

eval(Num n) = Num n eval e = eval (single e) single (Plus (Num n1) (Num n2)) = Num (n1 + n2) single (Plus (Num n1) e) = Plus (Num n1) (single e) single (Plus e1 e2) = Plus (single e1) e2 single (Times ....

• Properties:
• for each step, the expression has to be traversed to find the next

subexpression that has to be evaluated

• makes heavy use of the runtime stack

The C-machine

• Explicit control flow: C-machine
• explicit stack
• explicit handling of control flow
• variable binding still handled by substitution
• we call this machine the C-machine
• Machine state
• the current expression (as before)
• a control stack of subcomputations (frames) which have to be performed

before the machine terminates

• Initial and final states
• initial states: closed expression and an empty stack
• final states: expression is a value and the stack is empty

The C-machine

• Example: addition in three stages
• 1. Evaluate first argument
• first argument becomes current expression
• remember to continue with computation, result as first argument
• 2. Evaluate second argument
• second argument becomes current expression
• remember to continue with computation, result as second argument
• 3. Perform addition

The C-machine

• How can we denote a stack frame as a term?
• We use terms with holes; e.g.,
• suspended computation of addition
• waits for the value of its first argument
• Inductive definition of frames:

Plus ☐ e2

(Plus ☐ e) frame e expr (Plus v ☐) frame v value

Plus e1 ☐ not a frame, because first argument is evaluated first!

Inductive Definition of Frames

• Addition

(Plus ☐ e) frame e expr (Plus v ☐) frame v value

• If-expressions

(If ☐ e1 e2) frame e1 expr e2 expr (Apply ☐ e) frame e expr (Apply v ☐) frame v value

• Application

Stack and Machine Modes

• Stacks: f1▷f2 ▷◦
• f1 is the top-most frame
• f2 is the second frame
• ◦is the empty stack
• Inductive definition:
• stack

f ▷ s stack f frame s stack

• Machine modes: the C-machine operates in two modes:
• s≻e : evaluate expression e under stack s
• s≺v : return value v to stack s

(Plus ☐ e2) ▷ s ≺ v ↦c s ≻ (Plus e1 e2) ↦c

Transition Rules for MinHs

• Values (integers, booleans, functions)

s ≻ v ↦c s ≺ v

• Addition

(Plus ☐ e2) ▷ s ≻ e1 (Plus v ☐) ▷ s ≻ e2

s ≺ Num(n1 + n2)

(Plus(Num n1) ☐) ▷ s ≺ Num n2 ↦c

evaluate the value v under stack s

{ {

return the value v to stack s

Transition Rules for MinHs

• if-expressions

s ≻ (If e1 e2 e3) ↦c (If ☐ e2 e3) ▷ s ≻ e1 (If ☐ e2 e3) ▷ s ≺ True ↦c s ≻ e2 (If ☐ e2 e3) ▷ s ≺ False ↦c s ≻ e3

Transition Rules for MinHs

• Function application

s ≻(Apply e1 e2) ↦c (Apply ☐ e2) ▷ s ≻ e1 (Apply ☐ e2) ▷ s ≺ v ↦c (Apply v ☐) ▷ s ≻ e2 (Apply(Fun τ1 τ2 f.x.e) ☐) ▷ s ≺ v ↦c s ≻e [f:= (Fun τ1 τ2 f.x.e),x := v]

• Observations;
• all the inference rules are axioms!
• the definition of single-step evaluation in the C-machine is not recursive
• the full evaluator is tail recursive (can be implemented using a while-loop)

Environments

• Now, let’s get rid of substitution!
• We used an environment for TinyC
• but we can’t just pass it along, because we wouldn’t know when to delete

bindings

• we need to save the old stack somewhere, and restore it when returning

from the function call

• can we use the stack to keep track of the environment?

(Apply(Fun τ1 τ2 f.x.e) ☐) ▷ s ≺ v ↦c s ≻e[f := Fun τ1 τ2 f.x.e),x:= v]

The E-machine

• In the E-machine
• we have frames defined exactly as before
• explicit environments, which are a sequence of variable bindings
• stacks in the E-machine are sequences of environments and frames
• states in the E-machine include an environment
• env

x = v, η env η env

• stack

f ▷ s stack f frame s stack η ▷ s stack η env s stack

s | η ≻ e s | η ≺ v

The E-machine: Transition Rules

• Free variables:

s | η ≻ x ↦E s | η ≺ v , if x=v ∈ η

• Application:

(Apply(Fun τ1 τ2 f.x.e) ☐) ▷ s | η ≺ v ↦E

η ▷ s| f =(Fun τ1 τ2 f.x.e), x = v, η ≻ e

• Returning values:

η ▷ s | η’ ≺ v ↦E s | η ≺ v ,

The E-machine: Transition Rules

• Are these rules correct?
• let’s look at two example usages
• Example
• simple function application

★nested application (corresponds to a function which accepts two

arguments and returns the first one) Apply(Fun int int f.x.(Plus x 1)) 3 Apply (Apply (Fun(int→int) int (f.x.(Fun int int g.y.x)) 3) 1)

We omit the type information, and abbreviate apply to app and write n instead of (Num n)

↦E ● ▷ ◦| x=3, f=Fun(f.x.Plus x 1), ● ≺ 4 ↦E (Plus 3 ☐) ▷ ● ▷ ◦| x=3, f=Fun(f.x.Plus x 1), ● ≺ 1 ↦E (Plus ☐ 1)▷ ● ▷ ◦| x=3, f=Fun(f.x.Plus x 1), ● ≻ x ↦E (Plus ☐ 1) ▷ ● ▷ ◦| x=3, f=Fun(f.x.Plus x 1), ● ≺ 3 ↦E (Plus 3 ☐) ▷ ● ▷ ◦| x=3, f=Fun(f.x.Plus x 1), ● ≻ 1 ↦E ● ▷ ◦| x=3, f=Fun(f.x.(Plus x 1)),● ≻ (Plus x 1) ↦E (App(Fun(f.x.(Plus x 1)) ☐)▷ ◦|● ≻ 3 ↦E (App ☐ 3)▷ ◦ |● ≺ Fun(f.x.(Plus x 1))

Example 1

• |● ≻ App(Fun(f.x.(Plus x 1)) 3)

↦E (App(Fun(f.x.(Plus x 1)) ☐) ▷ ◦|● ≺ 3 ↦E (App ☐ 3)▷ ◦ |● ≻ Fun(f.x.(Plus x 1)) ↦E ◦| ● ≺ 4

Example 2

(App(App(Fun(f.x.Fun(g.y.x)) 3) 4) (letfun f x = letfun g y = x) 3 4

↦E ●▷ (App ☐ 4)▷◦| x=3, f=Fun(f.x.Fun...),● ≻ Fun(g.y.x) ↦E (App(Fun(f.x.Fun(g.y.x)) ☐) ▷(App ☐ 4)▷◦|● ≺ 3

Example 2

↦E (App ☐ 4) ▷ ◦|● ≻ (App(Fun(f.x.Fun(g.y.x)) 3)

• |● ≻ (App(App(Fun(f.x.Fun(g.y.x)) 3) 4)

↦E (App ☐ 3) ▷(App ☐ 4)▷ ◦|● ≻ (Fun(f.x.fun(g.y.x)) ↦E ●▷ (App ☐ 4)▷◦| x=3, f=Fun(f.x.Fun...),● ≺ Fun(g.y.x) ↦E (App(Fun(g.y.x)) ☐)▷◦| ● ≻ 4 ↦E (App ☐ 4)▷◦| ● ≺ Fun(g.y.x) ↦E (App(Fun(g.y.x)) ☐) ▷ ◦| ● ≺ 4 ↦E ◦| y=4, g=Fun(g.y. x), ● ≺ x ↦E (App ☐ 3) ▷(App(☐,4)▷ ◦|● ≺ (Fun(f.x.Fun(g.y.x)) ↦E ... ↦E

Dealing with partial application

• Something went wrong!
• returning the function value and restoring the old (empty) environment, we

threw away the binding for the variable x

• it now occurs freely in g!
• Problem: functions as results are not handled correctly!
• free variables in the function bodies escape the environment they are

defined in.

• partial applications fails

let f x y = x + y g = f 3 in let x = 5 in g x

Dealing with partial application

• Solution:
• we need to bundle returned functions with current environment
• we call this a closure
• requires a new form of return values:
• Closures only appear as values during execution - there is no source form

《 η, (Fun τ1 τ2 f.x.e)》

environment which was current when function value was created

Transition Rules

• Returning values:

η ▷ s | η’ ≻ (Num n) ↦E s | η ≻(Fun τ1 τ2 f.x.e) ↦E η ▷ s | η’ ≺ v ↦E

• Application of functions:

(Apply《 η’, (Fun τ1 τ2 f.x.e)》 ☐) ▷ s | η ≺ v ↦E

s | η ≺ (Num n) s | η ≺《 η, (Fun τ1 τ2 f.x.e)》

s | η ≺ v

η ▷ s| f =(Fun τ1 τ2 f.x.e), x = v, η’ ≻ e

restore environment from closure, add binding for argument x and function f

Example 2

• |● ≻ (App(App(Fun(f.x.fun(g.y.x)) 3) 4)

↦E (App ☐ 4) ▷ ◦|● ≻ (App(Fun(f.x.Fun(g.y.x)) 3) ↦E (App ☐ 3) ▷ (App ☐ 4)▷◦|● ≻ (Fun(f.x.Fun(g.y.x)) ↦E (App(Fun(f.x.Fun(g.y.x)) ☐) ▷ (App ☐ 4)▷◦|● ≺ 3 ↦E ●▷ app(☐,4) ▷ ◦| x=3, f=Fun(f.x.Fun...),● ≻ (Fun (g.y.x)) ↦E ●▷(App ☐ 4)▷◦ | x=3, f=Fun(f.x.(Fun...),● ≺《 x=3, f..,(Fun(g.y.x))》 ↦E (App ☐ 4) ▷ ◦| ● ≺ 《 x=3, f...,Fun(g.y.x)》 ↦E (App《 x=3, f...,Fun(g.y.x)》 ☐) ▷ ◦| ● ≻ 4 ↦E (App《 x=3, f...,Fun(g.y.x)》 ☐) ▷ ◦| ● ≺ 4 ↦E ◦| y=4, g=Fun(g.y. x), x=3, f...,Fun(g.y.x),● ≺ x

....
