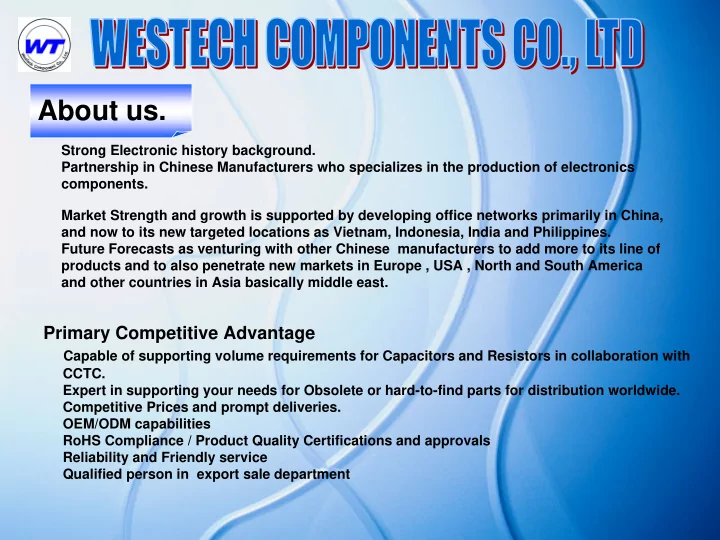

About us. Strong Electronic history background. Partnership in - - PowerPoint PPT Presentation

SLIDE 1

Strong Electronic history background. Partnership in Chinese Manufacturers who specializes in the production of electronics components. Market Strength and growth is supported by developing office networks primarily in China, and now to its new targeted locations as Vietnam, Indonesia, India and Philippines. Future Forecasts as venturing with other Chinese manufacturers to add more to its line of products and to also penetrate new markets in Europe , USA , North and South America and other countries in Asia basically middle east.

Primary Competitive Advantage

Capable of supporting volume requirements for Capacitors and Resistors in collaboration with CCTC. Expert in supporting your needs for Obsolete or hard-to-find parts for distribution worldwide. Competitive Prices and prompt deliveries. OEM/ODM capabilities RoHS Compliance / Product Quality Certifications and approvals Reliability and Friendly service Qualified person in export sale department

About us.

SLIDE 2

Company Organizational Chart (THAILAND)

MANAGING DIRECTOR

• MR. VANCHAI

CHUTTRAKULCHAI GENERAL MANAGER

• MR. SOMSAK

ADMINISTRATION LOCAL SALES EXPORT SALES TECHNICAL SUPPORT ACCOUNTING PURCHASE INTERNAL SALE EXTERNAL SALE RETAIL 1 DISTRIBUTOR OBSOLETE PARTS BUSINESS

SALE&MARKETING

VOLUME BUSINESS

INTERNAL

EXTERNAL

• TECH. 1
• TECH. 2

SALE 1 SALE 2 SALE 3 SALE 1 SALE 2 SALE 3

SALE&MARKETING

SALE 1 SALE 2 SALE 3 SOURCING SOURCING 1 SOURCING 2 SOURCING 3 SALE 4 RETAIL 2 RETAIL 3

SLIDE 3

Company Organizational Chart (CHINA)

MANAGING DIRECTOR

• MR. VANCHAI

CHUTTRACULCHAI RETAIL SOURCING WHOLESALE/EXPORT OBSOLETE CUSTOMER SERVICE VOLUME MARKETING CUSTOMER SERVICE SOURCING 1 SOURCING 2 SOURCING 3 SOURCING 4 RETAIL 1 RETAIL 2 RETAIL 3 RETAIL 4

SLIDE 4

Why Work with us?

1.Low cost solution and high Quality 2.Expanded Sourcing 3.Local staff can communicate English and Chinese. 4.Inline with suppliers and factory What WesTech specialize?

• 1. Sourcing, low cost solution and high quality with china qualified factory
• 2. Hard to find items
• 3. Small quantity high product mix
• 4. Fast delivery

SLIDE 5

Leaded Type Resistor

Features: Voltage division / Attenuation: Pull-up/ Pull-down Current limiting / Isolation Line termination / impedance matching Current sensing

Color 1st figure 2nd figure 3rd figure Multiplier Tolerance Black 1 Brown 1 1 1 10 F (±1%) Red 2 2 2 100 G (±2%) Orange 3 3 3 1000 Yellow 4 4 4 10000 Green 5 5 5 100000 D (±0.5%) Blue 6 6 6 1000000 Violet 7 7 7 Gray 8 8 8 White 9 9 9 Golden 0.1 J (±5%) Argent 0.01 K (±10%) Colorless M (±20%) E-6 10 15 22 33 47 68 E-12 10 12 15 18 22 27 33 39 47 56 68 82

Color Coding: Power Rating: 1/6W, ½W, ¼W, 1/8W, 1W, 2W, 3W, 5W,7W,10W Operating Temperature Range: +50°C ~ -155°C Maximum voltage: 200V-500V Temperature coefficient Range: ±10%, ±25%, ±50%, ±100%,±200% Nominal Resistance:

E-24 10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 43 47 51 56 62 68 75 82 91 E-96 100 102 105 107 110 113 115 118 121 124 127 130 133 137 140 143 147 150 154 158 162 165 169 174 178 182 187 191 196 200 205 210 215 221 226 232 237 243 249 255 261 267 274 280 287 294 301 309 316 324 332 340 348 357 365 374 383 392 402 412 E-96 422 432 442 453 464 475 487 499 511 523 536 549 562 576 590 604 619 634 649 665 681 698 715 732 750 768 787 805 825 845 E-96 866 887 909 931 953 976

SLIDE 6

Cement Type Resistor

Features: Small dimension Excellent stability in high temperature Complete insulated character Precise resistance Super heat dissipation Instant load capability Standard tolerance of ±5% Standard and Non-Inductive type Completely Inflammable Performance Characteristics:

Temperature coefficient ±300PPM/°C Insulation resistance >100MΩ Load life(1,000 hrs) ±5% + 0.05Ω Short-time Overload ±2% + 0.05Ω Dielectric withstand volt 500V ~ 1000V Moisture resistance ±5% + 0.05Ω Shock and vibration ±1% + 0.05Ω Effect of soldering ±2% + 0.05Ω

Power Rate: 2W, 3W, 5W, 7W, 10W, 15W, 20W, 30W, 40W Resistance Range: Inside core wire wound 0.1Ω ~ 1KΩ Inside Core metal oxide 61Ω ~ 150KΩ Resistance up to 50Ω for Non-Inductive type Tolerance: F=1%, G=2%, J=5%, K=10% Package Type: SQP NSP SQM NSM SQZ NSZ SQH NSH SQT NST Specification

SLIDE 7

Multilayer Chip Resistor

Features: Small size and lightweight Suitable for both flow and reflow soldering Reduction of assembly costs and matching With replacement machines Operating Wattage: Normal Size 1/3W, 1/16W, 1/10W, 1/8W, 1/4W, 1/2W, 1W Small Size 1/10W-s, 1/8W-s, 1/4W-s, 1/3W-s, 3/4W-s Tolerance: ±1%,±2%,±5%,0= jumper Resistance value range: 1Ω ~ 10MΩ

Temperature coefficient ±5%: 1Ω ~ 10MΩ ≤ ±200PPM/°C ±1%: 10Ω ~ 100Ω ≤ ±200PPM/°C; 01Ω ~ 1MΩ ≤ ±100PPM/°C Short-time overload ±5%: ± (2.0% + 0.1Ω) Max. ±1%: ± (1.0% + 0.1Ω) Max. Insulation resistance 1,000 Mega Ohm Dielectric withstanding voltage No evidence of flashover, mechanical damage, arcing or insulation breakdown Terminal bending ± (1.0% + 0.05Ω) Max. Soldering heat ± (1.0% + 0.05Ω) Max. Solderability

• Min. 95% coverage

Temperature cycling ±5%: ± (1.0% + 0.05Ω) Max. ±1%: ± (0.5% + 0.05Ω) Max Humidity (Steady state) ±5%: ± (3.0% + 0.1Ω) Max. ±1%: ± (0.5% + 0.1Ω) Max. Load life in humidity ±5%: ± (3.0% + 0.1Ω) Max. ±1%: ± (1.0% + 0.1Ω) Max. Load life ± (3.0% + 0.1Ω) Max. ±1%: ± (1.0% + 0.1Ω) Max.

Performance Characteristics:

Type Standard Series Dimension (mm) L W H ℓ1 ℓ2 0402 E-96 E-24 E-24 1.00±0.10 0.50±0.05 0.35±0.05 0.20±0.10 0.25±0.10 0603 E-96 E-24 E-24 1.60±0.10 +0.15 0.80

• 0.10

0.45±0.10 0.30±0.20 0.30±0.20 0805 E-96 E-24 E-24 2.00±0.15 +0.15 1.25

• 0.10

0.55±0.10 0.40±0.20 0.40±0.20 1206 E-96 E-24 E-24 3.10±0.15 +0.15 1.55

• 0.10

0.55±0.10 0.45±0.20 0.45±0.20 1210 E-96 E-24 E-24 3.10±0.10 2.60±0.15 0.55±0.10 0.50±0.25 0.50±0.20 2010 E-96 E-24 E-24 5.00±0.10 2.50±0.15 0.55±0.10 0.60±0.25 0.50±0.20 2512 E-96 E-24 E-24 6.35±0.10 3.20±0.15 0.55±0.10 0.60±0.25 0.50±0.20

SLIDE 8

Network Resistor

Features: Various types Standard circuit Compact design Automatic insertion High reliability Different ohmic value available Can be used as current limiting Equivalent dimension to shrink pin pitch IC Can be use in standard digital circuits High grade materials Available in tape packaging to meet assembly cost reduction demands Temperature coefficient ±200ppm/°C Power rating 1/32,1/10, 1/8,1/4,1/2 Resistance tolerance ±0.1%,±0.25%,±0.5%,±1%,±2%, ±5%, ±10% Nominal Resistance 2.2Ω, 2.2MΩ Maximum working voltage 200V Maximum Overload voltage 280V Operating temperature

±5%: ± (1.0% + 0.05Ω) Max. ±1%: ± (0.5% + 0.05Ω) Max

Type: SIL, SIP, DIP, Thick film Specifications: SIL SIP DIP Thick film

SLIDE 9

Ceramic Capacitor

Features: Non-Polar Lower range of capacitance values Most widely used style of capacitor (Largest Volume & Lowest Pricing) Leaded and surface mount styles Fixed capacitance value (Their value is not user variable)

Capacitance Value Range: Low End: pF Typical Values: 1pF, 4.7pF, 22pF, 100pF, 330pF, 1000pF, etc. Medium Range: µF Typical Values: 1nF, 10nF (0.01uF), 100nF (0.1uF), 220nF (0.22uF), etc. High End: µF Typical Values: 1µF, 2.2µF, 10µF and 22µF Voltage rating: 16VDC ~ 50VDC Most call outs: 25V ~100V High Voltage: 500V, 1kV, 3KV, 5KV, 50KV Capacitance Value Tolerance: Capacitance value will have tolerance value (+25°C): ±1% (F), ±2% (G), ±5% (J), ±10% (K), ±20%(M) and +80%/-20%(Z) ±0.1pF (B), ±0.25pF(C) and ±0.5pF(D) Temperature coefficient code: Common call outs : NPO, X7R, Z5U, Y5V

St82andard Capacitance Values: (PER EIA-575 & RS 460)

E12

10 12 15 18 22 27 33 39 47 56 68 82

E24

10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 43 47 56 62 68 75 82 91

Specification:

SLIDE 10

Electrolytic Capacitors

Features:

Standard series for general purposes Stable and reliable performances Miniature Standard Widely used in DC or pulse circuit Good uniformity Widely used in electronic equipment of thin and high Density assemblies

Specification: Operating Temperature Range:

• 40 ~ 105°C

Rated Voltage: 6.3 ~ 450V Nominal Capacitance value 0.1 ~ 22000µF Capacitance Tolerance: ±20%, ( 120Hz/+20°C) Dissipation Factor:

Rated voltage 4 6.3 10 16 25 35 50 63 100 160 ~350 400 ~ 450 Tan δ (Max) 0.35 0.22 0.24 0.27 0.34 0.08 0.10 0.19 0.20 0.22 0.24 0.06 0.08 0.16 0.20 0.22 0.05 0.06 0.08 0.14 0.15 0.20 0.04 0.05 0.07 0.12 0.16 0.04 0.05 0.07 0.10 0.14 ≤0.10 ≤0.12 0.03 0.04 0.08 0.09 0.10 0.12 0.15 0.03 0.04 0.08 0.10 0.15 0.06 0.12 0.15 0.16 0.18 0.20 0.23 0.24 0.15 0.20 0.24 0.25

Temperature characteristics:

Impedance ratio (100Hz) (120Hz) Rated Voltage 4 6. 3 10 16 25 35 50 ~100 160~200 250 315 ~ 400 400~450 Z(-25°C)/ Z(20°C) 7 3 4 5 3 4 2 3 4 2 3 2 2 2 3 3 4 3 6 5 6 Z(-40°C)/ Z(20°C) Z(-55°C)/ Z(20°C) 12 15 4 8 10 12 4 5 6 8 10 15 3 4 6 8 15 3 4 10 3 4 2 3 6 2 4 6 2 6 6 6 Code Case Range Dimensions øD L (max) H±0.75 H±0.5 F±0.5

P±0.1 FF

4-8 7 17.54 16 5.0 7.5

12.7

5-6.3 13.0 18.5 8 22.0 20.0 10 22.0 18.5

• 15.0

30.0

12.5 27 18.5

• 16-18

27 18.5

SLIDE 11

MYLAR CAPACITOR

Features: Use in blocking Non-Inductive By passing, filtering, timing, interference Suppression Low pulse application Optimum for automatic insertion Small size and light weight High reliability Can be use in high frequency Self healing performance High moisture resistance Possibility production of special Rated Voltage 63V,100V, 250V, 400V, 630V,1000V, 1200V Capacitance Value 0.01 ~ 6.8 µF Capacitance tolerance J (±5%), K (±10%), M (±20%) Insulation Resistance 9, 000M ohms for C =/< 0.33uF 3,000M ohms µF for C > 0.33uF 2,000 MΩ Dissipation Factor 1% maximum at 1kHz and 20°C Dielectric Strength 160% of rated voltage for 2 sec. 150% of rated voltage for 5 sec. 175% of rated voltage for 5sec. 200% of rated voltage for 5sec. Operating temperature

• 40 ~ +85°C

Specification:

SLIDE 12

Tantalum Capacitor

Features: Large value of capacitance Superior in temperature Superior in frequency Highly stability Use to analog system Compact Surface mount Lower ESR Lower current leakage Specification

Capacitance Range

0.047μF ~ 1000μF

Capacitance tolerance ±20%; ±10%; ±5% (special order) Operating temperature range

• 55℃ to +125℃

Rated voltage

3V, 4V, 6.3V, 10V, 16V, 20V, 25V, 35V, 50V

Dissipation factor and “Q”

Values vary at (-50°C, +20°C, +85°C, +125°C)

Application: General electronic equipment Smoothing of circuit of DC-DC converters And output side on AC-DC converters De-coupling circuit of high speed ICs and MPUs Various high frequency devices

SLIDE 13

SMD Tantalum Capacitor

Features: Standard type that has been most widely used Molded case available in four codes Compatible with automatic pick and place equipment Specifications: Operating voltage (VDC): 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50 Capacitance Tolerance: J = ± 5%, K = ±10%, M = ±20% Case code and Dimension:

Case code EIA code Dimension (mm) L W1 W2 H Z J

• 1.6 ±

0.1 0.8 ± 0.1 0.6 ± 0.1 0.8 ± 0.1 0.3 ± 0.15

P

2012 2.0 ± 0.2 1.25 ± 0.2 0.9 ± 0.1 1.1 ± 0.1 0.5 ± 0.1

A

3216 3.2 ± 0.2 1.6 ± 0.2 1.2 ± 0.1 1.6 ± 0.2 0.8 ± 0.2

B

3528 3.5 ± 0.2 2.8 ± 0.2 2.2 ± 0.1 1.9 ± 0.2 0.8 ± 0.2

C

6032 6.0 ± 0.2 3.2 ± 0.2 2.2 ± 0.1 2.5 ± 0.2 1.3 ± 0.2

D

7343 7.3 ± 0.2 4.3 ± 0.2 2.4 ± 0.1 2.8 ± 0.2 1.3 ± 0.2

E

7343h 7.3 ± 0.2 4.3 ± 0.2 2.4 ± 0.1 4.1 ± 0.2 1.3 ± 0.2

V

7.3 ± 0.2 6.1 ± 0.2 3.1 ± 0.1 3.45 ± 0.3 1.4 ± 0.2

Capacitance value (pF):

0.10 1.15 0.22 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 68 100 250 330 470 680 1000

• J

AA A106 106 10V 412 10 20v 106 20V 412 10 35V 106 35V 412 J case P case A case A case B case B case B, C, D, E V case B, C, D, E V case

SLIDE 14

Polyester Capacitors

Features: Highly Reliable Significantly smaller in size Self healing Thin metallization Lightweight Highly stability Specifications: Temperature range:

• 40°C ~ + 85°C

Voltage range(V): 50,100,200,400,500 Capacitance standard value: 0.001~ 0.47 uF Tolerance: J = 5 %, K = 10 %, M = 20 % Breakdown Voltage : 2.5 times voltage level for 1 to 5 seconds Isolation resistance : 20000 MOhm at 20°C Standard value table Symbol Value (uF) Symbol Value (uF) 102 0.001 273 0.027 122 0.0012 333 0.033 152 0.0015 393 0.039 222 0.0022 473 0.047 272 0.0027 563 0.056 332 0.0033 683 0.068 392 0.0039 104 0.100 472 0.0047 124 0.120 682 0.0068 154 0.150 103 0.010 184 0.180 123 0.012 224 0.220 153 0.015 334 0.330 223 0.022 474 0.470

SLIDE 15

Mono Capacitors

Features: Superior moisture Shock resistant Epoxy coating Can be supplied in bulk , tape, reel Automatic insertion in PCB Specifications: Rated Voltage (V): 50, 100, 200, 25, 63, 15 Capacitance range: 3.3pF – 6.8 uF Temperature coefficient Code: COG,X7R, Y5V

Dimensions (mm) F (±0.5) L max H max T max 2.54 5.08 4.2 3.8 3.8 2.54 5.08 5.0 4.5 3.8 5.08 7.6 5.5 3.8 4.75 8.5 8.5 3.8 5.50 10.5 9.5 4.2 7.50 12.5 10.5 4.2

Radial

Dimensions (mm) L max D max F±1 d±0.05 3.8 2.5 5.08 10.00 0.45 4.3 2.5 5.08 10.00 0.45 5.1 3.0 7.50 10.00 0.45

Axial

SLIDE 16

Polypropylene Capacitor

Features: Long term stability High reliability Negative temperature coefficient can be used in critical circuits Miniature size and light weight Tape and reel package for auto insertion Specification: Operating temperature

• 40 - +85°C

Voltage range: 100,250,400,630,1000 DVC Capacitance range: 0.01– 0.47 MFD. Dielectric strength: 250% of rated voltage for 5 sec. Capacitance tolerance: ±5%, ±10%, ±20 Insulation resistance: 50,000 Meg. Ohm min. at 25°C Dissipation factor: 0.1% max at 1Khz 25°C

VDC 100 250 400 630 1000 MFD OD L OD L OD L OD L OD L 0.0010 5.0 11.5 5.0 11.5 5.0 11.5 5.0 13.5 7.5 19.0 0.0015 5.0 11.5 5.0 11.5 5.0 11.5 5.0 13.5 8.0 19.0 0.0022 5.0 11.5 5.0 11.5 5.0 11.5 6.0 13.5 8.8 19.0 0.0033 5.0 11.5 5.0 11.5 6.0 13.5 7.0 16.0 9.5 19.0 0.0047 5.5 11.5 5.5 11.5 6.5 13.5 7.5 16.0 10.5 19.0 0.0068 6.0 11.5 6.0 11.5 7.0 13.5 7.5 19.0 11.5 19.0 0.010 6.5 11.5 6.5 13.5 7.5 16.0 8.5 19.0 11.5 27.0 0.015 6.5 13.5 7.0 16.0 8.5 16.0 10.0 23.0 12.5 27.0 0.022 7.0 13.5 7.5 16.0 9.5 16.0 11.0 27.0 14.0 27.0 0.33 7.5 16.0 7.5 19.0 9.5 19.0 12.0 32.0 14.0 37.0 0.047 7.5 19.0 8.5 19.0 10.5 19.0 13.0 32.0 16.0 37.0 0.068 8.5 19.0 9.0 23.0 10.5 23.7 14.0 32.0 0.10 9.5 23.0 10.5 23.0 13.0 27.0 15.5 37.0 0.15 11.0 27.0 12.5 27.0 13.0 32.0 0.22 12.5 32.0 13.5 32.0 15.0 32.0 0.33 14.0 32.0 15.0 32.0 17.0 37.0 0.47 15.0 32.0

SLIDE 17

Multilayer Chip Capacitors

Features: Stringent dimensional tolerance Highly reliable High speed automatic chip Terminal are plated with Ni and solder Highly insulation resistance Performance characteristics:

Capacitance Range 0.51pF ~ 10nF Capacitance tolerance ± 1%,± 2%, ± 5%, ± 10%,± 20%, Preferred ± 5%, ± 10% CR ≤ 10pF, ± 0.25 pF, ± 0.5 pF For values ≤ 10pF, Preferred tolerance is ± 0.5 pF, also available ± 0.25 pF Operating temperature range

• 55 ~ 125°C

Temperature coefficient 0 ± 30 ppm Rated voltage 6.3V,10V,16V,25V,50V,100V Dissipation factor and “Q” CR≥ 30pF, Q ≥1000 CR≤30pF, Q ≥400+20CR Insulation resistance more than 10GΩ Dielectric withstanding voltage 250 rated voltage Code COG X7R X5R Y5V Temperature range

• 55 ~ 125°C
• 35 ~ 85°C
• 30 ~ 85°C

Temperature characteristics Dimension

Size Dimension ( Unit: mm) L W T e g 1402 1.00 ± 0.05 0.05 ± 0.05 0.05 ± 0.05 0.15 ~ 0.20 0.40 0603 1.06 ± 0.10 0.80 ± 0.10 0.80 ± 0.10 0.20 ~ 0.50 0.50 0805 2.00 ± 0.10 1.25 ± 0.10 1.60 ± 0.10 0.20 ~ 0.70 0.70 0.85 ± 0.10 1.25 ± 0.20 1206 3.02 ± 0.20 1.60 ± 0.20 0.60 ± 0.10 0.20 ~ 0.70 0.70 0.85 ± 0.10 1.00 ± 0.10 1.25 ± 0.20 1.60 ± 0.20

SLIDE 18

Diode

Features: Can be use as rectifiers(Ultra Fast, Super Fast, High Voltage, Glass passivated, Fast recovery Barrier, Bridge) Switching Voltage suppressors Can be surface mount Low leakage Protector Detector Small size Rated Voltage 20V to 2000V Wattage range 10W,50W,5W,1/2W,1W,1.3W,1.5W,2W, 200mW,250mW,400mW Tolerance J (±5%), K (±10%), M (±20%) Polarity Color bonds denotes cathode end As marked Maximum average forward rectified current 1.0 ~ 8.0A Operating Temperature

• 65 ~ 200°C

Package Type: DO – 41/a-405, DO -15, D0 -201/ DO-201AD R- 6, TO 220/TO -220A, RB -15, DB, RS -1 KBP -2, KBPC -3, KBL-4, KBPC -6, KBPC -8, KBPC-10, KBPC-15/25/35 KBPC15W/25W/35W Specifications:

SLIDE 19

Bridge Diode

Features: Both polarities of the voltage at the bridge input Polarity of the output are constant Full wave Rectifier Fast recovery Any mounting position Ideal for printed circuit board Low cost construction Simple installation Specification: Rated voltage range 50 ~ 1000V Peak forward surge current (A) 30, 50, 60, 200, 300, 400 Operating temperature range

• 55 ~ +150°C

Storage temperature range

• 55 ~ +150°C

Maximum average forward rectified current (A) 1.0, 1.5, 2.0, 3.0, 4.0, 6.0, 8.0, 10.0, 15.0, 25.0, 35.0 Package type: DO – 41/a-405, DO -15, D0 -201/ DO-201AD R- 6, TO 220/TO -220A, RB -15, DB, RS -1 KBP -2, KBPC -3, KBL-4, KBPC -6, KBPC -8, KBPC-10, KBPC-15/25/35 KBPC15W/25W/35W

SLIDE 20

Transistor

Specification: Structure: BJT, JFET, IGFET (MOSFET), IGBT, and other types. Polarity: NPN, PNP (BJTs), N-channel, P-channel (FETs) Maximum operation frequency: 1.0Hz ~ 230 GHz Operation and temperature Range:

• 55 to +175°C

Absolute Maximum Rating:

VCEO Collector Emitter Voltage Value (V) 10 12 15 18 20 22 25 30 32 35 40 45 50 55 60 65 70 75 80 100 120 140 150 160 175 180 200 225 300 325 375 400 #400 500 600 700 800 1500 VCBO Collector Base voltage Value (V) 12 15 18 20 25 30 32 #32 35 #35 40 45 #45 50 60 #60 70 75 #80 #90 100 #100 115 120 #120 125 140 150 160 175 180 185 200 245 250 300 325 330 400 500 #800 800 #900 900 1200 #1300 1500 #1500 1500*

Features: Small size and minimal weight Highly automated manufacturing processes Lower possible operating voltages No warm-up period required after power Applications Lower power dissipation Greater energy efficiency Higher reliability Extremely long life Complementary devices available Ability to control very large current Insensitivity to mechanical shock and vibration

SLIDE 21

VEBO Emitter Base voltage Value @ TC=25°C 1 2 2.5 3 4 4.5 5 6 7 8 10

PD Total device dissipation Value (W) mW/°C @ TC=25°C 0.145 0.345 0.35 0.36 0.625 0.875 0.9 1 1.25 2.0^ 2.5 10 10.0* 12.5 15 15.0 20.0 25.0 25 29 30 30.0 34 35 36 36.0 40 50 56 60 70 75 80 90 100 115 120

Absolute Maximum Rating:

IC Collector Current Value (A) 0.02 0.03 0.05 0.07 0.08 0.1 0.10 0.15 0.2 0.25 0.4 0.75 0.8 0.85 1 1.2 1.5 2.5 3.5 3.0 4 4.0 5 6 6.0 7 8.0 10 10.0 12.0 15 15.0 16

# = VCES t = VCES * = ICEX ^ = Tc 110° C Maximum operation frequency: 1.0Hz ~ 230GHz Operation and temperature Range:

• 55 to +175C

Packaging Type: TO-3, TO-3P,TO-3L,TO-3PML,TO-3PFa,TO-3pFM,TO-18,TO-39,TO-66,TO-72,TO-92,TO-126 TO-220,TO-237,TO-247,TO-220F,MT-100,MT-200,SO8, SOT3, SOT23, SOT25, SOT26 Other proprietary packages. Application: Amplify or switch electronics signals for both high power application and low power such as logic Gates. Building block of computers and all other electronics devices. Transistor continuation..

SLIDE 22

INTEGRATED CIRCUIT

Features: Low cost High performance Switch quickly Consume little power Mass production capability Reliability Building block approach to circuit design Supply Voltage: ±1V ~ ±35V Operating Temperature Range:

• 10°C to 125°C

Standard Logic Families: TTL, CMOS, ALS, STATIC RAM, ROM, MICROCONTROLLERS, IC DRIVER, A/D CONVERTER Consumer Electronics IC: TELEPHONE IC, TELEVISION IC, EEPROM, AUDIO SYSTEM IC, IC RADIO SYSTEM, ELECTRONIC THERMOMETER IC, ELECTRIC ENERGY COUNTERS, calculator IC Standard Analog Families: Timer, comparators, operational amplifiers, control and power IC, Automotive IC, voltage regulator, sensors, CMOS gate arrays, BiCMOS gate array Packaging type: DIL, SIL, DIP series, SO, MQFP, SIL-39,TO-220,SIL-9P, SOT157-2, SIL -9MPF, SOT 110-1 Number of Pins: 4 ~ 100 Specification:

SLIDE 23

PARTS BRAND IC AM8035-8PCI AMD IC D8086 AMD IC D8088 AMD IC P80C287-10 AMD IC P80C287-12 AMD IC P8273A-5 AMD IC P8286 AMD IC P8287 AMD IC DP8303N AMD IC DP8308N AMD IC D8753 AMD IC D87C521-1 AMD IC Z8530H-4PC AMD IC AM2716-300DC AMD IC AM2732B-205DC 12.5V AMD IC AM2732BDC AMD IC AM27C010-55DC AMD IC AM27C010-70JC[SMD] AMD IC AM27C010-120JC[SMD] AMD IC AM27C010-150JC[SMD] AMD IC AM27C010-120DC AMD IC AM27C010-150DC AMD IC AM27C040-150JC AMD IC AM27X256-150PC AMD AM27C256-120JC [PLCC] AMD IC AM27C512-90JC[SMD] AMD IC AM27C512-120JC[SMD] AMD IC AM27C2048-150DC AMD IC AM29F010-45EC[SMD] AMD IC AM29F010-70JC[SMD] AMD IC AM29F010-90JC [PLCC] AMD IC AM29F010-120(PLCC) AMD IC AM29F016B-120EC [SMD] AMD IC AM29F040C-120JC [PLCC] AMD IC AM29F100B-75EC [SMD] AMD IC AM29F400AB-120E[SMD] AMD IC AM29F400BB-90EC[SMD] AMD IC AM29LV400BT-120EC[TSOP] AMD IC D8751H (REFURB) AMD/ IC AM27C256-150DC AMD/ IC 29F040 [SMD] AMD/EON IC MB8088-2 AMD/FUJI IC AM27C512-205DC AMD/INTE IC P8259A AMD/INTEL IC 28F010 AMD/INTEL IC 87C51 AMD/SIG IC S6800P AMI IC AT89C51-24PI ATMEL IC AT89C51-24PC ATMEL IC AT89C51ED2 ATMEL IC AT89C51-16/20/24JC [PLCC] ATMEL IC AT89S51 ATMEL IC AT87F51-24PC ATMEL IC AT89C52 ATMEL IC AT89S52 ATMEL IC AT89C55-24JC [PLCC] ATMEL IC 89C55WD-24PU ATMEL IC AT89C1051-12PC ATMEL IC AT89C1051U-24PC ATMEL IC AT89C2051-24PI ATMEL IC AT89C2051-24PU ATMEL IC AT89C4051-24PI ATMEL IC AT27C010-20PC ATMEL IC AT27C010-15JC [PLCC] ATMEL IC AT27C1024-15JC [PLCC] ATMEL IC AM27C4096-100DC ATMEL IC AT24C01PU 2.7 ATMEL IC AT24C01PC ATMEL IC AT24C01A-10PU-2.7 ATMEL IC AT24C01A-10 [SMD] ATMEL IC AT24C01A SU-2.7 [SMD] ATMEL IC AT24C02A-10PU-2.7 ATMEL IC AT24C02-10PC ATMEL IC AT24C02 SU-2.7 [SMD] ATMEL IC AT24C04PI27 ATMEL IC AT24C04N [SMD] ATMEL IC AT24C08API27 ATMEL IC AT24C16API27 ATMEL IC AT24C16S ATMEL IC AT24C16PC ATMEL IC AT24C16-25PC ATMEL IC AT24C16 SU-2.7 [SMD] ATMEL IC AT24C32API27 ATMEL IC AT24C32 SU-2.7 [SMD] ATMEL IC AT24C64A ATMEL IC AT24C64AN.SI27 [SMD] ATMEL IC AT24C128PI27 ATMEL IC AT24C256PI27 ATMEL IC AT28C16-15JC [PLCC] ATMEL IC AT28C16-15TC[SMD] ATMEL IC AT28C17E-15PI ATMEL IC AT28C17-20PI ATMEL IC AT28C64-15SC/20SC [SMD] ATMEL IC AT28C64-15JC [PLCC] ATMEL IC AT29C020-12PI ATMEL IC AT29C020-12JC [PLCC] ATMEL IC AT29C020-90JI [PLCC] ATMEL IC AT29C040A [SMD] ATMEL IC AT29C256-90PC ATMEL IC AT93C46PC ATMEL IC AT93C46PI27 ATMEL IC AT93C46 PU-2.7 ATMEL IC AT93C46 SU-27 [SMD] ATMEL IC AT93C56 [SMD] ATMEL IC AT93C57PC ATMEL IC 93C66SC[SMD] ATMEL IC CA82C54-10PC CALMOS IC CA82C59A-10CN (PLCC) CALMOS IC CAT24WC08J [SMD] CAT IC CAT28C256N-15 [PLCC] CAT IC CAT24WC16J [SMD] CAT/XICOR IC P82C201-10 [PLCC] CHIPS IC P82C811[PLCC] CHIPS IC G65SC02PI-2 CMD IC G65SC22P-1 CMD

Obsolete and Hard to find IC Parts

SLIDE 24

IC G65SC51P-1 CMD IC 6502 CSG IC CAT24C44P CSI IC 28F512N-15 [PLCC] CSI IC CAT28F010P CSI IC CAT28F001P-12T CSI IC CAT28F010N15 [PLCC] CSI IC CAT28F020N15 [PLCC] CSI IC CAT33C101P CSI IC CAT93C46AP CSI IC CAT93C57P CSI IC 93C66P CSI IC DMC80C49-009A DAE IC DMC80C49-110A DAE IC DMC60C32-24JD [PLCC] DAEW IC DMC60C51 E-154 DAEWOO IC DMC60C32-16 DAEWOO IC DMC80C49-120A DAEWOO IC XLS28C256AP-200 EXEL IC F6810CPQR FAIR IC F6852P FAIR IC F68A52P FAIR IC F68B52S FAIR IC F6856P FAIR IC F6882P FAIR IC NM27C020QE-150 FAIR IC NMC27C16BQ-150 FAIR IC 93L10DM FAIR IC 93L16DC FAIR IC 93S47PC FAIR IC 27C040 FAIR/TI IC MBL8042H FUJI IC MB89251A =82C51 FUJI IC MB8266A-10 FUJI IC MBL8282 FUJI IC MBL8284A FUJI IC MB89284A =82C84 FUJI IC MBM2732 FUJI IC 27C64-20 FUJI IC MBM27C1001P-20 [SMD] FUJI IC 28F010-12[SMD] FUJI IC 28F010-12 [PLCC] FUJI IC 29F016-12 [SMD] FUJI IC 29F400BA-90PFTN [TSSOP] FUJI IC MB83256 FUJI IC MBL6803W-2 FUJITSU IC ER2810HRD GI IC GD8035UX GS IC GM16C550 GS IC GM82C765B GS IC GM82C765 [PLCC] GS IC Z80BCPU =Z8400B GS IC Z80BCTC (Z8430BPS) GS IC G65SC22P GTE IC G65SC12P-2 GTEU IC CDP65C51AE4 HAR IC CD80C88 HAR IC IP80C88-2 HAR IC HCP82C37A-5 HAR IC D82C54 HAR IC CP82C55A HAR IC HA24257AKB-20 HATORI IC HD6809EP HIP IC HM6268P-35 HIT IC HD6301XOPD34P HIT IC HD6301V1PF05 HIT IC HD6301YOPB32 HIT IC HD6301YOPH62 HIT IC HD63A01YOPAW1 HIT IC HD6305VOPC59 HIT IC HD6305YOPA77 HIT IC HD6305VOPC92 HIT IC HD6305Y2P HIT IC HD6802P HIT IC HD6803P-1 HIT IC HD6805P HIT IC HD6805V1B56 HIT IC HD6805V1PC09 HIT IC HD6805V1P HIT IC HD6805W1P HIT IC 68A09EP HIT IC HD68B09EP HIT IC HD68B21P HIT IC HD46505SP=HD6845SP HIT IC HD68A45SP HIT IC HD68B45SP HIT IC HD6850P HIT IC MC68HC000P12 HIT IC HD68000-8 HIT IC 80C49 HIT IC 27128 HIT IC HN27256G-25 HIT IC HD6801V9P HIT/SONY HT93LC66C HOK IC 80C32-40W ICSI IC IDT39C10BP IDT IC 80C535N [PLCC] INFINEON IC P80C52 INT IC M8031AH INTEL IC P8031AH INTEL IC N8031AH [PLCC] INTEL IC 80C31BH-1[PLCC] INTEL IC N8032AH [PLCC] INTEL IC P80C32-16 INTEL IC P8039AHL INTEL IC P8042AM-2118 INTEL IC P8042AH INTEL IC P8042AHP INTEL IC P8049AH INTEL IC P8051AH INTEL IC P8051AH INTEL IC N8051AH [PLCC] INTEL IC P80C51FA1 INTEL IC D8085A INTEL IC P8085AH2 INTEL IC P8088 INTEL

continuation..

Obsolete and Hard to find IC Parts

SLIDE 25

IC N8097BH [PLCC] INTEL IC P8098 INTEL IC N80C152JB-1[PLCC] INTEL IC TN80C186-12 [PLCC] INTEL IC TN80C186XL16 [PLCC] INTEL IC N80C188XL12 [PLCC] INTEL IC N80C188XL20 [PLCC] INTEL IC TN80C196KB16 [PLCC] INTEL IC N80C196KD20 [PLCC] INTEL IC N80286-10 [PLCC] INTEL IC P80286-10 [PLCC] INTEL IC N80286-12 [PLCC] INTEL IC N80C321[80C32-1] [PLCC] INTEL IC A80486DX2-66 [PGA] INTEL IC D8202A INTEL IC 8202A INTEL IC D8203 INTEL IC D8214 INTEL IC 8216 INTEL IC D8219 INTEL IC C8231A INTEL IC P8232 INTEL IC P82C32 INTEL IC P8237A INTEL IC SAB8237A INTEL IC P8242 INTEL IC P8251A INTEL IC P8254-2 INTEL IC P8272A INTEL IC D8273 INTEL IC D8274 INTEL IC P8274 INTEL IC P8275 INTEL IC P8276-2 INTEL IC D8279C-2 INTEL IC P8284A INTEL IC P8284A INTEL IC D8289 INTEL IC P8289 INTEL IC D82C284-10 INTEL IC D82288 INTEL IC D82C288-10 INTEL IC P82C08 INTEL IC P82C08-16 INTEL IC N82503 [PLCC] INTEL IC D82530 INTEL IC P8344 INTEL IC 8741A INTEL IC D8742 INTEL IC P8742AH INTEL IC D8748H INTEL IC P8749H INTEL IC D8751H INTEL IC D87C52 INTEL IC D8755A INTEL IC 87C64-25 INTEL IC P87C64 INTEL IC TD27128-45 INTEL IC D27210-250V05 INTEL IC 27C256-2 [PLCC] INTEL IC TN28F010-150 [PLCC] INTEL IC 28F001 [PLCC] INTEL IC 28F020 INTEL IC TN28F020-150 [PLCC] INTEL IC E28F128J3A-150 [TSOP] INTEL IC 8741 INTEL/NEC IC D8748 INTEL/NEC IC D8749HD INTEL/NEC IC 8088 INTEL/OKI IC CDP68HC68T1M2[SMD] INTERSIL IC IS27HC010-45PL (PLCC) ISSI IC IS93C46 (SMD) ISSI IC 93C56-3P ISSI IC CS82C54 [PLCC] ITS IC 27C256 K-15 MAT IC MAX6809HAUK MAX IC S8031AH [PLCC] MHS IC P80C31-16 MHS IC P8032AH MHS IC P82C43A MHS IC R82716-3 [PLCC] MHS IC S82716-R [PLCC] MHS IC P80C31-12 MHS/TEMIC IC 24LC01 [SMD] MIC IC P82C202A[PLCC] MICRO IC P82A204 MICRO IC P82C211C MICRO IC P82C215A[PLCC] MICRO IC P82C301 MICRO IC P82A305 MICRO IC M27C256-15/L[SMD] MICRO IC 27C256-15 [PLCC] MICRO IC 24LC02B MICRO IC 24LC64-I/PL MICRO IC 24LC256-I/P MICRO IC 24LC512-I/P MICRO IC 24LC512 [SMD] MICRO IC 28C04A-15/P MICRO IC P82C206 [PLCC] MICROCHIP IC P82C811[PLCC] MICROCHIP IC 27C128-25/L (PLCC) MICROCHIP IC 24LC16B [SMD] MICROCHIP IC 24C04A [SMD] MICRON IC M5M80C39HP MIT IC M5L8041A-156P MIT IC M5L8041A-159P MIT IC M5L8042-107P MIT IC M5L8049P MIT IC M5L8080AP MIT IC M5L8085AP MIT IC M5L8156P MIT IC M5L8156P MIT IC M5L8212P MIT IC M5L8216P MIT IC M5L8226P MIT IC M5L8253P-5 MIT

continuation..

Obsolete and Hard to find IC Parts

SLIDE 26

IC M5M82C55AP-2 MIT IC 82C55AFP-2 [SMD] MIT IC 8255 (REFURB) MIT IC M5L8259AP MIT IC M82C59AFP[SMD] MIT IC M5L8279P-5 MIT IC M5L8283P MIT IC M5M82C255ASP MIT IC M5M28F102AVP-10 MIT IC M5L8257P-5 MIT/ IC M5M82C37AP MIT/HAR IC UPB8288D MIT/NEC IC 82C51A MIT/OKI IC EF68A40JV MIX IC 6510CBM MOS IC MOS6560-101 MOS IC MOS6561-101 MOS IC MOS6567R8 MOS IC MOS6569R3 MOS IC MK68230N8D MOS IC MOS8721R3 MOS IC MS62C50 MOSIC IC 62C11 MOSIC IC MS62C450 MOSIC IC MCM6256BP-10 MOTO IC MCM6256AP-12 MOTO IC MCM6268P25 MOTO IC MCM6269P-25 MOTO IC MCM6270P25 MOTO IC MCM6290P30 MOTO IC MC68B00P MOTO IC MC6802P MOTO IC MC68B02P MOTO IC MC6808P MOTO IC MC6809P MOTO IC MC68B09P MOTO IC MCM6810P MOTO IC MCM68A10P MOTO IC MCM68B10P MOTO IC MC6821P MOTO IC MC68B21P MOTO IC MC68A40P MOTO IC MC68B40P MOTO IC MC6844P MOTO IC MC68A44P MOTO IC MC68B44P MOTO IC MC6845P MOTO IC MC68B45P MOTO IC MC6847P MOTO IC MC68488P MOTO IC MC68B50CP MOTO IC MC68A54S MOTO IC MC68B54P MOTO IC MC6860P MOTO IC MC6875L MOTO IC MC6880AP MOTO IC MC6883P MOTO IC MC6886P MOTO IC MC6887L MOTO IC MC6887P MOTO IC MC6888P MOTO IC MC68HC000FN10 [PLCC] MOTO IC MC68HC05C4P MOTO IC MC68HC11A1P MOTO IC MC68HC11DOFN [PLCC] MOTO IC 68HC16Z1CFC16 [PLCC] MOTO IC MC68HC24FN (PLCC) MOTO IC MC68HC68T1DW (SMD) MOTO IC MC68HC68T1P MOTO IC MC68HC705 B5CB MOTO IC MC68HC705C8ACS MOTO IC MC68HC705 C8AFN [PLCC] MOTO IC MC68HC705C8FN [PLCC] MOTO IC MC68HC705J1A (SMD) MOTO IC MC68HC705P6CDW MOTO IC MC68HC705P6CP MOTO IC XC68HC705P9CP MOTO IC XL68HC705K1S (CERAMIC) MOTO IC MC68HC711 EPCFN2 [PLCC] MOTO IC XC68HC711 K4CFS3 (PLCC) MOTO IC XC68HC805 C4CP MOTO IC MC68HC811E2P MOTO IC MC68000B8 MOTO IC MC68000P8 MOTO IC MC68000P10 MOTO IC MC68000FN10 [PLCC] MOTO IC MC68000RC10 [PGA] MOTO IC MC68008P8

MOTO

IC MC68010L8

MOTO

IC MC68020RC [PGA]

MOTO

IC MC68030RC20B [PGA]

MOTO

IC MC68075R5P

MOTO

IC MC68185FN [PLCC]

MOTO

IC MC68221P

MOTO

IC MC68230P-8

MOTO

IC MC68440PS

MOTO

IC MC68440P8

MOTO

IC MC68450L8OC87P

MOTO

IC MC68451L8

MOTO

IC MC68652P2

MOTO

IC MC2661PB=MC68661PB

MOTO

IC MC68661PC

MOTO

IC MC68681P

MOTO

IC MC68B701S

MOTO

IC XC68704P2S

MOTO

IC MC68705U3L

MOTO

IC MC68705U3S

MOTO

IC MC68705R3P

MOTO

IC MC68705R3CP

MOTO

IC MCM68766C08B01

MOTO

IC MC68881RC16A [PGA]

MOTO

IC 68882 RC25A [PLCC]

MOTO

IC MC68901P

MOTO

IC MC68901FN (PLCC)

MOTO

IC SC80566FN (PLCC)

MOTO

IC MC146805E2P

MOTO

IC MCM2814

MOTO

IC MC68A21P

MOTO/FAIR

IC MC6840P

MOTOROLA

IC MX27C256PC-15

MX IC 27C1000 QC-12 [SMD] MX IC MX27C1000QC-70 (QFP) MX

IC 27L4000 DC-20

MX

IC D6951C

NEC

IC D80C35 C

NEC

IC D8041 AHC027

NEC

IC UPD80C42C

NEC

IC D8085AC-2

NEC

IC 8086

NEC

IC D8155HC-2

NEC

IC UPD8156HC

NEC

IC D8203-3

NEC

IC UPB8212C

NEC

IC UPB8216C

NEC

IC uPB8224C

NEC

IC uPB8228C

NEC

IC UPD8237AC5

NEC

IC D8243HC

NEC

IC D82C43C

NEC

IC UPD82C43G [SMD]

NEC

IC D8251AFC

NEC

IC D8253-5

NEC

IC 82C55

NEC

IC D8255AC-5

NEC

IC UPD8257-2

NEC

continuation..

Obsolete and Hard to find IC Parts

SLIDE 27

IC UPD8257-5 NEC IC D8259 AH-2 NEC IC UPB8282 NEC IC UPB8283D NEC IC UPB8283C NEC IC D8285AHC NEC IC 8427X7 NEC TMPZ84C30P NEC IC D27256D NEC IC D27C1001AB-15 [AMD] NEC IC D27C2001 [SMD] NEC IC UPD 27C4000CZ-15NCC NEC IC UPD23C4001 NEC IC M5L8243P NEC/MIT IC D8048 HC NEC/TOS IC 8155 NEC/TOS/INT IC DP8025 [PLCC] NS IC INS8040N-11 NS IC INS8080AN NS IC MM80C95N NS IC M80C96N NS IC MM80C98N NS IC DM8200N NS IC INS8208BN NS IC DP8224N NS IC DP8228N NS IC P8228N NS IC INS8250AV [PLCC] NS IC 82C50(REFURB) NS IC DP8307AN NS IC DP8344BV [PLCC] NS IC DP8391AN NS IC DP8392CN NS IC DP8419N-80 NS IC DP8456N-4 NS IC DP8463BV [PLCC] NS IC DP8464BN-3 NS IC DP8473N NS IC DP8473AV [PLCC] NS IC DP8490N NS IC DP8490V [PLCC] NS IC DP84240N NS IC DP84300J NS IC DP8570AN NS IC DS88C20N NS IC NMC27C64Q-200 NS IC 27C64 NS IC 27CP128 NS IC 27C256 Q-120 NS IC 27C256 Q-250 NS IC 27C512 NS IC NM27C512Q-120 NS IC NMC9306N NS IC NMC9346EN NS IC MM93C06N NS IC NM93C06N NS IC NM93C66N NS IC 93CS56EM [SMD] NS IC DS96F174CJ NS IC DS96F175CJ NS IC DP8304BN NS/AMD IC P8048H NS/INTEL IC 2764

NS/INTEL/TI

IC P89V51RD2FA [PLCC] NXP IC M6234 OKI IC M6263-01 OKI IC M6322 (SMD) OKI IC M6946 OKI IC M8031A OKI IC M80C48-112 OKI IC MSM8085APRS OKI IC M80C154H OKI IC M81C55 OKI IC M82C51AGSK [SMD] OKI IC M82C54P-2 OKI IC 82C55A-2VJ3 [PLCC] OKI IC M82C84A-2 OKI IC 82C53

OKI/SIEMENS

IC F82C206 [PLCC] OPTI IC F82C206 [PLCC] OPTI/MICRO IC MC68681P PHI IC SCN68681E1A44 [PLCC] PHI IC P80C31X2BN PHI IC P80C32 SBPN PHI IC P80C32 [PLCC] PHI IC PCB80C39-15P PHI IC SC87C51 CCF-40 PHI IC PCF84C81AP-157 PHI IC P89C51RD2HBA [PLCC] PHI IC P89V51RD2FN PHI IC SC87C51CCN40 PHI IC P87C52 PHI IC 87C52EFAA (PLCC) PHI IC P87C54EBPN PHI IC TDA8433 PHI IC CDP6823CE RCA IC Z80ACTC RFT IC R6503AP ROCK IC R6518AJ [PLCC] ROCK IC R6520AP ROCK IC R6592 ROCK IC R65C21PC ROCKW IC R6507P ROCKWELL IC HT93LC46 ROHM IC 6805U1B41P SAITEK IC KS82C59A-10CP SAM IC KS82C88-8CP SAM IC KS82C6818A SAM IC KM2865A-25 SAM IC KM28C16-20 SAM IC KS82C37A-10CP SAMSUNG IC R65C51P2 SANYO IC PQ2816A-250 SEEQ IC PQ2864A-250 SEEQ IC NQ2864-250 [PLCC] SEEQ/ IC EF68A03P SGS IC EF6809J SGS IC Z80ACPU SHARP IC LH28F016SUT-10 [TSPO] SHARP IC LH28F008SAT-85 SHARP

continuation..

Obsolete and Hard to find IC Parts

SLIDE 28

IC Z80ACTC SHARP/ST IC SAB 8051A SIE IC 8086 SIE IC SAB8088-1P SIE IC SAB8286AP SIE IC SAB8288AP SIE IC SAB80188N [PLCC] SIEMENS IC SAB80286A [PLCC] SIEMENS IC SAB8256APC SIEMENS IC SAB8287AP SIEMENS IC SAB8282A-P SIEMIES IC SCN8031HCCA44 [PLCC] SIG IC 8032 SIG IC P80C32 EBAA (PLCC) SIG IC S8035L SIG IC SCN8035A SIG IC SCN8049AH SIG IC P87C52 SIG IC P87C550EBPN SIG IC P88C215(PLCC) SIG IC 96L02 SIG IC SC87C51CCN40 SIG/PHI IC Z80BPIO (Z0842006PSC) SILI IC Z80BSIO/0(Z8440BP) SILOG IC 82C11 SIS IC S82C50B SIS IC 82C450 SIS IC COM8251A SMC IC SMC82C51AC SMC IC EF68B01P ST IC EF68A09EP ST IC 68B50 ST IC EF6854P ST IC TS68000CP12 ST IC Z8036B1CIO (Z80CIO) ST IC Z8410AB1 (Z80A DMA) ST IC Z8430B1 (Z80CTC) ST IC Z80ADMA ST IC Z80ASIO/1 ST IC Z80BCPU ST IC M2716A-2F1 ST IC M2732 A-2FI ST IC ST2764A-20CP ST IC M2764A-2FI ST IC M27128A-2FI ST IC M27256-2FI ST IC M27512-2FI ST IC M27C16A-2F1 ST IC M27C32A-2FI ST IC M27C64A-10F1 ST IC M28F101-150K1 (PLCC) ST IC M27C128A-12FI ST IC M27C256B-12FI ST IC 27C256B15C1 (PLCC) ST IC 27C512-10FI ST IC M27C512B-12F1 ST IC AM27C512-15FI ST IC M27C512-15XFI ST IC M27C801-80FI ST IC M27C801-100F1 ST IC M27C1001-12F1 ST IC M27C1001 ST IC 27C1024-10/15XF1 ST IC M27C2001-10F1 ST IC M27C2001-12F1 ST IC M27C2001-70XF1 ST IC M27C2001-15C1 [PLCC] ST IC M27C4001-12F1 ST IC M27C4001-15F1 ST IC M27C4002-12F1 ST IC M24C02 ST IC ST24C04B ST IC 24C026 [SMD] ST IC 24C08 ST IC M28C64C-20PI ST IC M28F256-15B1 ST IC M29F040B-90N1T[TSOP] ST IC 29EE512[SMD] ST IC M29F102B-70N1 ST IC HY29F800BG-70 [SMD] ST IC M29W320DT-70N6 [TSOP] ST IC M9306B1 ST IC ST93C06B1 ST IC M93C46CB1 ST IC M93C46WMN6 [SMD] ST IC M93S46-MN6[SMD] ST IC ST93C56B1 ST IC AT93C56 ST IC M93C66MN6T [SMD] ST IC ST93CS56B1 ST IC ST93CS56M [SMD] ST IC 93C86W6 ST IC EF68A50P ST/HIT IC TMP87CK34 BN3326 TEC IC 82C79 THINK IC D8236 TI IC TACT82301BPB [PLCC] TI IC TACT82302BPB [PLCC] TI IC TACT82303BPB [PLCC] TI IC TACT83441-PJ [PLCC] TI IC TMS25P32NL TI IC TMS2708-15JL TI IC TMS2708-45JL TI IC 27C010A-15 TI IC TMS27C020-15JL TI IC 27C040 TI IC 27C128-15JL TI IC TMS27C210A-20JL TI IC TMS27C4001-15 TI IC 27C020 TI/AMD IC 27C128 (REFURB) TI/AMD IC TMP68HC11A1T [PLCC] TOS IC TMP80C35AP6 TOS IC TMP80C39AP-6 TOS IC TMP8048P TOS IC TMP80C50AP-6 TOS IC TMP82C43P TOS IC TD62C949RF [SMD] TOS IC TD62C950RF [SMD] TOS IC 82C53(REFURB) TOS

continuation..

Obsolete and Hard to find IC Parts

SLIDE 29

IC TMP82C79M-2 TOS IC TMP82C265BF-10 [QFP] TOS IC 84C00AM-8 (SMD) TOS IC TMPZ84C015BF-8 [QFP] TOS IC TMP84C41AP-6 TOS IC 87CM70AF6158[QFP] TOS IC TMM27512AD-17 TOS IC UA6527P UMC IC UM6532P UMC IC UPD8237AE-5 UMC IC KS82C37A-5CP UMC IC D8259AC-2 [PLCC] UMC IC UM 8272A UMC IC UM82C88 UMC IC UM82C206L(PLCC) UMC IC UM82450 UMC IC UM82C8167 UMC IC UM8397 UMC IC 8250 UMC/NS IC 8039 UMC/PHI/NEC/MIT IC VT82C42N VIATECH IC VL82C100QC [PLCC] VLSI IC VL82C101 B-QC [PLCC] VLSI IC VL82C102A-QC [PLCC] VLSI IC VL82C103A-QC [PLCC] VLSI IC WM2264 AK-25 WIMBOND IC WM2464 AK-35 WIMBOND IC W86C451 WIN IC W82C59 WINBOND IC W89C92 WINBOND IC W27E257P-12 WINBOND IC W2464AK-25 WINBOND IC W2465AJ-12 (PLCC) WINBOND IC W2465AK-20 WINBOND IC W2466-10LL WINBOND IC W24257A-35 WINBOND IC W24257S-70LL [SMD] WINBOND IC W24512S-55 WINBOND IC W29C040-90Z WINBOND IC WS82C55A-5S [SMD] WINGSHING IC W8560 WY IC X24C04P XICOR IC X25C02 (SMD) XICOR IC X28C64P-20 XICOR IC Z8036PSK (Z-CIO) ZILOG IC Z8430BPS (Z802CTC) ZILOG IC Z80CPU [Z84C0006PSC] ZILOG IC Z80CPU [Z84C0006PEC] ZILOG IC Z80ACTC ZILOG IC Z80ACTC(Z0843004PSC) ZILOG IC Z80ADART ZILOG IC Z80ADMA ZILOG IC Z80APIO ZILOG IC Z80ASIO/0 (Z0844004PSC) ZILOG IC Z80ASIO/1 ZILOG IC Z80A SIO/2 ZILOG IC Z80ASIO/2 (Z84C4204PEC) ZILOG IC Z80ASIO/9 ZILOG IC Z80BCTC (Z8430BPS) ZILOG IC Z80 BCTC(Z0843006PSC) ZILOG IC Z80B DART (Z0847006PSC) ZILOG IC Z80B PIO (Z84C2006P) ZILOG IC Z80HCPU ZILOG IC Z80HCTC ZILOG IC Z80HSIO/2(Z84C4208PEC) ZILOG IC Z0765A08PSC ZILOG IC Z8523020VSC ESCC [PLCC] ZILOG IC Z0860108PSC ZILOG IC Z0868108PSC ZILOG IC Z8930212PSC ZILOG IC Z80ASIO/0 ZILOG/GS IC Z80APIO-D [Z84C2006PEC] ZILOG/SHARP IC 6538 IC F6809EP IC SG6841D IC 68000FN [PLCC] IC 68230 IC 80C31 IC TS80C32X2-LCB [CQPI] IC CS80C52H-12 IC D8085 IC 80C85A-2 IC 82C11 IC INS82C50N-B IC 8254 IC 8257 IC A82C250 [SMD] IC 82C450 IC 8560 [SMD] IC D8752 IC 27C1001 IC BR28C16-150 IC 28C256 IC 28F512 [PLCC] IC AM91L14EPC

continuation..

Obsolete and Hard to find IC Parts

SLIDE 30

Trimmer Capacitor

Features: Miniature size Can be mounted directly to PCB Can be adjust when the circuit is built Suitable for high Frequency Can be controlled half-turn, single-turn, or multiple Ability to provide extended metal or plastic Rated Voltage 0 ~ 100VDC Temperature range

• 25 ~ +85°C

Extended Temperature Range

• 40 ~ +125°C

Temperature Characteristics NP0ppm/°C ~ NP1200ppm/°C Capacitance Range 0.5 ~ 120pF Operating Frequency 1MHz ~ 100MHz Specifications

SLIDE 31

Trimmer Potentiometer

Features: Miniature in size Standoffs allow through PC board Washing Tape and reel package Low temperature Stable, infinite resolution Unique planetary drive offers precise Wiper setting Specifications:

Rated Voltage 300V Power Rating 85°C: 0.5W 150°C: 0W Temperature range

• 55 °C ~ +150°C
• 65 °C ~ +150°C

Resistance Tolerance ±10 % Resolution infinite Dielectric strength Sea level: 600VAC, 1,000VAC 80,000 feet: 250VAC Effective travel: 4 turns normal, 12 turns normal Adjustable Angle:15 turns normal

Standard resistance Table

Resistance (Ohms) Resistance Code

10 20 50 100 200 500 100 200 500 1,000 2,000 5,000 10,000 20,000 25,000 50,000 100,000 101 201 501 102 202 502 103 203 253 503 104 200,000 250,000 500,000 1,000,000 204 254 504 105

SLIDE 32

7-Segment Display

Features: Display device Displaying decimal alphanumeric feedback On the internal operation of the device Fourteen-seven segment display Embedded system application capable May used liquid crystal display Different color display Display simplified representations of the hindu Arabic numerals Common cathode and anode connection Rated Voltage 1.9Vdc- 5Vdc

Average current segment

10mA

Operating temperature

• Min. 0°C Max. 50°C

Storage temperature

• Min. -20°C Max. 100°C

Lead soldering temperature

260°C for at least 3 sec. Specifications: LED, Digital display : Size:3mm, 5mm Emitted Color:red, green, yellow, super blue, white, super bright Chip material: GaP Digit Count : 1",2",3",4" Surface color: Black or Gray Polarity: Anode or Cathode Digit height:

0.28",0.30",0.36",0.39",0.40",0.50",0.52",0.80"

Etc.

SLIDE 33

X- TAL (OSCILLATOR)

Specifications: Features: Small in size High in reliability Different frequency Low power High stability suitable for RF parallel resonance Supply voltage 0.8V ~ 7.0V Frequency range 1.8 ~ 200MHZ

Drive level

10µW, 50µW, 100µW, 500µW

Frequency tolerance

±5%, ±10%, ±15%, ±20%, ±30%

Operating temperature range

• 10°C ~ +60°C

Storage temperature range

• 30°C ~ +80°C

SLIDE 34

Light Emitting Diode

Features: Small area light source Visible Easily be driven by TTL & C-MOS Long life solid state reliability Specifications (Ta= + 25C°):

Type Color Forward current max. Forward voltage typ. Forward voltage max. Reverse voltage max. Luminous intensity Viewing angle Wavelength Standard Red 30mA 1.7V 2.1V 5V 5mcd @ 10mA 60° 660nm Standard Bright red 30mA 2.0V 2.5V 5V 80mcd @ 10mA 60° 625nm Standard Yellow 30mA 2.1V 2.5V 5V 32mcd @ 10mA 60° 590nm Standard Green 25mA 2.2V 2.5V 5V 32mcd @ 10mA 60° 565nm High intensity Blue 30mA 4.5V 5.5V 5V 60mcd @ 20mA 50° 430nm Super bright Red 30mA 1.85V 2.5V 5V 500mcd @ 20mA 60° 660nm Low current Red 30mA 1.7V 2.0V 5V 5mcd @ 2mA 60° 625nm

Temperature characteristics

Operating temperature range

• 40 °C ~ +85-40 °C

Storage temperature range

• 40 °C ~ +100-40 °C

Lead solder temperature ( 4mm from body) 260°C for 5 Sec.

3mm 4mm 5mm 8mm 10mm 5x5mm square 2x5mm Rec. Square 5mm Flathead

SLIDE 35

Dot Matrix

Features: Long live Low driving electricity Save power Ready response Equal luminance Good stability Specification ( Ta = 25°C): Color Peak emission Wavelength Dice material Forward voltage (V) Luminous intensity per Dice Test condition (mA) Typ. Max. Bright red 695 GaP/Gap 2.0 2.8 1,400 20 Orange red 635 GaAsp/Gap 2.1 2.8 4,000 20 Super bright red 660 GaA1As/GaAs (SH) 1.8 2.5 6,000 20 Ultra bright red 660 GaA1As/GaAs (DH) 1.8 2.5 10,000 20 Yellow 590 GaAsp/Gap 2.1 2.8 4,000 20 Yellow green 570 GaP/Gap 2.2 2.8 4,000 20 Dimension: Matrix height Dot Pitch/ Diameter 4x4 5x7 5x8 6x8 8x8 2.8 m/m,4.0 m/m 5.0 m/m,7.6 m/m 10.0 m/m,11.4 m/m 15.2 m/m,27.2 m/m

SLIDE 36

Fuse

Features: Over current protection device Indicating pin or striking pins Indicating disc Element window Some special purpose micro switch Higher interrupting rating Higher voltage rating Ceramic fuse Glass fuse Fuse-170 Fuse FWP Fuse FWX Fuse JJN Fuse NOS Fuse Glass Delay Fuse Glass Delay Time Delay fuse Fuse KAB Fuse NON Fuse PCC Fuse PCD Fuse REN Fuse REN Fuse SC Fuse TDC

SLIDE 37

Power Modules

Features: Easy connection Insulated type Glass passivation chip Application: Inverters Battery Chargers DC Motors General Purpose DC Power Supply Diode Modules 2RI100G-120, 2RI100G-160, 2RI135G-160, 2RI150E-060, 2RI160G-160, 2RI200G-160, 2RI250E-080, 2RI60G-120, 2RI60G-160, 6RI100G-120, 6RI100G-160, 6RI30G-120, 6RI30G-160, 6RI75G-120, 6RI75G-160 Power Transistor Modules 1D500A-030, 1D500A-030, 1DI300D-100, 1DI400X-120, 1DI480A-055, 2DI100D-100, 2DI30D-100, 2DI50D-100, 2DI75D-050A, 6DI15A-050, 6DI20C-050, 6DI75D-050A, ETG81-050, ETK85-050, ETN35-030, EVK71-050 EVL31-055, EVL32-055, EVL32-055, MG15G1AL1, MG15G6EM1, PM75RHA060, QM30E2Y-2H QM30TB1- H IGBT Modules 1MB50-090B, 1MBI300N-120, 1MBI400NP-120, 1MBI600PX-140, 2MBI100NC-120, 2MBI150LB-060, 2MBI200LB-060, 2MBI300LB-060, 2MBI400L-060, 2MBI50P- 140, 2MBI75P-140, 6MBI200FB-060, 6MBI25LB-120, 6MBI50FA-060, 6MBI50J-060, 6MBP150RA-060, 6MBP300RA-060, 6MBP50RTA-060, 7MBP150RA-060, 7MBP50RA-060, 7MBP75JB-060, 7MBR15SA-120, 7MBR50SA-060, B 7MBR50SB-120, CM100DY-12H, CM20MD-12H, CM300DY-24H, CM30TF-12H, GT25Q101, MG100J1BS11, MG15N6EK1, MG15N6EK1, MG25Q1BS11, PM100RSA-060, PM20CEE060, PM50RSA-120, SKM40GD123D, SKM40GD124D, SKM50GB123D

SLIDE 38

Features: Contains no moving parts Increased lifetime Decreased electrical noise when switching Totally silent operation Clean, bounceless operation

Solid state relay

Specifications: Output circuit type: Triac Output Type: AC output Number of channel: 1 Input type: AC,DC I(IN) min. (A) control IN. current: 5.0m,6.0m,12m,18m V(IN) Min. (V) control IN. Volt: 3.0,10,90 Output Transistor current (A): 10,15,25,40 Output Transistor Voltage (V): 140,250,280

SLIDE 39

Relay

HLS6-3100H HLS6-23F HLS6-4100H HLS-(4078) HLS-32F HLS-33F HLS-TF2 HLS8-TF3 HLS8-22F HLS-T90(15) HLS-T91(16F)-1 HLS-T91(16F)-2 HLS-T91(16F)-3 HLS-MK2P HLS-MK3P HLS-14F1 HLS-14F2 HLS-14F3 HLS-14FK HLS-102F HLS-13F-1 HLS-13F-2(13FT) HLS-4453(18f)-2 HLS-4453(18f)-3 HLS-4453(18f)-4

SLIDE 40

Inductors

Features: Wide inductance range Ideal for auto insertion Conformal coated inductors High durability Epoxy resin coating makes it high reliability Special magnetic core structure contributes to high Q and Self-Resonant Frequencies Inductance range: 0.1uH ~ 1000uH Resistance: ±10%, ±15%, ±20% Operating temperature range: 20 ~ +80°C Ambient temperature: 60°C max. Dielectric withstanding voltage: 250 Vrms Specifications:

SLIDE 41

Ceramic Filter

Features: Dimensions are smaller than the LC filter. Frequency is fixed for both IF circuit and FM detector circuit High selectivity is obtained Frequency stability is inferior to the crystal filter Spurious response by mechanical vibration Ceramic trap Triple peak Specification: Applicable range: 10khz to 100Mhz Temperature characteristics:

• 30°C - +85°C

Humidity: chamber with 90 - 95%R.H. at 40 - 45°C for 96 hours and then being placed in natural condition for 24 hours. Solderability: 230± 5℃ for 5±1sec.

Center Frequency (fo) (MHz) 3dB Bandwidth (kHz) Attenuation (kHz) Insertion Loss (dB) Spurious Attenuation (dB) 10.700 ± 30kHz within180 ± 40kHz 520 max. 7.0 max. 40 min. 10.700 ± 30kHz within230 ± 50kHz 570 max. within4.0 ± 2.0dB 40 min. 10.700 ± 30kHz within280 ± 50kHz 650 max. within4.0 ± 2.0dB 30 min.

SLIDE 42

RFI Filter

Features: General purpose common mode filters Providing RFI control of line to ground Small size Available in broad selection Different termination styles Very low leakage current V W series Sk series k series Specification: Rated Voltage: 250VAC Operating frequency: 50 / 60Hz Rated current: 1A – 60A High Pot Rating: Line to ground=2250VDC Line to line=1450VDC B series EC series

Current Rating Frequency - MHz .1 5 .5 1 5 1 0 3 0 VB Models 1A, 3A 15 30 38 50 50 50 2A, 5A, 10A, 20A, 30A 7 20 25 40 45 48 Current Rating Frequency - MHz .0 1 .0 8 .1 .1 5 .5 1 5 1 0 3 0 VSK Models 3A, 6A, 10A 4 23 25 29 43 44 42 42 30 20A 7 23 25 29 43 44 48 48 48 30A 2 13 14 15 27 31 46 51 39 40A 2 15 18 22 40 43 45 50 30 Current Rating Frequency - MHz .1 5 .5 1 5 1 0 3 0 VK Models 30A, 40A 2 40 60 65 57 55 60A 13 49 67 57 53 53 Current Rating Frequency - MHz .1 5 .5 1 5 1 0 2 0 3 0 EC1 , EC2 & EC8 Models 1A 5 35 50 60 60 40 40 3A 5 25 45 60 55 34 34 6A 10 10 40 65 60 40 40 10A 10 10 27 65 56 38 38

SLIDE 43

IC SOCKET

DIP-6 DIP-8 DIP-14 DIP-16 DIP-18 DIP-20 DIP-22 DIP-24 DIP-28 DIP-32 DIP-40 DIP-42 DIP-48 DIP-64 DIP-6 round DIP-8 round DIP-14 round DIP-16 round DIP-18 round DIP-20 round DIP-22 round DIP-24 round DIP-28 round DIP-32 round DIP-40 round DIP-42 round

SLIDE 44

PLCC Socket

PLCC-20 PLCC-28 PLCC-32 PLCC-44 PLCC-52 PLCC-68 PLCC-84

SLIDE 45

Potentiometers

SLIDE 46

Terminal Block

CTB 04VZ/3 CTB92VG/6S CTB 92VG/5S CTB 04VY/3 CTB 04VZ/2 CTB 9208/3 CTB 9200/2A CTB 9350/7 CTB9350/5A0 CTB 9350/4 CTB TDVJ/3 CTB TDVJ/2 CTB TDVG/2 CTB TD VG/3 CTB DD93VJ/3 CTB DD93VJ/2 CTBDD93HJ/2 CTB DD93HJ/3 CTB DD93VG/2 CTB DD 93VG/3 CTB 93VE/3 CTB 93VE/7 CTB 93VE/6 CTB 93VD/2 CTB93VD/3 CTB 93HD/3 CTB 93HD/2 CTB 7300/36M

SLIDE 47

Connectors

SLIDE 48

Battery accessory/ fuse holder

SLIDE 49

Conversion plug

SLIDE 50

BNC Connector/ Telephone accessory

SLIDE 51

Switch

SLIDE 52

Cable/ Wires

SLIDE 53

LIST OF OUR PARTNERS

SLIDE 54

Contact us

WesTech Component Co.Ltd * Importer * Exporter * Manufacturer * Distributor

Headquarter :

203/32-33 Soi Ladprao 15, Ladprao Rd. Jomphol Jatujak , Bangkok 10900 Tel: +662 -512 5427 ; +662-512 2751 Fax: +662- 5125531 ; +662-512 5532 Website: www.wt.co.th Managing Director :

• Mr. Vanchai Chuttrakulchai

E-mail : vanchai@wt.co.th Export Division : Volume:

• Ms. Evelyn C. Javaluyas Mr. Adrian V. Cortinas

Marketing Manager Marketing Assistant Export Division E-mail : evelyn@wt.co.th , export@wt.co.th Obsolete:

• Ms. Gennie D. Padua

E-mail: gennie@wt.co.th

Branch Office : WesTech Component (China) Co. Ltd. Futian District , Shenzhen , China Principal partners : Jiangsu , Shenzhen China and India

SLIDE 55

Samples with specifications available upon request. To our future partnership and successful collaboration !!!
