A state-of-the-art calculation of atmospheric lepton fluxes 35 th International Cosmic Ray Conference 2017, Bexco, Busan, South Korea Anatoli Fedynitch In collaboration with: DESY Zeuthen Hans Dembinski (Bartol, MPIK) Felix Riehn (KIT, LIP)

SLIDE 1

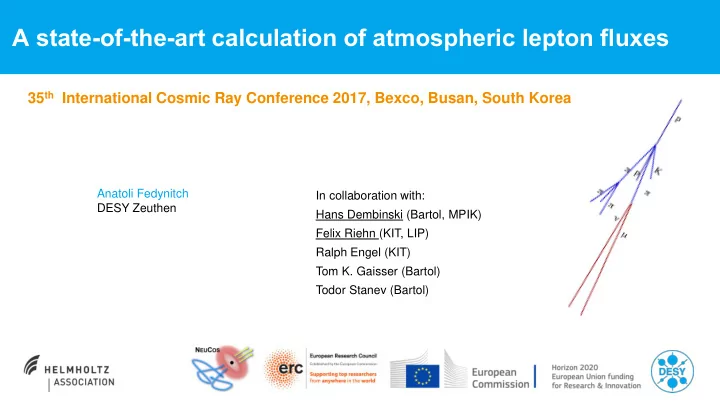

A state-of-the-art calculation of atmospheric lepton fluxes

35th International Cosmic Ray Conference 2017, Bexco, Busan, South Korea

Anatoli Fedynitch DESY Zeuthen In collaboration with: Hans Dembinski (Bartol, MPIK) Felix Riehn (KIT, LIP) Ralph Engel (KIT) Tom K. Gaisser (Bartol) Todor Stanev (Bartol)

SLIDE 2

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 2

Importance of high precision atmospheric lepton flux prediction

> Conventional and prompt leptons are backgrounds for astrophysical neutrino measurements > Estimation of spectral index and normalization depends on the shape of the atmospheric expectation > Accuracy of calculations at lower energies limits neutrino properties measurements with atmospheric neutrinos

SLIDE 3

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 3

Importance of high precision atmospheric lepton flux prediction

IceCube Collaboration, ICRC 2015

> Conventional and prompt leptons are backgrounds for astrophysical neutrino measurements > Estimation of spectral index and normalization depends on the shape of the atmospheric expectation > Accuracy of calculations at lower energies limits neutrino properties measurements with atmospheric neutrinos

IceCube, PRD 91, 072004 (2015)

SLIDE 4

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 4

Transport equations (hadronic cascade equations)

System of non-linear PDE for each particle species h (~62 x #E-bins) : Interactions with air Decays Energy losses (radiative) Re-injection from interactions Re-injection from decays

SLIDE 5

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 5

Transport equations (hadronic cascade equations)

System of non-linear PDE for each particle species h (~62 x #E-bins) : Interactions with air Decays Energy losses (radiative) Re-injection from interactions Re-injection from decays particle physics atmospheric physics cosmic ray physics

SLIDE 6

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 6

Our tools: MCEq - open-source cascade equation solver

CORSIKA: A. Fedynitch, J. Becker Tjus and P. Desiati, PRD 2012 MCEq: A. Fedynitch, R. Engel, T. K. Gaisser, F. Riehn and S. Todor. PoS ICRC 2015, 1129

> Simultaneous integration of several thousands kinetic equations > Energy range 1 (30) GeV – 1011 GeV > All models included > High optimization: multi-core, GPU, … (BLAS, MKL, CUDA) (~milli-seconds) > MIT licensed @ https://github.com/afedynitch/MCEq

SLIDE 7

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 7

Models of the comic ray spectrum at the top of the atmosphere

> None of the shown models extends

ver entire energy range and provides

error estimates > GST-X and HXa are quite extreme assumptions for UHECR

HXa:

T. K. Gaisser,
Astropart. Phys. 35 (2012) 801–806

GH:

T. K. Gaisser and M. Honda,
Ann. Rev. Nucl. Part. Sci. 52 (2002) 153–199

GST-X:

T. K. Gaisser, T. Stanev, and S. Tilav,
Front. Phys.(Beijing) 8 (2013) 748–758

Update of GH (not shown):

J. Evans, D. Porzio et al., 1612.03219

SLIDE 8

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 8

GSF flux model (talk by H. Dembinski 19th July 14:45)

SLIDE 9

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 9

GSF flux model (talk by H. Dembinski 19th July 14:45)

> Wavy feature at lower energies are due to the hardening of proton and He spectra (see also a recent update of GH model by Evans et al. 1612.03219) > Increase of error around 10 TeV because of the gap between direct and indirect exp. > Higher flux at the knee and harder specrtal index between knee and ankle > Latter effect comes from the lighter composition at the knee as in other models > Mainly driven by KASKADE Gr. and latest data from IceTop and TUNKA

SLIDE 10

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 10

SIBYLL 2.3c with charm and improved kaon distributions

More details in F. Riehn et al., PoS(ICRC2017)301 Talk by Ralph Engel right now 

SLIDE 11

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 11

Implementation of “Barr et al.” in a numerical scheme

> Compute partial derivatives wrt. phase-space regions, i.e. > No correlations between phase-space regions (as in Barr et al.) or add. correlations

Original scheme

Elements of Jacobian (numerical) Error propagation Charm

CH_A CH_B + Energy dependence

G. D. Barr, S. Robbins, T. K. Gaisser, and T.

Stanev, Phys. Rev. D 74, 094009 (2006)

Extension for charm

SLIDE 12

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 12

Implementation of “Barr et al.” in a numerical scheme

> Compute partial derivatives wrt. phase-space regions, i.e. > No correlations between phase-space regions (as in Barr et al.) or add. correlations

Original scheme

Elements of Jacobian (numerical) Error propagation Charm

CH_A CH_B + Energy dependence

Charm

10 % 70 % + max. 25 % Energy dependence

G. D. Barr, S. Robbins, T. K. Gaisser, and T.

Stanev, Phys. Rev. D 74, 094009 (2006)

Extension for charm

SLIDE 13

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 13

Uncertainties of lepton fluxes

SLIDE 14

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 14

Uncertainties of lepton fluxes

> Similar error band for each interaction model > Error from Barr et al. scheme approximately universal for all current models > Hadronic interaction models produce compatible results

SLIDE 15

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 15

Uncertainties of lepton ratios

SLIDE 16

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 16

Uncertainties of lepton ratios

> Only very few benchmark measurements available > Ratios are more sensitive to the leading particle effect > SIBYLL 2.1 and 2.3 known to have problems with K+ > Newer models all compatible

SLIDE 17

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 17

Prompt neutrinos from decays of charmed mesons

> SIBYLL 2.3c is the only full MC model > Compatible with LHC data and IceCube limit > New CR flux model (GSF) changes situation a bit > Uncertainties from QCD theory are large and calculations are compatible within bands

IceCube: Astrophys.J. 833 (2016) GMS: Garzelli et al., JHEP 1510 (2015) 115 BERSS: Bhattacharya et al. JHEP 2015: 110

SLIDE 18

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 18

Prompt neutrinos from decays of charmed mesons

> SIBYLL 2.3c is the only full MC model > Compatible with LHC data and IceCube limit > New CR flux model (GSF) changes situation a bit > Uncertainties from QCD theory are large and calculations are compatible within bands

IceCube: Astrophys.J. 833 (2016) GMS: Garzelli et al., JHEP 1510 (2015) 115 BERSS: Bhattacharya et al. JHEP 2015: 110

SLIDE 19

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 19

Conclusions

We developed a high >

performance open-source code for atmospheric lepton

calculations (Updated version of MCEq soon @ https://github.com/afedynitch/MCEq) Uncertainties are dominated by hadronic interactions and cosmic ray flux errors > The CR flux errors are quantified using a new global fit to experimental data (GSF); > the model changes the expectation of the very high energy neutrinos Hadronic errors are quantified using a scheme after Barr et al., which can be used > as a starting point for further studies; the error bands weakly depend on the initial choice of the interaction model The high performance of the code together with the error propagation scheme can > be used to constrain hadronic interactions in a phase-space inaccessible to colliders

SLIDE 20

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 20

Hadronic uncertainties: current state of the art

> “Uncertainties in atmospheric neutrino fluxes”, G. D. Barr, S. Robbins, T. K. Gaisser, and T. Stanev, Phys. Rev. D 74, 094009 (2006) > Cut phase-space in regions/slices in Elab and xlab and assign uncertainty to each slice (uncorrelated) > Draw-back 1: Uncorrelated uncertainty assigned by hand and judged only from availability of experimental data (not how well TARGET described it) > Draw-back 2: The “central value” is assumed to be TARGET. Scheme doesn’t tell anything about ”best estimate”.

SLIDE 21

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 21

Hadronic uncertainties computed with different interaction models

SLIDE 22

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 22

Hadronic uncertainties computed with different interaction models

1. If models with known problems are excluded, then errors are ~universal = approx. independent on the choice of interaction model 2. “Bracketing” with different models can be a good estimate, sometimes

SLIDE 23

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 23

Hadronic uncertainties below 200 GeV

SLIDE 24

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 24

Hadronic uncertainties for high energy leptons

SLIDE 25

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 25

Relevant particles for lepton production

pion decay kaon decay charm decay muon decay kaon decay charm decay Muon neutrinos Electron neutrinos

SLIDE 26

Anatoli Fedynitch | 35th ICRC, 2017, Busan, South Korea | 2017/07/10 | Page 26

Relation between lepton and cosmic ray energy

Energy range covered by particle accelerators.
