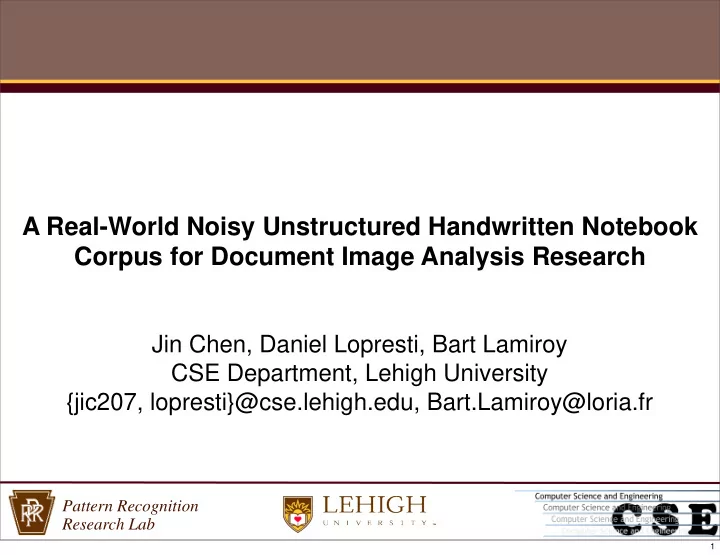

A Real-World Noisy Unstructured Handwritten Notebook Corpus for Document Image Analysis Research

Jin Chen, Daniel Lopresti, Bart Lamiroy CSE Department, Lehigh University {jic207, lopresti}@cse.lehigh.edu, Bart.Lamiroy@loria.fr

1
