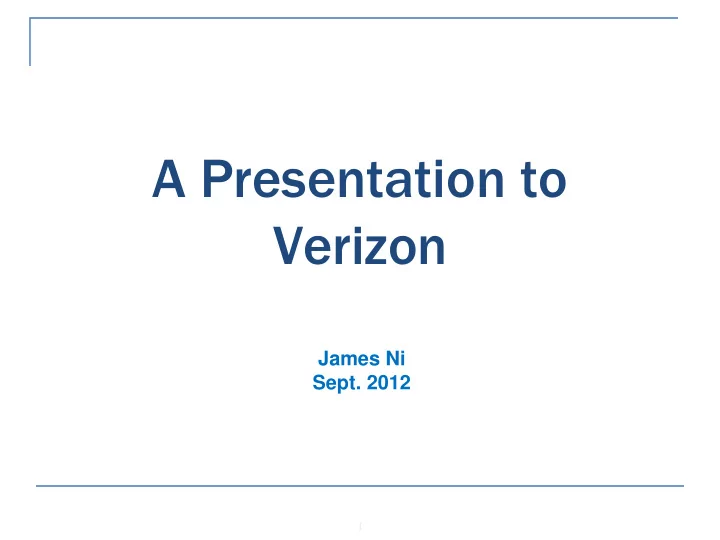

A Presentation to Verizon

James Ni

• Sept. 2012

 After granted Ph.D in wireless networking and one year

• f post doctoral research in MPEG video and ATM….

 Experienced a 4 major stages of industrial career in

communications and networking:

 Started from FR & ATM R&D at Cascade Communications

(1995 – 1998)

 Moved on to VoIP and PSTN convergence at Convergent

Networks (1998 – 2005)

 Switched to wireless data network gateway product R&D at

Airvana Networks (2005 – 2007)

 Continued on wireless/IMS convergence R&D at Tatara

Systems (2007 – 2011)

 Software/Protocol Developer  Software/Network

Architect

Exper erien ence ce Outli line

PSTN

SS7/ISDN/CAS/GR303

Data Network IP/ATM

SIP/H323/AAL2 /MGCP

Convergence Broadband IP Network IMS Network

SIP/DIAMETER /H248

Mobile Network

MAP/ANSI41

Convergence IP Network FR/ATM core

1998-2005 1995-1998 1998-2005 2005-2007

IP Network WLAN

Mobile Access

SecGW / FA /SGSN IKE/IPSec/GTP HA / GGSN MIP/GTP

2005-2007 2007-now

SBC P-CSCF

Now

Access SBC

Experience in IMS

2011- Now GENBAND

 Career

eer path and roles



System/Software Architect

 Archit

hitect ecture ure

 TPM System Architecture  Cloud Enabling Platform Architecture  Access SBC/P-CSCF Archotecture  DRA/DRC Architecture

 Develop

elopmen ent t

 TPM 2012 MWC Demo System Design &

Implementation

 Cloud Enabling Platform System Services and Process

Management

 P-CSCF Project

Traffic Policy Management (TPM) Architecture

8

Network Service Evolution Trend

Monet etizati tion of OTT Conte tent t Servi vices Personalizati tion of Servi vices es to Individual Subscriber er Serv rvice e Analyti tics and Workb kben ench Adve verti tising Opt-in in Fine-grained ed Broadband Analyti tics Offloa

• ad, Redire

recti tion, and Conte tent t Deliver very Minimize Infrastr tructu ture e Inve vestmen tments ts Dynamic traffic and Signaling Conges esti tion Contr trol Leve verages es Social Netw tworki king and OTT Conte tent Value added ed servi vices es acro ross multi tiple e OTT Serv rvices es Blending multiple OTT Services with Carrier’s Services Enables broad 3rd

rd party Ecosyste

tem Open ening new w reve venue paths Bette ter ad target eting via inte tegrate ted analyti tics Inte telligen ent t Presen enta tati tion Enabling Localized ed Presen enta tati tion

Attract And Retain Consumers Increase QoE, Analytics Monetize Over The Top Services Monetize Infrastructure and Subscriber Reach Broadband Optimization Blended Broadband Services Broadband Personalization Advertising

Future Proofing Operator Investments

9

Broadband Personalization

Bro roadban band Personalizati tion

End to End Complete Broadband Personalization Solution

Subscriber er Centric Offer fer Creation

• Based on Actual Network and

OTT Usage Patterns

• Service Workbench allows

“what-if” development and testing of service offers.

• Based on location and provides

location specific and localized services

• Flexible solution enables
• ther personalized service
• ffers beyond broadband
• Professional Services Enables

Operator Customized Services Service e Differ feren entiation

• n

Any ny Dev evice e Presen entation

• n
• Push and Customize Personalized

Service on any Device

• Support for “new-age” devices (ex.

Internet TVs, Game Consoles, Smartphones, Tablets, …)

• Consistent, “plain language” user

interface

Subscriber er Services es & QoE

• Personalized QoE Delivery via Policy

and Content Caching

• QoE implemented at edge of Access

Infrastructure

• Advertising

Opt-In

Integ egrated ed User Character erization

• n
• Integrates multiple sources of

information

• Offers only services likely to be
• f value to a specific user
• Offer only services appropriate
• r specific to a specific location

Location

• n Based

Services es

• Location based value added

services

• Local zone services

Pe Personalized ed SDN

• Subscriber dedicated SDN
• Application dedicated SDN

10

Broadband Optimization

Bro roadban band Optimizati tion

• n

Improved QoE, Network Efficiency and Intelligent Routing via Broadband Optimization and Cloud Enabling

Service e Enablement ement & QoE Enhancem emen ent

• Content Caching and Shaping
• Personalized QoE Control
• Location aware delivery

Integ egrated ed User Character erization

• n
• TPM and Cache Analytics Enable

Subscriber Characterization

• Dynamic Visibility into Network

Usage Patterns Dynamic Conges estion

• n

Managem emen ent

• 3GPP Traffic and Policy Mgmt.
• Mobile Data Offload
• Dynamic Mobile Congestion

Control

• Mobile Signaling Optimization

Mobile e Core Cost Reduc uction

• n
• Flexible User Oriented Analytics
• Subscriber and device aware
• Evolution to content aware edge-

based PDN/S-GW

• Subscriber location

aware Service e Differ ferent entiation

• n
• APIs for Analytics
• Full 3GPP infrastructure integration
• MDO supports Mobility, Billing & LI
• Intelligent traffic routing/distribution

Cloud ud Enabling ng

• Telcom over Cloud (ToC) ready
• Application specific Cloud

enabling Software e Defined d Networ worki king ng

• Application specific SDN
• Subscriber/User specific SDN

11

Blended Broadband Services

Blended nded Services es

Blending Communications, Content and Social Networking Across All Devices for Subscriber Attraction

Inter ernet net Border er Control

• Off-net Access to Operator’s Services
• Off-net User Analytics
• Apps Border Control to Protect Operator
• Extends operator services to broader range
• f terminals (ex Kiosks, M to M, etc)

Value e Added Social Netw tworking Exper erien ence

• Viral Content Sharing
• OTT Enabled Address

Book

• Unified Notifications
• Location aware services

Any ny Dev evice e Present entation

• n
• Any Device, Any Access
• Broadband, Telephony,

Video, Wireless – HTML5 Service e Differ feren entiation

• n
• API Gateway for 3rd party access control,

analytics and billing

• Enables wholesale session and QoE

models

Persona-based ed & Loc

• cati

tion

• n-based

ed Servi vice e Contr trol

• Persona Control
• Dynamic Persona

Selection

• Blended User Preferences
• Location based service control

OTT Conten tent t and Communicati tions Blen ending

• OTT-Carrier

Blended Comm, & Interworking

• “Fast-lane” OTT Content Delivery

Integ egrated ed Analytics

• Subscriber App Use
• Network Traffic
• Off-net use
• Subscriber data

12

Advertising

Enable new revenue streams via personalized, contextual ads

d

Wholes esale e Adver ertising ng

• Enhance external ad networks

with better user targeting

• Protect user privacy and identity
• Enable new revenue streams
• Comm. Enabled

ed Retail Adver ertising

• Integrate communications into

targeted ads

• Simplifies user engagement with

advertisers

• Improves user buy behavior and

conversion rates

• Enables ads localization and

customization Integ egrated ed User Character erization

• n
• Superior ad targeting and analytics
• Multiple data collection points only

available in operator networks

• Enable monetization of user information
• Subscriber specific contents/ads

presentation enabler Opt-In n via Mass Pe Persona nalization

• n
• Leverage Mass Personalization

service offers to entice user opt-in

• User provided preferences

enhances ad targeting granularity Service e Differ feren entiation

• n
• Add delivery workbench
• APIs for Ad Analytics
• Enable 3rd party Apps

Ecosystem Adver ertising ng Intel elligent ent Ads Enabler er

• Subscriber specific Ads
• Location

specific Ads

• Application specific Ads

Ads Localization

• n
• Ads local zone service enabling
• Ads local zone service hosting

Monetize the Broadband

Ad Network Peer SIP Network PSTN/ PLMN Data Access (e.g. RAN) HTML5 Clients IMS Clients PCRF User Characterization Inline Engine Cache Edge Packet and Content Gateway

Packet Data Core

Blended Services App Server DRA OTT Services Enablers and Mediation Services Mass Personalization Offnet Internet

Access

Ad Insertion Ad Workbench

Application Core IMS Network

Internet Border Gateway Network Services Adaptation HSS TAS CSCF Localization Enhanced LBS MLC MPC

14

A Global Overview of the 4 Strategic Pillars

Access & Core Network

Ads Providers OTT Services

Subscribers Contents Providers

Subscriber Side Enablers Contents Provider Side Enablers Broadband Optimization Subscriber Side Enablers Contents Provider Side Enablers Subscriber Side Enablers Contents Provider Side Enablers Blended Services Ads Workbench Mass Personalization Network Supporting Elements & Service Enablers

(1) (2) (3)

15

How do they work together……

Super Subscriber Profile AS HSS / HLR / MME EIR MLC / MPC Presence PubSub AS RLS Subscriber Portal Subscriber Characterization Subscriber information Aggregation ePCRF Network default policies & rules (PCRF) Dynamic bandwidth usage and congestion status Policies and Rules Integration Unified Service AS IM Mobile Station VoIP eMail Social Networks Tweet / Blog Subscribe / Poll / Registration /Publish Presence & Persona Events & Notificat ations Content Shar aring

Web App

Operator Value Added Service Enabling Platform Intelligent Presentation Enabling APIs Standard Protocol Based Network Execution Logic

16

Cloud Enabling Platform

Cloud Services

Network Storage Server

Virtualization OS

Middleware Runtime Data Applications Jobs

User manages

Non-cloud Systems

Network Storage Server

Virtualization OS

Middleware Runtime Data Applications Jobs

User manages

Infrastructure

(as a Service) Provider manages

Network Storage Server

Virtualization OS

Middleware Runtime Data Applications Jobs

User manages

Platform

(as a Service) Provider manages

Network Storage Server

Virtualization OS

Middleware Runtime Data Applications Jobs

User manages

Software

(as a Service) Provider manages

Cloud Systems

18

Cloud Enabling Platform: CoS Support

• Subscriber Oriented CoS
• Application Oriented CoS

–

A variation: Different traffic queues can be different network interfaces connected to different network paths (with different bandwidth etc.)

Incoming traffic TPM/DPI Subscriber

• riented

Traffic classification & Flow Identification

Platinum Subscriber Traffic Queue Gold Subscriber Traffic Queue Silver Subscriber Traffic Queue Bronze Subscriber Traffic Queue

WRR Scheduler Incoming traffic TPM/DPI Application

• riented

Traffic classification & Flow Identification

High Delay Sensitive Application Queue Low Delay Sensitive Application Queue Low Loss Sensitive Application Queue High Loss Sensitive Application Queue

WRR Scheduler

19

Cloud Enabling Platform: Intelligent Dispatching

• Subscriber Oriented Cloud Computing Traffic Dispatching
• Application Oriented Cloud Computing Traffic Dispatching

Incoming traffic TPM/DPI Subscriber

• riented Traffic

classification & Flow Identification Platinum Subscriber Traffic Gold Subscriber Traffic Silver Subscriber Traffic Bronze Subscriber Traffic Application Server 1 Application Server 2 Application Server 3 Application Server 4 Incoming traffic TPM/DPI Application

• riented Traffic

classification & Flow Identification SIP Traffic Diameter Traffic MEGACO Traffic Routing Traffic SBC / CSCF AAA / HSS / DRC MGC Routers

20

Cloud Enabling Platform: Intelligent Routing

• Subscriber Oriented Routing
• Application Oriented Routing

Incoming traffic TPM/DPI Subscriber

• riented Traffic

classification & Flow Identification Platinum Subscriber Traffic Gold Subscriber Traffic Silver Subscriber Traffic Bronze Subscriber Traffic Next Hop Router 1 Next Hop Router 2 Next Hop Router 3 Next Hop Router 4 Incoming traffic TPM/DPI Application

• riented Traffic

classification & Flow Identification SIP Traffic Diameter Traffic MEGACO Traffic Other Traffic Router to SBC/CSCF Router to AAA/HSS/DRC Router to MGC General Routers

21

Cloud Enabling Platform: Load Balancing

• Load balancing criteria can be subscribers, application types,

application characteristics (delay or loss sensitive etc.) and so on that eventually determine the application server load

Incoming traffic TPM/DPI Traffic classification & Flow identification & correlation Split Coherent Traffic Split Coherent Traffic Split Coherent Traffic Split Coherent Traffic Application Server 1 Application Server 2 Application Server 3 Application Server 4

22

Cloud Enabling Platform: Congestion Control

• Local Congestion Control

–

Enforce traffic shaping on misbehaved subscribers / applications

–

Route traffic to least congested paths

• Global Congestion Control

–

Share local bandwidth and congestion information with all TPM peers

–

Enforce traffic shaping on misbehaved subscribers / applications at upstream

Incoming traffic TPM/DPI Traffic classification & Flow Identification Subscriber/Application Traffic Subscriber/Application Traffic Subscriber/Application Traffic Subscriber/Application Traffic Traffic shaping Outgoing Traffic Incoming traffic TPM/DPI Traffic classification & Flow Identification Subscriber/Application Traffic Subscriber/Application Traffic Subscriber/Application Traffic Subscriber/Application Traffic Traffic shaping Outgoing Traffic TPM2

Network Congestion Information Distribution

23

Cloud Enabling Platform: Software Defined Network (SDN)

Network Infrastructure VPNs

Application Specific SDN Subscriber Specific SDN Cloud Specific SDN Misc. Specific SDN

24

Network Infrastructure Network Intelligence Enabling Application Specific Network Subscriber Specific Network Cloud Network Misc. Dedicated Networks Another Type of Software Defined Networks

Cloud Application: Networking as a Service

25

Load Balancer: Cloud vSBC Enabler

Key Notes

• Wrap all member SBCs as a single virtual SBC (vSBC)
• Support both Geo-centralized/distributed Load Balancing
• Guarantee Session Handling Continuity and Coherency
• Support Multiple Realms / Overlapping IP Address Spaces as a real SBC

26

Load Balancer: A Very Generic View

Key Notes

• Member SBCs can be in different network segments

–

meaning that they can be in different address spaces

–

allows load balancing amongst geo and network distributed SBCs

27

Load Balancer: As an L2 Transparent Element

Key Notes

• To the Access Node (IPa): SBC Load Balancer represents all member SBCs

–

exposes all member SBC addresses (IP1, IP2, IPn) to the access node as the destinations

• To the Member SBCs (IP1, IP2, IPn): SBC Load Balancer represents the access node

–

exposes the access node address (IPa) as the initiating source address

• Incoming traffic targeting a member SBC (e.g. IP1) may be served by a different

SBC (e.g. SBC2)

28

Load Balancer: As an L3 Proxy

Key Notes

• To the Access Node (IPa): SBC Load Balancer proxies all member SBCs

–

Hides all member SBC addresses (IP1, IP2, IPn) and proxies them using a proxy address (IPs) to the access node as the destinations

• To the Member SBCs (IP1, IP2, IPn): SBC Load Balancer represents the

access node

–

exposes the access node address (IPa) as the initiating source address

29

Access SBC/P-CSCF Architecture

Access SBC

P-CSCF Registration & Authentication (AKA)

P-CSCF Registration & Authentication (TLS)

P-CSCF Call / Session Flow

2007- 2011 Tatara Systems

 Career

eer path and roles



Software/Network Architect, Consulting Engineer

 Archit

hitect ecture ure

 Next Gen TCS Software Architecture  TCS High Availability Architecture

 Develop

elopmen ent t

 TCS SIP stack re-architecture and enhancement  TCS High Availability Framework and APIs  TCS SIP High Availability (Registration, Subscriber, Call,

SMS, Supplementary Service, ECS, etc.)

 TCS warm upgrade and quiescent control  TCS software RAID solution and dynamic disk

management

 TCS UMTS Supplementary Service

TCS in SIP Network

PDG VoIP Network SoftSwitch/ MGCF

MGW

Mobile Core Network (SS7) HLR MSS SMSC

ISUPv3 M3UA G.703 Voice

SIP-MSC/IWF

TCS

MAP-E Gd MAP-D MAP-E

Femtocell

IP Packet Core Network

IP PS Data Network SIP SIP Wu’ Gi / Gn RTP WiFi WiMax CF Rf/Ro

TCS in IMS Network

PDG HSS /Presence IMS Core X-CSCF MGCF MGW Mn IP Packet Core Network Sh TCS IP PS Data Network Mobile Core Network (SS7) HLR MSS SMSC ISUPv3 M3UA G.703 Voice MAP-E Gd MAP-D MAP-E Wu’ Cx Mg IMS Application Server ISC SIP RTP Gi / Gn Femtocell WiFi WiMax CF Rf/Ro

TCS Software Architecture

Platform/Device Specific Linux Kernel

Ethernet Drivers T1/E1 Drivers Platform Interface

Debian Packages

Platform Monitors Process Manager Memory Mgmt Network Interface File System

IP Firewall

TCP/UDP

NTP FTP SSH Telnet

Debian Linux Operating System

CLI SNMP Master Agent TCS Web Service Embedded Web Mgmt. Application

Management System Apache Tomcat 5.0.28

SNMP Adventnet Lib. SNMP Gateway Lib. SOAP 1.1/1.2 via Apache Axis 1.3 EPIC Adaptation CLI Session Web SOAP Clients SOAP Clients CLI Sessions Chassis OS & High Availability (COS- HA) C Monitor

ASC

RTP

SS7 DNS Resolver CDR

Trap Alarm Event Log CFC

Application System Control Plane Service Plane

Subsystem Control ICC/Socket SNMP Sub-agent

Data Plane

Chassis OS & High Availability (COS-HA)

GCC

CAC

SMC

VLRC

SSPC

SSC

SIP AS Shelf Manager (SHM)

SCTP SSL

TCS Major Component Subsystems

SIP:: Subsystem

Registrar

Message Control

Call Control

SIP B2BUA

SSPC VLRC SSC ASC GCC SMC

CMonitor:: Subsystem

Active Subscribers Active Calls Messages

CDR

CDR management Rf/Ro Interface

CAC

Load Balancing Control Congestion Control

Resource Management Call Admission Control

WIN/CAMEL Service Control

SS7:: Subsystem

Protocol

MAP

Transportation MTP3 MTP2

Adax Driver

Service Delivery TCAP SCCP Application VLR Application HLR Protocol

ANSI41

M3UA SCTP IP

TCS High Availability Architecture

TCS HA Framew ewor

• rk

TCS HA Framework rk

• Appl. State data replication

Replica synch. msgs MySQL data DRBD Synch traffic HB API Control interface

ipvs admin

HA HA-Aware Application

• n

ipvs kernel Heartbeat

IPVS

Kernel level heartbeat

Linux HA ipvs admin

HA HA-Aware Application

• n

ipvs kernel

Heartbeat

IPVS

VIP Interface

Linux HA

Health h Monitor

• r

Health h Monitor

• r

Active Node Standby Node

Replication Replica (local) Replication Replica (standby)

DRBD DRBD MySQL MySQL

HB API HB API

Inc. replication Inc. replication Batch replication Batch replication Node Status FSM Node Status FSM Node Role FSM Node Role FSM Quiescent FSM Quiescent FSM Upgrade library Upgrade library Restoration Logic Restoration Logic

2005-2007 Airvana Networks

 Career

eer path and roles

 Principal SW Engineer / Project Lead  Project

Architect

 Architec

hitecture ture

 UAG Session Signaling Control Plane Architecture  UAG Management Plane Architecture

 Develop

elopme ment nt

 UAG Session Flow Control Mechanism  UAG Session Signaling Control Framework and APIs  UAG Session Data Plane Control Framework and APIs  UAG Management Plane Framework and Templates  UAG Management Plane Codes Auto-generation  UAG Software Service Layer  UAG Event Log Utility  UAG Redundancy

UAG in Network

AAA HSS Charging Server EIR DSI

Subscriber

Policy & Rule SecGW FA IKE IPSec MOBIKE MIP SGSN GTP

IP Network WLAN

Mobile Access

UAG UAG

HA MIP GGSN GTP

IP Sec Tunnel MIP Tunnel MIP Tunnel GTP Tunnel

PDP Context

Control Plane

Intelligent Platform Management Interface (IPMI) & Shelf Manager (SHM) Fedora Linux Operating System

Platform/Device Specific Linux Kernel

Ethernet Drivers Platform Interface

Fedora Packages

Platform Monitors Process Manager Memory Mgmt Network Interface File System

IP Firewall

TCP/UDP

NTP DNS SSH Telnet SCTP SSL FTP Etc.

System Calls Signals Mis c.

Common Management Master (CMM) Embedded Web Mgmt. Application

SNMP Lib

Management Plane Apache

SNMP Lib. CLI

Session

Web / XML CLI Sessions SNMP Master Agent SNMP Chassis Operation Control & High Availability Framework (COC-HAF) System Services

Alarm/Trap Manager Configuration Persistency Event Log & Trace MySQL management IPCs Signals Timers Queues Semaphore Common Lib.

Common Management Agent (CMA)

OSPF / RIP / BGP

GTP MIP IKE/MOBIKE

Generic Control Signaling

Virtual Routing

SFCP PPP

DIAMETER

RADIUS

DHCP NTP

AAA PDF

RASCP CDR DMCP RSCCP

RTP / RTCP

GigEth DP

Data Plane IP / IPSec TOS / DiffSrv

DOS

Interface Module

IP Filtering / DPI Switch Fabric QoS & Traffic Management

NPU Process Module

UAG Software Architecture

UAG Session Flow Control Plane Architecture CCOA Mode

ent)

RASCP

PCRFCP

SFCP (master) IKECP

SECDP

IPFDP TMDP (ingress)  TMDP (ingress)  TMDP (egress)  TMDP (egress)  IPFDP (default) SFCP (agent)

Access Side Trunk Side

Main flow Access-to-trunk Main flow Trunk-to-access

GIDP (default)

GIDP GIDP GIDP

VRSCP DMCP CDR

OSPF RIP, BGP

AAA HSS

UAG Session Flow Control Plane Architecture FA Access Signaling

RASCP SFCP (master) IKECP SECDP IPFDP TMDP (ingress )  TMDP ( ingress)  TMDP (egress)  SFCP (agent)

Access Side Trunk Side

MIPCP

MIP signaling traffic MIP signaling traffic

PCRFCP

VRSCP DMCP CDR

OSPF RIP, BGP

AAA HSS

UAG Session Flow Control Plane Architecture FA Trunk Signaling

SFCP (master) MIPCP IPFDP TMDP (ingress)  TMDP (ingress)  TMDP (egress)  IPFDP (default) SFCP (agent)

Access Side Trunk Side

MIP Signaling Traffic RASCP

PCRFCP

VRSCP DMCP CDR

OSPF RIP, BGP

AAA HSS

UAG Session Flow Control Plane Architecture FA Data Path

SFCP (agent) IPFDP (default) IPFDP (default) SFCP (agent) RASCP PCRFCP SFCP (master) SECD P IPFDP TMDP (ingress)  TMDP (ingress)  TMDP (egress)  TMDP (egress)  IPFDP (default) SFCP (agent)

Access Side Trunk Side user traffic Access-to-trunk

MIPCP

user traffic Trunk-to-access

UAG Management Plane Architecture

CPM APM/DCM/AIM/CPM APM/DCM/AIM/CPM CLIA S N M P XMLA SNMPA CM CMM1 CMM2 CMMn Component 1 CMA1 Component entity Component 2 CMA2 Component entity CLI XML SNMP

Config File

TAM CMM3

1998-2005 Convergent Networks



Career eer path h and roles



Principal SW Engineer Signaling Manager  Project Architect  Strategic Architect



Archi hitect ecture re



ICS MSC Server Architecture



ICS GR303, H323, Class 5 Feature Architecture



ICS Congestion Control Architecture



ICS E1 Signaling Architecture



Devel elop

• pmen

ent



ISDN PRI/CAS/LAPD/Q.931/Call control/HDLC Drive



ISDN to ISUP/ATM Q.2931/SIP etc. inter-working



Test Line Protocols (102, 105, 108 etc.)



MGCP Controlled Busy Line Verification (BLV)



MGCP Controlled CAS/GR303



H323



Class 5 Features



DSP profile



IP over ATM (RFC1483)



SDP application in MGCP and SIP



COPS and application in PacketCable Gate Control (DQoS)

ISDN / CAS DSLAM DSL IAD SS7 PSTN IP ATM

Line Access Side Trunk Side

GR303/V5.2 ATM/AAL2 H323 / SIP TDM IP ATM SNMP ICSG EM Server PMC PBX Ethernet SW

SIP PR/RS

RDT CMTS MTA

PacketCable

(1) (2) (3) (4) (5) (1) (2) (3)

ICS

MGCP SFC C ATM CMM

SIP/H323

CMM

GR303/CAS

CMM

ISDN/ISUP

CMM TSP CMM ANC CMM CAC CMM CAC & Routing CLI

CP

XML SNMP CCC ATM ASC ATM Stack ASU DVM ASU Driver

ASU TSU ISU TSP

CCC

MGCP CAS ASC ISUP ASC

RPXY TSU DVM AAL1 Driver

GR303

ASC ISDN ASC ATM CMA ISUP CMA CAS CMA GR303 CMA ISDN CMA

CCC SIP CMA H323 CMA SIP ASC H323 ASC SIP Stack ISU IP Interface Driver H225

RAS/CC

RTP / RTCP CCC MGCP CAS ASC AAL2 ASC ANC ASC TSP CMA SAP DVM TSP DVM AAL2 Driver TSI Driver DSP Driver AAL1 Driver DSP H245 CDR

Subscriber profile

Signaling & Call Control

Ingress ASC Egress ASC Ingress Stack Egress Stack Ingress DVM Egress DVM SFC DVM DSP DVM Ingress Device Egress Device SFC DSP CCC CAC & Routing MGCP CDR

Subscriber Profile

Signaling Control Media

ICS MSC Server Architecture

SS7GW SS7

PSTN Mobile Access IP

MGC/CSCF MSC MSC SVR

ICS H323 Architecture

Multimedia Application, User Interface

Data Applications Media Control Signaling

IP

TCP UDP UDP TCP UDP H.245 H.225 Call Signaling H.225 RAS RTCP

Video Codecs Audio Codecs

RTP T.120 T.38 V.150

ICS H323 Architecture

Ingress H323 ASC

H225/H245 Stack

Ingress IP DVM SFC DVM DSP DVM

Ingress gress IP Dev evice

SFC DSP CCC CAC & Routing CDR

Subscriber Profile

To egress handlings

AAA / GK

H.323 EP

ICS GR303 Architecture

Ingress DVM CAS ASC Egress DVM SFC DVM DSP DVM Egress Device SFC DSP CCC CAC & Routing MGCP CDR

Subscriber Profile

PSTN Phones RDT IDT MGC/MG SG SS7 Ingress Device

LAPD TMC EOC DS0 RBS LAPD TMC EOC DS0 RBS

1995 – 1998 Cascade Communications

 Career path and Roles

 Sr. SW Engineer  Principal SW Engineer



Embedded development, Project Lead

 Frame Relay Switching

 Forwarding Engine  QoS, Rate Enforcement, Congestion Control

 ATM Switching

 Call Admission Control  QoS and Queuing

 IP Navigator

 Routing table management  Routing Protocols (OSPF/RIP/BGP)  ToS, Queuing, Congestion Control

Cascade Frame Relay Experience

Frame Relay Engine Cascade Frame Relay Experience

Cascade ATM Experience

Scheduling CAC

Provisioning

ATM UNI ATM NNI Over- subscribe QoS Queuing Ingress Bandwidth Egress Bandwidth SFC Bandwidth

Cascade IP Navigator Experience

Variable Trial Table Lookup

RIP

Static provision

OSPF IS-IS BGP Dynamic Variable Length Trial Routing Table Management Routing Table

ToS, Queuing Congestion control Scheduling & Forwarding

More Presentations

 Monetize the Broadband Network Services  Cloud Enabling Platform and SDN  Access SBC/P-CSCF Architecture  Detailed IMS experiences  Wireless Architectures

Thank You!
