A practical introduction to modeling complex systems. A primer for thinking about the introduction and spread of infectious diseases along the farm-to-fork continuum. Amy L. Greer, BSc, MSc, PhD Tier 2 Canada Research Chair in Population Disease

slide-1
SLIDE 1

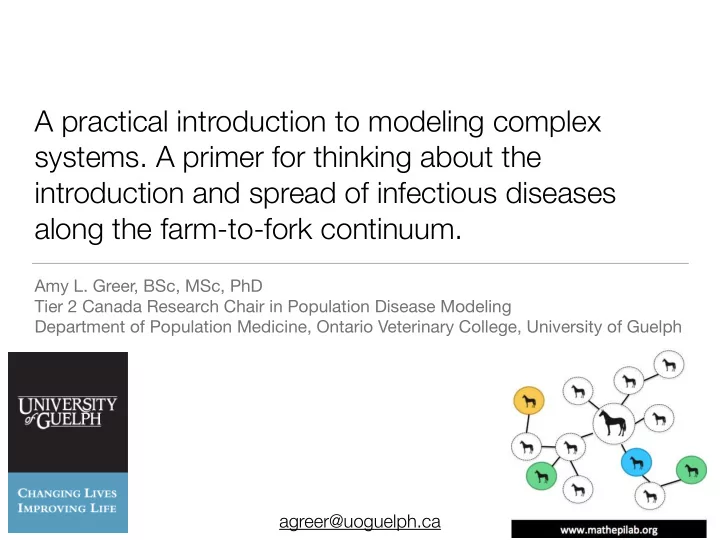

A practical introduction to modeling complex

  • systems. A primer for thinking about the

introduction and spread of infectious diseases along the farm-to-fork continuum.

Amy L. Greer, BSc, MSc, PhD Tier 2 Canada Research Chair in Population Disease Modeling Department of Population Medicine, Ontario Veterinary College, University of Guelph

agreer@uoguelph.ca

slide-2
SLIDE 2

Outline

  • Food-borne disease risk in Canada as a “One Health” case

study.

  • Using statistical models to identify acute environmental

effects.

  • Pre-harvest interventions to prevent and control the spread of

food-borne pathogens in animal products and produce.

  • The challenging health economics of pre-harvest

interventions.

  • Conclusions and ideas for moving forward.
slide-3
SLIDE 3

Thomas et al. 2013

slide-4
SLIDE 4

Thomas et al. 2013

slide-5
SLIDE 5

Improving food safety through a One Health approach

Chofnes et al. 2012

slide-6
SLIDE 6

Improving food safety through a One Health approach

Chofnes et al. 2012

slide-7
SLIDE 7
slide-8
SLIDE 8

www.cdc.gov

Post-harvest interventions Pre-harvest interventions

slide-9
SLIDE 9

www.cdc.gov

Post-harvest interventions Pre-harvest interventions Focus on environmental exposures

slide-10
SLIDE 10

Seasonally oscillating environmental exposures

0! 10! 20! 30! 40!

01/1994! 01/1996! 01/1998! 01/2000! 01/2002! 01/2004! 01/2006! 01/2008!

Date!

TMAX (C)! MAXCIE/10! Delaware River dissolved O2 (*2)!

Philadelphia,*PA,*USA*

Figure courtesy of Dr. David Fisman, DLSPH

slide-11
SLIDE 11

Seasonally oscillating environmental exposures

0! 10! 20! 30! 40!

01/1994! 01/1996! 01/1998! 01/2000! 01/2002! 01/2004! 01/2006! 01/2008!

Date!

TMAX (C)! MAXCIE/10! Delaware River dissolved O2 (*2)!

Philadelphia,*PA,*USA*

Figure courtesy of Dr. David Fisman, DLSPH

slide-12
SLIDE 12

Seasonally oscillating environmental exposures

0! 10! 20! 30! 40!

01/1994! 01/1996! 01/1998! 01/2000! 01/2002! 01/2004! 01/2006! 01/2008!

Date!

TMAX (C)! MAXCIE/10! Delaware River dissolved O2 (*2)!

Philadelphia,*PA,*USA*

Figure courtesy of Dr. David Fisman, DLSPH

slide-13
SLIDE 13

Seasonally oscillating environmental exposures

0! 10! 20! 30! 40!

01/1994! 01/1996! 01/1998! 01/2000! 01/2002! 01/2004! 01/2006! 01/2008!

Date!

TMAX (C)! MAXCIE/10! Delaware River dissolved O2 (*2)!

Philadelphia,*PA,*USA*

Figure courtesy of Dr. David Fisman, DLSPH

slide-14
SLIDE 14

Seasonally oscillating environmental exposures

0! 10! 20! 30! 40!

01/1994! 01/1996! 01/1998! 01/2000! 01/2002! 01/2004! 01/2006! 01/2008!

Date!

TMAX (C)! MAXCIE/10! Delaware River dissolved O2 (*2)!

Philadelphia,*PA,*USA*

Figure courtesy of Dr. David Fisman, DLSPH

Need methods that account for predicted seasonal relationships between environmental conditions and incidence of seasonal infectious diseases

slide-15
SLIDE 15

A methodological caveat

  • Establishing causal links between environmental factors

and disease occurrence is difficult when the disease is seasonal.

  • Relationships may be confounded with underlying

factors.

  • Strong correlation is necessary but not necessarily

sufficient.

  • Aggregation of exposures may lead to “ecological fallacy”
slide-16
SLIDE 16

Is it really the season?

R²#=#0.93894# 0# 10# 0# 2# 4# 6# 8# 10# 12#

Cases#per#week#

Figure courtesy of L. Kinlin & A. White

slide-17
SLIDE 17

Is it really the season?

R²#=#0.93894# 0# 10# 0# 2# 4# 6# 8# 10# 12#

Cases#per#week#

Figure courtesy of L. Kinlin & A. White

slide-18
SLIDE 18

Is it really the season?

R²#=#0.93894# 0# 10# 0# 2# 4# 6# 8# 10# 12#

Cases#per#week#

Figure courtesy of L. Kinlin & A. White

slide-19
SLIDE 19

Is it really the season?

R²#=#0.93894# 0# 10# 0# 2# 4# 6# 8# 10# 12#

Cases#per#week#

Figure courtesy of L. Kinlin & A. White

slide-20
SLIDE 20

Is it really the season?

R²#=#0.93894# 0# 10# 0# 2# 4# 6# 8# 10# 12#

Cases#per#week#

Figure courtesy of L. Kinlin & A. White

slide-21
SLIDE 21

Environment and disease

What environmental factors are associated with an increased occurrence of disease? Hypothesis Environmental factors that increase pathogen survival, persistence, or proliferation in the environment will be related temporally and spatially to human and/or animal

  • utbreaks or case occurrence.
slide-22
SLIDE 22

Poisson regression

Environmental Exposure Seasonal smoothers

sin(2π/52) cos(2π/52)

Poisson Regression Analysis

Expected cases

Figure courtesy of L. Kinlin & A. White

slide-23
SLIDE 23

Case-crossover analysis

  • Evaluate acute associations between environmental

exposures and cases

  • 2:1 matched design
  • Random directionality of control selection

M Tu W Th F Sa Su M Tu W Th F Sa Su M Tu Th F Sa Su W

case%onset % hazard% period% control% period% control% period%

Figure courtesy of L. Kinlin & A. White Fisman et al. 2005 Greer et al. 2009

slide-24
SLIDE 24

Figure courtesy of L. Kinlin & A. White

slide-25
SLIDE 25

Environmental forcing in dynamic models

Eisenberg et al. 2013 Tuite et al. 2011 Tien and Earn, 2010

Susceptible

Infected Recovered

βISI

slide-26
SLIDE 26

Environmental forcing in dynamic models

Eisenberg et al. 2013 Tuite et al. 2011 Tien and Earn, 2010

Water

βWSW

Susceptible

Infected Recovered

βISI

slide-27
SLIDE 27

Environmental forcing in dynamic models

Eisenberg et al. 2013 Tuite et al. 2011 Tien and Earn, 2010

Water

βWSW

  • 1. Statistical models to look at

relationships between pathogen and rainfall

  • 2. Dynamic models “forced” by the

rainfall time series

Susceptible

Infected Recovered

βISI

slide-28
SLIDE 28

Environmental forcing in dynamic models

Eisenberg et al. 2013 Tuite et al. 2011 Tien and Earn, 2010

Rainfall Water

βWSW

  • 1. Statistical models to look at

relationships between pathogen and rainfall

  • 2. Dynamic models “forced” by the

rainfall time series

Susceptible

Infected Recovered

βISI

slide-29
SLIDE 29

Environmental forcing in dynamic models

Eisenberg et al. 2013 Tuite et al. 2011 Tien and Earn, 2010

Rainfall Water

βWSW

e.g. Flooding leading to raw sewage contamination

  • f water sources

e.g. Low water levels leading to increased usage

  • f existing water sources.
  • 1. Statistical models to look at

relationships between pathogen and rainfall

  • 2. Dynamic models “forced” by the

rainfall time series

Susceptible

Infected Recovered

βISI

slide-30
SLIDE 30

Using a “Cholera” model to think about leafy greens

Water

βW

Uncolonized plants Colonized plants

slide-31
SLIDE 31

Water

βW

Uncolonized plants Colonized plants Rainfall temperature, UV, humidity etc. spray vs. flood irrigation environmental conditions, plant lifecycle

slide-32
SLIDE 32

Manure

βM

Uncolonized plants Colonized plants temperature, UV, humidity etc. mechanism of application environmental conditions, plant lifecycle

slide-33
SLIDE 33

Pre-harvest interventions for animal products

  • 1. management practices to

decrease animal exposure to pathogens in the farm environment

  • 2. reducing contacts between

different species

  • 3. prevent contamination of

feed and water sources

  • 4. surveillance for “super-

shedders”

  • 5. vaccination
slide-34
SLIDE 34

Farm environment

βE

Uncolonized cattle (S) Colonized cattle (I) temperature, UV, humidity etc.

βCI

slide-35
SLIDE 35

Farm environment

βE

Uncolonized cattle (S) Colonized cattle (I) temperature, UV, humidity etc.

βCI

Super-shedding cattle (IS)

slide-36
SLIDE 36

Vaccinated cattle (V) Farm environment

βE

Uncolonized cattle (S) Colonized cattle (I) temperature, UV, humidity etc.

βCI

Super-shedding cattle (IS) surveillance prevent contamination

  • f feed and water or
  • ther environmental

reservoirs

slide-37
SLIDE 37

Health economic challenges for One Health

  • Is the intervention good value for money?
  • Societal and governmental perspectives consider all direct and

indirect costs regardless of to whom the costs are accrued. An example There are no direct economic implications for farmers with VTEC colonized cattle. Farmers pay out of pocket for vaccine (economic loss for farmers) Healthcare system benefits as a result of farmers out of pocket expenses with no benefit being seen by the farmers.

slide-38
SLIDE 38

Conclusions

  • Mathematical models provide

us with a unique framework within which to examine the complex biological dynamics at the human-animal- environment interface.

Colon et al. 2008
