A Multi-Stage Optimization Model for Flexibility in Engineering Design Ramin Giahi, Cameron A. MacKenzie, Chao Hu Iowa State University Industrial and Manufacturing Systems Engineering 1 Engineering System Design Power generation 25 de

slide-1
SLIDE 1

Industrial and Manufacturing Systems Engineering

1

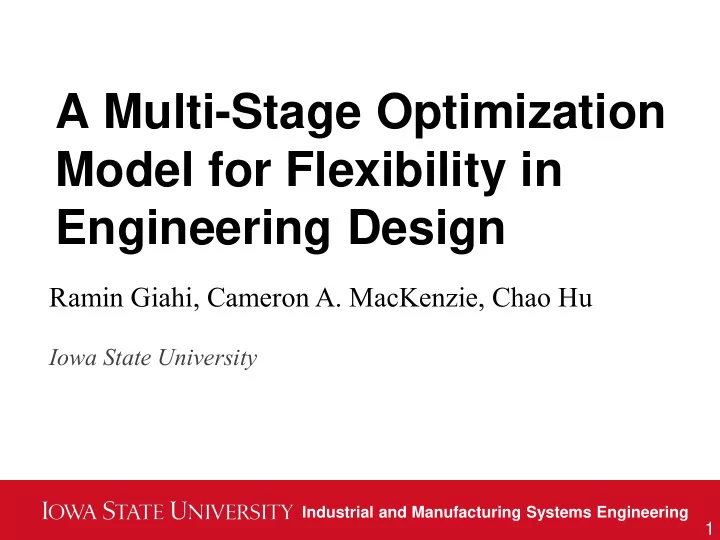

A Multi-Stage Optimization Model for Flexibility in Engineering Design

Ramin Giahi, Cameron A. MacKenzie, Chao Hu

Iowa State University

slide-2
SLIDE 2

Industrial and Manufacturing Systems Engineering

Engineering System Design

2

Power generation 25 de Abril bridge

slide-3
SLIDE 3

Industrial and Manufacturing Systems Engineering

3

  • Flexibility in engineering system design:
  • Flexibility in system design and implications for aerospace

systems (Saleh et.al 2003)

  • A flexible and robust approach for preliminary engineering

design based on designer's preference (Nahm et.al, 2007)

  • A real options approach to hybrid electric vehicle

architecture design for flexibility (Kang et.al 2016)

Previous Works

slide-4
SLIDE 4

Industrial and Manufacturing Systems Engineering

4

  • Challenges with flexible design:
  • Operation of engineered systems for long time
  • Evaluation of the objective function with the use of

computationally expensive simulation

  • Our contribution:

Optimize the design when the objective function must be evaluated via simulation considering long range uncertainty and flexibility in design

Our Research Contribution To The Engineering Design

slide-5
SLIDE 5

Industrial and Manufacturing Systems Engineering

Research Framework

Real world application Identify key and long- range uncertainty (forecast and simulate future condition) Optimization with long- range uncertainty Simulation Optimization Black box simulation optimization Optimal design with flexibility Optimal design without flexibility 5

slide-6
SLIDE 6

Industrial and Manufacturing Systems Engineering

Application: Hybrid Renewable Energy System

6

slide-7
SLIDE 7

Industrial and Manufacturing Systems Engineering

Sharafi, Masoud, and Tarek Y. ELMekkawy. "Multi-objective optimal design of hybrid renewable energy systems using PSO-simulation based approach." Renewable Energy 68 (2014): 67-79.

Hybrid Renewable Energy Systems

Solar panel Wind turbine Demand Battery Hydrogen Tank Electrolyzer Fuel cell Energy to load Excess energy to battery Energy to load Excess energy to Electrolyzer Hydrogen Energy to load Hydrogen Energy to load

7

slide-8
SLIDE 8

Industrial and Manufacturing Systems Engineering

8

Application: Hybrid Renewable Energy System

  • Design of hybrid renewable energy system
  • Hybrid renewable system includes: PV panels, wind

turbine, battery storage, electrolyzer, and fuel cell

  • Design variables: capacity of the components of the

system

  • Identify the optimal capacity of each component to

minimize the expected discounted cost

slide-9
SLIDE 9

Industrial and Manufacturing Systems Engineering

Research Framework

Real world application Identify key and long- range uncertainty (forecast and simulate future condition) Optimization with long- range uncertainty Simulation Optimization Black box simulation optimization Optimal design with flexibility Optimal design without flexibility 9

slide-10
SLIDE 10

Industrial and Manufacturing Systems Engineering

Simulation of Energy Demand for California, 2017-2036

10

Historical demand Forecasted demand

slide-11
SLIDE 11

Industrial and Manufacturing Systems Engineering

Research Framework

Real world application Identify key and long- range uncertainty (forecast and simulate future condition) Optimization with long- range uncertainty Simulation Optimization Black box simulation optimization Optimal design with flexibility Optimal design without flexibility 11

slide-12
SLIDE 12

Industrial and Manufacturing Systems Engineering

12

Mathematical Model

  • Goal: Find the optimal design of hybrid

renewable energy system

  • Minimize expected discounted costs
  • Investment
  • Replacement
  • Maintenance
  • Decision variables: Capacity of solar, wind,

battery, fuel cells, electrolyzer, and hydrogen tank

slide-13
SLIDE 13

Industrial and Manufacturing Systems Engineering

Randomly select decision variables

Simulation Optimization

Monte Carlo simulation Cost

13

Cost Update decision variables Cost

New decision variables Monte Carlo simulation

Cost

slide-14
SLIDE 14

Industrial and Manufacturing Systems Engineering

Research Framework

Real world application Identify key and long- range uncertainty (forecast and simulate future condition) Optimization with long- range uncertainty Simulation Optimization Black box simulation optimization Optimal design with flexibility Optimal design without flexibility 14

slide-15
SLIDE 15

Industrial and Manufacturing Systems Engineering

Optimal Solution

15

Components Capacity (Giga Watt) Percentage (%) Solar panel 392 78 Wind turbine 146 Battery 89 17 Electrolyzer 104

  • Hydrogen tank

322

  • Fuel cell

138 4 Diesel

  • 1

Expected cost $ 40.66 trillion

slide-16
SLIDE 16

Industrial and Manufacturing Systems Engineering

Demand Fulfillment Analysis: 1 Scenario

16 16

slide-17
SLIDE 17

Industrial and Manufacturing Systems Engineering

Parallel Coordinate Plot for Hybrid Renewable Design

17

slide-18
SLIDE 18

Industrial and Manufacturing Systems Engineering

Research Framework

Real world application Identify key and long- range uncertainty (forecast and simulate future condition) Optimization with long- range uncertainty Simulation Optimization Black box simulation optimization Optimal design with flexibility Optimal design without flexibility 18

slide-19
SLIDE 19

Industrial and Manufacturing Systems Engineering

19

Design Optimization with Flexibility

Case 1: One time design modification at 2027

2017 2037 2027

Optimize design

  • ver 2017-2027

High demand Medium demand Low demand

Optimize additional capacity for low demand profile Optimize additional capacity for medium demand profile Optimize additional capacity for high demand profile

slide-20
SLIDE 20

Industrial and Manufacturing Systems Engineering

20

Design Optimization with Flexibility

  • Case 2: Two times design modifications at 2027

and 2032

  • Stage 1: Optimize design for 2017-2027
  • Stage 2: Optimize additional capacity for

2027-2032, given the optimal initial design

  • Stage 3: Optimize additional capacity for

2032-2037, given the optimal initial design and each optimal expansion amounts of stage 2

  • Find the expected cost of design (initial design

cost + average expansion cost at stage 2 + average expansion cost at stage 3)

slide-21
SLIDE 21

Industrial and Manufacturing Systems Engineering

21

Expected Cost of Design with and without Flexibility

slide-22
SLIDE 22

Industrial and Manufacturing Systems Engineering

22

Conclusions

  • Design under long-range uncertainty
  • Hybrid renewable energy system
  • Monte Carlo simulation of uncertainties (e.g.,

demand)

  • Optimize design with and without flexibility
  • Compare the design without flexibility with design

with flexibility

  • Funding through the NSF-funded Center for e-design

rgiahi@iastate.edu

slide-23
SLIDE 23

Industrial and Manufacturing Systems Engineering

23

Reference

  • Saleh, Joseph H., Daniel E. Hastings, and Dava J. Newman. "Flexibility in system

design and implications for aerospace systems." Acta astronautica 53.12 (2003): 927-944.

  • Nahm, Yoon-Eui, Haruo Ishikawa, and Young-Soon Yang. "A flexible and robust

approach for preliminary engineering design based on designer's preference." Concurrent Engineering 15.1 (2007): 53-62.

  • Kang, Namwoo, Alparslan Emrah Bayrak, and Panos Y. Papalambros. "A Real

Options Approach to Hybrid Electric Vehicle Architecture Design for Flexibility." ASME 2016 International Design Engineering Technical Conferences and Computers and Information in Engineering Conference. American Society of Mechanical Engineers, 2016.

  • Sharafi, Masoud, and Tarek Y. ELMekkawy. "Multi-objective optimal design of

hybrid renewable energy systems using PSO-simulation based approach." Renewable Energy 68 (2014): 67-79.
