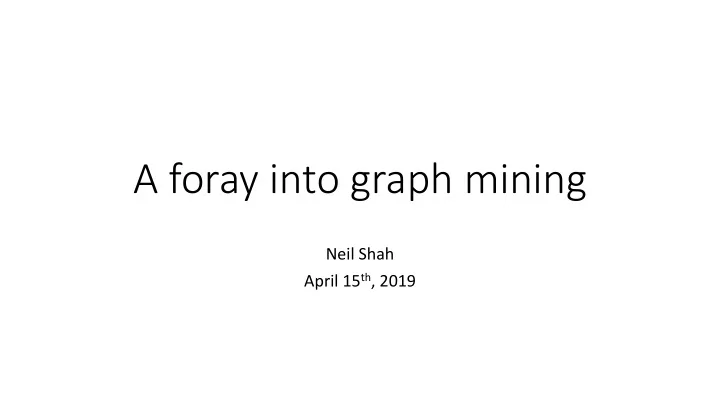

A foray into graph mining Neil Shah April 15 th , 2019 (Graph) data - - PowerPoint PPT Presentation

A foray into graph mining

Neil Shah April 15th, 2019

(Graph) data is prevalent

• 2.5 exabytes of data produced every day
• 90% generated in the last 2 years
• Data is produced as the product of a highly interconnected world

1.3 billion users 1 billion daily mobile views 244 million users 480 million products 187 million daily actives 3.5 billion daily snaps

(Graph) data shapes perspectives

M

• v

i e r e c

• m

m e n d a t i

• n

S e a r c h e n g i n e r a n k i n g P r

• d

u c t p u r c h a s i n g S

• c

i a l p l a t f

• r

m i n t e r a c t i

• n

What’s in a graph?

• Graphs consist of nodes, edges and attributes
• ex: Facebook social network where
• nodes = individuals
• edges = friendship
• attributes = gender (node), # of messages exchanged (edge)
• Graphs can easily model relationships between entities
• Who-follows-whom on a social network
• Who-buys-what on an e-commerce platform
• Who-calls-whom using a certain cellular provider

Roadmap

• Preliminaries
• Notable graph properties
• Cool applications
• Recommendation and ranking
• Clustering
• Anomaly detection
• Takeaways

Roadmap

• Preliminaries
• Notable graph properties
• Cool applications
• Recommendation and ranking
• Clustering
• Anomaly detection
• Takeaways

Graph preliminaries – directionality

u1 u2 u3 u4 u5 u6

Users-by-users

u7 u8 u9 u10 u11

u1 u2 u3 u4 u5 u6

Users-by-users

u7 u8 u9 u10 u11

Graph preliminaries – degree

• Degree: # of adjacent edges
• Degree(u7) = 2

u1 u2 u3 u4 u5 u6

Users-by-users

u7 u8 u9 u10 u11

Graph preliminaries – out- and in-degree

• Degree: # of adjacent edges
• Out-degree: # outgoing edges
• In-degree: # incoming edges
• Out-degree(u4) = 1
• In-degree(u6) = 2

u1 u2 u3 u4 u5 u6

Users-by-users

u7 u8 u9 u10 u11

Graph preliminaries – weighted degree

• Weighted degree: total sum of

adjacent edge weights

• i.e. “how many times did two users

communicate”

• Weighted-degree(u6) = 7

3 4 1 2 9 1 u1 u2 u3 u4 u5 u6

Users-by-users

u7 u8 u9 u10 u11

6

Graph preliminaries – ego(net)

• Ego: single, central node
• Ego network (egonet): nodes and

edges within one “hop” from ego

• Egonet(u7) =
• Nodes {u7, u3, u5}
• Edges {u7-u3, u7-u5}

u1 u2 u3 u4 u5 u6

Users-by-users

u7 u8 u9 u10 u11

Graph preliminaries – connectivity

• Two nodes are connected if there is a

path between them.

• A graph is fully connected if all node

pairs are connected.

• u1 and u8 are connected
• u3 and u5 are connected
• u1 and u9 are not connected
• This graph is not fully connected

u1 u2 u3 u4 u5 u6

Users-by-users

u7 u8 u9 u10 u11

Graph preliminaries – node and edge types

• A heterogeneous graph has multiple

node and/or edge types.

• Users and products
• Who-buys-what and who-rates-what

u1

u2 u3 u4 u5 u6

p1 p2 p3 p4 p5

Users Products Users-by-products

Graph preliminaries – matrix representation

• Graph connectivity can be summarized in an adjacency matrix.
• Ai,j = # (or weight) of edges from node i to j
• A usually very sparse (makes compact representations possible!)

u1 u2 u3 u4 u5 u6

Users-by-users

u7 u8 u9 u10 u11

1 1 1 1 1 1 1 1 1

Users Users

Roadmap

• Preliminaries
• Notable graph properties
• Cool applications
• Recommendation and ranking
• Clustering
• Anomaly detection
• Takeaways

Key question: What does a graph “look like”?

• At first look… large, unwieldy and

seemingly random.

• Spoiler: In actuality, most real-

world graphs are far from random.

Lyon ’03 Trace-route paths

• n the internet

A quick detour: “Random” graphs

• Erdos-Renyi random graph model: graph G(n,p)
• n = number of nodes
• p = probability of an edge between two nodes (independent edges)
• Expected # of edges:
• Degree distribution:

(binom.)

Babaoglu’ 18

What about real graphs?

• X-axis: degree, Y-axis: frequency/probability
• Degree distributions of real graphs are not “random”
• What exactly are they, then?

Log(# posts) vs. log(# users) log(# visitors) vs. log(# sites) log(# peers) vs. log(# routers)

Faloutsos ‘99 Viswanath ‘09 Adamic ‘02

The “scale-free” property

• Real-world graphs are often scale-free, meaning that their degree

distribution obeys a power-law:

• Scaling the input by a multiple simply results in

proportional scaling of the whole function

• Power laws are linear in log-log scales
• Typical 2 ≤ # ≤ 3

log(# visitors) vs. log(# sites)

Scale-freeness is evident in many domains

Newman ‘05

Why are many real graphs scale-free?

• Hypothesis: preferential attachment, or a “rich-get-richer” effect
• Generative process to construct a network:
• Start with !" nodes, each with at least 1 edge
• At each timestep, add a new node with ! edges

connecting it to ! already existing nodes

• Probability of new node to connect to node # depends on

the degree $% as

• Many real-world variants of this effect:

academic citations, recommendation, virality

log(# visitors) vs. log(# sites)

Real graphs have “small-world” effects

• How “far apart” are nodes in real graphs?
• Interestingly, not very far! The typical number is 6. You may have heard of

the “six degrees of separation”

• Milgram ‘69: avg. # of hops for a letter to travel from Nebraska to

Boston was 6.2 (sample size 64)

• Leskovec ‘08: avg. distance between node pairs on MSN messenger

has mode 6 (sample size 180M nodes and 1.3B edges)

What causes the small-world effect?

• Hypothesis: The abundance of hubs, or high-degree nodes
• Even though most nodes aren’t connected to most other nodes, they are

connected to hubs, which facilitate paths

log(# visitors) vs. log(# sites)

How do real graphs “grow” over time?

• Consider a time-evolving graph !
• If it has "($) nodes and &($) edges at time t…
• Suppose that "($ + 1) = 2"($)
• What is &($ + 1)?
• Not only is it > 2& $ ; the growth is actually superlinear and follows

& $ ∝ " $ . (power law!) with 1 ≤ 0 ≤ 2, generally

Real graphs exhibit densification

• Avg. out-degree increases over time

Power-law in # edges vs. # nodes (over time)

Moreover, the graph diameter shrinks

• Graph diameter = max(distance

between node pairs)

• Leskovec ‘05 shows that diameter

actually shrinks over time, instead

• f growing. In other words, nodes

tend to get closer

• Hypothesis: Once again due to

prevalence and growth of hubs

Much more work done on graph behaviors

• Generative graph models (Leskovec ‘05)
• Patterns in sizes of connected components (Kang ‘10)
• Node in-degree (popularity) over time (McGlohon ‘07)
• Duration of calls in phone-call networks (Vaz de Melo ‘10)
• Temporal structure evolution (Shah ‘15)

… the list goes on

Roadmap

• Preliminaries
• Notable graph properties
• Cool applications
• Recommendation and ranking
• Clustering
• Anomaly detection
• Takeaways

Key question: how can we leverage graphs for recommendation/ranking tasks?

• Measuring webpage importance
• Link prediction and recommendation
• Local methods
• Global methods

PageRank for large-scale search engines

• Key problem: how to prioritize/curate a large (ever-growing)

hyperlinked body of pages by importance and relevance?

• Key idea: leverage the hyperlink citation graph (page-links-page) to

rank page importance according to connectivity patterns

• 150 million web pages à 1.7 billion links

Backlinks and Forward links:

ØA and B are C’s backlinks ØC is A and B’s forward link

Content adapted from Li ‘09

Simplified PageRank

• !: a web page
• "!: the set of u’s backlinks
• #$: the number of forward links of page v
• %: the normalization factor to make & a

probability distribution

• Simplified PageRank is the stationary probability dist. of a random-

walk on the graph; a surfer keeps clicking successive pages at random.

Idea: each page equally distributes its own PageRank to its forward-links recursively. “An important page has many important pages pointing to it”

Simplified PageRank

PageRank Calculation: first iteration

Adjacency matrix transposed and column-normalized (accounts for equal neighbor distribution) Yahoo Amzn MS Initial PageRank scores Read as “Amazon gives ½ of its own PageRank to Yahoo and Microsoft each”

Simplified PageRank

PageRank Calculation: second iteration

Adjacency matrix transposed and column-normalized (accounts for equal neighbor distribution) Yahoo Amzn MS Initial PageRank scores Read as “Amazon gives ½ of its own PageRank to Yahoo and Microsoft each”

Simplified PageRank

Adjacency matrix transposed and column-normalized (accounts for equal neighbor distribution) Yahoo Amzn MS Initial PageRank scores

Convergence after some iterations

Read as “Amazon gives ½ of its own PageRank to Yahoo and Microsoft each”

Problem with Simplified PageRank

A loop:

During each iteration, the loop accumulates rank but never distributes rank to other pages!

The problem in practice

Adjacency matrix transposed and column-normalized (accounts for equal neighbor distribution) Yahoo Amzn MS Initial PageRank scores Read as “Microsoft gives all of its PageRank to Microsoft”

The problem in practice

Adjacency matrix transposed and column-normalized (accounts for equal neighbor distribution) Yahoo Amzn MS Initial PageRank scores Read as “Microsoft gives all of its PageRank to Microsoft”

The problem in practice

Adjacency matrix transposed and column-normalized (accounts for equal neighbor distribution) Yahoo Amzn MS Initial PageRank scores Read as “Microsoft gives all of its PageRank to Microsoft” All roads lead to Microsoft

A modified solution: (true) PageRank

• This subtle modification solves the problem of “sinks”
• PageRanks converge to the dominant eigenvector of the appropriately

configured/normalized adjacency matrix, due to Markov chain theory! Cool!

• Modified PageRank is the same as the simple model, with the exception of

the surfer having a random jump probability.

!(#): a distribution of ranks of web pages that the surfer can jump to when he/she “gets bored” after clicking on successive links.

A modified solution: PageRank

Adjacency matrix transposed and column-normalized (accounts for equal neighbor distribution) Yahoo Amzn MS Initial PageRank scores 20% random jump probability

PageRank converges quickly and produces empirically good results

• PR (322 Million Links): 52 iterations
• PR (161 Million Links): 45 iterations
• Scaling factor is roughly linear in logn

Key question: how can we leverage graphs for recommendation/ranking tasks?

• Measuring webpage importance
• Link prediction and recommendation
• Local methods
• Global methods

Exploiting local structure for predicting links

• Key problem: given what we know about interactions in a graph G,

what nodes should we recommend a user u to promote engagement?

• Key idea: measure affiliation between u and other nodes by u’s graph

neighborhood!

Rich literature in previous measures

Liben-Nowell ‘04

Users-by-users

Key question: how can we leverage graphs for recommendation/ranking tasks?

• Measuring webpage importance
• Link prediction and recommendation
• Local methods
• Global methods

Exploiting global structure for predicting links

• Key problem: given what we know about interactions in a graph G,

what nodes should we recommend a user u to promote engagement?

• Key idea: measure affiliation between u and other nodes via a latent

factor model/embedding that compactly encodes “interests”

Singular value decomposition

• Used for low-rank matrix approximation
• Rank k SVD reduces matrix A into k latent factors/dense

blocks/communities

• U and V capture “involvement” of nodes
• ! denotes factor “strength”

A " ! #$

%×' %×( (×( (×'

)*)+ ),

~

x x ()*≥ )+ ≥ … ),)

Singular value decomposition

• Used for low-rank matrix approximation
• Rank k SVD reduces matrix A into k latent factors/dense

blocks/communities

• U and V capture “involvement” of nodes
• ! denotes factor “strength”

n users m videos

~

“music lovers” “artist spotlights” “adrenaline junkies” “action movies” “dabbling cooks” “baking shows”

"# "$ "% &$ &# &%

+ + …

'# '$ '%

Recommendation from latent factors

• SVD effectively constructs vector embeddings in a k-dimensional space

which “summarize” user/item affinities towards latent factors

• Compute vector similarity between user-user or user-item vectors

(depending on application)

• Cosine similarity/dot product are common choices

Koren ‘09

Recommendation from latent factors

• SVD effectively constructs vector embeddings in a k-dimensional

space which “summarize” user/item affinities towards latent factors

• Compute vector similarity between user-user or user-item vectors

(depending on application)

• Cosine similarity/dot product are common choices

Koren ‘09

Roadmap

• Preliminaries
• Notable graph properties
• Cool applications
• Recommendation and prediction
• Clustering
• Anomaly detection
• Takeaways

Graph clustering for knowledge extraction

• Key problem: what can we learn about group dynamics from graph

interactions? Are there natural “clusters” of behaviors?

• Key idea: tightly-knit graph interactions form graph clusters, which

can indicate community behaviors. These are useful for

• Behavioral understanding
• Computational load balancing
• Graph compression
• Visualization

advertiser query

Finding graph clusters

• Given a graph G, we want to find clusters
• Need to:
• Formalize the notion of a cluster
• Need to design an algorithm that will find sets of nodes that are good clusters

Content adapted from Leskovec ‘10

Clustering objective functions

• Essentially all objectives use the intuition that a good cluster S has
• Many edges internally
• Few edges pointing outside
• Simplest objective function:
• Conductance
• Small conductance corresponds to good clusters
• There are many other formalizations of roughly this intuition
• Graph objectives are generally hard to optimize directly. Greedy/approximate

algorithms are common

Clustering objective functions

• Single-criterion (considers either internal or external)
• Modularity: m-E(m)
• Modularity Ratio: m-E(m)
• Volume: åu d(u)=2m+c
• Edges cut: c
• Multi-criterion (considers both)
• Conductance: c/(2m+c)
• Expansion: c/n
• Density: 1-m/n2
• CutRatio: c/n(N-n)
• Normalized Cut: c/(2m+c) + c/2(M-m)+c
• Max ODF: max frac. of edges of a node pointing outside S
• Average-ODF: avg. frac. of edges of a node pointing outside
• Flake-ODF: frac. of nodes with mode than ½ edges inside

S

n: nodes in S m: edges in S c: edges pointing

• utside S

Multiple types of clustering algorithms

• Global spectral
• Compute graph Laplacian matrix L = D – A
• Find 2nd smallest eigenvector of L
• Split by sign to get a partitioning of nodes (related

to graph “cut”)

• Recurse to get more clusters
• Local spectral
• Pick random seed node
• Build local clusters around seed nodes based on random walk/PageRank
• Prune cluster from graph and repeat

Flow-based algorithms

• METIS: multi-level graph partitioning
• If it’s too expensive to partition a big graph… coarsen it into a smaller graph
• If it’s still to big, keep coarsening
• Compute a partition and

uncoarsen the graph

• Improve heuristically
• Swap vertices
• Local search

Measuring clustering algorithm performance

• How to quantify performance:
• What is the score of clusters across a range of sizes?
• Network Community Profile (NCP) (Leskovec ‘08)
• The score of the best cluster of size k

NCPs for a real graph (LiveJournal)

• 500 node comms. from Local Spectral
• 500 node comms. from METIS

Interestingly, Local Spectral clusters are more compact and tighter, despite having higher (worse) conductance than METIS!

NCPs for various objectives (Local Spectral)

• Multiple objectives can be pretty

similar

• Conductance
• Expansion
• Normalized Cut
• Cut-ratio
• Avg-ODF
• Max-ODF prefers small clusters, Flake-

ODF prefers large clusters

• Internal density not very good (large

clusters are very sparse)

You should know…

• Many types of clustering objectives and algorithms -- can use NCP to

analyze them

• Not many “good” large clusters – real graphs are complicated!
• Different types bias for various aspects (cluster size, internal and

external connectivity)

• Overemphasis on clustering objectives can actually lead to “bad”

looking clusters according to human intuition

Roadmap

• Preliminaries
• Notable graph properties
• Cool applications
• Recommendation and prediction
• Clustering
• Anomaly detection
• Takeaways

Graph-based anomaly detection

• Key problem: what kinds of anomalous behaviors exist in real graphs,

and can we find such anomalies automatically?

• Key idea: we can identify various types of “anomalous” behaviors by

building null/normal models and penalizing excessive deviation

• Node-based anomalies
• Group anomalies (too large, too dense to be

a real community)

Anomalies in graphs: important applications

• Email networks
• Spammers
• Computer networks
• Hackers/port scanning
• Phone-call networks
• Telemarketers
• Social networks
• Fake engagement

Major goal

• How to go from a graph to a quantitative model/pattern?

Local, egonet-based anomaly detection

• What does a typical node look like?
• Can’t say much about just a node in isolation
• Let’s consider the egonets!
• For each node,
• extract egonet (=1-step-away neighbors)
• extract features (#edges, total weight, etc.)
• extract patterns (norms)
• compare with the rest of the population (detect anomalies)

Users-by-users

Content adapted from Akoglu ‘10

What is anomalous?

• Not obvious!

What is anomalous?

Near-star Near-clique

telemarketer, port scanner, people adding friends indiscriminatively, etc. tightly connected people, terrorist groups?, discussion group, etc.

Heavy vicinity

too much money wrt number

• f accounts, high donation

wrt number of donors, etc. single-minded, tight company

Dominant heavy link

Basic features to study

• Ni : number of neighbors (degree) of ego i
• Ei : number of edges in egonet I
• Wi : total weight of egonet I
• λw,I : 1st eigenvalue of the weighted adjacency matrix of egonet i

• Obs. 1: Egonet Density Power Law

Ei ∝ Ni

α

1 ≤ α ≤ 2

Differentiates “dense” from “sparse” neighborhoods

• Obs. 2: Egonet Weight Power Law

Wi ∝ Ei

β

β ≥ 1

Differentiates “heavy” from “light” neighborhoods

• Obs. 3: Egonet !"Weight Power Law

λw,i∝ Wi

γ

0.5 ≤ γ ≤ 1

Differentiates “uniform” distribution from “dominant” heavy edges

Scoring node anomalies

violates our “laws” far away from most points Anomaly ≈

scoredist = distance to fitting line scoreoutl = outlierness score score = func( scoredist , scoreoutl )

Triaging anomalies

ü can interpret the type of anomaly ü can sort nodes wrt their outlierness scores

Interesting results: Blog post-to-post graph

Part of a group of posts who all link to each other Post linking to many other posts indiscriminately

Interesting results: Committee-to-candidate donations graph

$87M - DNC $25M - RNC

Interesting results: Author-to-conference publishing graph

Has published 40 papers, but to the same conference (and nowhere else) Have published hundreds of papers, to almost as many conferences!

Group anomalies on graphs

Bob’s Carol’s Alice’s

Alice

Content adapted from Shin ‘16

Fraud forms dense blocks

Restaurants Accounts Restaurants Accounts Adjacency Matrix

Tensor modeling for attributed graphs

• Natural dense blocks

are sparse on the time axis (formed gradually)

• Suspicious dense

blocks are also dense

• n the time axis (due to

synchronous behavior)

• Suspicious dense

blocks are denser than natural dense blocks in the tensor model Restaurants Timestamp Sparse Dense Accounts

A cell indicates that account i rates restaurant j at time t

Adjacency Tensor

Applications

• Dense bocks signal anomalies/fraud in many multi-attribute graphs

Src IP Dst IP T i m e s t a m p Src User Dst User T i m e s t a m p User Page T i m e s t a m p

TCP Dumps Wikipedia Revision History Time-evolving Social Network

How to find dense blocks in such tensors?

• Exact solutions are combinatorial and intractable
• Greedy solutions and heuristics are practical (i.e. greedily optimize a

“suspiciousness” metric)

• What metric?

Assume a block (subtensor) ! in a 3- way tensor "

• #$%&((): *+ + *- + *.
• /01 ( = 345678((): *+×*-×*.
• :;<<((): sum of entries in (

= *+ *- *. (

Some notable choices:

Traditional Density: ρ? (, = = ABCC ( /Vol(B) (maximized by single entry with max. value) Arithmetic Avg. Degree: ρI (, = = ABCC ( /Size(B) Geometric Avg. Degree: ρN (, = = ABCC ( /

O Vol B

Detecting a single dense block

• Greedy search method
• Starts from the entire tensor

5 3 0 4 6 1 2 0 0

1 0 1

! = 2.9

Detecting a single dense block

• Remove a slice to maximize density !

5 3 0 4 6 1 2 0 0

" = 3

Detecting a single dense block

5 3 4 6 2 0

! =3.3

• Remove a slice to maximize density #

Detecting a single dense block

5 3 4 6 2 0

! = 3.6

• Remove a slice to maximize density &

Detecting a single dense block

• Output: return the densest block so far

5 3 4 6 2 0

! = 3.6

Handling multiple blocks

• Remove found blocks before finding others

Find & Remove Find & Remove Find & Remove Restore

Algorithm details

• Theorem 1 [Remove Minimum Mass First]

Among slices in the same mode, removing the slice with minimum mass is always best

12 > 9 > 2

• Theorem 2 [Approximation Guarantee]

!" #, % ≥ ' ( !" #∗, %

Density metric Input Tensor Order Densest Block

Practical discoveries

TCP connections forming the densest blocks are network attacks First three blocks found Src IP Dst IP T i m e s t a m p

Practical discoveries

First three blocks found by M-Zoom Page edit wars : 11 users revised 10 pages, 2,305 times within 16 hours User Page T i m e s t a m p

Takeaways

• Graphs provide a means of describing interactions between objects
• Almost all real graphs are “non-random” and obey various patterns
• Considerable literature in graph mining focuses on learning to

leverage large-scale interaction patterns to

• Recommend users new content based on what they might like
• Identify interesting group behaviors and community norms
• Discover abnormalities that correspond to fraud or “audit-worthy” events
