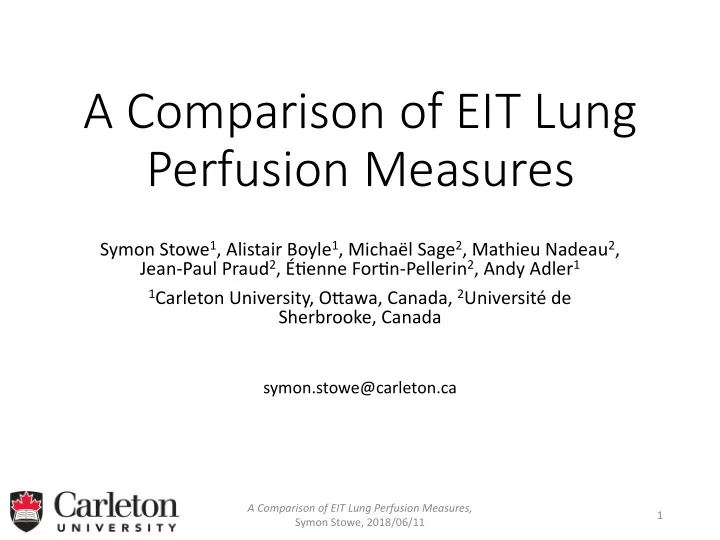

A Comparison of EIT Lung Perfusion Measures

Symon Stowe1, Alistair Boyle1, Michaël Sage2, Mathieu Nadeau2, Jean-Paul Praud2, É@enne For@n-Pellerin2, Andy Adler1

1Carleton University, OFawa, Canada, 2Université de

Sherbrooke, Canada

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 1

symon.stowe@carleton.ca

slide-2
SLIDE 2

Why Monitor Lung Perfusion?

  • Pulmonary embolisms are notoriously challenging

to diagnose and monitor

  • Mainly diagnosed using CT pulmonary angiography
  • Associated with radia:on exposure and invasive

administra:on of a contrast agent

  • Clinical need to improve diagnosis and monitoring
  • Safe and low-cost method with few false posi:ves

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 2

slide-3
SLIDE 3

Perfusion/Ven,la,on Monitoring

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 3

Perfusion/Ven,la,on match Perfusion/Ven,la,on mismatch

Sample sketches represent ven;la;on and perfusion in a human thorax

slide-4
SLIDE 4

Ventilation

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 4

Perfusion

  • Validated and reasonably well

understood

  • Less understood and validated
slide-5
SLIDE 5

Perfusion Monitoring Techniques

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 5

slide-6
SLIDE 6

Contrast agent measures of perfusion

  • Requires apnoea
  • Non-con0nuous
  • Invasive
  • Can be performed a

limited number of 0mes

  • Provides a series of

blood flow images

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 6

slide-7
SLIDE 7

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 7

slide-8
SLIDE 8

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 8

slide-9
SLIDE 9

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 9

slide-10
SLIDE 10

Experimental Protocol

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 10

slide-11
SLIDE 11

Experimental Protocol

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 11

slide-12
SLIDE 12

Pulsa&lity Analysis

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 12

slide-13
SLIDE 13

Frequency filtering technique

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 13

slide-14
SLIDE 14

Shortcomings of Pulsa2lity

  • Heart rate is unstable over

time

  • Many pixels throughout the

image are out of phase

  • Events at the heart rate

frequency are not limited to perfusion

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 14

slide-15
SLIDE 15

Conclusion

  • Many challenges accurately es/ma/ng perfusion

from pulsa/lity

  • Preliminary analysis shows correla/on between the

three methods of perfusion measures

  • Comparing both center of mass and overall shape

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 15

slide-16
SLIDE 16

A Comparison of EIT Lung Perfusion Measures

Symon Stowe1, Alistair Boyle1, Michaël Sage2, Mathieu Nadeau2, Jean-Paul Praud2, É@enne For@n-Pellerin2, Andy Adler1

1Carleton University, OFawa, Canada, 2Université de

Sherbrooke, Canada

A Comparison of EIT Lung Perfusion Measures, Symon Stowe, 2018/06/11 16
