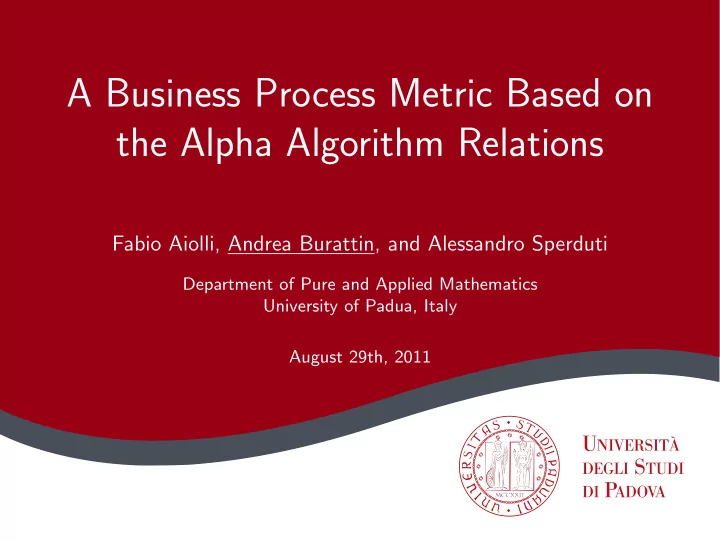

A Business Process Metric Based on the Alpha Algorithm Relations

Fabio Aiolli, Andrea Burattin, and Alessandro Sperduti

Department of Pure and Applied Mathematics University of Padua, Italy August 29th, 2011

Introduction

Typical situation Process mining algorithms and tools are designed to deal with real-world data Real-world data contain noise and can be incomplete Problem statement Many mining techniques try to solve the problem of noise with

• parameters. These are thresholds on specific values of the

algorithm and are used to discriminate noisy behavior Process mining users are not necessarily technicians so they are not required to have deep knowledge of algorithms

Process mining algorithms are implemented in tools Non expert users don’t understand algorithms and that’s why they can have difficulties in using tools

2 of 22

Process mining for non expert users

Possible solutions to help non expert users with process mining techniques and tools

1 Simplify the algorithms (no parameters required) 2 Build a system that can choose the algorithm and its

configuration

3 Don’t ask any parameters to the user, but let him

interactively choose the solution that he considers the best

3 of 22

Process mining for non expert users

Possible solutions to help non expert users with process mining techniques and tools

1 Simplify the algorithms (no parameters required) 2 Build a system that can choose the algorithm and its

configuration

3 Don’t ask any parameters to the user, but let him

interactively choose the solution that he considers the best Observations Solution 1: extremely hard (flexibility/abstraction impossible) Solution 2: hard, we tried with the application of the MDL principle (Burattin and Sperduti, IEEE WCCI 2010) Solution 3: the final aim of this work

3 of 22

Our proposed solution

Approach to allow non expert users to benefit from process mining techniques (we consider Heuristics Miner++)

1 Discretization of the space of the values for the parameters 2 Generation of all the possible models (cartesian product of the

values of the parameters)

3 Clusterize the models in a “hierarchy” that can be explored 4 Let the user navigate through the hierarchy to find the model

that fits the requirements / describes the reality

4 of 22

Our proposed solution

Approach to allow non expert users to benefit from process mining techniques (we consider Heuristics Miner++)

1 Discretization of the space of the values for the parameters 2 Generation of all the possible models (cartesian product of the

values of the parameters)

3 Clusterize the models in a “hierarchy” that can be explored 4 Let the user navigate through the hierarchy to find the model

that fits the requirements / describes the reality

4 of 22

New problems

In order to perform clustering it is necessary to compare business processes models Problems Which perspectives are relevant for the comparison? Is it possible to define a metric that measures the given perspectives?

5 of 22

Comparison of process models

Our metric is designed to work on results of control-flow discovery algorithms We are interested in considering two perspectives for our metric A “trace equivalence” point of view The structure of the model (which workflow templates are involved) In the literature, many metrics have been proposed (e.g. van der Aalst et al. BPM 2006, Ehrig et al. APCCM 2007, Bae et al. JWSR 2007, van Dongen et al. AISE 2008, Dijkman BPM 2008, Wang et al. OTM 2010, Zha et al. Comp. in Ind. 2010, Weidlich et al., TSE 2011, . . . )

6 of 22

Trace equivalence point of view

Example process with infinite firing sequence

A B C D

7 of 22

Trace equivalence point of view

Example process with infinite firing sequence

A B C D

The TAR metric (Zha et al., Comp. in Ind. 2010) aims at solving the problem of comparing two processes in terms of their firing sequence

7 of 22

How the TAR metric works

TAR (Transition Adjacency Relations) is a kind of “local firing sequence” that presents all couples of activities that can occur in sequence (one directly after the other)

A B C D

8 of 22

How the TAR metric works

TAR (Transition Adjacency Relations) is a kind of “local firing sequence” that presents all couples of activities that can occur in sequence (one directly after the other)

A B C D

TAR set: {AB, AC, BB, BC, BD, CB, CC, CD}

8 of 22

How the TAR metric works II

Once the TAR sets for the two process have been generated, they are compared Comparison using the Jaccard similarity / distance J(A, B) = |A ∩ B| |A ∪ B| Jδ(A, B) = 1−J(A, B) = |A ∪ B| − |A ∩ B| |A ∪ B| Processes similarity coincide with the similarity of the corresponding TAR sets

9 of 22

A problem with the TAR metric

A problem with the TAR metric

It does not consider differences in the “structure” of the models

10 of 22

A problem with the TAR metric

A problem with the TAR metric

It does not consider differences in the “structure” of the models

Example

Two different processes (in terms of workflow patterns) with the same TAR sets

10 of 22

A problem with the TAR metric

A problem with the TAR metric

It does not consider differences in the “structure” of the models

Example

Two different processes (in terms of workflow patterns) with the same TAR sets . . . but for process miners these two processes are different!

10 of 22

Our approach for the comparison

Same approach as TAR metric

1 Conversion of processes into new representations 2 Comparison of processes in terms of their new representations

But different representation for processes

1 Conversion of a process into “derived relations” (workflow

pattern instances)

2 Conversion of derived relations into “primitive relations” 11 of 22

Our approach for the comparison

Same approach as TAR metric

1 Conversion of processes into new representations 2 Comparison of processes in terms of their new representations

But different representation for processes

1 Conversion of a process into “derived relations” (workflow

pattern instances)

2 Conversion of derived relations into “primitive relations”

Comparison in terms of primitive relations sets

11 of 22

Our approach for the comparison II

Target representations based on relations of Alpha algorithm

12 of 22

Our approach for the comparison II

Target representations based on relations of Alpha algorithm

Process model P1 Derived relations Primitive relations Traces Process model P2 Derived relations Primitive relations Traces Actual comparison

Filled lines: Alpha algorithm Dotted lines: our approach

12 of 22

Proposed relations

Primitive relations A > B A ≯ B Same conditions as in Alpha algorithm, but considering all possible traces (not only an observed log)

13 of 22

Proposed relations

Primitive relations A > B A ≯ B Same conditions as in Alpha algorithm, but considering all possible traces (not only an observed log) Derived relations A → B . . . . . . . . . . . . . . . . . . . . . . . generates A > B and A ≯ B A#B . . . . . . . . . . . . . . . . . . . . . . . . . generates A ≯ B and A ≯ B AB . . . . . . . . . . . . . . . . . . . . . . . . . . generates A > B and A > B

13 of 22

The proposed metric

Steps of the proposed metric

1 Generation of derived relations for two processes P1 and P2 2 Conversion of the derived relations into two sets of primitive

relations (R+ for > and R− for ≯)

3 Comparison of the processes in terms of their new

representation: P1 = (R+, R−) and P2 = (R+, R−)

14 of 22

The proposed metric

Steps of the proposed metric

1 Generation of derived relations for two processes P1 and P2 2 Conversion of the derived relations into two sets of primitive

relations (R+ for > and R− for ≯)

3 Comparison of the processes in terms of their new

representation: P1 = (R+, R−) and P2 = (R+, R−) We use Jaccard similarity / distance (as TAR)

14 of 22

The proposed metric

Steps of the proposed metric

1 Generation of derived relations for two processes P1 and P2 2 Conversion of the derived relations into two sets of primitive

relations (R+ for > and R− for ≯)

3 Comparison of the processes in terms of their new

representation: P1 = (R+, R−) and P2 = (R+, R−) We use Jaccard similarity / distance (as TAR) The final metric proposed in this work d(P1, P2) = αJδ (R+(P1), R+(P2)) + (1 − α)Jδ (R−(P1), R−(P2)) With α as a weighting factor to balance the importance of the two primitive relations

14 of 22

Comparison of metrics

Given these processes Their distances measures TAR: 0 Proposed metric: α = 1: 0; α = 0.5: 0.165; α = 0: 0.33

We have proven that, under typical process mining conditions, our metric recognizes processes that are structurally different

15 of 22

Parameters configuration

Recap of our possible approach

1 Discretization of the space of the values for the parameters 2 Generation of all the possible models (cartesian product of the

values of the parameters)

3 Clusterize the models in a “hierarchy” that can be explored 4 Let the user navigate through the hierarchy to find the model

that fits the requirements / describes the reality

16 of 22

Clustering process models

Given A set of process models A metric for processes We can perform clustering, for example hierarchical agglomerative clustering with average linkage s(c1, c2) = 1 |c1||c2|

• pi∈c1
• pj∈c2

d(pi, pj)

17 of 22

Clustering example

Clusters of 350 process models generated starting from a log (with Heuristics Miner++)

18 of 22

Exploration of the hierarchy

It is possible to extract a representative for each cluster, for example considering the medoid (i.e. a process whose average dissimilarity to all the elements in the same cluster is minimal) A dendrogram is a binary tree that can be “explored” from the root to a leaf The exploration of the dendrogram is performed considering the representatives of the two children of the current node and deciding to move to one or to the other Important: each representative of each cluster is always an element

• f the dataset (i.e. a “leaf” of the dendrogram)

19 of 22

Implementation on the PLG

Clustering and explorative procedure implemented in the PLG (Processes Logs Generator) tool

A tool for the generation of random processes Freely available at http://www.processmining.it

It is possible to clusterize the generated models Prototype for a ProM plugin is planned

20 of 22

Exploration example

Exploration prototype

21 of 22

Conclusions and future work

Conclusions The paper presents a new metric for the comparison of business process models The new metric is based on local firing sequences but takes into account also the “structure” of the model With the given metric it is possible to do hierarchical clustering on business process models Future work Improve the metric (for example considering multisets) Implement the procedure in ProM Work on the usability of the interface to allow non expert users to interact with the system
