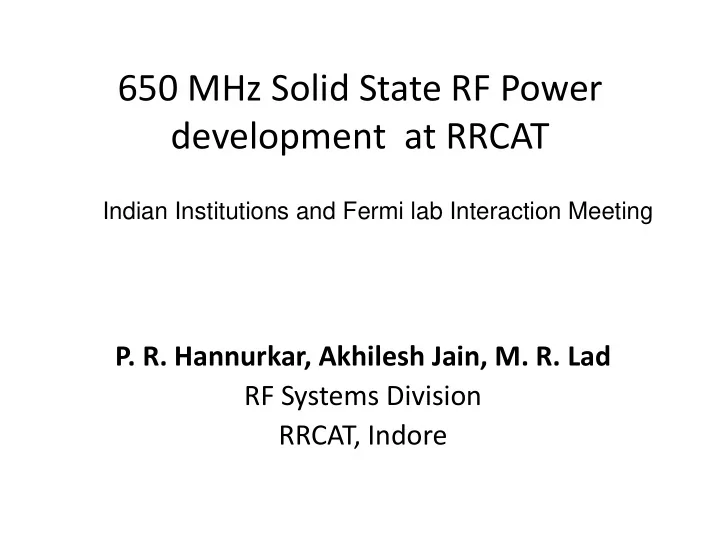

650 MHz Solid State RF Power development at RRCAT

  • P. R. Hannurkar, Akhilesh Jain, M. R. Lad

RF Systems Division RRCAT, Indore

Indian Institutions and Fermi lab Interaction Meeting

slide-2
SLIDE 2

2

slide-3
SLIDE 3

Work Mandate

Serial No. Item Name (650 MHz RF Power) Quantity Target date Remark 1

250 W amplifier module

1 Dec 2011

  • Achieved. Design

improvement was done for getting enhanced power. Fabricated and tested up to 550 W. 2

1 kW amplifier

1 Dec 2012 Prototype testing complete. 3

30 kW amplifier

1 Dec 2014 Will be delivered within proposed date.

slide-4
SLIDE 4

Progress Made

Design, engineering prototyping and RF testing; completed for the following components

  • 550 W solid state amplifier module (earlier 450 W)
  • Wide-Band Directional Couplers
  • 2-way 8 kW and 18 kW Power combiners
  • 16-way 4 kW Power combiner
  • Coaxial Transitions
slide-5
SLIDE 5

550 W module at 650 MHz

  • At 650 MHz, Design studies and simulation have been

carried out using push-pull LDMOS device, operating at bias voltage of 50 V .

  • Using multi-mode class F operating mode, a new

amplifier module was designed and tested in stages, up to 550 W. Earlier developed module was up to 450 W. 550 W solid state amplifier module

slide-6
SLIDE 6

550 W module: Measured Result

Saturated power = 600 W Gain at 550 W: 17 dB Input VSWR: 1.1 P1dB: 500W

slide-7
SLIDE 7

1 kW amplifier demonstration

Saturated power = 1100 W

slide-8
SLIDE 8

650 MHz, passive RF Components Developed at RRCAT

Wide-Band Directional Couplers 2-way 8 kW and 18kW Power combiners Output port: 3-1/8” EIA Coaxial Transitions 3-1/8” EIA to 1-5/8” EIA 1-5/8” EIA to N Type 1 kW 4 kW 20 kW 16-way 4 kW Power combiner Output Port: 1-5/8” EIA

slide-9
SLIDE 9

Work plan - 2012

  • Design and RF circuit simulation of power amplifier

module with efficiency > 60%. - Complete

  • Compact design of power dividers (complete) and

combiners

  • Improved directivity design for directional coupler
  • Design and testing of 1 kW amplifier- successful

prototype testing

  • Study of amplitude and phase synchronization scheme
  • Development of control and HMI hardware/software-

First set of software ready

slide-10
SLIDE 10
