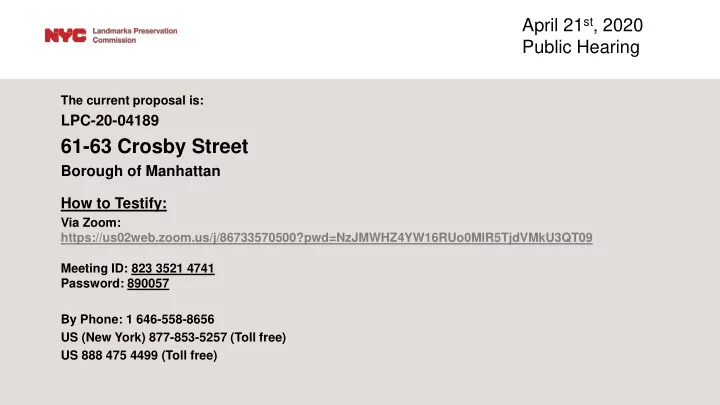

April 21 st , 2020 Name of Landmark Building Type of Presentation Month xx, year Public Hearing The current proposal is: LPC-20-04189 61-63 Crosby Street Borough of Manhattan How to Testify: Via Zoom:

SLIDE 1

Name of Landmark Building Type of Presentation Month xx, year

April 21st, 2020 Public Hearing

The current proposal is:

LPC-20-04189

61-63 Crosby Street

Borough of Manhattan How to Testify:

Via Zoom: https://us02web.zoom.us/j/86733570500?pwd=NzJMWHZ4YW16RUo0MlR5TjdVMkU3QT09 Meeting ID: 823 3521 4741 Password: 890057 By Phone: 1 646-558-8656 US (New York) 877-853-5257 (Toll free) US 888 475 4499 (Toll free)

SLIDE 2

DAVID GRIDER ARCHITECT www.davidgrider.com

Cover Sheet

Permit Application 02/06/20

LPC00

LPC-20-04189 61-63 Crosby Street

LPC00 Cover Sheet 02/06/20 LPC01 Zoning & District Map 02/06/20 LPC02 Context Photos 02/06/20 LPC03 Facade prior to Restoration 02/06/20 LPC04 Facade Restoration 02/06/20 LPC05 Facade Before and After 02/06/20 LPC06 Photo Comparison to 1940s 02/06/20 LPC07 New Window Cornices 02/06/20 LPC08 Window Cornice Vignettes 02/06/20 Grand total: 9

Permit Application LPC-20-04189 61-63 Crosby Street

LPC Application for the recreation of historic moulded window cornices

SLIDE 3

Excerpt from Zoning Map 12c Zoning District M1-5B ZR 43-12 Max FAR = 5.0

61 Crosby St

Contributing Structure SoHo-Cast Iron Historic District Extension

61 Crosby St

DAVID GRIDER ARCHITECT www.davidgrider.com

Zoning & District Map

Permit Application 02/06/20

LPC01

LPC-20-04189 61-63 Crosby Street

SLIDE 4

Fig 1: Looking north along Crosby Street (2016) 61-63 Crosby 61-63 Crosby Fig 2: Looking south along Crosby Street (2016)

Note: All drawings, dimensions and quantities are based on limited field measurement; they do not represent all existing conditions and are for planning purposes only.

DAVID GRIDER ARCHITECT www.davidgrider.com

Context Photos

Permit Application 02/06/20

LPC02

LPC-20-04189 61-63 Crosby Street

SLIDE 5

Fig 1: Facade prior to start of restoration work; layers of coatings conceal damage Fig 2: Deterioration and delamination of coatings (typ.) Fig 3: Poor condition of windows and surrounds (typ.) Fig 4: Overall poor condition of masonry and windows DAVID GRIDER ARCHITECT www.davidgrider.com

Facade prior to Restoration

Permit Application 02/06/20

LPC03

LPC-20-04189 61-63 Crosby Street

SLIDE 6

Fig 1: Poor conditions revealed after stripping layers of coatings Fig 2: Removal of cracked lintels for replacement with new units Fig 3: New custom colored cast stone units installed (shown prior to coating of facade) Fig 4: Facade repaired and ready for final color coating DAVID GRIDER ARCHITECT www.davidgrider.com

Facade Restoration

Permit Application 02/06/20

LPC04

LPC-20-04189 61-63 Crosby Street

SLIDE 7

Fig 1: Prior to Restoration Fig 2: Restoration Complete DAVID GRIDER ARCHITECT www.davidgrider.com

Facade Before and After

Permit Application 02/06/20

LPC05

LPC-20-04189 61-63 Crosby Street

SLIDE 8

Fig 1: Photo of Facade from 2019 Fig 2: Photo of Facade from 1940s Note historic molded window cornices evident in this photo, removed sometime prior to 1980s. To date this is the only documentation found of these cornices. DAVID GRIDER ARCHITECT www.davidgrider.com

Photo Comparison to 1940s

Permit Application 02/06/20

LPC06

LPC-20-04189 61-63 Crosby Street

SLIDE 9

DAVID GRIDER ARCHITECT www.davidgrider.com

New Window Cornices

Permit Application 02/06/20

LPC07

LPC-20-04189 61-63 Crosby Street

SLIDE 10

DAVID GRIDER ARCHITECT www.davidgrider.com

Window Cornice Vignettes

Permit Application 02/06/20

LPC08

LPC-20-04189 61-63 Crosby Street

Fig 1: Facade prior to addition of Window Cornice Moldings Fig 2: Facade after addition of Window Cornice Moldings

SLIDE 11
