5G-Crosshaul Project overview and Demo Activity Carla Fabiana Chiasserini Politecnico di Torino Project Goals 5G$Crosshaul- aims- at- developing- an- adap7ve,- sharable, - cost$-efficient-5G-transport-network-solu7on- integra(ng )

slide-1
SLIDE 1

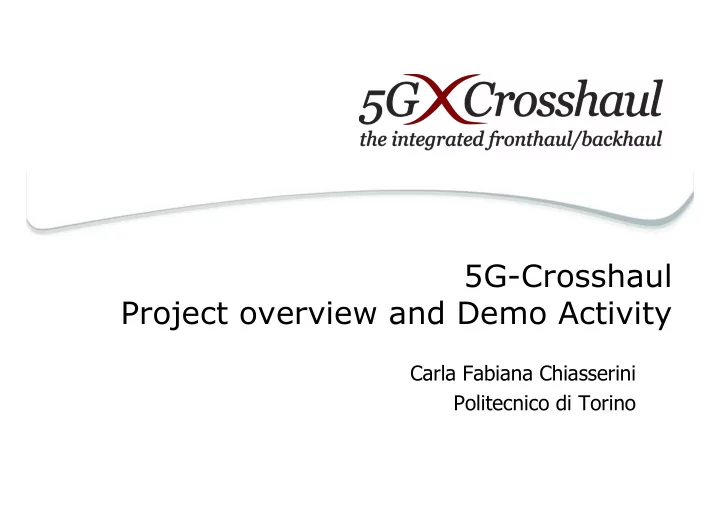

5G-Crosshaul Project overview and Demo Activity

Carla Fabiana Chiasserini Politecnico di Torino

slide-2
SLIDE 2

Project Goals

  • 5G$Crosshaul- aims- at- developing- an- adap7ve,- sharable,
  • cost$-efficient-5G-transport-network-solu7on-integra(ng

) the)fronthaul)and)backhaul)segments-of-the-network.--

  • This-

transport- network- will- flexibly- interconnect

  • distributed-5G-radio-access-and-core-network-func7ons,
  • hosted- on- in$network- cloud- nodes,- through- the
  • implementa7on-of-three)novel)building)blocks))

2

slide-3
SLIDE 3

Crosshaul Building Blocks

  • 5G7Crosshaul) Forwarding) Element,) XFE) (XPFE+XCSE):) a- unified
  • data- plane- encompassing- innova7ve- high$capacity- transmission
  • technologies-and-novel-determinis7c$latency-switch-architectures.--
  • 5G7Crosshaul) Processor) Unit,) XPU:) a- unified- IT- domain- including
  • flexible-computa7onal-units.--
  • 5G7Crosshaul) Control) Infrastructure,) XCI:) a- control- infrastructure
  • using- a- unified,- abstract- network- model- for- control- plane
  • integra7on.-

3

slide-4
SLIDE 4

Integrated control of XFEs and XPU resources

4

applications Control interface (XCI) Transport & computing infrastructure

slide-5
SLIDE 5

5G-Crosshaul Architecture

24

slide-6
SLIDE 6

WP1 WP3 WP4 WP2 WP5 WP5 WP5

5G-Crosshaul Architecture

24

slide-7
SLIDE 7

Ongoing demo activity

WP3 WP1 WP4 WP2 WP5 WP5 WP5

Energy management

  • f the 5G-Crosshaul

24

slide-8
SLIDE 8

Ongoing demo activity

WP3 WP1 WP4 WP2 WP5 WP5 WP5 24

Media distribution Exploiting the services

  • f the 5G-Crosshaul
slide-9
SLIDE 9

Ongoing demo activity

WP3 WP1 WP4 WP2 WP5 WP5 WP5 24

Hierarchical multi-domain resource management

  • f the 5G-Crosshaul
slide-10
SLIDE 10

Ongoing demo activity

WP3 WP1 WP4 WP2 WP5 WP5 WP5 24

5G-Crosshaul fulfilment of RAN split requirements

slide-11
SLIDE 11

Where are 5G-Crosshaul demos?

12

slide-12
SLIDE 12

Where are 5G-Crosshaul demos?

13

slide-13
SLIDE 13

Where are 5G-Crosshaul demos?

14

slide-14
SLIDE 14

Where are 5G-Crosshaul demos?

15

slide-15
SLIDE 15

Energy management demo

WP3 WP1 WP4 WP2 WP5 WP5 WP5

Energy management

  • f the 5G-Crosshaul

24

slide-16
SLIDE 16

Energy management demo

17

slide-17
SLIDE 17

WP3 WP1 WP4 WP2 WP5 WP5 WP5

RAN split requirements fulfillment demo

5G-Crosshaul fulfilment of RAN split requirements

24

WP5

slide-18
SLIDE 18

19

RAN split requirements fulfillment demo

slide-19
SLIDE 19

5G -T

Project overview

1"

5G -Transformer: 5G Mobile T Transport Platform for Verticals

slide-20
SLIDE 20

5G -T

In a nutshell

  • PM: Univ. Carlos III of Madrid
  • TM: NEC Europe
  • Ericsson TI
  • ATOS
  • NOKIA
  • Interdigital Europe
  • Telefonica
  • Orange
  • Centro Richerche Fiat
  • Ayuntamiento de Madrid
  • BCOM
  • Nextworks
  • Mirantis
  • CTTC
  • Politecnico di Torino
  • EURECOM
  • SSSA
  • ITRI
  • 5G-Transformer: 5G Mobile Transport Platform for Verticals
  • EC Contribution: 7.985.582 €
  • Duration: 30 Months
  • Effort: 996 PMs
  • Starting date: 01/06/2017
  • 18 partners:

2"

slide-21
SLIDE 21

5G -T

Motivation

  • From rigid interconnection to SDN/NFV-based

5G Mobile Transport and Computing Platform (MTP)

  • Technical approach:
  • Enable Vertical Industries to meet their service

requirements within customised MTP slices; and

  • Aggregate and Federate transport networking and

computing fabric, from the edge up to the core and cloud, to create and manage MTP slices throughout a federated virtualized infrastructure

3"

slide-22
SLIDE 22

5G -T

Verticals

4"

Automo+ve" Healthcare" Media" M(V)NO"

slide-23
SLIDE 23

5G -T

Main building blocks

  • Vertical Slicer
  • logical entry point for verticals to support the

creation of their transport slices in a short time- scale

  • Service Orchestrator
  • federation of transport networking and computing

resources from multiple domains and allocation to slices

  • Mobile Transport and Computing Platform
  • underlying unified transport stratum for integrated

fronthaul and backhaul networks

5"

slide-24
SLIDE 24

5G -T

5G-Transformer Concept

6"

slide-25
SLIDE 25

5G -T

WP structure

  • WP1: System Requirements, Vertical Scenarios and Economic Analysis (Orange)
  • WP2: Mobile Transport and Computing Platform for Verticals (TEI)
  • WP3: Vertical Slicer (NOK-N)
  • WP4: Service-Aware Orchestration and Federation for Verticals (NEC)
  • WP5: Validation and Proof of Concept (ATOS)
  • WP6: Communication, Dissemination and Exploitation (CTTC)
  • WP7: Project Management (UC3M)

7" WP7:"Project"Management" WP6:"Communica+on,"Dissemina+on,"and" Exploita+on"

slide-26
SLIDE 26

5G -T

Thank you!
