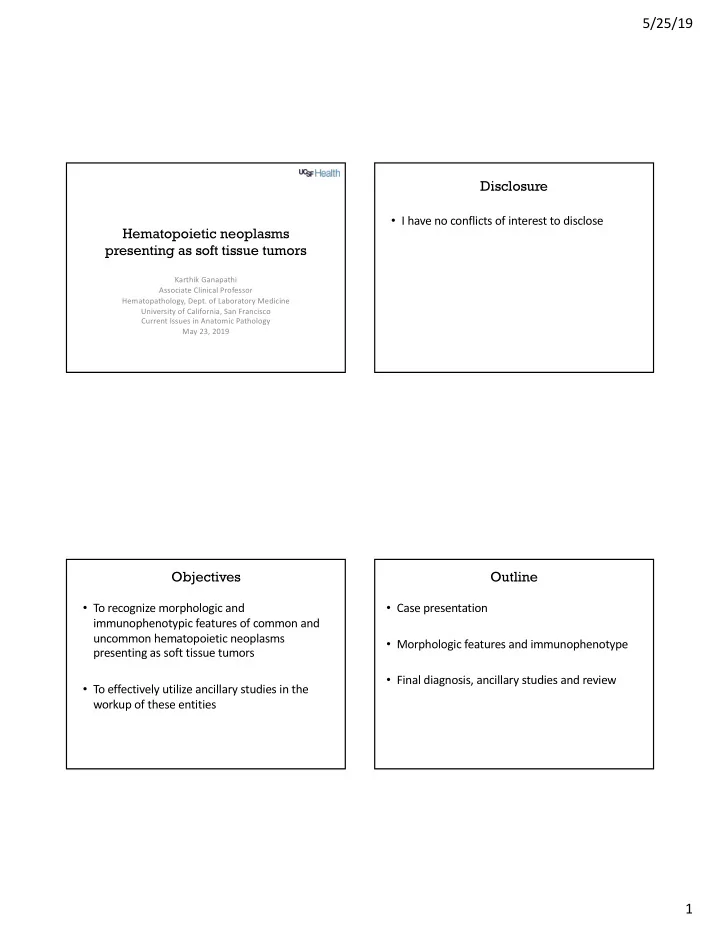

5/25/19 1

Hematopoietic neoplasms presenting as soft tissue tumors

Karthik Ganapathi Associate Clinical Professor Hematopathology, Dept. of Laboratory Medicine University of California, San Francisco Current Issues in Anatomic Pathology May 23, 2019

Disclosure

  • I have no conflicts of interest to disclose

Objectives

  • To recognize morphologic and

immunophenotypic features of common and uncommon hematopoietic neoplasms presenting as soft tissue tumors

  • To effectively utilize ancillary studies in the

workup of these entities

Outline

  • Case presentation
  • Morphologic features and immunophenotype
  • Final diagnosis, ancillary studies and review
slide-2
SLIDE 2

5/25/19 2

Case 1

  • 53-year old man with a PMH of CAD presented

with abdominal pain and weight loss

  • Imaging showed a 5 x 4 x 4 cm retroperitoneal

mass

  • A biopsy was performed

CD45 CD20 CD3 EMA CD30 ALK1 CD43 CD2

slide-3
SLIDE 3

5/25/19 3

Case 1 - Diagnosis

Anaplastic large cell lymphoma, ALK-negative

Anaplastic large cell lymphoma (ALCL)

  • CD30-positive mature T-cell lymphoma with anaplastic morphology
  • 2017 WHO Heme classification

– ALCL, ALK-positive (ALCL, ALK+); + for ALK rearrangement – ALCL, ALK-negative (ALCL, ALK-) – Breast implant-associated ALCL (BI-ALCL) - for ALK rearrangement – Primary cutaneous ALCL (C-ALCL)

  • Significant clinicopathologic differences between ALCL subtypes;

hence subclassification is important

  • Accurate diagnosis - immunohistochemistry and FISH studies

ALCL, ALK-

  • Disease predominantly of older adults (40-65 yrs.)
  • Nodal or extranodal (soft tissue, bone) presentation
  • Advanced stage with B-symptoms
  • Histology

– Sheets of cohesive large, anaplastic cells with pleomorphic nuclei – Hallmark cells (indented nuclei with cytoplasmic pseudoinclusions), doughnut cells, multi-nucleated tumor cells frequent – Foci resembling undifferentiated carcinoma or sarcoma seen in a subset of cases – Most cases are more pleomorphic than ALCL, ALK+

ALCL, ALK-

  • Immunophenotype

– CD30 - strong and diffuse (> 80% of tumor cells, membranous and Golgi pattern) – variable CD30 staining on a subset of cells NOT ACCEPTABLE - a more accepted diagnosis in this situation is peripheral T-cell lymphoma, not

  • therwise specified (PTCL, NOS) with CD30 expression

– ALK1 is NEGATIVE by definition – Loss of one or more pan T-cell markers (CD3, CD2, CD5, CD7) seen in a subset of cases – Usually positive for CD2, CD4, TIA-1, Granzyme B, Perforin – Negative for CD8, CD15, CD56, EBV

  • Null cell phenotype

– Loss of all pan T-cell antigens and CD45 - not as common as in ALCL, ALK+ but has been reported – CD43 almost always positive (indicates hematopoietic origin) – T-cell receptor gene rearrangement studies can confirm T-cell origin

slide-4
SLIDE 4

5/25/19 4

ALCL

PTCL, NOS with CD30 expression

CD30 CD30

Genetics of ALCL, ALK-

  • Genetically heterogenous with different clinical outcomes
  • Rearrangements of DUSP22 (6p25.3) seen in ~ 30%
  • Rearrangements of TP63 secondary to

inv(3)(q26q28)(TBL1XR1/TP63) seen in ~ 10%

  • DUSP22-rearranged ALCL have a good prognosis, comparable to

ALCL, ALK+

  • TP63-rearranged ALCL have dismal prognosis
  • ALCL cases lacking ALK, DUSP22 and TP63 rearrangements,

referred to as triple-negative ALCL

  • DUSP22 but not TP63 rearrangements described in C-ALCL
  • To date all BI-ALCL cases are triple negative

Outcomes in ALCL

Parrilla Castellar ER, Jaffe ES, et al. Blood. 2014 Aug 28;124(9):1473-80.

Diagnostic algorithm in ALCL

ALCL diagnosis based on morphology and immunophenotype

ALK1 IHC FISH for ALK rearrangement (optional) Negative Positive FISH for DUSP22 and TP63 rearrangements Dx: ALCL, ALK+ Dx: ALCL, ALK- P63 IHC Negative Positive FISH for DUSP22 rearrangement

slide-5
SLIDE 5

5/25/19 5

Case 2

  • 65-year old woman with PMH significant for

hypertension presented with lower extremity weakness

  • Imaging studies showed a T11 paraspinal mass
  • A biopsy was performed

Pan CK HMB45 S100 CD1a

Other negative immunostains GFAP, CK7, CK20, CD20, CD3, CD30, ALK-1, CD34, CD21, CD35, BRAF, MPO

CD68 CD163 CD45 CD4

slide-6
SLIDE 6

5/25/19 6

Case 2 - Diagnosis

Histiocytic sarcoma

Histiocytic sarcoma (HS)

  • Aggressive neoplasms derived from mature

histiocytes/macrophages

  • No age predilection but more often in adults
  • Predominantly extranodal (soft tissue, GI, brain)
  • Neoplastic cells are large, pleomorphic with abundant

eosinophilic cytoplasm (finely vacuolated)

  • Features of activated macrophages (hemophagocytosis) can

be present

  • Mitotic figures (incl. atypical forms) and necrosis often seen

Diagnostic workup of HS

  • A diagnosis of HS requires

– Absence of specific epithelial, mesenchymal, melanocytic, lymphoid markers – Presence of monocytic/macrophage markers – Absence of primitive/immature hematopoietic markers

  • Differential diagnosis

– Non-hematopoietic neoplasms (high-grade carcinoma, pleomorphic sarcoma, melanoma) – Lymphoma (diffuse large B-cell, anaplastic large cell) – Myeloid sarcoma – Other histiocytic/dendritic neoplasms

  • Expression of at least 2 histiocytic markers is preferred
  • no official minimal requirement

HS - Immunophenotype

  • Positive

– CD45 (variable), CD68 (KP1 and PGM1), CD163 (most specific), CD4, CD14, PU.1 (nuclear), Lysozyme – S100 (weak expression in a subset of cases)

  • Negative

– CD20, CD3, CD30 (B-, T-cell lymphoma) – CD1a, Langerin (Langerhans cell sarcoma) – CD21, CD23, CD35, Clusterin (Follicular dendritic cell sarcoma) – CD34, CD117, CD13, MPO (Myeloid sarcoma)

slide-7
SLIDE 7

5/25/19 7

HS - Ancillary testing

  • FISH

– No specific recurrent cytogenetic aberrations (diagnostic or prognostic)

  • Molecular

– Recurrent mutations in RAS-MAPK pathway (MAP2K1, NRAS, KRAS, BRAF, PTPN11, NF1, CBL) identified in a subset

  • A subset of cases show clonal relationships with lymphoid

neoplasms

– Mostly B-cell lymphomas (Follicular lymphoma, CLL/SLL, Mantle cell lymphoma) – HS share molecular and cytogenetic aberrations with these lesions – Thought to represent transdifferentiation/ dedifferentiation – No prognostic significance

Case 3

  • 15-year old girl who was previously healthy

presented with jaw pain, swelling and fevers for 2 months

  • Imaging studies showed a lytic left mandibular

mass

  • A biopsy was performed

S100 CD56 Pan CK Desmin

slide-8
SLIDE 8

5/25/19 8

Other negative immunostains - Myogenin, Myo D1, PAX-5, CD3 Concurrent bone marrow flow cytometry - abnormal monocytic events positive for CD4, CD11c, CD13, CD56, CD64 and negative for CD14, CD34, CD117

MPO TdT CD45 CD4

Case 3 - Diagnosis

Myeloid sarcoma

Myeloid sarcoma (MS)

  • Tumor mass of myeloid blasts occurring outside the bone

marrow - any anatomical site

  • Architectural effacement a requirement - otherwise it is

leukemic infiltration of tissue (eg: leukemia cutis)

  • MS can occur in different clinical settings

– De novo (in the absence of an underlying myeloid neoplasm) – Associated with AML (before, during or after a dx of AML) – Blastic transformation of MDS, MPN and MDS/MPN

  • MS is treated like AML; studies have shown similar prognostic

findings as in AML

– complex karyotype denotes poor prognosis – MS arising in the background of other myeloid neoplasms associated with poor outcome

MS - Morphology

  • Cells - cohesive aggregates of intermediate to large mononuclear

cells - blastoid morphology may not be obvious

  • Differential diagnosis

– Non-hematopoietic neoplasms (high-grade carcinoma, pleomorphic sarcoma, melanoma) – Lymphoma (diffuse large B-cell) – Histiocytic sarcoma

  • The differentiation between myeloid sarcoma and histiocytic

sarcoma can be difficult

– MS - less pleomorphic, coarse/evenly distributed chromatin – HS - larger cells, more pleomorphic, vesicular nuclei

slide-9
SLIDE 9

5/25/19 9

MS - Immunophenotype

  • A significant subset of MS have myelomonocytic or

monocytic/monoblastic features

  • Positive

– Myeloid: CD34, CD117, CD33, Lysozyme, MPO (subset) – Monocytic/Monoblastic: CD14 (subset), CD68, CD163 – Erythroid: CD71, Glycophorin A/C, Hemoglobin – Megakaryoblastic: CD61, CD42b, vWF Ag

  • CD45 and MPO stains can be inconsistent but CD43 is almost

always positive

  • CD56 is positive in a subset of cases (incl. non-monocytic)
  • If clinical history available, flow cytometry can be useful

MS - Ancillary testing

  • FISH

– In non-decalcified specimens, AML FISH can identify recurrent cytogenetic aberrations that can help subclassify and guide therapy – t(8;21)(RUNX1/RUNX1T1) - can often present as MS

  • Molecular

– NPM1 mutations seem to be more prevalent in MS (especially cutaneous lesions) – FLT3 mutations have been described – Can be useful for prognosis and management

  • A diagnosis of MS should prompt a bone marrow biopsy

with appropriate workup

Case 4

  • 59-year old man with no significant PMH

presented with a left thigh mass

  • Palpation showed a poorly-circumscribed

subcutaneous mass with attached skin, 5 x 4 x 2 cm

  • A biopsy of the mass including representative
  • verlying normal-appearing skin was performed
slide-10
SLIDE 10

5/25/19 10

S100 S100

Case 4 - Diagnosis

Rosai-Dorfman disease (Rosai-Dorfman-Destombes disease)

Rosai-Dorfman Disease (RDD)

  • Rare subtype of non-Langerhans cell histiocytosis
  • Familial, immune-related and neoplasia-associated subtypes

recognized

  • Approximately 50% cases extranodal (any tissue can be

involved), but skin and subcutaneous tissue most common

  • Mutually exclusive mutations in KRAS and MAP2K1 identified

in ~ 1/3 rd of RDD patients - confirms clonal origin

  • Managed with surgery, radiation and corticosteroids
slide-11
SLIDE 11

5/25/19 11

RDD - Morphology

  • Pathognomonic cells - large histiocytes with abundant pale

cytoplasm, hypochromatic nucleus and prominent nucleolus

  • Background fibrosis and increased plasma cells always present
  • Soft tissue RDD - Touton-type giant cells and xanthomatous

histiocytes can be seen, raising the possibility of JXG

  • Emperipolesis - often identified but can be rare/patchy in

extranodal locations

– Not sensitive or specific for RDD (can be seen in other histiocytic proliferations like Erdheim Chester Disease, JXG and HS)

Immunophenotype and ancillary testing

  • Positive

– S100 (nuclear and cytoplasmic) – CD68, CD163

  • Negative

– CD1a, Langerin

  • IgG4-positive plasma cells are often increased in RDD; no evidence

that RDD and IgG4-related disease share pathogenesis

  • IgG4/IgG stains recommended in all RDD cases and ratio to be

reported

  • Currently, no diagnostic or prognostic FISH or molecular testing

required

Case 5

  • 45-year old man with no significant PMH

presented with non-specific back pain and shortness of breath

  • Imaging showed a left perinephric mass 4 x 3 x 3

cm

  • A biopsy was performed
slide-12
SLIDE 12

5/25/19 12

Cyclin D1 EBER-ISH CD20 CD10

Case 5 - Diagnosis

Diffuse large B-cell lymphoma, not otherwise specified (DLBCL, NOS) Diffuse large B-cell lymphoma (DLBCL)

  • Approximately 30% of all non-Hodgkin lymphomas
  • Nearly 40% of all cases are extranodal (at least initially)
  • Cutaneous DLBCL (if disease limited to skin) is a separate entity -

different prognosis and management

  • DLBCL, not otherwise specified (DLBCL, NOS) essentially a

diagnosis of exclusion rendered after ruling out specific subtypes

  • Morphologic subtypes (not prognostically relevant)

– Centroblastic - most common – Immunoblastic – Anaplastic (can resemble ALCL or metastatic carcinoma)

DLBCL - Immunophenotype

  • Mature B-cells, positive for CD19, CD22, CD20, CD79a, PAX-5,

OCT2

  • Cell of origin (COO) classification - not important for therapy

– Hans classification most widely used - CD10, BCL6 and MUM1 – Positive - expression by greater than 30% tumor cells

  • BCL2 and C-MYC expression - Double expressor (DE)

– BCL2 - > 50% of tumor cells – C-MYC - > 40% of tumor cells – Not all DE DLBCL are double hit lymphomas – Not all double hit lymphomas are DE

  • EBV expression in the majority of large cells - classified as EBV-positive

DLBCL

slide-13
SLIDE 13

5/25/19 13

DLBCL - Immunophenotype

  • A subset of DLBCL express CD5 - most of these are de novo and

not transformed CLL/SLL

– FISH for IGH-CCND1 to rule out pleomorphic variant of mantle cell lymphoma

  • A subset of DLBCL express CD30 - considered better prognosis

than CD30-negative DLBCL

  • Proliferation index - does not impact therapy

– High proliferation index - poor correlation with double expressor or double hit lymphoma – High proliferation index - not synonymous with high-grade B-cell lymphoma

Diagnostic algorithm in DLBCL

DLBCL based on morphology and immunophenotype

EBV

  • +

EBV-positive DLBCL, NOS CD10, BCL6, MUM1 BCL2 > 50%, C-MYC > 40% GCB vs Non-GCB DE vs Non DE DLBCL, NOS (no evidence of transformation from low- grade lymphoma FISH for C-MYC rearrangement +

  • DLBCL, NOS

FISH for BCL2 and BCL6 rearrangements +

  • High grade B-cell

lymphoma with MYC, BCL2 and/or BCL6 rearrangement (double/triple hit lymphoma) DLBCL, NOS

Case 6

  • 54-year old man with no significant PMH

presented with back pain

  • Imaging showed a left paravertebral mass 3 cm

in largest dimension

  • A biopsy was performed
slide-14
SLIDE 14

5/25/19 14

Kappa-ISH Lambda-ISH CD20 CD138

Case 6 - Diagnosis

Plasmacytoma

Plasmacytoma

  • Mass-forming tumor of clonal plasma cells
  • Osseous and extra-osseous subtypes - different

prognosis

  • Osseous plasmacytoma (OP)

– Clonal plasma cell population in bone (not marrow) – Most commonly seen in the vertebrae and ribs – Presence or absence of BM clonal plasma cells determines prognosis and risk of progression to plasma cell myeloma (PCM) – ~ 30% of patients with a plasmacytoma defined by skeletal survey have additional bone lesions on CT or MRI - these patients have plasma cell myeloma

Extraosseous Plasmacytoma (EOP)

  • Clonal plasma cell neoplasms occurring outside of bone
  • Most common in the upper aerodigestive tract but can occur

anywhere

  • Symptoms related to the tumor mass
  • Differential diagnosis - Marginal zone B-cell lymphoma (MALT

lymphoma) or lymphoplasmacytic lymphoma with marked plasmacytic differentiation

  • Very low rate of progression to PCM; 10-15%
slide-15
SLIDE 15

5/25/19 15

Immunophenotype and ancillary testing

  • Positive

– CD138, CD38, light chain restriction (requirement for diagnosis)

  • EOP less likely to show t(11;14), Cyclin D1 and CD56 expression

compared to OP

  • How do plasmacytomas differ from B-cell lymphomas with

plasmacytic differentiation? – Absence of light chain restricted B-cell component (Flow more sensitive than IHC) – Plasma cells more likely to show antigenic aberrancies (CD19-, CD56+, Cyclin D1+) in plasmacytomas – Sometimes, it can be very challenging - a diagnosis of plasmacytic neoplasm can be rendered

  • FISH

– PCM and small B-cell lymphoma FISH can be attempted on non- decalcified tissue

Case 7

  • 66-year old man with no significant past medical

history presented with a 3 cm left arm mass

  • A biopsy was performed

Langerin BRAF VE1 S100 CD1a

slide-16
SLIDE 16

5/25/19 16

Case 7 - Diagnosis

Langerhans cell sarcoma

Langerhans cell sarcoma (LCS)

  • Extremely rare aggressive disease of Langerhans cells
  • Predominantly a disease of adults; but pediatric cases noted
  • Predominantly extranodal with skin and bone involvement; often

multifocal

  • A subset of cases arises from prior lymphoid neoplasms, similar to

HS

  • Clinical features

– Aggressive disease with poor overall survival – No long-term effective therapy

LCS - Morphology

  • Cells - pleomorphic cells with round/oval nuclei, vesicular

chromatin and eosinophilic cytoplasm

  • Cells can show features of Langerhans cells (grooved nuclei)
  • Mitotic figures readily identified (> 50/10 HPF) but background

eosinophils are rare

  • Differential diagnosis

– Langerhans cell histiocytosis

  • Bland cytology
  • Rare mitotic figures

Immunophenotype and ancillary tests

  • Positive

– S100, CD1a, Langerin (CD207) - This combination is diagnostic – CD68, Vimentin - not required for diagnosis

  • Rare cases are positive for BRAF V600E mutation
  • Therapy

– Surgery - for unifocal disease – Adjuvant chemotherapy for widespread disease

slide-17
SLIDE 17

5/25/19 17

Case 8

  • 22-year old woman with no significant PMH

presented with back pain

  • Imaging showed a paravertebral soft tissue mass

adjacent to T3

  • A biopsy was performed

Courtesy of Kedar Inamdar MD, PhD, Henry Ford Health System

CD117 Tryptase CD43 CD68

Courtesy of Kedar Inamdar MD, PhD, Henry Ford Health System

Case 8 - Diagnosis

Mast cell sarcoma

slide-18
SLIDE 18

5/25/19 18

Mast cell sarcoma (MCS)

  • Extremely rare unifocal destructive lesion of pleomorphic mast

cells

  • Predominantly extranodal; bone is most common site
  • Can occur over a wide age-group; more common in adults
  • MCS can occur either

– De novo - > 90% of reported cases – Secondary to cutaneous mastocytosis - minority

  • Clinical features

– Aggressive disease with the majority progressing to mast cell leukemia – No long-term effective therapy

MCS - Morphology

  • Cells - cohesive aggregates of intermediate to large epithelioid

cells with abundant cytoplasm

  • Anaplastic and multinucleated cells often identified
  • Spindle-shaped mast cells, typical of systemic mastocytosis,

uncommon

  • Differential diagnosis

– Non-hematopoietic neoplasms (high-grade carcinoma, pleomorphic sarcoma, melanoma) – Lymphoma (diffuse large B-cell, anaplastic large cell) – Histiocytic sarcoma

Immunophenotype and ancillary tests

  • Positive

– Mast cell tryptase (100%) - absolute requirement for diagnosis – CD117 (~ 90%) and CD68 (100%) seen in the majority – Aberrant CD25 (~ 80%) more common than CD2 ( ~ 40%) – CD30 (~ 40%) not uncommon - potential to misdiagnose as ALCL based on CD30 and CD2 expression

  • KIT mutation status

– D816V mutation seen in a minority (~ 20%) of cases – Other KIT mutations seen in ~ 30% cases; – Wild-type KIT in ~ 50% cases

  • Surgery, radiotherapy, chemotherapy, TKI and brentuximab - case

dependent

Conclusions

  • Hematopoietic neoplasms can frequently present as soft tissue

neoplasms

  • Can be of myeloid, lymphoid or histiocytic lineage
  • Can be indolent or aggressive (appearance and behavior)
  • Can be missed on routine hematopoietic stains (CD45, CD20, CD3)
  • CD30, CD43, CD138, PAX-5, CD2/CD4 and one histiocytic marker

recommended in addition to CD45, CD20, CD3

  • Please consult with your friendly neighborhood hematopathologist
slide-19
SLIDE 19

5/25/19 19

Thank you!

karthik.ganapathi@ucsf.edu https://clinlab.ucsf.edu/hematopathology-services UCSF Laboratory Medicine - Hematopathology University of California, San Francisco 505 Parnassus Ave., M569 San Francisco, CA 94143-0451 Phone: (415) 353-1672 Fax: (415) 353-1106
