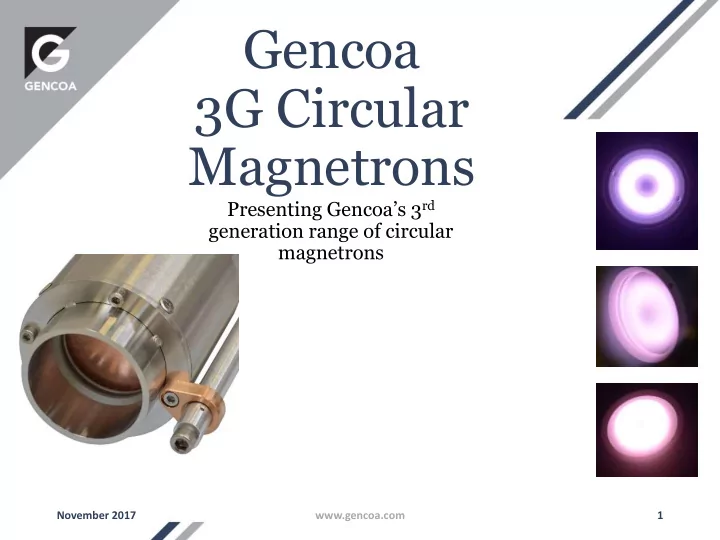

Gencoa 3G Circular Magnetrons

Presenting Gencoa’s 3rd generation range of circular magnetrons

November 2017 www.gencoa.com 1

November 2017 2 www.gencoa.com

• Product Overview
• Introduction
• 3G Design Features
• 3G Mechanical Options
• High Yield Magnetics from 4” target
• High Strength Magnetics
• Low pressure operation
• Deposition Rate
• Performance curves
• Conclusion

Copper target, DC 300W, 8.5 E-3 Torr Copper target, RF 300W, 8.5 E-3 Torr

Contents

November 2017 3 www.gencoa.com

3G

Product Overview

Product Overview

Gencoa 3G Circular Magnetrons – 3rd generation of circular magnetron design

Gencoa’s small sized circular magnetrons for R&D have evolved in 3 stages to the current third generation with more performance in a smaller space

November 2017 www.gencoa.com 4

1996 2010 2017

November 2017 5 www.gencoa.com

• Launched in 2017
• Works in wide range of pressure – into 10-6 Torr range
• Compact Size
• Unique non-bellow tilted magnetron head
• High Yield magnetics for the 4” target size
• Magnetic material sputtering
• Gas Injection as standard
• PEEK insulation to reduce outgassing
• Accommodates different target thickness
• DC, DC pulse, RF and HIPIMS ready

Copper target, RF 300W, 8.5 E-3 Torr

3G cathode features

November 2017 6 www.gencoa.com

Available in 5 different assembly

• ptions
• SW (3G)- Full option with 45⁰ tilt, RF

/HIPIMS ready and gas injection

• SW (3GA)- The cathodes can be supplied

with a simple straight & no gas injection.

• SW (3GB)- The basic design with only gas

injection as option

• SW (3GC)- This model comes with tilt and

gas injection but no power connection box.

• SW (3GE)- Externally mounted magnetron

with gas injection and RF/HIPIMS ready

SW100(3G) SW100(3GE)

3G cathode variations

SW50(3GC) SW50(3GB)

November 2017 7 www.gencoa.com

• Small head size – approx. 1” larger than target size
• Tilt height most compact in industry - tilt pivot point is 1” from cathode

rear allowing higher tilt angles

• 3G means smaller chambers can be used whilst having the same tilt and

head positions

C A B

24.4

Target A B C 2” 92.3 83.8 76.2 3” 97.7 85.7 101.6 4” 114 101.5 128.1

3G small head size and tilt means smaller chambers

3G has innovative head angle adjustment

• ±45° tilt without bellows
• Angle can be viewed and adjusted from the front of the

cathode

• The 2 position clamp pressure is released by means of a

supplied tool or by hand, the head is rotated to the desired angle, then the clamp is re-fixed to the first ‘notch’ tight position

• To measure the angle, there is a milled slot on the

clamp that is aligned with the protractor angle allowing the tilt angle to be fixed accurately to 5°.

• The protractor is removable.

November 2017 www.gencoa.com 8

Knurled Single Ring allows easy tilting Protractor Tilt tightening Tool

Self Adjusting Target Clamps

November 2017 www.gencoa.com 9

• Target clamp adjust to the target thickness. anti-

sticking materials used for the threaded fixing

• Can use a thermal conduction gasket between target

and cooled diaphragm

• High water flow (2l/min) and diaphragm cooling for

high power capacity

• Directly cooled targets available – factory configured

Threaded Target Clamp PEEK Insulator (reduces Outgassing) 4” HY target with graphite gasket and diaphragm Eroded Target Thermal Conduction Sheet (Graphite) Diaphragm Target Removal Tool

November 2017 10 www.gencoa.com

Various mechanical options available

• Design allows to fit manual and pneumatic shutter
• Anode cooling to provide extra source cooling for

HOT chamber environments

• Gas injection
• Sputter Chimney
• Quick coupling feedthrough
• ISO or CF flange mounting option

Shutter (Optional) Power Connector (N type /7-16”/HN) Anode Cooling (Optional) Wall Mount Feedthrough (Optional) Shutter Adjustment Manual/Pneumatic (Shown) (Optional) Gas Injection

3G Extra Options

New shutter design with longer flexible shaft

3G Mechanical Option Matrix

Model Gas Injection Tilt RF/ HIPIMS Shutter Chimney Wall Mount Feedthrough Water Cooled Anode Hidden Anode 3G

• 3G(A)
• 3G(B)
• 3G(C)
• 3G(E)
• November 2017

www.gencoa.com 11

• Standard Feature
• Optional
• Not Applicable

Mechanical Options Examples

November 2017 www.gencoa.com 12

4” 3G with Shutter) 3G100 External Anode Cooling 3G 45⁰ Tilted 3G No shaft (customer weld ) Sputter Chimney

3G100 High Yield type magnetics for high target use

November 2017 www.gencoa.com 13

• The 3G100 is available with a high yield HY type array
• >40% target utilization
• Gencoa solution for precious material sputtering

Target profile ,mm

• 60
• 40
• 20

20 40 60

3G100-HY 10mm thick target erosion

Radial Position, mm

9 6 3

Target profile ,mm

Magnetic Material Sputtering (H (High Strength Array) )

November 2017 www.gencoa.com 14

• The cathodes allow magnetic material sputtering as

standard with diaphragm cooled target.

• Thicker target can be sputtered using directly cooled target.

(Pre- configured at factory)

• Anode height adjustable to accommodate different target

thickness.

Size Magnetic Strength on the target surface (G) Fe Thickness (mm) Ni Thickness (mm) 50mm (2”) 780 1 3 75mm (3”) 840 1.5 4 100mm (4”) 620 0.5 2

Anode height line

November 2017 15 www.gencoa.com

• Extensive testing performed on 3G prototypes for product

reliability and plasma stability

• Achieved 2l/min water flow through the cathode at 1.5 bar

pressure difference

• Works in wide range of pressure
• Coating uniformity & deposition rate measured for

different target diameters

• Performance curves obtained at various pressure levels for

various power modes

Copper target, DC 300W, 8.5 E-3 Torr Copper target, RF 300W, 8.5 E-3 Torr

3G cathode testing

80 120 160 200 240 1.00E-05 1.00E-04 1.00E-03 1.00E-02 Target voltage, V Pressure, Torr

3G50-Cu Target

RF 300W RF 180W 300 350 400 450 1.00E-05 1.00E-04 1.00E-03 1.00E-02 Target voltage, V Pressure, Torr

3G50-Cu target

DC 300W DC 180W

10-6 to 10-2 Operating Pressure Range – example of 3G50 (2”)

November 2017 www.gencoa.com 16

November 2017 www.gencoa.com 17

300 350 400 450 500 1.00E-05 1.00E-04 1.00E-03 1.00E-02 Target voltage, V Pressure, Torr

3G75 -Al target

DC 600W DC 300W 300 350 400 450 500 1.00E-05 1.00E-04 1.00E-03 1.00E-02 Target voltage, V Pressure, Torr

3G75-Cu target

DC 600W DC 300W

10-6 to 10-2 Operating Pressure Range – example of 3G75 (3”)

November 2017 www.gencoa.com 18

300 350 400 450 500 1.00E-05 1.00E-04 1.00E-03 1.00E-02 Target voltage, V Pressure, Torr

3G100 - Cu target

DC 600W DC 300W 300 350 400 450 500 1.00E-05 1.00E-04 1.00E-03 1.00E-02 Target voltage, V Pressure, Torr

3G100 HS - Cu target

DC 600W DC 300W

10-6 to 10-2 Operating Pressure Range – example of 3G100 (4”)

300 350 400 450 500 550 600 650 1.00E-05 1.00E-04 1.00E-03 1.00E-02 Target voltage, V Pressure, Torr

SW100HY-Cu Target

DC 600W DC 300W

3G100HY operating parameter example

November 2017 www.gencoa.com 19

1 2 3 4 5 200 300 400 500 600 700 400 800 1200 1600 Current, A Voltage, V Power, W

5.0E-4 Torr, DC power Al target

Voltage Current

Coating Uniformity 3G50

November 2017 www.gencoa.com 20

0.2 0.3 0.4 0.5

• 50
• 40
• 30
• 20
• 10

10 20 30 40 50 OD Position, mm

DC Power 150mm T/S, Copper target

Range (mm) Uniformity 50 2.0% 30 0.9% 20 0.4%

Coating Uniformity 3G50

November 2017 www.gencoa.com 21

0.2 0.4 0.6 0.8 1 1.2

• 50
• 40
• 30
• 20
• 10

10 20 30 40 50 OD Position (mm)

Normalised Uniformity over 100mm

50mm T/S 150mm T/S 100mm T/S

Coating uniformity 3G75 DC & RF comparison

November 2017 www.gencoa.com 22

Range, mm DC Uniformity 50 ±4.4% 60 ±6.5% 70 ±8.4% Range, mm RF Uniformity 50 ±3.5% 60 ±5.7% 70 ±7.9%

Al target, DC 300W, 2.5 E-3 Torr Al target, RF 300W, 2.5 E-3 Torr

0.2 0.4 0.6 0.8 1 1.2

• 30
• 20
• 10

10 20 30

3" Al target @100mm T-S

RF DC

Coating Uniformity 3G100 DC & RF Comparison

November 2017 www.gencoa.com 23

Range, mm DC Uniformity 50 ±5.1% 60 ±7.2% 70 ±9.1% Range, mm RF Uniformity 50 ±5.2% 60 ±6.9% 70 ±9.1%

Cu target, DC 300W, 1.4 e-2Torr Cu target, RF 300W, 1.4 e-2Torr

0.2 0.4 0.6 0.8 1 1.2

• 40
• 30
• 20
• 10

10 20 30 40

4" Cu Target @150mm T-S

DC RF

Power Vs Voltage Vs Current (3G50 Cu target, DC power)

November 2017 www.gencoa.com 24

0.2 0.4 0.6 0.8 1

250 300 350 400 450

60 120 180 240 300 Current, A Voltage, V Power, W 5E-4 Torr 0.2 0.4 0.6 0.8 1 250 300 350 400 450 60 120 180 240 300 Current, A Voltage, V Power, W 2.5E-3 Torr 0.2 0.4 0.6 0.8 1

250 300 350 400 450 60 120 180 240 300

Current, A Voltage, V Power, W 1.4E-2 Torr

Voltage Current Voltage Current Voltage Current

Power Vs Voltage (3G50 RF Power)

November 2017 www.gencoa.com 25

50 90 130 170 50 100 150 200 250 300

DC voltage, V Forward power, W

Cu target

5.0E-4 Torr 2.5E-3 Torr 1.4E-2 Torr

250 300 350 400 450 500 550 600 50 100 150 200

DC voltage, V Forward power, W RF power, 2.5E-3 Torr, fused silica target

Power Vs Voltage Vs Current (3G75 Al target, DC power)

November 2017 www.gencoa.com 26

0.4 0.8 1.2 1.6 2 220 270 320 370 420 470 120 240 360 480 600

Current, A Voltage, V Power, W

5.0E-4 T orr,

0.4 0.8 1.2 1.6 2 220 270 320 370 420 470 120 240 360 480 600

Current, A Voltage, V Power, W

2.5E-3 T orr, Voltage Current Voltage Current

0.4 0.8 1.2 1.6 2 220 270 320 370 420 470 120 240 360 480 600

Current, A Voltage, V Power, W 8.5E-3 Torr Voltage Current

0.4 0.8 1.2 1.6 2 220 270 320 370 420 470 120 240 360 480 600

Current, A Voltage, V

Power, W 1.4E-2 Torr

Voltage Current

Power Vs Voltage (3G75, RF power)

November 2017 www.gencoa.com 27

120 160 200 240 280 50 100 150 200 250 300

DC voltage, V

Forward power, W

RF power, Al target

5.0E-4 Torr 2.5E-3 Torr 8.5E-3 Torr 1.4E-2 Torr

Power Vs Voltage Vs Current (3G100 Cu target, DC power)

November 2017 www.gencoa.com 28

0.5 1 1.5 2 2.5 3 250 300 350 400 450 500 550 200 400 600 800 1000 1200 Current, A Voltage, V Power, W 1.4E-2 Torr

Voltage Current

0.5 1 1.5 2 2.5 3 250 300 350 400 450 500 550 200 400 600 800 1000 1200 Current, A Voltage, V Power, W 8.5E-3 Torr

Voltage Current

0.5 1 1.5 2 2.5 3 250 300 350 400 450 500 550 200 400 600 800 1000 1200 Current, A Voltage, V Power, W 2.5E-3 Torr

Voltage Current

0.5 1 1.5 2 2.5 3 250 300 350 400 450 500 550 200 400 600 800 1000 1200 Current, A Voltage, V Power, W 5.0E-4 Torr

Voltage Current

Power Vs Voltage (3G100, RF power)

November 2017 www.gencoa.com 29

50 100 150 200 250 50 100 150 200 250 300 DC voltage, V Forward power, W

RF power, Cu target

5.0E-4 Torr 2.5E-3 Torr 8.5E-3 Torr 1.4E-2 Torr

Gencoa 3G – No.1 choice for R&D Thin Film Technology

November 2017 www.gencoa.com 30

Gencoa 3G Advantages

Competition

Lower Pressure Operation. 3G magnetrons can work down to e-6 Torr range Most small size magnetrons work e-4 Torr range only Small head size allows for smaller chambers or more sources within the same space Larger heads require larger chambers Magnetron head can be tilted 45 ⁰ with ease. No welded bellows and compact tilt height allows sources closer together in a cluster. The angle can be fixed accurately to 1 °. Magnetrons are tilted using welded bellows which requires more chamber space and less accurate. High Yield magnetics for 4” offering >40 % target use and recommended for precious metal sputtering Not Available Gas injection standard for all magnetrons Extra cost DC, RF & HIPIMS compatible as standard Ordered as an option Gencoa developed uniformity software to generate a coating uniformity direct from the magnetic field model and taking into account all system parameters Not available

3G Cu Example Deposition Rates (100mm T-S)

November 2017 www.gencoa.com 31 Target Size Target Thickness (mm) Power Mode Power (W) Deposition Rate (nm/min)

2” 3 DC 300 134 2” 3 RF 300 94.5 3” 6 DC 300 133 3” 6 RF 300 80 4” 6 DC 300 116 4” 6 RF 300 70

Gencoa cluster solution to R&D Market

November 2017 www.gencoa.com 32

IMC75

• A powerful new tool for

thin film research.

• Fits into the space of a

typical magnetron and has head tilt adjustment.

• Multiple uses - ion

assistance, patterning, pre-cleaning, coating stripping, PECVD

• DC power technology

for low cost of

• wnership.
• Dedicated Power supply

with Gas regulation via automatic feedback control FFE75

• Dynamic plasma

movement for full face erosion

• Clean target for

defect free layers

• High target use for

precious metals

• Better Uniformity
• Ideal for high cost

and compound targets.

• RF, HIPIMS and

DC Option

• Tilt, shutter, Gas

injection available 3G75

• State of the

art design

• Wide rang of
• perating

pressure

• Compact in

size

• Various

mechanical

• ptions

possible.

• RF, HIPIMS

and DC Option

Further information gencoa.com/3g-circular

You might also be interested in our small circular ffe magnetron range and IMC75 circular ion source

November 2017 www.gencoa.com 33

IMC75 R&D Power in one source – substrate pre-cleaning, etch and patterning, ion assistance,

• xidation, Plasma ALD, Plasma

CVD, ion beam sputtering, cluster encapsulation ffe75 ffe75 ffe75 ffe100

Further in information

For further information on the Gencoa range of 3G circular magnetrons, visit www.gencoa.com/3g-circular or email sales@gencoa.com to contact member of the sales team.

November 2017 www.gencoa.com 34
