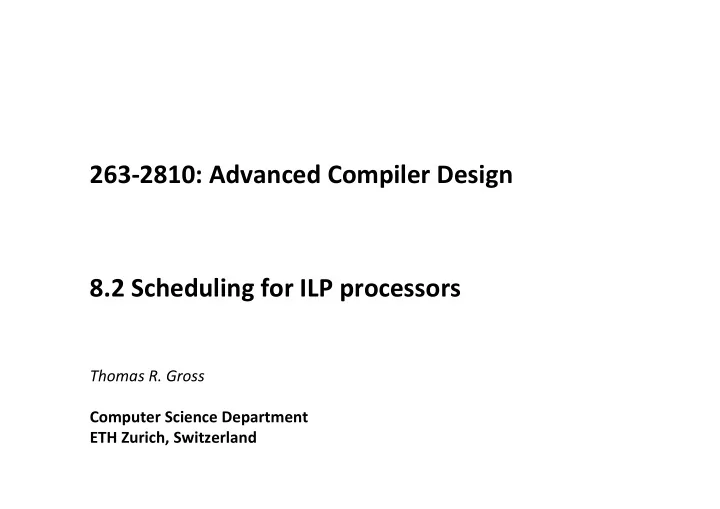

263-2810: Advanced Compiler Design 8.2 Scheduling for ILP processors

Thomas R. Gross Computer Science Department ETH Zurich, Switzerland

Overview

§ 8.1 InstrucLon scheduling basics § 8.2 Scheduling for ILP processors

8.2 Scheduling for ILP processors

§ IntroducLon to ILP § Scheduling for acyclic regions

§ Types and shapes § Region forma2on § Schedule construc2on § Resource management

§ Scheduling for cyclic regions

§ So8ware pipelining § Modulo scheduling § Specula2on and predica2on

8.2.3 Scheduling for cyclic regions

§ Scheduling loops

§ The majority of program execu2on 2me is spent in loops § We already know several techniques to speed up loop execu2on

§ Parallelizing loops § Loop unrolling § Loop fusion § …

§ All of these techniques have a scheduling barrier at the end of one (or several) itera2ons

Increasing ILP w/ loop unrolling

§ Running example § Machine model

§ 4 issue § 1 control, 2 ALU, 1 memory § Latencies:

§ Add: 1 cycle § Mul: 3 cycles § Ld: 2 cycles § St: 1 cycle § Cmp: 1 cycle § Branch: 1 cycle

for (i=0; i<0x1000; i++) { b[i] = a[i] * 3; }

mov r1 ← @a mov r2 ← @b add r5 ← r1, #0x4000 loop: ld r3 ← mem[r1] mul r4 ← r3, #3 st mem[r2] ← r4 add r1 ← r1, #4 add r2 ← r2, #4 clt p1 ← r1, r5 b p1, @loop

Increasing ILP w/ loop unrolling

§ Scheduling the loop with list scheduling (Baseline) Throughput: 6 cycles / 1 iteraLon (100%) Code size (schedule length): 6 (100%)

1 ld r3 ← mem[r1] 2 mul r4 ← r3, #3 3 st mem[r2] ← r4 4 add r1 ← r1, #4 5 add r2 ← r2, #4 6 clt p1 ← r1, r5 7 b p1, @loop

1 time 2 3 1000 ... iteration

cycle ALU 1 ALU 2 MEM control 4 1 1 6 2 2 3 4 5 5 3 7

Increasing ILP w/ loop unrolling

§ Unrolling twice § Throughput: 7 cycles / 2 iteraLons (-42%) Code size (schedule length): 7 (+17%)

11 ld r3 ← mem[r1] 12 mul r4 ← r3, #3 13 st mem[r2] ← r4 14 add r1 ← r1, #4 15 add r2 ← r2, #4 21 ld r8 ← mem[r6] 22 mul r9 ← r8, #3 23 st mem[r7] ← r9 24 add r6 ← r6, #4 25 add r7 ← r7, #4 06 clt p1 ← r6, r5 07 b p1, @loop 1,2 time 3,4 5,6 999,1000 ... iteration

cycle ALU 1 ALU 2 MEM control 14 11 1 24 21 2 12 06 3 22 4 5 15 13 6 25 23 07

Increasing ILP w/ loop unrolling

§ Unrolling 4x Throughput: 9 cycles / 4 iteraLons (-63%) Code size (scheduled instrucLons): 9 (+50%)

11 ld r3 ← mem[r1] 12 mul r4 ← r3, #3 13 st mem[r2] ← r4 14 add r1 ← r1, #4 15 add r2 ← r2, #4 21 ld r8 ← mem[r6] 22 mul r9 ← r8, #3 23 st mem[r7] ← r9 24 add r6 ← r6, #4 25 add r7 ← r7, #4 31 ld r12 ← mem[r10] 32 mul r13 ← r12, #3 33 st mem[r11] ← r13 34 add r10 ← r10, #4 35 add r11 ← r11, #4 41 ld r16 ← mem[r14] 42 mul r17 ← r16, #3 43 st mem[r15] ← r17 44 add r14 ← r14, #4 45 add r15 ← r15, #4 06 clt p1 ← r6, r5 07 b p1, @loop

1,2,3,4

time

5,6,7,8

9,10,11,12 997,998
 999,1000

... iteration

cycle ALU 1 ALU 2 MEM control 14 11 1 24 21 2 34 12 31 3 44 22 41 4 32 5 15 42 13 6 25 23 7 35 06 33 8 45 34 07

Increasing ILP w/ loop unrolling

§ Scheduling loops

§ Unrolling: performance improvements, but § Scheduling barrier is s2ll there, only unroll factor loop bodies can be overlapped § Increase in

§ Code size § Register pressure

§ Unrolling is useful for loops with

§ Lots of control flow within the loop body § Trace can find most likely path

§ Unrolling “ignores” loop structure

8.2.3.1 So^ware pipelining

§ Exploit loop structure of program § Pipelining: overlap of stages

10

8.2.3.1 So^ware pipelining

§ Exploit loop structure of program § Pipelining: overlap of stages

11

Let’s try again

§ Scheduling the first iteraLon

• n our 4-issue machine

1 ld r3 ← mem[r1] 2 mul r4 ← r3, #3 3 st mem[r2] ← r4 4 add r1 ← r1, #4 5 add r2 ← r2, #4 6 clt p1 ← r1, r5 7 b p1, @loop

iteraLon 1 cycle ALU 1 ALU 2 MEM control ALU 1 ALU 2 MEM control ALU 1 ALU 2 MEM control 1 1 4 2 2 3 4 6 5 5 3 7 6 7 8 9

Let’s try again

13

cycle ALU 1 ALU 2 MEM control ALU 1 ALU 2 MEM control 1 2 3 4 5 6 7 8 9

§ Consider 8-issue machine § Duplicate 4-issue machine

§ Control 2nd group by predicate Q § Execute only if Q==true § “Predicated execu2on”

Let’s try again

§ Scheduling the 2nd iteraLon

• n an 8-issue machine

1 ld r3 ← mem[r1] 2 mul r4 ← r3, #3 3 st mem[r2] ← r4 4 add r1 ← r1, #4 5 add r2 ← r2, #4 6 clt p1 ← r1, r5 7 b p1, @loop

iteraLon 1 iteraLon 2 cycle ALU 1 ALU 2 MEM control ALU 1 ALU 2 MEM control ALU 1 ALU 2 MEM control 1 1 4 2 2 1 3 4 4 6 2 5 5 3 7 6 6 7 5 3 7 8 9

Let’s try again

§ Scheduling the 3rd iteraLon

• n a 12-issue machine

1 ld r3 ← mem[r1] 2 mul r4 ← r3, #3 3 st mem[r2] ← r4 4 add r1 ← r1, #4 5 add r2 ← r2, #4 6 clt p1 ← r1, r5 7 b p1, @loop

iteraLon 1 iteraLon 2 iteraLon 3 cycle ALU 1 ALU 2 MEM control ALU 1 ALU 2 MEM control ALU 1 ALU 2 MEM control 1 1 4 2 2 1 3 4 4 6 2 1 5 5 3 7 4 6 6 2 7 5 3 7 8 6 9 5 3 7

Let’s try again

§ ObservaLon: schedules of different iteraLons are idenLcal

cycle ALU 1 ALU 2 MEM control 1 1 4 2 2 1 3 4 4 2 6 1 5 4 5 3 7 6 2 6 1 7 4 5 3 7 8 2 6 1 9 4 5 3 7 10 2 6 1 … … … … …

§ except for the start-up cycles § except for the wind-down cycles

§ Schedules can be

• verlapped

Performance

§ Throughput

§ for each individual itera2on: 6 cycles § 1st itera2on: 6 cycles § each addi2onal itera2on: 2 cycles § n itera2ons: 2*n + 4

§ Code size (w/ predicated execuLon)

§ 7 instruc2ons § Predicate Q: r1 < r5

cycle ALU 1 ALU 2 MEM control 1 1 4 2 2 1 3 4 4 2 6 1 5 4 5 3 7 6 2 6 1 7 4 5 3 7 8 2 6 1 9 4 5 3 7 10 2 6 1 … … … … …

So^ware pipelining

§ Standard techniques (region scheduling, loop fusion, loop unrolling) do not yield sufficient ILP § Method of choice: so^ware pipelining

§ Overlap itera2ons of the loop body § Steady-state: kernel § Peak performance: 1 loop itera2on/cycle § No scheduling-barriers between itera2ons § No loop unrolling necessary § Requires sufficient resources

1 2 3 4

iteration 1

1 2 3 4

2

1 2 3 4

3

1 2 3 4

4

1 2 3 4

1000

1 2 3 4

999

1 2 3 4

998

1 2 3 4

997 ... time

1 2 3 4 1 2 3 4

So^ware pipelining

§ Basic idea

§ Unroll the loop “completely” § Correctly schedule the loop under two constraints

§ All itera2on bodies have iden2cal schedules § Each new itera2on starts exactly II (ini2a2on interval) cycles a8er the previous itera2on

§ ExecuLon Lme in terms of stage count (SC)

§ One loop itera2on: SC×II cycles § Prologue/epilogue: (SC-1)×II cycles § Kernel steady state: II cycles

§ ExecuLon Lme of a so^ware pipelined loop: II×(n+sc-1) cycles

1 2 3 4

itera2on 1

1 2 3 4

2

1 2 3 4

3

1 2 3 4

4

...

2me II (ini2a2on interval) II II SC (stage count)

Modulo scheduling

§ Most common technique to find so^ware pipelined schedules § Basic concept

§ Unroll the loop “completely” § Schedule the loop under two constraints

§ All itera2on bodies have iden2cal schedules § Each new itera2on starts exactly II cycles a8er the previous itera2on

Modulo scheduling: problem formulaLon

§ Problem : find a schedule for one loop body iteraLon such that when the schedule is repeated at intervals of II cycles

§ No hardware resource conflict arises between opera2ons of the same and successive itera2ons of the loop body § No intra/inter–loop dependences are violated

Modulo scheduling: resource constraints

§ Handling resource constraints

§ No resource must be used by different opera2ons at two points in 2me that are separated by an interval that is a mul2ple of the ini2a2on interval § This requirement is iden2cal to: Within a single itera2on, no resource is ever used more than once at the same 2me modulo II

§ Search for suitable iniLaLon interval

Modulo scheduling: resource constraints

§ Modulo reservaLon tables

§ Table containing II rows and one column for each resource § Scheduling op at 2me t on resource r § Entry for r at t mod II must be free § Mark t mod II busy for r

II = 2

cycle

ALU 1 ALU 2 MEM control

1 cycle ALU 1 ALU 2 MEM control 1 2

II = 3

Modulo scheduling: resource constraints

§ Modulo reservaLon tables

§ Table containing II rows and one column for each resource

1 ld r3 ← mem[r1] 2 mul r4 ← r3, #3 3 st mem[r2] ← r4 4 add r1 ← r1, #4 5 add r2 ← r2, #4 6 clt p1 ← r1, r5 7 b p1, @loop

iteraLon 1 cycle ALU 1 ALU 2 MEM control 1 1 4 2 2 3 4 6 5 5 3 7

II = 2

cycle ALU 1 ALU 2 MEM control 2 6 1 1 4 5 3 7

Modulo scheduling: dependence constraints

§ Dependence constraints

§ Both loop-independent and loop-carried dependences must be considered § Annotate each edge in the data dependence graph with a tuple t = <distance, delay> § Delay: minimum 2me interval between the start of opera2ons

Dependence Delay Conserva2ve delay True Latency(pred) Latency(pred) An2 1-latency(succ) Output 1+latency(pred)− latency(succ) Latency(pred)

Modulo scheduling: dependence constraints

§ Dependence constraints

§ Annotate each edge in the data dependence graph with a tuple t = <distance, delay> § Distance: number of itera2ons separa2ng the two opera2ons

§ 0 : loop-independent, § > 0 : loop-carried dependence

8.2.3.2 SpeculaLon and predicaLon

Relaxing dependence constraints

§ Dependence constraints limit the amount of ILP § SpeculaLon and predicaLon aim at removing control dependences to increase ILP § Independent techniques that complement each other

§ Specula2on: move opera2ons up over a highly weighted branch § Predica2on: collapse short sequences of code a8er a balanced branch

Control speculaLon

§ SpeculaLve code moLon requires hardware support

§ Opera2ons genera2ng an excep2on

§ Memory opera2ons § Certain ALU opera2ons (div 0, overflow)

§ Two H/W models

§ Non-recovery specula2on § Recovery specula2on

Non-recovery speculaLon model

§ Uses the concept of “silent instrucLons” § ExcepLons are simply discarded

§ “Silent load”: if invalid

§ Canceled before it reaches the memory system § Garbage value returned

§ H/W implementaLon straighhorward:

§ Opcode contains a ‘specula2ve’ bit § Specula2ve bit is used to mask hardware excep2ons

§ Problems:

§ Handling of recoverable excep2ons? § Correct specula2on with abort?

Recovery speculaLon model

§ Supports full recovery from speculaLve excepLons (aka sen/nel scheduling) § Basic idea:

§ Split speculated instruc2ons into two parts

§ Non-excep2ng part: perform the actual opera2on § Executed specula2vely (i.e., can be hoisted/sunk) § Sen2nel part: check and flag an excep2on if necessary § Must remain in “home” block

§ H/W implementaLon:

§ Opcode bits to indicate specula2on § Register flags to indicate validity of content, and also type of excep2on

§ Contents needs to be preserved over context switches

§ Correct specula2on with abort problem solved

Data speculaLon

§ Aka run-Lme memory disambiguaLon: assume memory addresses do not collide at compile-Lme, check at runLme § Requires H/W to remember the locaLon of speculated memory loads/stores

§ Expensive and thus typically not used

function swap(int *a, int *b) { int t = *a; *a = *b; *b = t; }

Predicated execuLon

§ PredicaLon also requires hardware support

§ Predica2on guard

§ Processor state § Predica2on registers

§ Full predicaLon vs. ParLal predicaLon

§ Full predica2on

§ Instruc2ons take addi2onal operands that control execu2on § If condi2on not met, treated as a NOP

§ Par2al predica2on

§ Only certain instruc2ons support predicated execu2on § I686 cmov

Predicated execuLon

§ Full vs. parLal predicaLon

x = *ap; if (x > 0) q = *bp + 1; else q = x – 1; *zp = q; <T> load x = 0[ap] <T> cmpgt p2, p3 = x, 0 <p2> load t1 = 0[bp] <p2> add q = t1, 1 <p3> sub q = x, 1 <T> store 0[zp] = q load x = 0[ap] cmpgt p2 = x, 0 load,s t1 = 0[bp] add t2 = t1, 1 sub t3 = x, 1 select q = p2, t2, t3 store 0[zp] = q

Predicated execuLon

§ Compiler techniques

§ If-conversion

§ Translate control dependencies into data dependencies

§ Logical reduc2on of predicates

§ Build BDD to reduce the number of predicates

§ Hyperblock scheduling

§ “Superblocks with if-conversion”

§ Modulo scheduling

§ To use the same code for prologue, kernel, and epilogue

References and further reading §

• B. Rau et al. “Some Scheduling Techniques and an Easily Schedulable Horizontal Architecture

for High Performance Scien2fic Compu2ng”, Proceedings of the 14th Annual Workshop on Microprogramming (MICRO), 1981 §

• M. Lam. “So8ware Pipelining: An Effec2ve Scheduling Technique for VLIW Machines,”

Proceeding of the ACM SIGPLAN Conference on Programming Language Design and ImplementaHon (PLDI), 1988 §

• B. Rau. “Itera2ve Modulo Scheduling: An Algorithm for So8ware Pipelining Loops”,

Proceedings of the 27th Annual Workshop on Microprogramming (MICRO), 1994 §

• P. Faraboschi et al. “Instruc2on scheduling for instruc2on level parallel processors,”

Proceedings of the IEEE , vol.89, no.11, 2001

§ with thanks to Bernhard Egger for slide material for 2810 “Advanced Compiler Design”, Spring 2014, ETH Zurich
