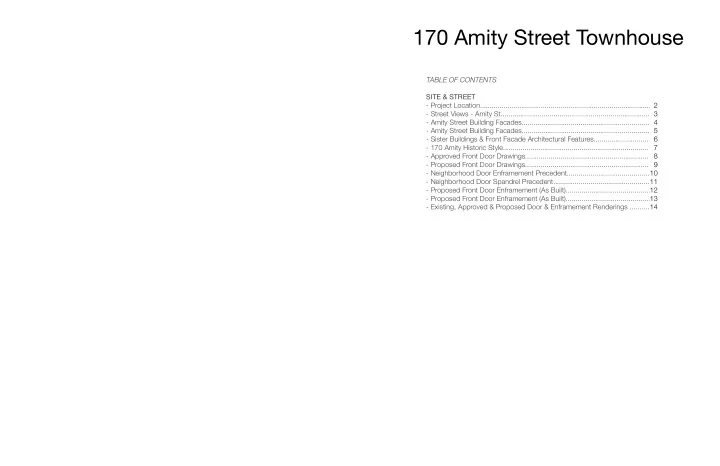

170 Amity Street townhouse TABLE OF CONTENTS Site & Street - Project Location....................................................................................... 2 - Street Views - Amity

slide-1
SLIDE 1
  • Project Location.......................................................................................
  • Street Views - Amity St............................................................................
  • Amity Street Building Facades.................................................................
  • Amity Street Building Facades.................................................................
  • Sister Buildings & Front Facade Architectural Features............................
  • 170 Amity Historic Style..........................................................................
  • Approved Front Door Drawings...............................................................
  • Proposed Front Door Drawings...............................................................
  • Neighborhood Door Enframement Precedent..........................................
  • Neighborhood Door Spandrel Precedent.................................................
  • Proposed Front Door Enframement (As Built)...........................................
  • Proposed Front Door Enframement (As Built)...........................................
  • Existing, Approved & Proposed Door & Enframement Renderings ..........

Site & Street TABLE OF CONTENTS 2 3 4 5 6 7 8 9 10 11 12 13 14

170 Amity Street townhouse

slide-2
SLIDE 2

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

H I C K S S T B Q E C N T G H W Y

86 206 111 333 116 195 198 1 2 8 204 185 316 318 319 211 198 123 100 108 110 355 348 356 358 103 391 110 223 250 101 132 1 2 41 72 210 212 127 126 152 148 26 25 255 254 129 118 2 1 2 1 2 1 253 248 157 68 521 67 484 495 70 65 359 370 64 61 304 283

HENRY ST COURT ST C L I N T O N S T KANE ST AMITY ST C O N G R E S S S T ATLANTIC AV D E G R A W S T P A C I F I C S T T A T E S T COLUMBIA ST S A C K E T T S T B U T L E R S T B A L T I C S T S M I T H S T TIFFANY PL U N I O N S T W A R R E N S T VERANDAH PL STRONG PL CHEEVER PL D O U G L A S S S T DEAN ST W Y C K O F F S T B E R G E N S T T O M P K I N S P L WARREN PL BALTIC ST WARREN ST PACIFIC ST

4 t h A v e n u e FDR Drive Utica Avenue Flatbush Avenue B r

  • a

d w a y Atlantic Avenue Ocean Parkway Flushing Avenue Broadway Broadway

Cobble Hill Historic District and Historic District Extenson Brooklyn Historic District Extension Designated June 7, 1988 Original District Designated December 20, 1969 Original Historic District Historic District Extension

LOCATiON MAP HiSTORiC DiSTRiCT MAP

PROjECT LOCATiON

1.FRONT FACADE

1

slide-3
SLIDE 3

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

H I C K S S T B Q E C N T G H W Y

86 206 111 333 116 195 198 1 2 8 204 185 316 318 319 211 198 123 100 108 110 355 348 356 358 103 391 110 223 250 101 132 1 2 41 72 210 212 127 126 152 148 26 25 255 254 129 118 2 1 2 1 2 1 253 248 157 68 521 67 484 495 70 65 359 370 64 61 304 283

HENRY ST COURT ST C L I N T O N S T KANE ST AMITY ST C O N G R E S S S T ATLANTIC AV D E G R A W S T P A C I F I C S T T A T E S T COLUMBIA ST S A C K E T T S T B U T L E R S T B A L T I C S T S M I T H S T TIFFANY PL U N I O N S T W A R R E N S T VERANDAH PL STRONG PL CHEEVER PL D O U G L A S S S T DEAN ST W Y C K O F F S T B E R G E N S T T O M P K I N S P L WARREN PL BALTIC ST WARREN ST PACIFIC ST

4 t h A v e n u e FDR Drive Utica Avenue Flatbush Avenue B r

  • a

d w a y Atlantic Avenue Ocean Parkway Flushing Avenue Broadway Broadway

Cobble Hill Historic District and Historic District Extenson Brooklyn Historic District Extension Designated June 7, 1988 Original District Designated December 20, 1969 Original Historic District Historic District Extension

  • 2. ViEw ON AMiTy STREET LOOkiNg TOwARDS COuRT STEET.

ViEw LOCATiONS

  • 3. ViEw ON AMiTy STREET LOOkiNg TOwARDS CLiNTON STREET.

2 3 170 Amity 170 Amity STREET ViEwS - AMiTy ST.

slide-4
SLIDE 4

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

166 168 170 172 174 176 178 180 182 184 186 188 190 192 219 162

178 180 182 184 186 188 190 192 176 174 172 170 168 166 219

AMiTy STREET - BLOCk 297- ExiSTiNg BuiLDiNg FACADES (SOuTH)

“This residential street with its houses and apartment buildings, three to four and a half stories in height, presents a feeling of human warmth and

  • individuality. Build over the long period between

1840 and 1905, there is a considerable variety in

  • styles. The most interesting building architecturally

speaking, is the unusual house with the Flemish stepped gables and tower on the southwest corner at Clinton Street. unfortunately, a number

  • f buildings have been needlessly harmed by the

addition of 20th century fronts out of character with their neighbors. winston Churchill’s mother was born on this block in a house that is still standing.”

  • Cobble Hill Historic District Designation report,

1969 162 192 190 182-188 180 178 176 174 172 170 168 166 219 162 192 190 188 180 178 176 174 172 170 168 166 219 182 184 186

slide-5
SLIDE 5

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

189 191 193 195 197 199 201 203 205 187 185 183 181 179 177 175 173

205 203 201 199 197 195 193 191 189 187 185 183 181 179 177 175 173 205 203 201 199 197 195 193 191 189 187 185 183 181 179 177 175 173

AMiTy STREET - BLOCk 297- ExiSTiNg BuiLDiNg FACADES (NORTH)

slide-6
SLIDE 6

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

172

  • 1. ENFRAMEMENT REMOVED
  • 2. iTALiANATE ROuND-HEADED DOuBLE-LEAF ENTRy DOOR w/

HEAViLy MOLDED wOOD PANELS

SiSter builDingS - eXiSting ArCHiteCturAl feAtureS

1

170

168 166

  • 1. ENFRAMEMENT STRiPPED/REMOVED
  • 2. iTALiANATE STyLED ROuND-HEADED DOuBLE-LEAF DOOR w/

HEAViLy MOLDED SiNgLE wOOD LOwER PANELS AND gLASS PANELS ABOVE

  • 1. ENFRAMEMENT REMOVED
  • 2. MODERN FLAT SiNgLE wOOD ENTRy DOOR

2 1 2 1 2

  • 1. ENFRAMEMENT REMOVED
  • 2. FLAT DOuBLE wOOD DOOR w/ wOOD PANELS BELOw AND

gLASS PANELS ABOVE

1 2

slide-7
SLIDE 7

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

1940 TAx PHOTO

170 AMiTy HiSTORiC STyLE

The Greek Revival Style.................................................... (1830-1850)

  • characterized by simple

and bold architectural elements, imitating Greek motifs;

  • three to three and one-half

stories high with basement, sometimes an attic story below the cornice;

  • brownstone base with

brick upper façade (laid in English bond);

  • stoop of medium height

with wrought- or cast-iron handrails, fence, and newels

  • vertical paneled wood door;
  • grand entrance pilasters,

sidelights, and stone enframements;

  • six-over-six double-hung

wood windows, six-over-nine

  • ften on the parlor floor,

and sometimes small attic windows;

  • modest molded stone

window lintels and sills; and

  • wood dentiled cornice.
  • The Italianate Style...........................................................

(1840-1870)

  • characterized by elaborate, bold, projecting ornament

with an emphasis on repetitive forms;

  • two to four stories high with brownstone basement;
  • usually a full brownstone façade;
  • high and wide stoop with

elaborate cast-iron handrails, balusters, fence and newels;

  • deeply recessed doorway

with heavily protruding door hood and console brackets;

  • round-headed double-leaf

doors with heavily molded arched panels;

  • large double-hung two-over-two
  • r one-over-one windows,

sometimes with heavy muntins to imitate casement windows;

  • heavy, projecting stone window

lintels and sills (sometimes resting on brackets) or full window enframements; and

  • heavy, imposing, projecting

cornice, embellished with moldings and supported by rectangular or scroll-shaped brackets.

  • “The last four houses, built in the 1840’s still show vestiges of the greek Revival.The

modernization of No.172 has been accomplished with a sensitive sculptural effect. The westernmost row house (No 166) , built in 1843 for the local gardener, Patrick Halegan, retains its rusticated basement and beautiful Greek Revival ironwork, with a magnifjcent effect vertical swirl at the end of the railing.”

  • Cobble Hill Historic District Designation report, 1969

EMBELLiSHED iTALiANATE CORNiCE SiMPLE gREEk REViVAL LiNTELS AND SiLLS ROuNDED iTALiANATE FRONT DOOR PiTCHED iTALiANATE ENFRAMEMENT w gREEk REViVAL MOTiF HEAVy iTALiANATE PARLOR wiNDOw SiLLS AND BRACkETS gREEk REViVAL BRiCk FACADE AND BROwNSTONE BASE gREEk REViVAL STOOP wROugHT iRON HANDRAiL w/ ELABORATE iTALiANATE ORNAMENTATiON LPC ROwHOuSE MANuAL

slide-8
SLIDE 8

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

APPROVED FRONT DOOR ENFRAMEMENT

LIMITS OF CONSTRUCTION

EXISTING NORTH ELEVATION

Scale: 1/4" = 1'-0"

1

LIMITS OF CONSTRUCTION

9'-0 1/2" 12'-1 3/4" T.O. SECOND LEVEL FIN. FLR. 67.17' T.O. BASEMENT LEVEL FIN. FLR 46.22 T.O. FIRST LEVEL FIN. FLR. 55.07' T.O. THIRD LEVEL FIN. FLR. 77.80' 10'-4 3/4" T.O. ROOF CORNICE 91.27' 13'-5 5/8" T.O. EXISTING CELLAR LEVEL FLR. 38.17 8'-0 1/2" T.O. BASE PLANE ELEVATION 48.32 6'-11 1/4" 2'-1 1/4" LH-1 50'-0"RESTRICTION 98.35' 7'-0 5/8"

50'-0" LIMITED HEIGHT RESTRICTION

0.0 +6.93 +19.08 +29.48 +42.95

  • 2.10
  • 10.18

T.O. DECK @ ADDITION 66.34' T.O. GUARD RAIL @ ADDITION 69.84' 3'-6" T.O. NEW CELLAR SLAB 36.34 1'-10"

  • 12.01

9'-10 5/8" EXISTING CORNICE TO REMAIN EXISTING DOUBLE HUNG WOOD 2 OVER 2 WINDOWS TO REMAIN, TYP. EXISTING STUCCO FINISH TO REMAIN EXISTING SILLS TO REMAIN, TYP. EXISTING BRICK FACADE TO REMAIN EXISTING LINTELS TO REMAIN, TYP. EXISTING BUILDING ENTRANCE TO REMAIN EXISTING PLANTERS AND TRASH ENCLOSURE TO REMAIN

Drawing No.

Mark Date Description

CAD File Name Project ID Issue/Revision

Son1B

Consultants

Amity Street Townhouse

170 Amity Street Brooklyn, NY 11201

Sheet Scale Issue Date Plot Date

Leroy Street Studio Architecture, P.C. 113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

  • f 41

As Noted 3/31/2015 DOB Filing 7/17/2015 DOB Filing - Rev 12/15/2015 CD Progress Set: 2/03/2016 LPC COA 17-8536 1 2/09/2016 DOB/Cost - Rev. 2/24/2016 LSS Core & Shell Set 2 4/04/2016 LPC COA 17-8340 3 08/04/2016 WINDOW PACKAGE

Structural Engineer:

Bluesky Design

121 West 27th Street, Suite 904 New York, NY 10001 t 646 230 9900 f 646 230 7400 e abrenfroe@blueskydsgn.com

Mechanical Engineer:

I.P. Group Consulting Engineers. P.C.

648 Broadway No. 400 New York, NY 10012 t 212 982 3877 f 212 614 0752 e eric@ipgroupengineers.com

Expeditor:

William Vitacco Associates LTD

299 Broadway, Fifth Floor New York, NY 10007 t 212 791 4578 f 212 513 0637 e MDeCeglie@Vitacco.com

Landscape:

Future Green Studio

18 Bay Street Brooklyn, NY 11231 t 718 855 8995 f 718 228 7004 e david@futuregreenstudio.com

EXTERIOR ELEVATIONS Existing and Proposed

A-200.01

13 NEW HOOD @ ENTRANCE, WOOD, BROWNSTONE FINISH TO MATCH BROWNSTONE BASE NEW FRONT ENTRANCE AT PARLOR

  • LEVEL. NEW WOOD DOOR, DOUBLE

LEAF PAINTED TO MATCH WINDOWS.

Drawing No.

Mark Date Description

CAD File Name Project ID Issue/Revision

Son1B

Consultants

Amity Street Townhouse

170 Amity Street Brooklyn, NY 11201

Sheet Scale Issue Date Plot Date

Leroy Street Studio Architecture, P.C. 113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

  • f 41

As Noted 3/31/2015 DOB Filing 7/17/2015 DOB Filing - Rev 12/15/2015 CD Progress Set: 2/03/2016 LPC COA 17-8536 1 2/09/2016 DOB/Cost - Rev. 2/24/2016 LSS Core & Shell Set 2 4/04/2016 LPC COA 17-8340 3 08/04/2016 WINDOW PACKAGE

Structural Engineer: Bluesky Design

121 West 27th Street, Suite 904 New York, NY 10001 t 646 230 9900 f 646 230 7400 e abrenfroe@blueskydsgn.com

Mechanical Engineer: I.P. Group Consulting Engineers. P.C.

648 Broadway No. 400 New York, NY 10012 t 212 982 3877 f 212 614 0752 e eric@ipgroupengineers.com

Expeditor: William Vitacco Associates LTD

299 Broadway, Fifth Floor New York, NY 10007 t 212 791 4578 f 212 513 0637 e MDeCeglie@Vitacco.com

Landscape: Future Green Studio

18 Bay Street Brooklyn, NY 11231 t 718 855 8995 f 718 228 7004 e david@futuregreenstudio.com

EXTERIOR ELEVATIONS Existing and Proposed

A-200.01

13

PROPOSED NORTH ELEVATION

Scale: 1" = 1'-0"

2

5'-10 3/8" 9 1/2" 9 1/2" 9'-2 1/2" 8 3/4" 2'-9 3/4" 12'-9" 9'-3"

PROPOSED NORTH ELEVATION

Scale: 1" = 1'-0"

2

5'-0" 8 1/8"

8 1/8"

9'-7 1/4" 8 3/4" 1'-8" 11'-11 1/2" 9'-8 1/8"

1. iTALiANATE STyLED ROuND-HEADED DOuBLE-LEAF DOOR w/ HEAViLy MOLDED DOuBLE wOOD LOwER PANELS AND gLASS 2. PiTCHED iTALiANATE ENFRAMEMENT

slide-9
SLIDE 9

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

PROPOSED FRONT DOOR ENFRAMEMENT

LIMITS OF CONSTRUCTION

EXISTING NORTH ELEVATION

Scale: 1/4" = 1'-0"

1

LIMITS OF CONSTRUCTION

9'-0 1/2" 12'-1 3/4" T.O. SECOND LEVEL FIN. FLR. 67.17' T.O. BASEMENT LEVEL FIN. FLR 46.22 T.O. FIRST LEVEL FIN. FLR. 55.07' T.O. THIRD LEVEL FIN. FLR. 77.80' 10'-4 3/4" T.O. ROOF CORNICE 91.27' 13'-5 5/8" T.O. EXISTING CELLAR LEVEL FLR. 38.17 8'-0 1/2" T.O. BASE PLANE ELEVATION 48.32 6'-11 1/4" 2'-1 1/4" LH-1 50'-0"RESTRICTION 98.35' 7'-0 5/8"

50'-0" LIMITED HEIGHT RESTRICTION

0.0 +6.93 +19.08 +29.48 +42.95

  • 2.10
  • 10.18

T.O. DECK @ ADDITION 66.34' T.O. GUARD RAIL @ ADDITION 69.84' 3'-6" T.O. NEW CELLAR SLAB 36.34 1'-10"

  • 12.01

9'-10 5/8" EXISTING CORNICE TO REMAIN EXISTING DOUBLE HUNG WOOD 2 OVER 2 WINDOWS TO REMAIN, TYP. EXISTING STUCCO FINISH TO REMAIN EXISTING SILLS TO REMAIN, TYP. EXISTING BRICK FACADE TO REMAIN EXISTING LINTELS TO REMAIN, TYP. EXISTING BUILDING ENTRANCE TO REMAIN EXISTING PLANTERS AND TRASH ENCLOSURE TO REMAIN

Drawing No.

Mark Date Description

CAD File Name Project ID Issue/Revision

Son1B

Consultants

Amity Street Townhouse

170 Amity Street Brooklyn, NY 11201

Sheet Scale Issue Date Plot Date

Leroy Street Studio Architecture, P.C. 113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

  • f 41

As Noted 3/31/2015 DOB Filing 7/17/2015 DOB Filing - Rev 12/15/2015 CD Progress Set: 2/03/2016 LPC COA 17-8536 1 2/09/2016 DOB/Cost - Rev. 2/24/2016 LSS Core & Shell Set 2 4/04/2016 LPC COA 17-8340 3 08/04/2016 WINDOW PACKAGE

Structural Engineer:

Bluesky Design

121 West 27th Street, Suite 904 New York, NY 10001 t 646 230 9900 f 646 230 7400 e abrenfroe@blueskydsgn.com

Mechanical Engineer:

I.P. Group Consulting Engineers. P.C.

648 Broadway No. 400 New York, NY 10012 t 212 982 3877 f 212 614 0752 e eric@ipgroupengineers.com

Expeditor:

William Vitacco Associates LTD

299 Broadway, Fifth Floor New York, NY 10007 t 212 791 4578 f 212 513 0637 e MDeCeglie@Vitacco.com

Landscape:

Future Green Studio

18 Bay Street Brooklyn, NY 11231 t 718 855 8995 f 718 228 7004 e david@futuregreenstudio.com

EXTERIOR ELEVATIONS Existing and Proposed

A-200.01

13

PENDING LPC APPROVAL

PROPOSED NORTH ELEVATION

Scale: 1/4" = 1'-0"

2

NEW HOOD @ ENTRANCE, WOOD, BROWNSTONE FINISH TO MATCH BROWNSTONE BASE NEW FRONT ENTRANCE AT PARLOR

  • LEVEL. NEW WOOD DOOR, DOUBLE

LEAF PAINTED TO MATCH WINDOWS. ALIGN W/ EXISTING WINDOW OPENING C L CENTER NEW ENTRANCE AND STOOP ON WINDOWS ABOVE

Drawing No.

Mark Date Description

CAD File Name Project ID Issue/Revision

Son1B

Consultants

Amity Street Townhouse

170 Amity Street Brooklyn, NY 11201

Sheet Scale Issue Date Plot Date

Leroy Street Studio Architecture, P.C. 113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

  • f 41

As Noted 3/31/2015 DOB Filing 7/17/2015 DOB Filing - Rev 12/15/2015 CD Progress Set: 2/03/2016 LPC COA 17-8536 1 2/09/2016 DOB/Cost - Rev. 2/24/2016 LSS Core & Shell Set 2 4/04/2016 LPC COA 17-8340 3 08/04/2016 WINDOW PACKAGE

Structural Engineer: Bluesky Design

121 West 27th Street, Suite 904 New York, NY 10001 t 646 230 9900 f 646 230 7400 e abrenfroe@blueskydsgn.com

Mechanical Engineer: I.P. Group Consulting Engineers. P.C.

648 Broadway No. 400 New York, NY 10012 t 212 982 3877 f 212 614 0752 e eric@ipgroupengineers.com

Expeditor: William Vitacco Associates LTD

299 Broadway, Fifth Floor New York, NY 10007 t 212 791 4578 f 212 513 0637 e MDeCeglie@Vitacco.com

Landscape: Future Green Studio

18 Bay Street Brooklyn, NY 11231 t 718 855 8995 f 718 228 7004 e david@futuregreenstudio.com

EXTERIOR ELEVATIONS Existing and Proposed

A-200.01

13

PROPOSED NORTH ELEVATION

Scale: 1" = 1'-0"

2

5'-10 3/8" 9 1/2" 9 1/2" 9'-2 1/2" 8 3/4" 2'-9 3/4" 12'-9" 9'-3"

PROPOSED NORTH ELEVATION

Scale: 1" = 1'-0"

2

5'-0" 8 1/8"

8 1/8"

9'-7 1/4" 8 3/4" 1'-8" 11'-11 1/2" 9'-8 1/8"

1. CONSTRuCTiON REVEALED AN ExiSTiNg OPENiNg wiDER AND SHORTER THAN APPROVED DESigN 2. iTALiANATE STyLED ROuND-HEADED DOuBLE-LEAF DOOR w/ HEAViLy MOLDED SiNgLE wOOD LOwER PANELS AND gLASS SPANDRELS 3. DEEPLy RECESSED DOORwAy wiTH HEAViLy PROTRuDiNg DOOR HOOD

slide-10
SLIDE 10

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

NEigHBORHOOD DOOR ENFRAMEMENT PRECEDENTS

171 CLiNTON STREET 246 CLiNTON STREET 169 STATE STREET 171 STATE STREET 176 STATE STREET 160 CLiNTON STREET itAliAnAte enfrAMeMent PreCeDentS BROwNSTONE ENTRANCE ENFRAMEMENT PiTCHED PEDiMENT HigH RELiEF MOuLDiNg RECTANguLAR PiLASTERS greeK reViVAl enfrAMeMent PreCeDentS BROwNSTONE ENTRANCE ENFRAMEMENT FLAT PEDiMENT LigHT TO MEDiuM RELiEF MOuLDiNg RECTANguLAR PiLASTERS

slide-11
SLIDE 11

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

135 PACiFiC DOOR gLASS SPANDREL PRECEDENT

enlArgeD PHOtO Of Current DOOr HeAD 1940’S tAX PHOtO 1980’S tAX PHOtO Current PHOtO gLASS SPANDRELS FixED gLASS TRANSOM SiNgLE RAiSED wOOD DOOR PANEL SiNgLE gLASS DOOR PANEL wOOD HEADER AND ARCHED DOOR TRiM wOOD DOuBLE DOORS

slide-12
SLIDE 12

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

PROPOSED EMFRAMEMENT OPENiNg (AS BuiLT)

DOOR OPENiNg CONSTRuCTiON DOOR OPENiNg CONSTRuCTiON neW DOOr HeAD OPening AligneD W/ eXiSting WinDOW line Of eXiSting PAtCHeD briCK frOM HiStOriC DOOr OPening neW DOOr Sill OPening AligneD WitH eXiSting interiOr flOOr neW DOOr OPening WitHin HiStOriC DOOr OPening AnD CentereD On eXiSting WinDOWS AbOVe

slide-13
SLIDE 13

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

PROPOSED EMFRAMEMENT AND DOOR (AS BuiLT)

slide-14
SLIDE 14

113 Hester Street New York NY 10002 T 212 431 6780 F 212 431 6781 leroystreetstudio.com

LEROY STREET STUDIO ARCHITECTURE, P.C.

September 4, 2018

Amity Street Townhouse

ExiSTiNg, APPROVED & PROPOSED DOOR & EMFRAMEMENT RENDERiNgS

PROPOSED DOOR AND ENFRAMEMENT (AS BuiLT) APPROVED DOOR & ENFRAMEMENT(RENDERiNg) ExiSTiNg BuiLDiNg FACADE (PHOTO)
