15-780 - graduate artificial intelligence ai and education iii . - - PowerPoint PPT Presentation

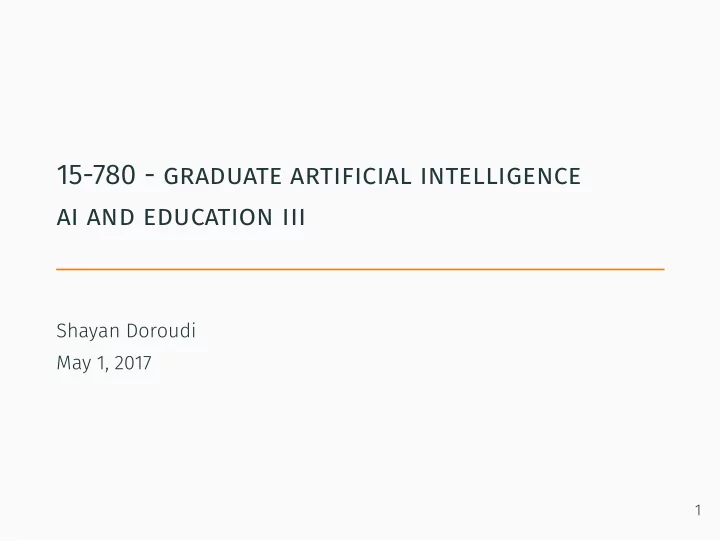

SLIDE 1

15-780 - graduate artificial intelligence ai and education iii

.

Shayan Doroudi May 1, 2017

1

SLIDE 2

series overview

Series on applications of AI to education. Lecture Application AI Topics 4/24/17 Learning Machine Learning + Search 4/26/17 Assessment Machine Learning + Mechanism Design 5/01/17 Instruction Multi-Armed Bandits

2

SLIDE 3

prediction vs. intervention

Prediction Intervention

• Predicting performance in a

learning environment

• Predicting performance on a

test

3

SLIDE 4

prediction vs. intervention

Prediction Intervention

• Predicting performance in a

learning environment

• Changing instruction based on

refined cognitive model

• Predicting performance on a

test

3

SLIDE 5

prediction vs. intervention

Prediction Intervention

• Predicting performance in a

learning environment

• Changing instruction based on

refined cognitive model

• Predicting performance on a

test

• Computerized Adaptive Testing

3

SLIDE 6

prediction vs. intervention

Prediction Intervention

• Predicting performance in a

learning environment

• Changing instruction based on

refined cognitive model

• Predicting performance on a

test

• Computerized Adaptive Testing
• Choosing the best instruction

3

SLIDE 7

randomized weighted majority and bandits

• Recall the Randomized Weighted Majority Algorithm.
• After each decision, we know if each expert got it right or

wrong.

• Multi-Armed Bandits: Choose only one arm

(expert/action); only know if that arm was good or bad.

4

SLIDE 8

randomized weighted majority and bandits

• Recall the Randomized Weighted Majority Algorithm.
• After each decision, we know if each expert got it right or

wrong.

• Multi-Armed Bandits: Choose only one arm

(expert/action); only know if that arm was good or bad.

4

SLIDE 9

randomized weighted majority and bandits

• Recall the Randomized Weighted Majority Algorithm.
• After each decision, we know if each expert got it right or

wrong.

• Multi-Armed Bandits: Choose only one arm

(expert/action); only know if that arm was good or bad.

4

SLIDE 10

multi-armed bandits

• Set of K actions A = {a1, . . . , aK}.
• At each time step t, we choose one action at

.

• Observe reward for that action, coming from some

unknown distribution with mean

a.

• Want to minimize regret:

R T T max

a a T t 1 at 5

SLIDE 11

multi-armed bandits

• Set of K actions A = {a1, . . . , aK}.
• At each time step t, we choose one action at ∈ A.
• Observe reward for that action, coming from some

unknown distribution with mean

a.

• Want to minimize regret:

R T T max

a a T t 1 at 5

SLIDE 12

multi-armed bandits

• Set of K actions A = {a1, . . . , aK}.
• At each time step t, we choose one action at ∈ A.
• Observe reward for that action, coming from some

unknown distribution with mean µa.

• Want to minimize regret:

R T T max

a a T t 1 at 5

SLIDE 13

multi-armed bandits

• Set of K actions A = {a1, . . . , aK}.
• At each time step t, we choose one action at ∈ A.
• Observe reward for that action, coming from some

unknown distribution with mean µa.

• Want to minimize regret:

R(T) = T max

a∈A µa − E

[ T ∑

t=1

µat ]

5

SLIDE 14

poll (multi-armed bandits)

. . .

1

.

2

.

3

.

0.9

.

0.8

.

0.1

.

Action

.

Average Reward

Suppose action 1 was taken 20 times, action 2 was taken 10 times, and action 3 was taken once. Which action should we take next?

• Action 1
• Action 2
• Action 3
• Some distribution over the actions.

6

SLIDE 15

exploration vs. exploitation

• Exploration: Trying different actions to discover what's

good.

• Exploitation: Doing (exploiting) what we believe to be best.

7

SLIDE 16

explore-then-commit

• Explore-then-Commit: Take each action n times, then

commit to the action with the best sample average reward.

8

SLIDE 17

upper confidence bound (ucb) .

SLIDE 18

• ptimism in the face of uncertainty

. . .

1

.

2

.

3

. .

1

.

2

.

3

.

.

.

.

.

.

.

.

.

.

.

.

.

Action

.

Average Reward

After taking action 3 two more times and seeing 0.1 both times: . . . . .

1

.

2

.

3

. .

1

.

2

.

3

.

.

.

.

.

.

.

.

.

.

.

.

.

Action

.

Average Reward 9

SLIDE 19

• ptimism in the face of uncertainty

. . .

1

.

2

.

3

. .

1

.

2

.

3

.

.

.

.

.

.

.

.

.

.

.

.

.

Action

.

Average Reward

After taking action 3 two more times and seeing 0.1 both times: . . .

1

.

2

.

3

. .

1

.

2

.

3

.

.

.

.

.

.

.

.

.

.

.

.

.

Action

.

Average Reward 9

SLIDE 20

ucb1

UCB1 Algorithm:

• 1. Take each action once.
• 2. Take action

arg max

aj∈A

1 nj

nj

∑

i=1

rj,i + √ 2 ln(n) nj

• n is the total number of actions taken so far
• nj is the number of times we took aj
• rj,i is the reward from the ith time we took aj

10

SLIDE 21

thompson sampling .

SLIDE 22

thompson sampling

Thompson Sampling Algorithm: Choose actions according to the probability that we think they are best.

• Take action aj with probability

r aj max

a

r a P d

• Can just sample

according to P , and take maxa r a

11

SLIDE 23

thompson sampling

Thompson Sampling Algorithm: Choose actions according to the probability that we think they are best.

• Take action aj with probability

∫ I(E [ r|aj, θ ] = max

a∈A E [r|a, θ])P(θ|D)dθ

• Can just sample

according to P , and take maxa r a

11

SLIDE 24

thompson sampling

Thompson Sampling Algorithm: Choose actions according to the probability that we think they are best.

• Take action aj with probability

∫ I(E [ r|aj, θ ] = max

a∈A E [r|a, θ])P(θ|D)dθ

• Can just sample θ according to P(θ|D), and take

maxa∈A E [r|a, θ]

11

SLIDE 25

thompson sampling with beta prior

• Suppose each action aj gives rewards according to a

Bernoulli distribution with some unknown probability pj.

• Use Conjugate Prior (Beta Distribution):

P pj pj 1 pj

• After we take aj, if we see reward rj,

P pj rj P pj P rj pj pj 1 pj p

rj j 1

pj

1 rj

P pj rj p

rj j

1 pj

1 rj

• After any action the posterior distribution will be as

follows: P pj p

sj j

1 pj

fj 12

SLIDE 26

thompson sampling with beta prior

• Suppose each action aj gives rewards according to a

Bernoulli distribution with some unknown probability pj.

• Use Conjugate Prior (Beta Distribution):

P(pj|α, β) ∝ pα

j (1 − pj)β

• After we take aj, if we see reward rj,

P pj rj P pj P rj pj pj 1 pj p

rj j 1

pj

1 rj

P pj rj p

rj j

1 pj

1 rj

• After any action the posterior distribution will be as

follows: P pj p

sj j

1 pj

fj 12

SLIDE 27

thompson sampling with beta prior

• Suppose each action aj gives rewards according to a

Bernoulli distribution with some unknown probability pj.

• Use Conjugate Prior (Beta Distribution):

P(pj|α, β) ∝ pα

j (1 − pj)β

• After we take aj, if we see reward rj,

P(pj|α, β, rj) ∝ P(pj|α, β)P(rj|pj) ∝ pα

j (1 − pj)βp rj j (1 − pj)1−rj

P pj rj p

rj j

1 pj

1 rj

• After any action the posterior distribution will be as

follows: P pj p

sj j

1 pj

fj 12

SLIDE 28

thompson sampling with beta prior

• Suppose each action aj gives rewards according to a

Bernoulli distribution with some unknown probability pj.

• Use Conjugate Prior (Beta Distribution):

P(pj|α, β) ∝ pα

j (1 − pj)β

• After we take aj, if we see reward rj,

P(pj|α, β, rj) ∝ P(pj|α, β)P(rj|pj) ∝ pα

j (1 − pj)βp rj j (1 − pj)1−rj

P(pj|α, β, rj) ∝ p

α+rj j

(1 − pj)β+1−rj

• After any action the posterior distribution will be as

follows: P pj p

sj j

1 pj

fj 12

SLIDE 29

thompson sampling with beta prior

• Suppose each action aj gives rewards according to a

Bernoulli distribution with some unknown probability pj.

• Use Conjugate Prior (Beta Distribution):

P(pj|α, β) ∝ pα

j (1 − pj)β

• After we take aj, if we see reward rj,

P(pj|α, β, rj) ∝ P(pj|α, β)P(rj|pj) ∝ pα

j (1 − pj)βp rj j (1 − pj)1−rj

P(pj|α, β, rj) ∝ p

α+rj j

(1 − pj)β+1−rj

• After any action the posterior distribution will be as

follows: P(pj|D) ∝ p

α+sj j

(1 − pj)β+fj

12

SLIDE 30

thompson sampling with beta prior

Thompson Sampling Algorithm with Bernoulli Actions and Beta Prior:

• Sample p1, . . . , pK with probability

P(pj|D) ∝ p

α+sj j

(1 − pj)β+fj

• Choose arg maxaj∈A E

[ r|pj ] = pj

13

SLIDE 31

poll (thompson sampling)

How can we increase exploration using Thompson Sampling with Beta Prior?

• Choose a large α
• Choose a large β
• Choose an equally large α and β
• Beats me

14

SLIDE 32

example: axis

15

SLIDE 33

example: axis

16

SLIDE 34

example: axis

17

SLIDE 35

example: axis

18

SLIDE 36

What's missing?

19

SLIDE 37

contextual bandits .

SLIDE 38

linucb

• Obtain some context xt,a
• Assume linear payoff function:

E [rt,a|xt,a] = xT

t θa

• Solve for

a using linear regression, build confidence

intervals over the mean, and apply UCB.

20

SLIDE 39

linucb

• Obtain some context xt,a
• Assume linear payoff function:

E [rt,a|xt,a] = xT

t θa

• Solve for

a using linear regression, build confidence

intervals over the mean, and apply UCB.

20

SLIDE 40

linucb

• Obtain some context xt,a
• Assume linear payoff function:

E [rt,a|xt,a] = xT

t θa

• Solve for θa using linear regression, build confidence

intervals over the mean, and apply UCB.

20

SLIDE 41

thompson sampling with context

Thompson Sampling Algorithm with Context:

• Get context x
• Take action aj with probability

∫ I(E [ r|x, aj, θ ] = max

a∈A E [r|x, a, θ])P(θ|D)dθ

• Can just sample θ according to P(θ|D), and take

maxa∈A E [r|x, a, θ]

21

SLIDE 42

summary

• Multi-armed bandits can help decide what instructional

activities to give to students.

• Saw a frequentist (UCB) and Bayesian (Thompson

Sampling) algorithm for multi-armed bandits.

• Contextual bandits can help personalize decisions for

students and reinforcement learning can help make adaptive decisions for students.

22
