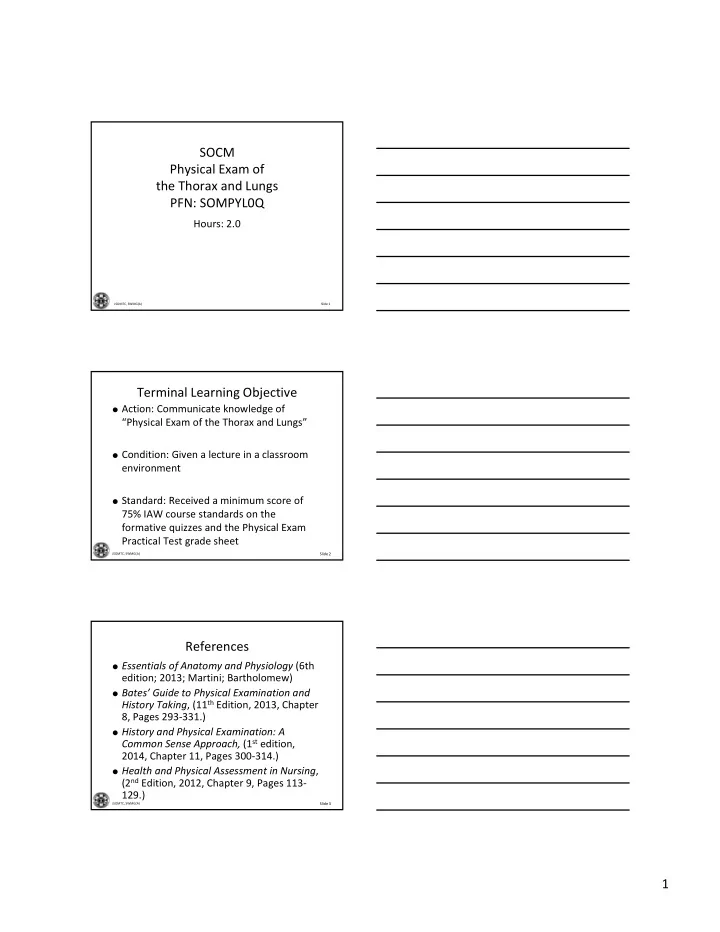

Slide 1 JSOMTC, SWMG(A)

SOCM Physical Exam of the Thorax and Lungs PFN: SOMPYL0Q

Hours: 2.0

Slide 2

JSOMTC, SWMG(A)

Terminal Learning Objective

 Action: Communicate knowledge of

“Physical Exam of the Thorax and Lungs”

 Condition: Given a lecture in a classroom

environment

 Standard: Received a minimum score of

75% IAW course standards on the formative quizzes and the Physical Exam Practical Test grade sheet

Slide 3

JSOMTC, SWMG(A)

References

 Essentials of Anatomy and Physiology (6th

edition; 2013; Martini; Bartholomew)

 Bates’ Guide to Physical Examination and

History Taking, (11th Edition, 2013, Chapter 8, Pages 293‐331.)

 History and Physical Examination: A

Common Sense Approach, (1st edition, 2014, Chapter 11, Pages 300‐314.)

 Health and Physical Assessment in Nursing,

(2nd Edition, 2012, Chapter 9, Pages 113‐ 129.)

2

Slide 4

JSOMTC, SWMG(A)

Reason

As a SOF Medic your ability to understand and perform a thorax and lung physical exam is essential for the proper diagnosis and treatment of common respiratory

• complaints. Your objective as a provider

should be, at a minimum, to conduct a brief chest and lung PE of every patient you see.

Slide 5

JSOMTC, SWMG(A)

Agenda

 Define the key terms related to the physical

exam of the thorax and lungs

 Communicate the exam techniques during

a thorax and lungs examination

 Communicate how to record thorax and

lungs exam findings

Slide 6 JSOMTC, SWMG(A)

The Key Terms Related to the Physical Exam of the Thorax and Lungs

3

Slide 7

JSOMTC, SWMG(A)

Key Terms

 Dyspnea: difficult or labored breathing;

shortness of breath

 Cough: a reflex response to stimuli that

irritate receptors in the larynx, trachea, or large bronchi

 Hemoptysis: the expectoration of blood (or

• f blood‐stained sputum) from the bronchi,

larynx, trachea, or lungs

Slide 8

JSOMTC, SWMG(A)

Key Terms

 Paresthesia: an abnormal or unusual

sensation with no apparent physical cause

 Flail chest: paradoxical movement of the

chest wall, resulting from a fracture of 3 or more ribs in two locations each

Slide 9

JSOMTC, SWMG(A)

 Ventilation (breathing): physical

movement of air into and out of the lungs

Key Terms related to Anatomy and Physiology

4

Slide 10

JSOMTC, SWMG(A)

Key Terms

 Respiration (gas exchange): diffusion of

gases either between the alveoli and pulmonary capillaries (external respiration)

• r between capillaries and other body

tissues (internal respiration)

Slide 11

JSOMTC, SWMG(A)

Key Terms

 Tactile Fremitus: refers to the palpable

vibrations felt on the human body during phonation

 Lung Resonance: on percussion the note‐

like sounds that are measured by intensity, pitch, and duration in order to objectively determine the lungs’ volume of air

Slide 12

JSOMTC, SWMG(A)

Key Terms related to Anatomy and Physiology

5

Slide 13

JSOMTC, SWMG(A)

Key Terms related to Anatomy and Physiology

Slide 14

JSOMTC, SWMG(A)

Key Terms related to Anatomy and Physiology

Slide 15

JSOMTC, SWMG(A)

 The carina

• The bifurcation of the

trachea into the primary bronchi

• Located at
• Sternal‐angle

anteriorly

• T4 spinous process

posteriorly

Key Terms related to Anatomy and Physiology

6

Slide 16

JSOMTC, SWMG(A)

Key Terms related to Anatomy and Physiology

Slide 17

JSOMTC, SWMG(A)

 Muscles of ventilation

• The diaphragm
• The primary muscle of inspiration
• Works in conjunction with external intercostal

muscles to perform inspiration

Key Terms related to Anatomy and Physiology

Slide 18

JSOMTC, SWMG(A)

 The diaphragm

• Origin
• Sternal ‐ posterior

aspect of xiphoid

• Lateral ‐ inner aspect of

ribs 4‐10

• Vertebral ‐ anterior

aspect of L1‐L2 (left) and L1‐L3 (right)

• Insertion
• Central tendon
• Innervation
• Phrenic N. (C3 ‐ C5)
• Motor and sensory

Key Terms related to Anatomy and Physiology

7

Slide 19

JSOMTC, SWMG(A)

 Breathing (cont’d)

• Accessory muscles
• Sternocleidomastoid
• Scalene
• Pectoralis minor
• Internal intercostal
• Rectus abdominis
• Transverse thoracis

Key Terms related to Anatomy and Physiology

Slide 20

JSOMTC, SWMG(A)

Common or Concerning Symptoms related to the PE of Thorax

 Chest Pain  Dyspnea (Shortness of

Breath)

 Wheezing  Cough  Hemoptysis

Slide 21

JSOMTC, SWMG(A)

 Chest Pain

• Numerous causes (e.g., pericarditis, bronchitis,

pleuritis, or chest wall trauma)

• Start with broad questions "Do you have any pain
• r discomfort in your chest?"
• Start to narrow in with questions about dyspnea,

coughing, and wheezing

• Also ask questions about pain on respirations,

exertion, palpitations, and edema

• Consider also conducting a cardiovascular

exam history

Common or Concerning Symptoms related to the PE of Thorax

8

Slide 22

JSOMTC, SWMG(A)

 Dyspnea‐ Difficult or

labored breathing

• Ask about timing

(e.g., at rest or during exertion)

• How has this affected

activities of daily living

• Always consider both

respiratory and cardiovascular origin

Common or Concerning Symptoms related to the PE of Thorax

Slide 23

JSOMTC, SWMG(A)

 Wheezing

• High pitch, musical

sound

• Caused by a restriction
• f the lower airways
• Secretions
• Inflammation of the

airway

• Foreign body
• Prolonged expiratory

phase

Common or Concerning Symptoms related to the PE of Thorax

Slide 24

JSOMTC, SWMG(A)

 Cough

• Reflex to irritation of

the larynx, trachea, or large bronchi

• Causes range from

benign to lethal (e.g., inflammation of respiratory mucosa or left‐sided heart failure)

• Should investigate

respiratory and possible cardiovascular causes

Common or Concerning Symptoms related to the PE of Thorax

9

Slide 25

JSOMTC, SWMG(A)

 Hemoptysis

• May vary from blood‐

streaked sputum to frank blood

• Try to determine

source of bleeding with history and physical exam

Common or Concerning Symptoms related to the PE of Thorax

Slide 26 JSOMTC, SWMG(A)

The Exam Techniques Used During a Thorax and Lungs Examination

Slide 27

JSOMTC, SWMG(A)

Examination Techniques

 General techniques

• Allow the patient to take a position of comfort
• If conscious, then allowing to the patient to sit up,

takes the pressure of the abdominal contents off the diaphragm

• If unconscious, rolling to patient to the side allows

you to examine the posterior

• Always compare one side of the thorax with

the other

• Proceed in an orderly fashion: inspect,

auscultate, palpate, and percuss (IAPP)

10

Slide 28

JSOMTC, SWMG(A)

Examination Techniques

 Inspect the anterior and posterior thorax

• Observe patient’s respiratory effort
• Respiratory vital signs:
• Rate ‐ normally 12‐20 breaths per min.
• Rhythm ‐ regular vs. irregular
• Depth ‐ deep vs. shallow
• Effort ‐ amount of work to breath
• Other signs of respiratory distress
• Inspect skin
• Color, scars, lesions, or moles
• Signs of trauma

Slide 29

JSOMTC, SWMG(A)

Examination Techniques

 Inspect the anterior and posterior thorax

(cont'd)

• Inspect for skeletal symmetry and bilateral rise

and fall of chest

• Inspect musculoskeletal development
• Inspect spinal alignment and posture
• Atrophy
• Signs of increased accessory muscle use

Slide 30

JSOMTC, SWMG(A)

 Irregular respiratory patterns

• Bradypnea: slow breathing

Examination Techniques

11

Slide 31

JSOMTC, SWMG(A)

 Irregular respiratory patterns

• Sighing respiration: characterized by periods
• f normal breathing punctuated by a single,

deep breath or sigh

Examination Techniques

Slide 32

JSOMTC, SWMG(A)

 Irregular respiratory patterns

• Tachypnea: rapid, shallow breathing

Examination Techniques

Slide 33

JSOMTC, SWMG(A)

Flail chest and respiratory distress

12

Slide 34

JSOMTC, SWMG(A)

 Irregular respiratory patterns

• Cheyne‐Stokes breathing: characterized by

periods of deep breathing, alternating with apnea

Examination Techniques

Slide 35

JSOMTC, SWMG(A)

Cheyne‐Stokes breathing

Slide 36

JSOMTC, SWMG(A)

 Irregular respiratory patterns

 Hyperpnea (hyperventilation): rapid deep

breathing

Examination Techniques

13

Slide 37

JSOMTC, SWMG(A)

Kussmaul breathing

Slide 38

JSOMTC, SWMG(A)

 Irregular respiratory patterns

• Ataxic breathing (Biot's breathing): breathing

which is unpredictable irregular and without pattern

Examination Techniques

Slide 39

JSOMTC, SWMG(A)

Examination Techniques

 Auscultate 6 fields on the anterior and

posterior

• Listen to the breath sounds with the

diaphragm of a stethoscope after instructing the patient to breathe deeply at a normal rate through an open mouth (head turned away)

• Listen for any adventitious sounds
• Use a pattern moving from one side to the
• ther
• Always keep anatomy and position of the

stethoscope in mind!

14

Slide 40

JSOMTC, SWMG(A)

Examination Techniques

Slide 41

JSOMTC, SWMG(A)

Examination Techniques

Slide 42

JSOMTC, SWMG(A)

 Normal breath sounds

• Vesicular:
• Soft and low pitched; usually heard over

most of both lungs

• Bronchial:
• Louder and higher in pitch; usually

heard over the manubrium

• Bronchovesicular:
• Intermediate intensity and pitch
• Usually heard over the 1st and 2nd

interspaces

Examination Techniques

15

Slide 43

JSOMTC, SWMG(A)

 Adventitious (added) sounds:

• Crackles (rales): intermittent and brief

explosive breath sounds

• Produced by rapid opening of small airways and

alveoli collapsed by fluid or exudate

• Note:
• Loudness, pitch, and duration
• Number and timing in the respiratory cycle
• Location on chest wall and persistence of the

pattern

• Any change after a cough or change in pt.'s

position

 Download from:

Examination Techniques

Slide 44

JSOMTC, SWMG(A)

 Adventitious (added) sounds (cont'd):

• Rhonchi: coarse, low pitched, continuous

sounds with a snoring‐like quality

• Produced due to secretions in the bronchial airways
• Note:
• Timing and location
• If they change with deep breathing or coughing

Examination Techniques

Slide 45

JSOMTC, SWMG(A)

 Adventitious (added) sounds (cont'd):

• Wheezes: a high pitched, whistling sound
• Produced by constriction or obstruction of the

lower airways during respiration

• Note:
• Timing and location
• If they change with deep breathing or coughing

Examination Techniques

16

Slide 46

JSOMTC, SWMG(A)

 Obstructive breathing: impeded breathing

due to restricted airways

Examination Techniques

Slide 47

JSOMTC, SWMG(A)

 Adventitious (added) sounds (cont'd):

Stridor: high pitched sound often heard without the aid of a stethoscope

• Produced by obstruction or stenosis (narrowing) of

the epiglottis or trachea

• Note timing:
• Inhalation
• Exhalation

Examination Techniques

Slide 48

JSOMTC, SWMG(A)

 Adventitious (added) sounds (cont'd):

• Pleural friction rubs: harsh scratching or

crinkling sound

• Produced by inflamed visceral and parietal pleura

rubbing together; also known as "pleuritis" or "pleurisy"

Examination Techniques

17

Slide 49

JSOMTC, SWMG(A)

Examination Techniques

 Palpate (anterior and posterior” and

“bilateral”) chest for:

• Stability
• Crepitus
• Tenderness
• Squeeze palms on the sternum and thoracic spine
• Rule out fracture vs. soft tissue injury

Slide 50

JSOMTC, SWMG(A)

Examination Techniques

 Palpate thoracic expansion (back)

Slide 51

JSOMTC, SWMG(A)

Examination Techniques

 Palpate tactile fremitus (front and back)

18

Slide 52

JSOMTC, SWMG(A)

Examination Techniques

 Percussion

• Locate intercostal space to be assessed
• Place middle finger between ribs parallel with

intercostal space

• Strike using the tip of your tapping finger, onto

the DIP of the middle finger of your non‐ dominate hand

• Use the lightest percussion that produces a

clear note

• Percuss symmetrically for resonance (front and

back)

Slide 53

JSOMTC, SWMG(A)

Examination Techniques

 Percussion (cont'd)

• Perform from side to side to assess for

asymmetry using a "ladder" pattern

• Percussion helps establish whether the

underlying tissues (5‐7 cm deep) are air‐filled, fluid‐filled, or solid

Slide 54

JSOMTC, SWMG(A)

Examination Techniques

19

Slide 55

JSOMTC, SWMG(A)

Examination Techniques

 Percussion (cont’d)

• Percussion notes
• Flatness, dullness, resonance, hyperresonance,

tympany

• Estimate the extent of diaphragmatic excursion

Slide 56

JSOMTC, SWMG(A)

Examination Techniques

Relative Intensity Relative Pitch Relative Duration Example of Location Pathologic Examples Flatness Soft High Short Thigh Large pleural effusion Dullness Medium Medium Medium Liver Lobar pneumonia Resonance Loud Low Long Healthy lung Simple chronic bronchitis Hyper- resonance Very loud Lower Longer Usually none COPD, pneumothora x Tympany Loud High*

*

Gastric air bubble or puffed-out cheek Large pneumothora x

* Distinguished mainly by its musical timbre. Slide 57

JSOMTC, SWMG(A)

Examination Techniques

20

Slide 58

JSOMTC, SWMG(A)

Special Techniques

 Clinical assessment of

pulmonary function

• Inspect AP:Lateral

Ratio

• Measure depth of chest

anterior to posterior (AP) at nipple line

• Measure width of chest

at nipple line (Lateral)

• Normal ratio is

between 1.5: and 2:1

Slide 59

JSOMTC, SWMG(A)

Special Techniques

 Clinical assessment of basic pulmonary

function

• “Walk Test”
• 8 feet at patient’s pace
• Repeat test
• Note faster time
• Norm: 3.1 seconds
• Observe patient’s
• Rate
• Effort
• Breathing sounds

Slide 60

JSOMTC, SWMG(A)

Special Techniques

 Clinical assessment of

pulmonary function

 If you suspect

consolidation on auscultation then:

• Bronchophony
• "Toy Boat"
• Egophony
• "EEEEE"…"EEEEEE"
• Whispered

pectoriloquy

• Whisper "1,2,3"

21

Slide 61

JSOMTC, SWMG(A)

Special Techniques

 Clinical assessment of pulmonary function

• Forced expiratory time
• Test for COPD
• Maximal expiratory exertion
• Patient takes in deep breath
• Use diaphragm of stethoscope over trachea
• Time duration of audible expiration
• Get 3 readings
• Norm: Less the 5 sec.
• Pathologic: 6 sec. or longer

Slide 62

JSOMTC, SWMG(A)

Radiological Findings

Slide 63

JSOMTC, SWMG(A)

Radiological Findings

22

Slide 64

JSOMTC, SWMG(A)

Radiological Findings

Slide 65

JSOMTC, SWMG(A)

Radiological Findings

Slide 66

JSOMTC, SWMG(A)

Radiological Findings

23

Slide 67

JSOMTC, SWMG(A)

Radiological Findings

Slide 68 JSOMTC, SWMG(A)

How to Record Thorax and Lungs Exam Findings

Slide 69

JSOMTC, SWMG(A)

Recording Your Findings

 SF 600

• Chest:
• Inspection:
• Thorax is symmetric with good expansion. No

signs of trauma.

• Auscultation:
• Bilateral breath sounds, clear to auscultation
• ver six fields, no adventitious sounds.
• Palpation:
• Chest walls intact. No grimace.
• Percussion: Lungs are normoresonant

24

Slide 70

JSOMTC, SWMG(A)

Questions

Slide 71

JSOMTC, SWMG(A)

Terminal Learning Objective

 Action: Communicate knowledge of

“Physical Exam of the Thorax and Lungs”

 Condition: Given a lecture in a classroom

environment

 Standard: Received a minimum score of

75% on the written exam IAW course standards

Slide 72

JSOMTC, SWMG(A)

Agenda

 Define the key terms related to the physical

exam of the thorax and lungs

 Communicate the exam techniques during

a thorax and lungs examination

 Communicate how to record thorax and

lungs exam findings

25

Slide 73

JSOMTC, SWMG(A)

Reason

As a SOF Medic your ability to understand and perform a thorax and lung physical exam is essential for the proper diagnosis and treatment of common respiratory

• complaints. Your objective as a provider

should be, at a minimum, to conduct a brief chest and lung PE of every patient you see.

Slide 74

JSOMTC, SWMG(A)

BREAK
