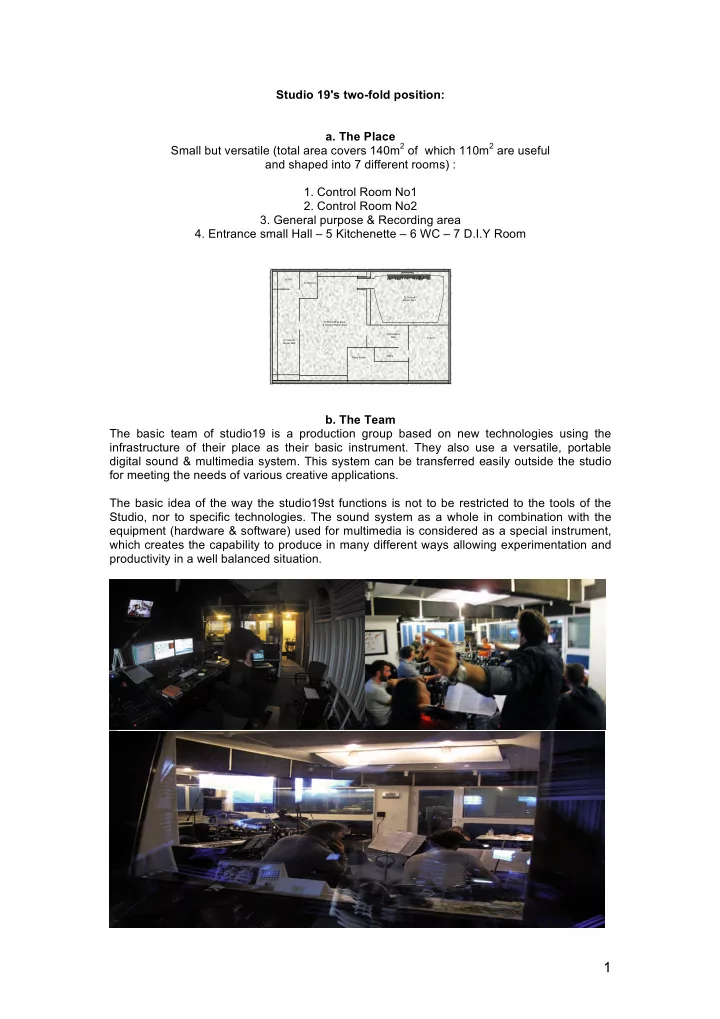

Studio 19's two-fold position:

• a. The Place

Small but versatile (total area covers 140m2 of which 110m2 are useful and shaped into 7 different rooms) :

• 1. Control Room No1
• 2. Control Room No2
• 3. General purpose & Recording area
• 4. Entrance small Hall – 5 Kitchenette – 6 WC – 7 D.I.Y Room

Store Room Stairs 7) D.I.Y. 4) Entrance Hall 1) Control Room No1 2) Control Room Νο2 6) WC 5) Kitchen 3) Recording area & Control Room No3

• b. The Team

The basic team of studio19 is a production group based on new technologies using the infrastructure of their place as their basic instrument. They also use a versatile, portable digital sound & multimedia system. This system can be transferred easily outside the studio for meeting the needs of various creative applications. The basic idea of the way the studio19st functions is not to be restricted to the tools of the Studio, nor to specific technologies. The sound system as a whole in combination with the equipment (hardware & software) used for multimedia is considered as a special instrument, which creates the capability to produce in many different ways allowing experimentation and productivity in a well balanced situation.

2

Basic description Practically there are three totally independent-parallel workspaces, based on digital workstations with multi-level orientation of applications. Control Room No1 is mainly

• rientated towards music and sound production for several uses. Control Room No2 is mainly
• rientated to Digital Video in co-operation with the "creative production of sound" and multi-
• media. Room No3 is mainly orientated for the use of recording from the two control rooms as

well as the installation of the portable digital sound system, which converts it into a fully functional Project Studio (& Control Room). This room can be used of course for special audio & multimedia-installations rehearsals.

Store Room D.I.Y. 4) Entrance 1) Control Room No1 2) Control Room No2 6) WC 5) Kitchen 3) Recording area & Control Room No3

…..

Control Room No1 Control Room No2 Recording area &Control Room No3 3 working spaces music & sound production for various projects Δωµάτιο ελέγχου Νο2 Digital Audio-Video (creative image & sound production for multimedia) Recordings (from the two control rooms) & Place for the digital mobile system which is also a full production project

3

Studio 19 GENERAL DESCRIPTIONS Various workstations are in different rooms, which communicate in various ways. for this reason four different intranets were set up: 1st Computer Net - 2nd Audio Net - 3rd Midi Net - 4rth Speakers Net Digital Audio Workstations & Recording system Digital Workstations

6) WC Digital Audio Mixer YAMAHA 01V with MY8-AT (24-8-2) Digital Audio Mixer with digital audio interfaces (24-8-2) Analog Mixer Soundcraft Spirit 30-4(+4)-2

studio19

3.1.1 Recording system 1)Control Room No1 3) Recording 2)Control Room No2

2 Mac workstations based on

Logic Audio

1 Desktop PC based on Cubase & Nuento 7) ÅñãáóôÞñéï 1)Control Room No1 6) WC 3) Recording Digital Audio Mixer YAMAHA 01V with MY8-AT (24-8-2)

Studio 19

3.1.2 Digital Workstations Video Digital Station

multimedia digital workstations 1 Desktop PC for multimedia

Digital Audio Mixer with digital audio interfaces (24-8-2)

2 Mac workstations based on

Logic Audio

1 Desktop PC workstation based on Cubase & Nuento 2 Mac workstations based on

Finalcut suite

2 digital Mac workstations Laptop PC Server Multimedia Hard Disks 1 digital PC Laptop workstation

portable digital sound & multimedia system

4

Audio Net - Main description

The sound system of the space consists of three different systems located in rooms No1, No2 & No3. These systems function either autonomously or in combination. There is acoustic communication among the four basic places. These systems are based on three different mix systems.

Studio19 Audio Net Basic Plans

Καυστήρας Σκάλα 7) Εργαστήριο 4) Χώρος υποδοχής 1) Δωµάτιο ελέγχου Νο1 2) Δωµάτιο ελέγχου Νο2 6) WC 5) Κουζίνα 3) Χώρος εργασίας &ηχογραφήσεων.

Καυστήρας Σκάλα 7) Εργαστήριο 4) Χώρος υποδοχής 1) Δωµάτιο ελέγχου Νο1 2) Δωµάτιο ελέγχου Νο2 6) WC 5) Κουζίνα 3) Χώρος εργασίας &ηχογραφήσεων.

Control Room No1 Sound System 1)Stereo 2) 8phonic 3) Surround Control Room No2 Sound System Control Room No3 Sound System 1)Stereo 4 Stereo lines 4 Stereo lines 2 Stereo lines 24 Balanced Lines (12 Mic) (12 Lines) 48 Balanced Lines (24 Mic) (24 Lines) 4 Stereo lines 6 Balanced Lines (2 Mic) (4 Lines)

5

Studio19 MIDI Net The MIDI system consists of three different systems located in rooms No1, No2 & No3. These systems function either autonomously or in combination. There is communication among the Three basic places. MIDI System - Control Room Νο1 Basic communication withMIDI programmable Patch bays & 2 MIDI Panels 1) AKAI ME30 (4 IN-8 OUT), 3) MIDI Patch Panel P.B.(1β) (Χ16) 4) MIDI Patch Panel P.B.(1γ) (Χ16) MIDI Interface : 1) Emagic MT4 2) (Optional)USB MIDI Interface For Mac MIDI Syncronization: 1) XRI XR300 SMPTE to MIDI Syncronizer 2) DATAMASTER (Optional) ADAT MIDI Syncronizer 3) UNITOR 8 (Optional) MIDI interface & Syncronizer

Καυστήρας Σκάλα 7) Εργαστήριο 4) Χώρος υποδοχής 1) Δωµάτιο ελέγχου Νο1 2) Δωµάτιο ελέγχου Νο2 6) WC 5) Κουζίνα 3) Χώρος εργασίας &ηχογραφήσεων.

¡

2 MIDI LINES 4 MIDI LINES 8 MIDI LINES 2 MIDI LINES 2 MIDI LINES 16 MIDI LINES

6

Studio19 Speakers Net

The total area is covered with 35 speaker lines. These lines can be used in a lot of different ways.& cover rooms Νο1, Νο2, Νο3, Νο4. One of the goals of s this system is making models for sound

• installations. We can examine the system by deviding it in three levels. 1st level : communication points

& lines, 2nd level: Sources(Speakers), 3rd level: amplification systems. a. 1) communication points & lines (X35): 1. =Control room Νο1 with 11 points-lines suports stereo, various surround systems & multi-phonic(Χ8).systems 2. = Control room Νο2 with 7 points-lines suports stereo, various surround systems 3. = Control room Νο3 with points-lines suports stereo, various surround systems & multi-phonic(Χ8).systems, Speakers (Χ26) 4. = Room Νο4 with 2 lines b. 2) Sources(Speakers), (X26): 1. = Control room Νο1 with 8 speakers. AMR PRM10 Main Monitors X2, DAS Factor 5 small monitors X2, HiFi Pioneer X2, HiFi Sony X2 or Absolute Zero Soundcraft Near field monitors(optional) 2. = Control room Νο2 withι 8 speakers. Absolute Zero Soundcraft Near field monitors, Yamaha small self- Powered computer speakers X4, Fostex 6301B small self- Powered computer speakers X2 3. = Room Νο3 with 12 speakers. Absolute Zero Soundcraft Near field monitors, Beyma PA speakers X2, Sony Subwoofer SA-V305G, Sony SSv305 X4, Sony SSCN305 X1, Philips HiFi speakers X2 c. 3) amplification systems (Χ6+4 self-powered) – different amplification lines (X22): 1. = Control room Νο1 with 4 stereo amplifier(8 ampl.lines) 2. = Control room Νο2 with 1 Surround amplifier (5 ampl.lines), and 6 self amplif. speakers( total 11 ampl.lines). 3. = Room Νο3 with self amplif Subwoofer 4. =Room Νο4 with 1 PA stereo amplifier (2 ampl.lines),mainly used for monitor in room No2

bk Yamaha Amp MX-70 Pioneer SA620 HiFiAmp Luxman L-2 HiFiAmp TK HiFiAmp Crown Amp CSL 460 Spl 2 Spl 1 Spl 19 Spl 3 Spl 13 Spl 15 Spl 16 Spl 18 Spl 17 Spl 6 Spl 5 Spl 7 Spl 9 Spl 8 Spl 10 Spl 11 Spl 12 f f Spl 22 Spl 23 Spl 25 Spl 24 Spl 26 Spl 27 Spl 30 Spl 31 Spl 35 Spl 36 Spl 32 Spl 34 Spl 33 Spl 29 Spl 28 Spl 21 bk Spl 4 Spl 14

Studio19

3.5.2 Loudspeaker system

ÊáõóôÞñáò 6) WC 5) Êïõæßíá Philips HiFi Speaker SONY SS-CN305 SONY SA-V305G Subwoofer SONY SS-V305 SONY SS-V305 SONY SS-V305 Fostex Self-Powered 6301B Yamaha Self-Powered YST-M10 Yamaha Self-Powered SONY AV Amp STR-DB930 SpL-1 SpL-12 SpL-7 C-(L) C-(R) A-(L) A-(R) B-(R) B-(L) SpL-2 SpL-4 SpL-5 SpL-5 SpL-6 B-(R) B-(L) SpL-14 SpL-13 A-(L) A-(R) SpL-16 SpL-15 A-(L) A-(R) A-(R) A-(L) SpL-18 SpL-17 SpL-19 HiFi Area SpL-8 SpL-9 SpL-10 SpL-11 SpL-28 SpL-29 A-(R) A-(L) SpL-22 SpL-21 A-(L) A-(R) SpL-23 A-(C) A-(RR) SpL-24 A-(RL) B-(L) B-(R) SpL-36 SpL-35 SONY AV Amp STR- DB930 (Sw) A-(RL) A-(RR) Sony Amp Area SpL-27 SpL-26 19-8-11-9-10 Spl 29 Spl 28

7

Sound system of control room No1 The sound system of control room No1 is the main system for sound control in Studio 19. Its design and its construction meet the specifications required for providing optimal conditions for auditions even on a 24 hour basis. The soundproofing construction (room-into-room construction) allows loud auditions even at late hours. Its acoustics provide good conditions for sound engineering & for mixing sound materials. The main design for the tasks that can be carried out, comprises all activities besides the standart ones i.e. sound engineering, montage, mix and mastering. Therefore, it can be used as a project studio and as search & development lab in various sound applications. The basic idea of the way the space functions is not to be restricted on the tools of the Studio, nor on specific technologies. The sound system as a whole is considered as musical multi- instrument providing the opportunity of creating in many and different ways sounds-music. The basic aim of design regarding the production of sound is to comprise as many different ways as possible as well as working techniques.

Studio 19

Control Room No14.1.3

Speaker System

4cm=1m27-2-2001

Rack No1 Rack No2 P.B. 1(a) HiFi Rack

Korg Analog Synths AMR PRM Series (L) AMR PRM Series (R) Soundcraft Absolute Zero Optional Das Factor5 Das Factor5 SONY Center SS-CN305 Optional Pioneer HiFi speakers SONY Subwoofer SA-W305G Optional Soundcraft Absolute Zero Optional Soundcraft Absolute Zero Optional Soundcraft Absolute Zero Optional Pioneer HiFi speakers Pioneer HiFi AmpSA620 Luxmanr HiFi Amp L2 TK HiFi Amp L2 Philips HiFi speakers BEYMA P.A.speakers Philips HiFi speakers Yamaha Final Amp MX70 C-(R) C-(L) A-(L) A-(R) B-(R) B-(L) A-(L) A-(R) A-(R) A-(L) B-(L) B-(R) A-(R) A-(L)

8

Studio 19-Control

Room No1

Sound Synthesis sections

Rack No1 Rack No2 HiFi Rack

Korg MODULAR Analog Synth System MS Open Reel(X2) Recorders YAMAHA Digital Mixer 01V MIDI KEYBOARD Yamaha SPX90 Effects proc. Roland DEP-5 Effects proc. Peavey Autograph MIDI EQ -L Peavey Autograph MIDI EQ -R

P.B. 1(a) ANALOG SYNTHESIS AREA DIGITAL SYNTHESIS Basic AREA Sound Control & MIXING AREA

DIGITAL SYNTHESIS AREA(2)

Analog tape recorders Analog Synths Digital Recording Analog & Digital mix

9

Control Room No2 Video & Multimedia system In this room is placed the intranet-internet equipment: Server,ISDN Router,modem,fast ethernet switch,Lan P.B. Four computers: One Main PC, two Apple computers and one server PC. Digital Video Station:Based on Apple Mac with USB & Firewire ports, Monitors, with PCI card transcoder “Digital Media Press” witch converts DV to MPEG2 & MPEG2 to DV with firewire I/O & high speed transfers. Two video decks:JVC HR DVS1(double player with DV-SVHS-VHS format) & JVC HR8500 Two digital video cameras JVC DV1(mini DV) & Sony digital Hi8 One DVD Player Pioneer DV-626D with Dolby digital & Dts decoder (96kHz-24bit convertor) One Audio-Video Sony Amplifier with multi channel-surround decoder & digital sound processing Two Syncronizers: Unitor 8 (with LTC,VITC.MIDI Sync) & dataMaster (ADAT-MIDI-LTC Sync) Multichannel Audio Systems:ADAT(8track) One DAT audio DAP-1 Tascam,Cassete recorder Teac V377 Analog Mixer (20-4(+4)-2) Mac Software:Final cut, Premier,imovie,Media cleaner,Digital Media Press,iDVD,Final Cut Pro,DVD Studio Pro Main PC Multimedia station:Web Deesign,Flash,Dream weaver,Fireworks,Photoshop,Ilustrator,Director Sound System of Control Room No2 The sound system of control room No2 can function autonomously like a control room based

• n a digital workstation Mac (or PC) with an analog sound console. Its basic use is

multimedia production in relation to sound. The overall design for the tasks that can be carried out includes tasks besides the standard ones. It can also be used as a project studio in various designs in combination with multimedia and video. The existing equipment supports basically the digital sound technology. The space communicates in terms of sound with control room No1 and No2 allowing the use of other sound systems, which are not in the same space. There is also the possibility to monitor the sound of this system in control room No1, which has good acoustics. Besides the digital workstation in Mac there are two more computer systems, which can either autonomously or in combination function like Digital Audio work stations (DAW). The

• ne system is based on the main PC of sound and another Mac.

The basic idea of the way the space functions is not to be restricted to the tools of the Studio, nor to specific technologies. The sound system as a whole in combination with the equipment used for digital video is considered as a multi-media instrument, which creates the capability to produce in many different ways material for providing the opportunity of creating complex materials –audio & video- which their synthesis allows experimentation and more specific results.

10

Room No3 This space is used for different working tasks: Recordings from both control rooms (1&2),monitor of image and sound (surround),working tasks in the portable sound system, which are located in this space, rehearsals, trials. In this room there is a big tv set and a video projector used for video monitor. There is also a series of loud speakers (X12) for different uses. There are also storage spaces and there has been an effort, after the last reconstruction, to enhance the acoustics with the addition of a series of mobile panels, which on the one side are reflexive and on the other hand

• soundproofing. There are also from previous constructions, pending roof panels, which can

be placed in any place of the room to create soundproofing areas. There is also a special place and infrastructure for the installation of the portable sound

• system. This consists of a working place from the one side of the room, on which the system

can be installed both physically and electronically, creating a "light" control room. This room can be used for recording purposes, using as a recording room control room No1 &N4. Furthermore, it can be used as a project studio, for pre-production or in combination with the rest of the spaces as it communicates in terms of sound, electronically and through the local intranet.

11

Studio 19 Portable system of sound (or Studio 19 Sound Projection System) This system could be described as a portable multi-instrument which can be used for the production and execution of sound installations-performances-concerts. This system is classified in two Modes 1) Mode of creation of sounds and syntheses. 2) Mode of "Installation" & performance of materials - "live" in public places. Basically, it could be said that this means the communication of Studio19 production line with performance spaces. The materialization of this plan is based on new technologies which give us the

• pportunity to design a "light", versatile & portable system of relatively low cost, which

can be combined with other systems, too, either in concerts or in installations or in external recordings, or even like a small portable studio, which can undertake a whole production on its own. This idea of course is not limited in the various tools it consists of, nor of particular tech’ but on the possibility of utilising capabilities in combination with knowledge and clear perception of purpose and goals.

Studio19 4.4.2(Plan No1) Sound Projection System

Digital Audio Mixer YAMAHA 01V96 with MY8-AT (40-32-2) MOTU 2408 mkII I/O (×24) Mobile Digital Audio Workstation 16 +8+8=32 analog inputs + 8+8 Optical+4 SPDIF digital inputs=12+8 digital inputs 22 Analog Outs ADAT Digital (X8) Optional Optical (X8) In/Out Optical (X8) In/Out Analog Signal processors Pedals Chorus Delay Flanger Distortion Wah

Amplification system: 22 analog output Lines

Six Trak Synth MIDI KEYBOARD UNITOR 8 8X8 Midi interface LTC-VITC Syncro Click Input Rythm folower (optional) MT4 2X4 Midi interface PC16 Midi Controller Optional 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Inputs (X8) Inputs (X8) SERWOOD Double CD player MIDI Keyboard controller KORG MS ANALOG MODULAR SYNTH SYSTEM MS03 MS10 MS20 MS50 BX800 MIXER(8-2) Panasonic Mobile CD Player Panasonic Mobile CD Player Inputs (X16) DAP-1 Dat Portable Optional Video Player Optional LTC-VITC RYTHM Audio Audio Input to the System Input to the System Kaos Pad Dynamic Midi Effect/ Controller Audio Digital Firewire interfaces 2 Mac Laptops PC Laptop

12

LAN Description-Aims The local intranet has the following features: high speed, single protocol, availability so that users have the following options: deconcentrated work environment with alternative use of workstations and versatility in moving work tasks and resources which are not in a specific

• workstation. The intranet supports up to 16 computers, today there is 1 server and 6

workstations. Specifications

Net topology: Star-Ethernet Specifications: IEEE 802.3 10/100/1000Base-T Net cabling: F/STP Cat5e (enhanced) Net Protocol: TCP/IP, Apple Talk Net Speed: 10/100/1000Mbps/sec Net Type: Basic: Server – Client Windows & Mac OSX advanced Server v.4 (Server-to-many PCs/Mac's Secondary: Peer-to-peer (Mac-to-Mac, PC-to-PC)

INTERNET – INTRANET Taking into consideration the new data in the telecommunications field and the need for more direct and frequent contact, the inter-linking of the Local Net with the Internet was designed, focusing on the new trends and developments in our field, and on the improvement of the communication with the clients of the Studio.

Description: 1(+1) routers were installed, which take up one of the workplaces and functions as a portal with the users (multiple access) with the external environment (WEB sites, e-mail, FTP, audio-video broadcasting, …), allowing, thus, the access to authorized or non external users to the local server.

Specifications: Type: ROUTER with incorporated Modem Ethernet: 10/100/1000 Base-T Protocol: TCP/IP Modem Type: ISDN Router #3COM D-Link Wireless system

LAN connection – internet – intranet – Digital Media General Plan No3

1 2 3 4 5 6 7 8

8 Port Ethernet Switch

Studio 19 3.2.4 LAN

CABLES !"#$%&$'( %)*+,-.

ÊáõóôÞñáò CR2 6) WC 5) Êïõæßíá CR11

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

LAN P.B. LAN Outlets p4 p5 MAIN PC p7 p8 p9 p10 G4(450) p11 PPC100 p12 p13 p14 p15 p16

SERVER RACK

Quadra p2 Test PC p3 14 12 13 14 14 14 12 12 12 13 13 13 12 14 13 10 9 11 8 7 ÏìïáîïíéêÞ ãñáììÞ äéêôýïõ Server

Route r

LAN Outlets in use
