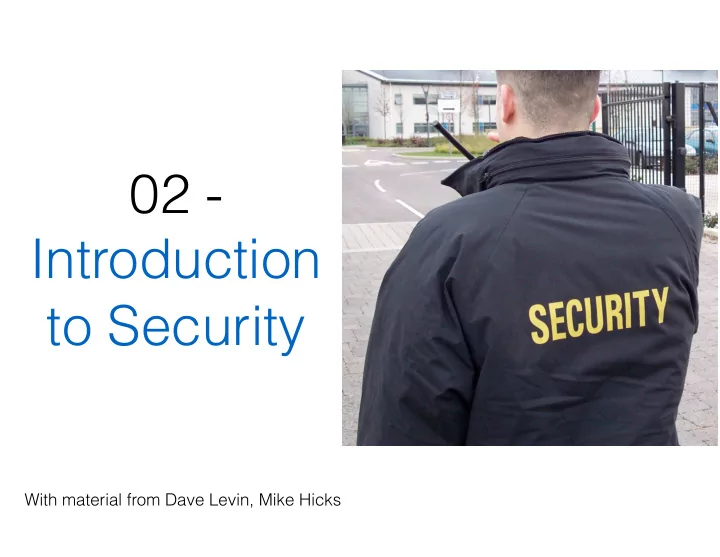

02 - Introduction to Security

With material from Dave Levin, Mike Hicks

• Ad: Joe Bonneau tomorrow
• Comments on the reading
• Defining security properties
• Threat modeling
• Defensive strategies
• Intro to encryption

Defining security

• Requirements
• Confidentiality (and Privacy and Anonymity)
• Integrity
• Availability
• Supporting mechanisms
• Authentication
• Authorization
• Auditability

Privacy and Confidentiality

• Definition: Sensitive information not leaked unauthorized
• Called privacy for individuals, confidentiality for data
• Example policy: Bank account status (including

balance) known only to the account owner

• Leaking directly or via side channels
• Example: Manipulating the system to directly display

Bob’s bank balance to Alice

• Example: Determining Bob has an account at Bank A

based on shorter delay on login failure

https://www.youtube.com/watch?v=Nlf7YM71k5U Secrecy vs. Privacy?

Anonymity

• A specific kind of privacy
• Attacker cannot determine who is communicating
• Sender, receiver or both
• Example: Non-account holders should be able to

browse the bank site without being tracked

• Here the adversary is the bank
• The previous examples considered other

account holders as possible adversaries

Integrity

• Definition: Sensitive information not changed by

unauthorized parties or computations

• Example: Only the account owner can authorize

withdrawals from her account

• Violations of integrity can also be direct or indirect
• Example: Withdraw from the account yourself vs.

confusing the system into doing it

Availability

• Definition: A system is responsive to requests
• Example: A user may always access her account

for balance queries or withdrawals

• Denial of Service (DoS) attacks attempt to

compromise availability

• By busying a system with useless work
• Or cutting off network access

Supporting mechanisms

• Leslie Lamport’s Gold Standard defines mechanisms

provided by a system to enforce its requirements

• Authentication
• Authorization
• Audit
• The gold standard is both requirement and design
• The sorts of policies that are authorized determine the

authorization mechanism

• The sorts of users a system has determine how they

should be authenticated

Authentication

• Who/what is the subject of security policies?
• Need notion of identity and a way to connect action with

identity

• a.k.a. a principal
• How can system tell a user is who she says she is?
• What (only) she knows (e.g., password)
• What she is (e.g., biometric)
• What she has (e.g., smartphone, RSA token)
• Authentication mechanisms that employ more than one of these

factors are called multi-factor authentication

• E.g., passwords and text a special code to user’s smart phone

Authorization

• Defines when a principal may perform an action
• Example: Bob is authorized to access his own

account, but not Alice’s account

• Access-control policies define what actions might

be authorized

• May be role-based, user-based, etc.

Audit

• Retain enough information to determine the

circumstances of a breach or misbehavior (or establish one did not occur)

• Often stored in log files
• Must be protected from tampering,
• Disallow access that might violate other policies
• Example: Every account-related action is logged

locally and mirrored at a separate site

• Only authorized bank employees can view log

Threat Modeling

(Risk Analysis)

Threat Model

• Make adversary’s assumed powers explicit
• Must match reality, otherwise risk analysis of the

system will be wrong

• The threat model is critically important
• If you don’t know what the attacker can (and

can’t) do, how can you know whether your design will repel that attacker?

• This is part of risk analysis

Example: Network User

• Can connect to a service via the network
• May be anonymous
• Can:
• Measure size, timing of requests, responses
• Run parallel sessions
• Provide malformed inputs or messages
• Drop or send extra messages
• Example attacks: SQL injection, XSS, CSRF, buffer overrun

Example: Snooping User

• Attacker on same network as other users
• e.g., Unencrypted Wi-Fi at coffee shop
• Can also
• Read/measure others’ messages
• Intercept, duplicate, and modify
• Example attacks: Session hijacking,
• ther data theft, side-channel attack,

denial of service

Example: Co-located User

• Attacker on same machine as other users
• E.g., malware installed on a user’s laptop
• Thus, can additionally
• Read/write user’s files (e.g., cookies) and

memory

• Snoop keypresses and other events
• Read/write the user’s display (e.g., to spoof)
• Example attacks: Password theft (and other

credentials/secrets)

Threat-driven Design

• Different threat models will elicit different responses
• Network-only attackers implies message traffic is safe
• No need to encrypt communications
• This is what telnet remote login software assumed
• Snooping attackers means message traffic is visible
• So use encrypted wifi (link layer), encrypted network layer (IPsec),
• r encrypted application layer (SSL)
• Which is most appropriate for your system?
• Co-located attacker can access local files, memory
• Cannot store unencrypted secrets, like passwords
• Worry about keyloggers as well (2nd factor?)

Bad Model = Bad Security

• Assumptions you make are potential holes the attacker can exploit
• E.g.: Assuming no snooping users no longer valid
• Prevalence of wi-fi networks in most deployments
• Other mistaken assumptions
• Assumption: Encrypted traffic carries no information
• Not true! By analyzing the size and distribution of messages,

you can infer application state

• Assumption: Timing channels carry little information
• Not true! Timing measurements of previous RSA

implementations could eventually reveal an SSL secret key

Finding a good model

• Compare against similar systems
• What attacks does their design contend with?
• Understand past attacks and attack patterns
• How do they apply to your system?
• Challenge assumptions in your design
• What happens if assumption is false?
• What would a breach potentially cost you?
• How hard would it be to get rid of an assumption, allowing for a

stronger adversary?

• What would that development cost?

Exercise: Threat modeling

• Think about security of a home
• Come up with at least 2 different threat models
• That lead to very different security decisions
• Explain your threat model and suggest defenses

Defense: Allocating resources

• It’s impossible to stop everything
• Defender must be correct 100% of the time,

attacker only once

• Time, cost, people
• Better uses of resources
• Think through likelihoods, priorities
• Effectiveness vs. cost of defense

Defensive strategies

• Prevention: Eliminate software defects entirely
• Example: Heartbleed bug would have been prevented by using a

type-safe language, like Java

• Mitigation: Reduce harm from exploitation of unknown defects
• Example: Run each browser tab in a separate process, so exploiting
• ne tab does not give access to data in another
• Detection/Recovery: Identify, understand attack; undo damage
• Examples: Monitoring, snapshotting
• Incentives: Legal/criminal threats, economic incentives
• Examples: Credit card vs. small business banking

Some Principles

• Favor simplicity
• Use fail-safe defaults
• Do not expect expert users
• Trust with reluctance
• Minimize trusted computing base
• Grant the least privilege possible; compartmentalize
• Defend in Depth
• If one fails, maybe the next will succeed
• Use community resources to stack defenses
• Monitor and trace

Intro to Crypto

https://en.wikipedia.org/wiki/File:Bletchley_Park_Bombe4.jpg

Crypto is everywhere

• Secure comms:
• Web traffic (HTTPS)
• Wireless traffic (802.11, WPA2, GSM, Bluetooth)
• Files on disk: Bitlocker, FileVault
• User authentication: Kerberos
• … and much more

Overall goal: Protect communication

Alice Bob

message m: “curiouser and curiouser!”

Eve

Public channel

Powerful adversary: say, any polynomial-time algorithm

Security goals

• Privacy
• Integrity
• Authentication

Bob D

Goal: Privacy

Alice

message m: “curiouser and curiouser!”

Eve

Public channel

Eve should not be able to learn m. Not even one bit!

E

???

Bob D

Goal: Integrity

Alice

message m: “curiouser and curiouser!”

Eve

Public channel

Eve should not be able to alter m without detection.

E

message m’: “curious and curious?” ERROR!

Works regardless of whether Eve knows the contents of m!

Bob D

Goal: Authenticity

Alice Eve

Public channel

Eve should not be able to forge messages as Alice

E

“Why is a raven like a writing desk?” signed, Alice ERROR!

Bob D

Symmetric crypto

Alice

Public channel

E

m ke m (or error) kd c

• k = ke = kd
• Everyone who knows k knows the whole secret

• How did Alice and Bob both get the secret key?
• That is a different problem
• Not solved by symmetric crypto. Assumed.

Bob D

Asymmetric crypto

Alice

Public channel

E

m ke m (or error) kd c

• ke != kd
• kd = private key, ke = public key
• Bob computes both, gives public key to Alice
• Alice sends a message to Bob: c = E(m, ke)
• Bob can decrypt it: m = D(m, kd)
• Anyone can send, only Bob can read!

• How did Alice get Bob’s public key?
• That’s easy, he sent it in plain / publicly
• BUT, how does she know it came from Bob?
• And not from Eve?
• Again, this is a separate problem. Assumed.

Bob V

Message authentication

Alice

Public channel

S

m true or false m||s

s = Sign(m, ks)

ks kv

Verify(m,s,kv) ?= true Only someone who knows ks could have sent the message!

Crypto summary

Symmetric trust model Asymmetric trust model Privacy Private-key encryption

• Stream ciphers
• Block ciphers

Public-key encryption Authenticity, Integrity Hashes, MACs, authenticated encryption Signatures, PKI, certificates, SSL/TLS, user authentication

Everyone shares the same secret k Every party has her

• wn secret

Assumptions: (1) All algorithms public, (2) security based only on key size

Known usability issues

• Rarely configured by default
• Requires a good password
• What happens if you lose it / forget it?
• How to get the key?
• Cross-device issues (keys, compatibility)
• “Only paranoid people use encryption”

Key exchange

One solution: Trusted third party (TTP)

• Require N keys rather than N^2
• TTP is a bottleneck for every message
• TTP must be online at all times
• TTP can read every message
• Does not solve bootstrapping problem

TTP

U1 U2 U3 U4 k1 k2 k3 k4

(Symmetric)

TTP

Session keys and tickets

Used for Kerberos

Bob Alice

“Bob”

kAT

KAB, Ticket “Hi”

kAB

Ticket

Ticket = E(KBT, “Alice||Bob||kAB”) (fresh kAB)

• TTP is a bottleneck for every message
• TTP must be online at all times
• TTP can read every message
• Does not solve bootstrapping problem

TTP

TTP for Asymmetric, take 1

• TTP is a bottleneck for every conversation
• TTP must be online to start a new conversation
• TTP can read every message
• TTP must be trusted to tell the truth!
• Does not solve bootstrapping problem

U1 U2 PK1 PK2

Trusted directory service

PK2 PK1

TTP for asymmetric, take 2

Alice

TTP

Bob

PKT PKT PKA plus verification Alice owns PKA. Signed, PKT S(SKA, E(PKB, m)) + cert

Bob: Verify cert with PKT, verify message with PKA Certificates

With certificates

• TTP is a bottleneck for every conversation
• TTP must be online to start a new conversation
• TTP can read every message
• TTP must be trusted to tell the truth!
• Does not solve bootstrapping problem

Web of trust

• Alternative PKI — not hierarchical
• Pioneered by PGP
• Don’t rely on centralized authorities
• Everyone issues certificates for people they know

Trust chains in web of trust

Alice Bob Cookie Donald

trusts vouches for vouches for sends message to

A matter of trust

• Context:
• Alice trusts Bob to diligently check identity
• But Bob is only signing identity, not necessarily

belief that Cookie is equally vigilant

• Transitivity: Alice trusts Bob, and Bob trusts Cookie.
• But does that mean Alice should trust Cookie?
• Trust for honesty == trust for good judgment?

Trusting the Trusted Third Party

http://randomrock.com.br/randomrock/rock-n-movies-20-watchmen/

Where do CAs come from?

• CA public keys shipped with browsers, OS
• iOS9 ships with >50 that start with A-C
• see here for full list

CA compromise

• 2001: Verisign issued two code-signing certificates for

Microsoft Corporation

• To someone who didn’t actually work at MS
• No functional revocation paradigm
• 2011: Signing keys compromised at Comodo and

DigiNotar

• Bad certs for Google, Yahoo!, Tor, others
• Seem to have been used mostly in Iran
• Some CAs are less picky than others

Case study: Superfish (Feb 2015)

• Lenovo laptops shipped with “Superfish” adware
• Installs self-signed root cert into browsers
• MITM on every HTTPS site to inject ads
• Worse: Same private key for every laptop
• Password = “komodia” (company
• Lenovo“did not find any evidence to

substantiate security concerns”

http://arstechnica.com/security/2015/02/lenovo-pcs-ship-with-man-in-the-middle-adware-that-breaks-https-connections/

http://www.sainteldaily.com/archives/11400

Fixing rogue CA problems

• Limit which CAs can issue for which domains
• Certificate pinning
• Browser, apps fix certain CA or cert for a server
• Shipped with product, or on first use
• Not always appropriate, hard to maintain

Fixing rogue CA problems (2)

• Broad surveillance
• People on many networks report certs to Notaries
• Check that others saw the same cert you did
• Privacy implications
• Public unforgeable audit log
• Uses crypto, Merkle hash trees
• Only accept certs published in log
• Same idea: Non-equivocation
• Being implemented now

https://www.eff.org/observatory https://www.eff.org/sovereign-keys
