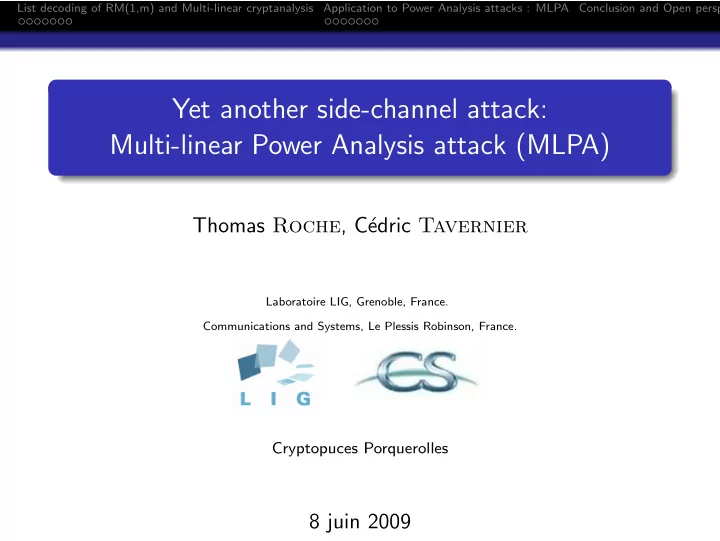

Yet another side-channel attack: Multi-linear Power Analysis attack (MLPA)

Thomas Roche, C´ edric Tavernier

Laboratoire LIG, Grenoble, France. Communications and Systems, Le Plessis Robinson, France.

Cryptopuces Porquerolles

8 juin 2009

SLIDE 2

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

Plan

1 List decoding of the First order Reed-Muller codes and Multi-linear cryptanalysis Multi-linear cryptanalysis List Decoding of RM(1,m) codes Complexity 2 Application to Power Analysis attacks : MLPA MLPA attack MLPA vs Other approaches A template-like attack 3 Conclusion and Open perspectives

SLIDE 3

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp Multi-linear cryptanalysis

Symmetric cipher (4-bits plaintexts, 4-bits key)

C E P K

SLIDE 4

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp Multi-linear cryptanalysis

Symmetric cipher (4-bits plaintexts, 4-bits key)

E

p3 c0 p2 p0 p1 k3 k2 k1 k0 c3 c2 c1

SLIDE 5

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp Multi-linear cryptanalysis

Linear approximations

E

⊕ p3 p1 k2 k0 c1 c0 c3 k3 k1 c2 p2 p0 ⊕ ⊕ ⊕ ⊕

linear approximation p1 ⊕ p3 ⊕ k0 ⊕ k2 = c0 ⊕ c1 ⊕ c3 hold with probability p = 1/2 + ǫ.

SLIDE 6

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp Multi-linear cryptanalysis

Multi-linear cryptanalysis

       k0 ⊕ k2 = p1 ⊕ p3 ⊕ c0 ⊕ c1 ⊕ c3 p = 1/2 + ǫ1 k0 ⊕ k1 ⊕ k2 = p0 ⊕ p2 ⊕ c2 ⊕ c3 p = 1/2 + ǫ2 k1 ⊕ k3 = p2 ⊕ p3 ⊕ c1 ⊕ c3 p = 1/2 + ǫ3 k1 ⊕ k2 ⊕ k3 = p0 ⊕ p1 ⊕ p2 ⊕ p3 ⊕ c2 ⊕ c3 p = 1/2 + ǫ4 Complexity of the attack [Biry 04] Given n linear approximations αi, P ⊕ µi, K = βi, E(P, K) #Plaintexts = O(

1 P

i(ǫ2 i ))

SLIDE 7

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp Multi-linear cryptanalysis

Multi-linear cryptanalysis

       k0 ⊕ k2 = p1 ⊕ p3 ⊕ c0 ⊕ c1 ⊕ c3 p = 1/2 + ǫ1 k0 ⊕ k1 ⊕ k2 = p0 ⊕ p2 ⊕ c2 ⊕ c3 p = 1/2 + ǫ2 k1 ⊕ k3 = p2 ⊕ p3 ⊕ c1 ⊕ c3 p = 1/2 + ǫ3 k1 ⊕ k2 ⊕ k3 = p0 ⊕ p1 ⊕ p2 ⊕ p3 ⊕ c2 ⊕ c3 p = 1/2 + ǫ4 Complexity of the attack [Biry 04] Given n linear approximations αi, P ⊕ µi, K = βi, E(P, K) #Plaintexts = O(

1 P

i(ǫ2 i ))

SLIDE 8

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp Multi-linear cryptanalysis

Multivariate degree 1 polynomial reconstruction

C E P K

α, P ⊕ µ, K = β, E(P, K)

SLIDE 9

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp List Decoding of RM(1,m) codes

Reed-Muller code properties

Definition of RM(1, m) RM(1, m) = {f ∈ GF(2)(1)[x1, x2, · · · , xm]} ; Usual representation : (f (0), f (1), · · · , f (2m − 1)) ; Boolean representation : f = f1x1 ⊕ f2x2 ⊕ · · · ⊕ fmxm code of lenght n = 2m and minimal distance d = n/2. Classical Problem Given a Boolean function g, we want to construct the list {f ∈ RM(1, m) | dH(f , g) ≤ n(1/2 − ǫ)}, which is equivalent to Lg(ǫ) = {f ∈ RM(1, m) | l(g)(f ) =

x∈GF(2)m(−1)f (x)⊕g(x) ≥ 2ǫn}.

Johnson Bound In fact Lg(ǫ) ≤

1 4ǫ2

SLIDE 10

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp List Decoding of RM(1,m) codes

List Decoding Algorithms

A simple idea 2ǫn ≤ |l(g)(f )| ≤

s∈GF(2)m−i|
r∈GF(2)i(−1)g(r,s)⊕f (i)(r)| where

f (i) = f1x1 ⊕ · · · ⊕ fixi. Screnning process : we suggest fi and we check if the inequality is satisfied. ⇒ L(i)

g (ǫ) = {f ∈ RM(1, i) | s

|

r∈GF(2)i(−1)g(r,s)⊕f (r)| ≥ 2ǫn}.

In fact M = L(i)

g (ǫ) ≤ 1 4ǫ2 . With E = L(i) g (ǫ)

4nǫ2M ≤

a∈E

b∈E
s

|

r∈GF(2)i(−1)g(r,s)⊕a(i)(r)⊕g(r,s)⊕b(i)(r)| ≤ n.

SLIDE 11

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp Complexity

Complexity

Worst case complexity The complexity of this algorithm is in O(n log2

2(ǫ)) [I Du 07].

The complexity of the prob. version is in O(m2/ǫ6) [Kaba 04]. The size of the result can be of size m/2ǫ2, thus optimal complexity could be in O(m/ǫ2). Optimal complexity In fact Goldreich and Levin algorithm : O(m/ǫ4).

I. Dumer, G. Kabatiansky and C. Tavernier, not yet published :

O(m/ǫ2)

SLIDE 12

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

Plan

1 List decoding of the First order Reed-Muller codes and Multi-linear cryptanalysis Multi-linear cryptanalysis List Decoding of RM(1,m) codes Complexity 2 Application to Power Analysis attacks : MLPA MLPA attack MLPA vs Other approaches A template-like attack 3 Conclusion and Open perspectives

SLIDE 13

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

Side channel measurements

E

p3 c0 p2 p0 p1 k3 k2 k1 k0 c3 c2 c1

SLIDE 14

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

Side channel measurements

E

p2 c0 c1 c2 c3 k0 k1 k2 k3 p0 p1 p3

SLIDE 15

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA attack

Linear approximations and Power Analysis

E

k1 k2 c0 c1 c2 c3 k3 p3 p2 p1 p0 k0

HD and HW models Leaked information related to the Hamming weight of the manipulated data.

SLIDE 16

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA attack

Linear approximations and Power Analysis

h2 h0 h1 ∼ HW ()

E

k1 k2 c0 c1 c2 c3 k3 p3 p2 p1 p0 k0

HD and HW models Leaked information related to the Hamming weight of the manipulated data.

SLIDE 17

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA attack

Attack algorithm and results on DPA-contest traces

1 Offline static computation : Find many and good

approximations of the intermediate data Hamming weight (for every output mask).

2 Online attack : multi-linear cryptanalysis assuming

”Leaked information = Hamming distance”. From traces "secmatv1 2006 04 0809" http://www.dpacontest.org/

Cipher rounds # linear equ. # key bits # traces DES 1 84 20 1000 DES 1 84 45 20000 DES 2 163 10 1000 DES 2 163 47 36000

Tab.: Attack on DPA-contest traces Results

SLIDE 18

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA attack

Approximation examples

Output Mask (in binary) : 100000

Bias Equations (plain part) Equations (key part) 0.0215 1 + P[5, 26, 27, 31, 45, 53, 61]+ K[6, 7, 29, 38, 52] 0.0134 0 + P[28, 29, 31, 37, 45, 53]+ K[6, 7, 29, 61] 0.0156 1 + P[5, 28, 29, 31, 37, 45]+ K[6, 29, 38, 61] 0.0189 1 + P[5, 28, 29, 31, 37, 53]+ K[7, 29, 38, 61] 0.0163 0 + P[5, 8, 9, 37, 45, 53, 61]+ K[6, 7, 38, 52, 61] 0.0223 0 + P[5, 14, 15, 31, 37, 45, 61]+ K[6, 29, 38, 52, 61] 0.0182 0 + P[5, 28, 29, 31, 37, 53, 61]+ K[7, 29, 38, 52, 61] 0.0157 1 + P[5, 26, 27, 31, 37, 53, 61]+ K[7, 29, 38, 52, 61] 0.0191 0 + P[5, 26, 27, 31, 37, 45, 53, 61]+ K[6, 7, 29, 38, 52, 61]

SLIDE 19

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA vs Other approaches

Classical Power Analysis attacks

E

p2 c0 c1 c2 c3 k0 k1 k2 k3 p0 p1 p3

Limitations Intermediate data should be dependent to less than 32 key-bits.

SLIDE 20

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA vs Other approaches

Classical Power Analysis attacks

E

p2 c0 c1 c2 c3 k0 k1 k2 k3 p0 p1 p3

Limitations Intermediate data should be dependent to less than 32 key-bits.

SLIDE 21

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA vs Other approaches

Countermeasures

The implementation is safe if one can shut down all information leakages : Suppress synchronization elements. (buses and registers) and/or Randomize the data processed.

(masking techniques [Akka 01, Akka 03, Akka 04, Lv 05])

and/or Add random useless computations. and/or balanced dynamic dual-rail gates designs. and/or ... Secure ... But not for free ! e.g. ”Three 32-Bit Random Masks and Six Additional S-Boxes are the Minimal Cost for a Secure DES Implementation” [Lv 05]

SLIDE 22

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA vs Other approaches

Countermeasures

The implementation is safe if one can shut down all information leakages : Suppress synchronization elements. (buses and registers) and/or Randomize the data processed.

(masking techniques [Akka 01, Akka 03, Akka 04, Lv 05])

and/or Add random useless computations. and/or balanced dynamic dual-rail gates designs. and/or ... Secure ... But not for free ! e.g. ”Three 32-Bit Random Masks and Six Additional S-Boxes are the Minimal Cost for a Secure DES Implementation” [Lv 05]

SLIDE 23

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp MLPA vs Other approaches

Glued Blocks

Possible solution Concentrate on the firsts and lasts rounds. i.e. no information leak during these critical rounds ⇒ No observable intermediate value is dependent to less than 32 key bits. Sufficient countermeasure against DPA-like, CPA, MIA, etc ... Not against MLPA !

SLIDE 24

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp A template-like attack

Training device attack

Remark The List-decoding algorithm operates on the target boolean function as a black-box. Getting the linear approximations from a twin board i.e. Chosen plaintexts and keys Approximations directly linked to the leaked information. much more accurate. No need to choose a power consumption model. No need to know the target block cipher. still need to know where/when to attack.

SLIDE 25

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

Next Steps on MLPA : MLPA on a consumption measurement refinement. Simultaneous MLPA on several rounds. HO-MLPA. MLPA on static masked implementation. Other block ciphers. Better linear approximations. MLPA template attack. Unknown block cipher attack.

SLIDE 26

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

The end.

SLIDE 27

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

references I

M.-L. Akkar and C. Giraud. “An Implementation of DES and AES, Secure against Some Attacks”. In : C ¸etin Kaya Ko¸ c, D. Naccache, and C. Paar, Eds., CHES,

pp. 309–318, Springer, 2001.

M.-L. Akkar and L. Goubin. “A Generic Protection against High-Order Differential Power Analysis”. In : T. Johansson, Ed., FSE, pp. 192–205, Springer, 2003. M.-L. Akkar, R. Bevan, and L. Goubin. “Two Power Analysis Attacks against One-Mask Methods”. In : B. K. Roy and W. Meier, Eds., FSE, pp. 332–347, Springer, 2004.

SLIDE 28

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

references II

A. Biryukov, C. D. Canni`

ere, and M. Quisquater. “On Multiple Linear Approximations”. In : M. K. Franklin, Ed., CRYPTO, pp. 1–22, Springer, 2004.

G. K. I. Dumer and C. Tavernier.

“List Decoding of the First Order Binary Reed Muller Codes”. Problems of Information Transmission, Vol. 43, No. 3,

pp. 225–232, 2007.
G. Kabatiansky and C. Tavernier.

“List decoding with Reed Muller codes of order one”. In : nine International Workshop On Algebraic and Combinatorial Coding Theory, pp. 230–236, 2004.

SLIDE 29

List decoding of RM(1,m) and Multi-linear cryptanalysis Application to Power Analysis attacks : MLPA Conclusion and Open persp

references III

J. Lv and Y. Han.

“Enhanced DES Implementation Secure Against High-Order Differential Power Analysis in Smartcards”. In : C. Boyd and J. M. G. Nieto, Eds., ACISP, pp. 195–206, Springer, 2005.
