3-WAY DEBATE Disclosures: Snorkels and other adjuncts to treat Research and educational grants paid to Stanford from short and difficult necks offer a stable Cook, Medtronic, WL Gore and long term solution No personal financial

SLIDE 1

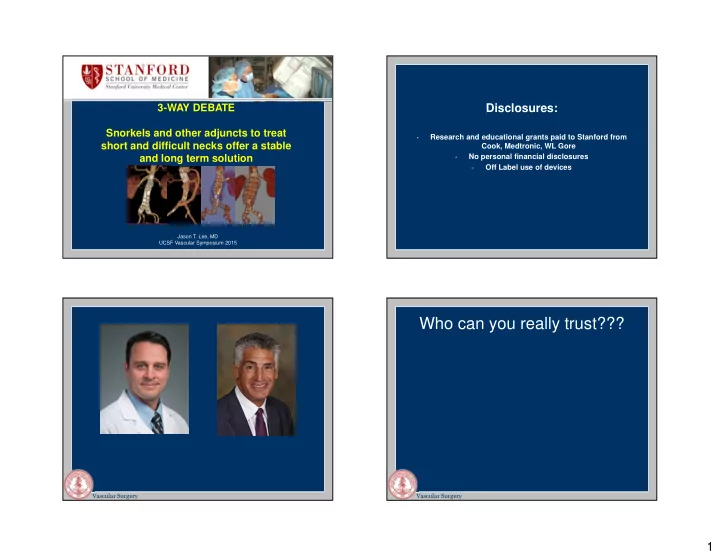

1 3-WAY DEBATE Snorkels and other adjuncts to treat short and difficult necks offer a stable and long term solution

Jason T. Lee, MD UCSF Vascular Symposium 2015

Disclosures:

Research and educational grants paid to Stanford from

Cook, Medtronic, WL Gore

No personal financial disclosures
Off Label use of devices

Vascular Surgery Vascular Surgery

Who can you really trust???

SLIDE 2

2

Vascular Surgery

Who can you really trust???

Vascular Surgery

Who can you really trust???

Vascular Surgery

Who can you really trust???

Vascular Surgery

2008-2015

Referral patterns changed
More devices available and improving
IRB approved protocol for complex EVAR

– 70 juxtarenal snorkel cases (2009-current) – 56 commercial fenestrated (2012-current) – 15 double barrel sandwich (internal iliac) (2009-2011) – 27 iliac branch (10 in trials) (2012-current) – 17 periscope/branch TEVAR (2010-current) – 7 homemade fenestrated/branched (2008-2009)

SLIDE 3

3

Vascular Surgery

Snorkel graft/chimney

Parallel graft alongside

the main aortic endoprosthesis to maintain flow in a covered branch vessel.

Vascular Surgery

Self-expanding bare metal stents Effectively raise renal orifice a few mm Ensure graft material in region of renals without compromising renal flow

Vascular Surgery

6 juxtarenal cases (2 ruptured, 3 urgent) Covered stents Valid alternative to fenestrated during emergency setting or unsuitable for FBE Rescue procedure to salvage side branch

Vascular Surgery

Encroachment vs. snorkel 8 cases of snorkel with neck length 6.9mm All single renal to gain additional 10.4mm 7 out of 8 bare metal stents Emergency setting, no access to FBE

SLIDE 4

4

Vascular Surgery

70 consecutive patients (2009-current) IRB approved protocol 98% technical success 2.9% 30-day mortality 96% primary patency (mean 29 months, 3-62) Survival 89% at one year, 83% at two years

Vascular Surgery

What are the Concerns?

Lack of numbers
Gutters
Renal patency
2nd interventions
Renal function

Vascular Surgery

898 parallel grafts placed into 517 patients

– 692 renal arteries, 156 SMAs, 50 celiacs

94% patency
5.7% type I endoleak
2 year survival 79%

Vascular Surgery

What are the Concerns?

Lack of numbers
Gutters
Renal patency
2nd interventions
Renal function

SLIDE 5

5

Vascular Surgery Vascular Surgery

Imaging Follow-Up

96% overall primary patency at mean 29 months (3-62)

– 6 occluded renals

1 post op (rescued)
1 at 1 month f/u (asymptomatic)
2 at 3 months (1 during abdominal operation, rescued)
1 at 6 month f/u (asymptomatic)
1 at 2 year f/u (rescued)

– 98% secondary patency

2nd interventions (7.1%)

– 1 Type 3 endoleak – 1 Type 1 endoleak – 3 rescued renals

Vascular Surgery

What are the Concerns?

Lack of numbers
Gutters
Renal patency
2nd interventions
Renal function

Vascular Surgery

Long term concerns-Renal Function

SLIDE 6

6

VASCULAR SURGERY VASCULAR SURGERY

Open JAAA

RIFLE: 37.3% overall acute renal dysfunction, 4.1%

dialysis

Of these, 55.6% lowest level (25-50% GFR decline)

VASCULAR SURGERY VASCULAR SURGERY

Open JAAA

RIFLE: 37.3% overall acute renal dysfunction, 4.1%

dialysis

Of these, 55.6% lowest level (25-50% GFR decline)

Sn-EVAR

RIFLE: 32.6% overall acute renal dysfunction, 2.3%

dialysis

Of these, 71.4% lowest level

VASCULAR SURGERY VASCULAR SURGERY

*Defined newly acquired renal insufficiency as increase in serum creatinine >.5 and serum creatinine >1.5 Open JAAA (46 month f/u)

8.5% incidence perioperative, 2% dialysis
19% of patients at latest follow up, 4.8% dialysis

VASCULAR SURGERY VASCULAR SURGERY

*Defined newly acquired renal insufficiency as increase in serum creatinine >.5 and serum creatinine >1.5 Open JAAA (46 month f/u)

8.5% incidence perioperative, 2% dialysis
19% of patients at latest follow up, 4.8% dialysis

Sn-EVAR (21 month f/u)

9.1% incidence perioperative, 2.3% dialysis
23% of patients at latest follow up, 0% dialysis

SLIDE 7

7

VASCULAR SURGERY VASCULAR SURGERY

Open+EVAR Infrarenal AAA repair

VASCULAR SURGERY VASCULAR SURGERY

Sn-EVAR Open+EVAR Infrarenal AAA repair

0.2 0.4 0.6 0.8 1 10 20 30 40 Freedom from Renal Function Decline Time [Months] VASCULAR SURGERY VASCULAR SURGERY

*Defined as transient or permanent increase in creatinine >2 or 30% increase versus baseline FEVAR (15-25 month f/u)

22.2% incidence renal dysfuntion
93.2% branch vessel patency

Sn-EVAR (21 month f/u)

29.7% incidence of renal dysfunction
95% branch vessel patency

Vascular Surgery

How about now that ZFEN is approved?

Approved July 2012 First case September 2012

SLIDE 8

8

Vascular Surgery

10 20 30 40 50 60 70 80 2009 2010 2011 2012 2013 2014 2015 Snorkel ZFEN

24 Snorkel 56 ZFEN

Complex Juxtarenal AAA 2009-current 70 snorkel, 56 ZFEN

Vascular Surgery

81 yo male Prior TEVAR 7.5 cm short neck AAA 32 mm at neck WAIT TIME 3-4 WEEKS

Vascular Surgery

78 yo male 48 hours abd pain Used device planned for someone else

Vascular Surgery

SLIDE 9

9

Vascular Surgery Vascular Surgery

71 yo male 9.3 cm AAA Double angle with downgoing renal SMA at same level as renal

Vascular Surgery Vascular Surgery

SLIDE 10

10

Vascular Surgery Vascular Surgery Vascular Surgery Vascular Surgery

Summary

On-label use of ZFEN if feasible

– Often not feasible….

Low threshold for snorkel/chimney strategy
Neck angulation distorts renal fenestration and SMA scallop

planning

Anatomic limitations of SMA/renal distance
Wait time- need off the shelf strategies
Renal takeoff angulation adds to difficulty
Iliac access

SLIDE 11

11

Vascular Surgery

3-WAY DEBATE Snorkels and other adjuncts to treat short and difficult necks offer a stable and long term solution

VOTE YES

Vascular Surgery
