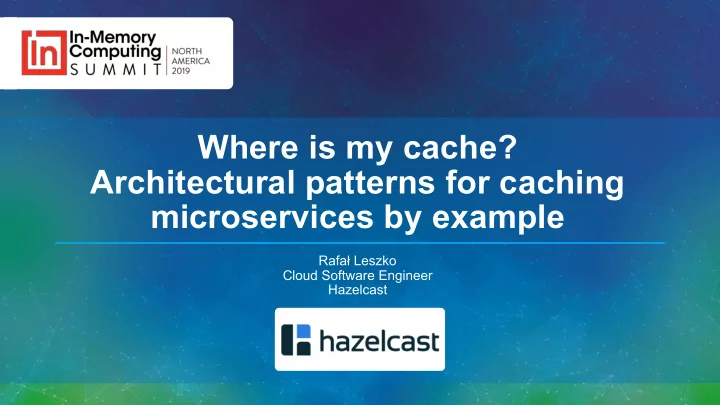

Where is my cache? Architectural patterns for caching microservices by example

Rafał Leszko Cloud Software Engineer Hazelcast

slide-2
SLIDE 2

About me

  • Cloud Software Engineer at Hazelcast
  • Worked at Google and CERN
  • Author of the book "Continuous Delivery with

Docker and Jenkins"

  • Trainer and conference speaker
  • Live in Kraków, Poland
slide-3
SLIDE 3

About Hazelcast

  • Distributed Company
  • Open Source Software
  • 140+ Employees
  • Hiring (Remote)!
  • Recently Raised $21M
  • Products:

○ Hazelcast IMDG ○ Hazelcast Jet ○ Hazelcast Cloud

@Hazelcast www.hazelcast.com

slide-4
SLIDE 4
  • Introduction
  • Caching Architectural Patterns

○ Embedded ○ Embedded Distributed ○ Client-Server ○ Cloud ○ Sidecar ○ Reverse Proxy ○ Reverse Proxy Sidecar

  • Summary

Agenda

slide-5
SLIDE 5

Why Caching?

  • Performance

○ Decrease latency ○ Reduce load

  • Resilience

○ High availability ○ Lower downtime

slide-6
SLIDE 6

Service 1 Service 2 v1 Service 2 v2 Service 1 Service 4 v1 Service 4 v2 Service 4 v3 Ruby

Microservice World

slide-7
SLIDE 7

Service 1 Service 2 v1 Service 2 v2 Service 1 Service 4 v1 Service 4 v2 Service 4 v3 Ruby

Microservice World

cache cache cache cache

slide-8
SLIDE 8

Service 1 Service 2 v1 Service 2 v2 Service 1 Service 4 v1 Service 4 v2 Service 4 v3 Ruby

Microservice World

cache cache cache

slide-9
SLIDE 9

Service 1 Service 2 v1 Service 2 v2 Service 1 Service 4 v1 Service 4 v2 Service 4 v3 Ruby

Microservice World

cache cache cache

slide-10
SLIDE 10
  • Introduction
  • Caching Architectural Patterns

○ Embedded ○ Embedded Distributed ○ Client-Server ○ Cloud ○ Sidecar ○ Reverse Proxy ○ Reverse Proxy Sidecar

  • Summary

Agenda

slide-11
SLIDE 11
  • 1. Embedded
slide-12
SLIDE 12

Application Load Balancer Cache Application Cache Request

Embedded Cache

slide-13
SLIDE 13

private ConcurrentHashMap<String, String> cache = new ConcurrentHashMap<>(); private String processRequest(String request) { if (cache.contains(request)) { return cache.get(request); } String response = process(request); cache.put(request, response); return response; }

Embedded Cache (Pure Java implementation)

slide-14
SLIDE 14

private ConcurrentHashMap<String, String> cache = new ConcurrentHashMap<>(); private String processRequest(String request) { if (cache.contains(request)) { return cache.get(request); } String response = process(request); cache.put(request, response); return response; }

Embedded Cache (Pure Java implementation)

slide-15
SLIDE 15
  • No Eviction Policies
  • No Max Size Limit

(OutOfMemoryError)

  • No Statistics
  • No built-in Cache Loaders
  • No Expiration Time
  • No Notification Mechanism

Java Collection is not a Cache!

slide-16
SLIDE 16

CacheBuilder.newBuilder() .initialCapacity(300) .expireAfterAccess(Duration.ofMinutes(10)) .maximumSize(1000) .build();

Embedded Cache (Java libraries)

slide-17
SLIDE 17

Embedded Cache (Java libraries)

CacheBuilder.newBuilder() .initialCapacity(300) .expireAfterAccess(Duration.ofMinutes(10)) .maximumSize(1000) .build();

slide-18
SLIDE 18

Caching Application Layer

@Service public class BookService { @Cacheable("books") public String getBookNameByIsbn(String isbn) { return findBookInSlowSource(isbn); } }

slide-19
SLIDE 19

Caching Application Layer

@Service public class BookService { @Cacheable("books") public String getBookNameByIsbn(String isbn) { return findBookInSlowSource(isbn); } }

Be Careful, Spring uses ConcurrentHashMap by default!

slide-20
SLIDE 20

Application Load Balancer Cache Application Cache Request

Embedded Cache

slide-21
SLIDE 21

1*. Embedded Distributed

slide-22
SLIDE 22

Application Application Load Balancer Cache Cache Request Hazelcast Cluster

Embedded Distributed Cache

slide-23
SLIDE 23

@Configuration public class HazelcastConfiguration { @Bean CacheManager cacheManager() { return new HazelcastCacheManager( Hazelcast.newHazelcastInstance()); } }

Embedded Distributed Cache (Spring with Hazelcast)

slide-24
SLIDE 24

DEMO

slide-25
SLIDE 25

Hazelcast Discovery Plugins

slide-26
SLIDE 26

Hazelcast Discovery Plugins

slide-27
SLIDE 27

Hazelcast Discovery Plugins

slide-28
SLIDE 28

Application Application Load Balancer Cache Cache Request

Embedded Distributed Cache

Hazelcast Cluster

slide-29
SLIDE 29

Embedded Cache Pros Cons

  • Simple configuration /

deployment

  • Low-latency data access
  • No separate Ops Team needed
  • Not flexible management (scaling,

backup)

  • Limited to JVM-based

applications

  • Data collocated with applications
slide-30
SLIDE 30
  • Introduction
  • Caching Architectural Patterns

○ Embedded ○ Embedded Distributed ○ Client-Server ○ Cloud ○ Sidecar ○ Reverse Proxy ○ Reverse Proxy Sidecar

  • Summary

Agenda

slide-31
SLIDE 31
  • 2. Client-Server
slide-32
SLIDE 32

Application Load Balancer Application Request Cache Server

Client-Server Cache

slide-33
SLIDE 33

Application Load Balancer Application Request Cache Server

Client-Server Cache

slide-34
SLIDE 34

Application Load Balancer Application Request Cache Server

Client-Server Cache

Separate Management:

  • backups
  • (auto) scaling
  • security

Ops Team

slide-35
SLIDE 35

Application Load Balancer Application Request Cache Server

Client-Server Cache

slide-36
SLIDE 36

Application Load Balancer Application Request Cache Server

Client-Server Cache

slide-37
SLIDE 37

Client-Server Cache

slide-38
SLIDE 38

Client-Server Cache

slide-39
SLIDE 39

Client-Server Cache

$ ./start.sh

Starting Hazelcast Cache Server (standalone)

slide-40
SLIDE 40

Client-Server Cache

Starting Hazelcast Cache Server (Kubernetes)

$ helm install hazelcast/hazelcast

slide-41
SLIDE 41

Client-Server Cache

Hazelcast Client (Kubernetes):

@Configuration public class HazelcastClientConfiguration { @Bean CacheManager cacheManager() { ClientConfig clientConfig = new ClientConfig(); clientConfig.getNetworkConfig().getKubernetesConfig() .setEnabled(true); return new HazelcastCacheManager(HazelcastClient .newHazelcastClient(clientConfig)); } }

Starting Hazelcast Cache Server (Kubernetes)

$ helm install hazelcast/hazelcast

slide-42
SLIDE 42

Application Load Balancer Application Request Cache Server

Client-Server Cache

Ops Team Separate Management:

  • backups
  • (auto) scaling
  • security
slide-43
SLIDE 43

2*. Cloud

slide-44
SLIDE 44

Application Load Balancer Application Request

Cloud (Cache as a Service)

slide-45
SLIDE 45

Application Load Balancer Application Request

Cloud (Cache as a Service)

Management:

  • backups
  • (auto) scaling
  • security

Ops Team

slide-46
SLIDE 46

Application Load Balancer Application Request

Cloud (Cache as a Service)

Management:

  • backups
  • (auto) scaling
  • security

Ops Team

slide-47
SLIDE 47

Application Load Balancer Application Request

Cloud (Cache as a Service)

slide-48
SLIDE 48

@Configuration public class HazelcastCloudConfiguration { @Bean CacheManager cacheManager() { ClientConfig clientConfig = new ClientConfig(); clientConfig.getNetworkConfig().getCloudConfig() .setEnabled(true) .setDiscoveryToken("KSXFDTi5HXPJGR0wRAjLgKe45tvEEhd"); clientConfig.setGroupConfig( new GroupConfig("test-cluster", "b2f984b5dd3314")); return new HazelcastCacheManager( HazelcastClient.newHazelcastClient(clientConfig)); } }

Cloud (Cache as a Service)

slide-49
SLIDE 49

DEMO

cloud.hazelcast.com

slide-50
SLIDE 50

Client-Server (Cloud) Cache Pros

  • Data separate from applications
  • Separate management (scaling,

backup)

  • Programming-language agnostic

Cons

  • Separate Ops effort
  • Higher latency
  • Server network requires

adjustment (same region, same VPC)

slide-51
SLIDE 51
  • Introduction
  • Caching Architectural Patterns

○ Embedded ○ Embedded Distributed ○ Client-Server ○ Cloud ○ Sidecar ○ Reverse Proxy ○ Reverse Proxy Sidecar

  • Summary

Agenda

slide-52
SLIDE 52
  • 3. Sidecar
slide-53
SLIDE 53

Kubernetes Service (Load Balancer) Request Kubernetes POD Application Container Cache Container Application Container Cache Container Kubernetes POD

Sidecar Cache

Hazelcast Cluster

slide-54
SLIDE 54

Sidecar Cache

Similar to Embedded:

  • the same physical machine
  • the same resource pool
  • scales up and down together
  • no discovery needed (always localhost)

Similar to Client-Server:

  • different programming language
  • uses cache client to connect
  • clear isolation between app and cache
slide-55
SLIDE 55

@Configuration public class HazelcastSidecarConfiguration { @Bean CacheManager cacheManager() { ClientConfig clientConfig = new ClientConfig(); clientConfig.getNetworkConfig() .addAddress("localhost:5701"); return new HazelcastCacheManager(HazelcastClient .newHazelcastClient(clientConfig)); } }

Sidecar Cache

slide-56
SLIDE 56

Sidecar Cache

apiVersion: apps/v1 kind: Deployment ... spec: template: spec: containers:

  • name: application

image: leszko/application

  • name: hazelcast

image: hazelcast/hazelcast

slide-57
SLIDE 57

Sidecar Cache Pros Cons

  • Simple configuration
  • Programming-language agnostic
  • Low latency
  • Some isolation of data and

applications

  • Limited to container-based

environments

  • Not flexible management (scaling,

backup)

  • Data collocated with application

PODs

slide-58
SLIDE 58
  • Introduction
  • Caching Architectural Patterns

○ Embedded ○ Embedded Distributed ○ Client-Server ○ Cloud ○ Sidecar ○ Reverse Proxy ○ Reverse Proxy Sidecar

  • Summary

Agenda

slide-59
SLIDE 59
  • 4. Reverse Proxy
slide-60
SLIDE 60

Application Load Balancer Cache Application Request

Reverse Proxy Cache

slide-61
SLIDE 61

Reverse Proxy Cache

http { ... proxy_cache_path /data/nginx/cache keys_zone=one:10m; ... }

slide-62
SLIDE 62
  • Only for HTTP
  • Not distributed
  • No High Availability
  • Data stored on the disk

NGINX Reverse Proxy Cache Issues

slide-63
SLIDE 63

NGINX Reverse Proxy Cache Issues

  • Only for HTTP
  • Not distributed
  • No High Availability
  • Data stored on the disk
slide-64
SLIDE 64

4*. Reverse Proxy Sidecar

slide-65
SLIDE 65

Kubernetes Service (Load Balancer) Request Kubernetes POD Application Container Reverse Proxy Cache Container Application Container Reverse Proxy Cache Container Kubernetes POD

Reverse Proxy Sidecar Cache

Hazelcast Cluster

slide-66
SLIDE 66
slide-67
SLIDE 67

Good

slide-68
SLIDE 68

Reverse Proxy Sidecar Cache

Service 1 Service 2 v1 Service 2 v2 Service 1 Service 4 v1 Service 4 v2 Service 4 v3 Ruby

slide-69
SLIDE 69

Reverse Proxy Sidecar Cache

Service 1 Service 2 v1 Service 2 v2 Service 1 Service 4 v1 Service 4 v2 Service 4 v3 Ruby

slide-70
SLIDE 70

Reverse Proxy Sidecar Cache

apiVersion: apps/v1 kind: Deployment ... spec: template: spec: initContainers:

  • name: init-networking

image: leszko/init-networking containers:

  • name: caching-proxy

image: leszko/caching-proxy

  • name: application

image: leszko/application

slide-71
SLIDE 71

Reverse Proxy Sidecar Cache

Service 1 Service 2 v1 Service 2 v2 Service 1 Service 4 v1 Service 4 v2 Service 4 v3 Ruby

slide-72
SLIDE 72
slide-73
SLIDE 73

Reverse Proxy Sidecar Cache (Istio)

slide-74
SLIDE 74

Bad

slide-75
SLIDE 75
slide-76
SLIDE 76

Reverse Proxy Cache

@CacheEvict(value = "someValue", allEntries = true) public void evictAllCacheValues() {}

Application Cache:

slide-77
SLIDE 77

Reverse Proxy Cache

@CacheEvict(value = "someValue", allEntries = true) public void evictAllCacheValues() {}

Application Cache: Proxy Cache:

http { ... location / { add_header Cache-Control public; expires 86400; etag on; } }

slide-78
SLIDE 78

Reverse Proxy (Sidecar) Cache Pros Cons

  • Configuration-based (no need to

change applications)

  • Programming-language agnostic
  • Consistent with containers and

microservice world

  • Difficult cache invalidation
  • No mature solutions yet
  • Protocol-based (e.g. works only

with HTTP)

slide-79
SLIDE 79
  • Introduction
  • Caching Architectural Patterns

○ Embedded ○ Embedded Distributed ○ Client-Server ○ Cloud ○ Sidecar ○ Reverse Proxy ○ Reverse Proxy Sidecar

  • Summary

Agenda

slide-80
SLIDE 80

Summary

slide-81
SLIDE 81

application-aware?

slide-82
SLIDE 82

application-aware? containers? no

slide-83
SLIDE 83

application-aware? containers? Reverse Proxy no no

slide-84
SLIDE 84

application-aware? containers? Reverse Proxy Reverse Proxy Sidecar no yes no

slide-85
SLIDE 85

application-aware? containers? Reverse Proxy Reverse Proxy Sidecar lot of data? security restrictions? yes no yes no

slide-86
SLIDE 86

application-aware? containers? Reverse Proxy Reverse Proxy Sidecar lot of data? security restrictions? language-agnostic? containers? yes no yes no no

slide-87
SLIDE 87

application-aware? containers? Reverse Proxy Reverse Proxy Sidecar lot of data? security restrictions? language-agnostic? containers? Embedded (Distributed) yes no yes no no no

slide-88
SLIDE 88

application-aware? containers? Reverse Proxy Reverse Proxy Sidecar lot of data? security restrictions? language-agnostic? containers? Embedded (Distributed) Sidecar yes no yes yes no no no

slide-89
SLIDE 89

application-aware? containers? Reverse Proxy Reverse Proxy Sidecar lot of data? security restrictions? language-agnostic? containers? Embedded (Distributed) Sidecar cloud? yes no yes yes yes no no no

slide-90
SLIDE 90

application-aware? containers? Reverse Proxy Reverse Proxy Sidecar lot of data? security restrictions? language-agnostic? containers? Embedded (Distributed) Sidecar cloud? Client-Server yes no yes yes yes no no no no

slide-91
SLIDE 91

application-aware? containers? Reverse Proxy Reverse Proxy Sidecar lot of data? security restrictions? language-agnostic? containers? Embedded (Distributed) Sidecar cloud? Client-Server Cloud yes no yes yes yes yes no no no no

slide-92
SLIDE 92

Resources

  • Hazelcast Sidecar Container Pattern: https://hazelcast.com/blog/hazelcast-

sidecar-container-pattern/

  • Hazelcast Reverse Proxy Sidecar Caching Prototype:

https://github.com/leszko/caching-injector

  • Caching Best Practices: https://vladmihalcea.com/caching-best-practices/
  • NGINX HTTP Reverse Proxy Caching:

https://www.nginx.com/resources/videos/best-practices-for-caching/

slide-93
SLIDE 93

Thank You!

Rafał Leszko @RafalLeszko
