Whats the problem Process thread1 { Process thread2 { foo = 1; foo - - PDF document

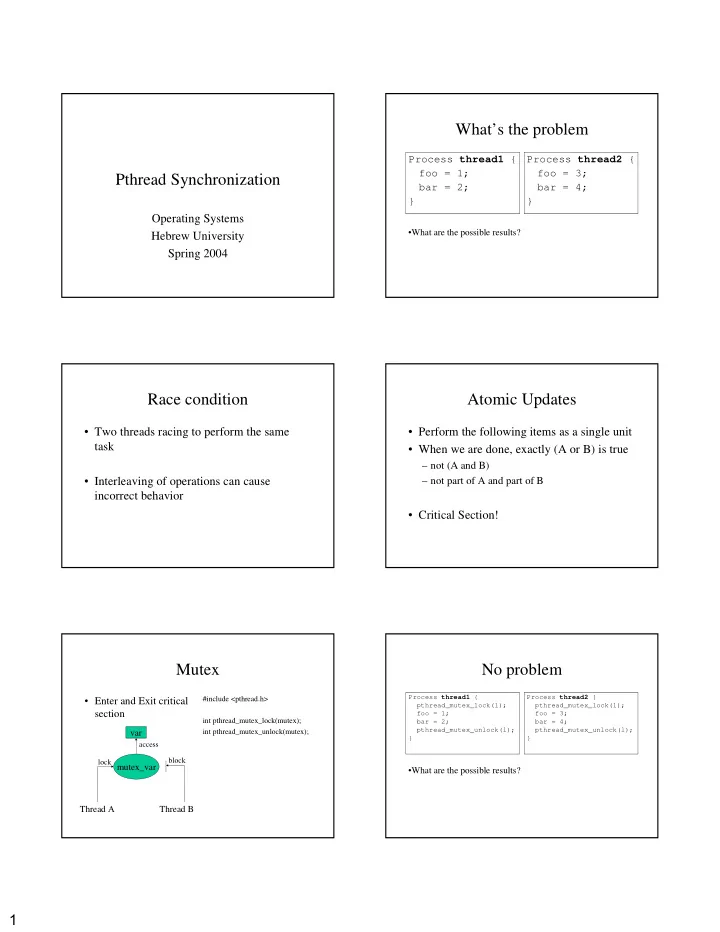

• Pthread Synchronization

Operating Systems Hebrew University Spring 2004

What’s the problem

Process thread1 { foo = 1; bar = 2; } Process thread2 { foo = 3; bar = 4; }

• What are the possible results?

Race condition

• Two threads racing to perform the same

task

• Interleaving of operations can cause

incorrect behavior

Atomic Updates

• Perform the following items as a single unit
• When we are done, exactly (A or B) is true

– not (A and B) – not part of A and part of B

• Critical Section!

Mutex

• Enter and Exit critical

section

#include <pthread.h> int pthread_mutex_lock(mutex); int pthread_mutex_unlock(mutex);

mutex_var Thread A Thread B

lock block

var

access

No problem

Process thread1 { pthread_mutex_lock(l); foo = 1; bar = 2; pthread_mutex_unlock(l); } Process thread2 { pthread_mutex_lock(l); foo = 3; bar = 4; pthread_mutex_unlock(l); }

• What are the possible results?

• What’s the problem?

Process producer { while(1) { while(count == 1) no_op; data = c; count = 1; } } Process consumer { while(1) { while(count == 0) no_op; c = data; count = 0; // consume c } }

Try it with a mutex One solution

Process producer { while(1) { lock(mutex); if (count == 0){ // produce c data = c; count = 1; } unlock(mutex); } } Process consumer { while(1) { lock(mutex); if (count == 1){ c = data; count = 0; } unlock(mutex); // consume c } }

• Problems
• Produce inside of lock
• Starvation
• Busy wait

Better solution

Process producer { while(1) { // produce c lock(empty); lock(mutex); data = c; unlock(mutex); unlock(full); } } Process consumer { while(1) { lock(full); lock(mutex); c = data; unlock(mutex); unlock(empty); // consume c } }

• How many mutexs are in use?
• What is the initial state of the mutexs?

Condition Signals

• Wait on a condition
• Associated with mutex

to prevent race condition

#include <pthread.h> pthread_mutex_t m; pthread_cond_t c; int pthread_cond_wait(&c, &m) int pthread_cond_signal(&c); int pthread_cond_broadcast(&c);

Solution using conditions

void producer() { int i = 1; while (1) { pthread_mutex_lock(&mutex); while (count == 1) { pthread_cond_wait(&control, &mutex); } data = i; count = 1; pthread_cond_signal(&control); pthread_mutex_unlock(&mutex); } void consumer() { int i = 0; while (1) { pthread_mutex_lock(&mutex); while (count == 0) { pthread_cond_wait(&control, &mutex); } i = data; count = 0; pthread_cond_signal(&control); pthread_mutex_unlock(&mutex); }

• Counting Mutex
• Linux Extension
• PTHREAD_RECURSIVE_MUTEX_INITIALIZER_NP;
• A Partial Semaphore
• Can be called recursively in a single thread
• Counts number of calls and unlocks once count is zero

Error Checking Mutex

• Linux Extension:
• PTHREAD_ERRORCHECK_MUTEX_INITIALIZER_NP;
• If called recursively, return an error!
• Very helpful for debugging deadlocks

Mutex Maintenance

• int pthread_mutex_init(&m, &flags)
• int pthread_mutex_trylock(&m);
• int pthread_mutex_destroy(&m);

Condition Maintenance

• PTHREAD_COND_INITIALIZER
• int pthread_cond_init(&c)
• int pthread_cond_timedwait(&c, &m, &t);
• int pthread_cond_destroy(&c)

Problems with Solutions

• Barrier

– Wait until all have registered – Wait until at least one has registered – Insure that a function is called exactly once

Two Phase locking

• Get all the locks in a consistent order
• Do the work
• Release the locks in the inverse order
• Reduces Deadlocks
