North Lake Shore Drive Corridor Planning Committee/ Task Force Meeting #8 March 12, 2018 Welcome 1 Meeting Agenda Introductions Task Force #7 Recap Lakefront Trail and Park Access Workshop Overview of Lakefront Trail and Park

slide-1
SLIDE 1

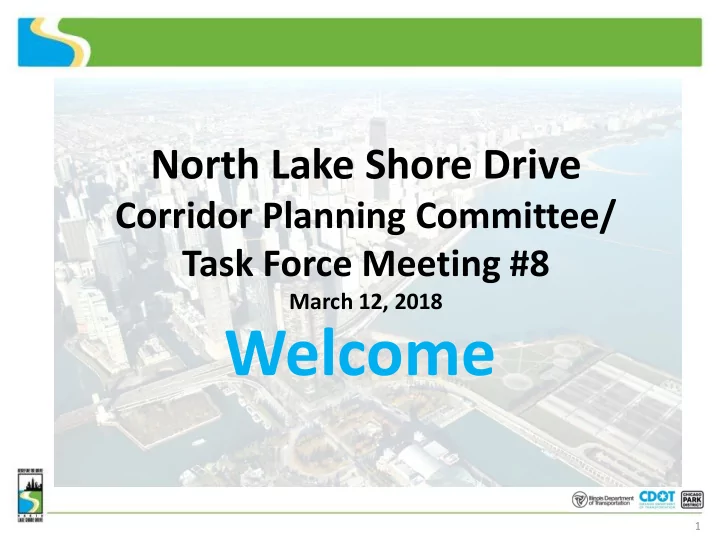

North Lake Shore Drive

Corridor Planning Committee/ Task Force Meeting #8

March 12, 2018

Welcome

1

slide-2
SLIDE 2

Meeting Agenda

  • Introductions
  • Task Force #7 Recap
  • Lakefront Trail and Park Access Workshop

– Overview of Lakefront Trail and Park Access – Station 1: Grand Ave to Diversey Pkwy – Station 2: Diversey Pkwy to Hollywood Ave

  • Context Tailored Treatments (CTT)

Alternatives Update

  • Next Steps

2

slide-3
SLIDE 3
  • Meeting held October 12, 2017
  • 65 Attendees
  • Transitways and Managed Lanes Alternatives

Workshop

3

CPC/TF Meeting #7 Recap

slide-4
SLIDE 4

Lakefront Trail and Park Access Review

4

slide-5
SLIDE 5

5

Chicago Park District – Trail Separation & Coordination

https://www.chicagoparkdistrict.com/ parks-facilities/lakefront-trail

  • Lakefront Trail Separation Update
  • Lessons Learned
slide-6
SLIDE 6

6

Lakefront Trail and Park Access

slide-7
SLIDE 7

7

Lakefront Trail and Park Access

Purpose and Need: Lakefront Trail and Parks

  • Improve safety and

mobility

– Over 31,000 users on a typical summer weekend day

  • Improve access and

circulation

  • Address infrastructure

deficiencies

slide-8
SLIDE 8

8

Lakefront Trail and Park Access

  • Reduce congestion on the trail
  • Minimize conflict points
  • Reduce flooding
  • Improve visibility and aesthetics at access points
  • Ensure ADA compliance

Design Goals

slide-9
SLIDE 9

9

Lakefront Trail and Park Access

  • Separate users
  • Wide, welcoming access

points

  • ¼ mile spacing of

pedestrian/bicycle access points

Design Guidelines

slide-10
SLIDE 10

Bike trail:

12’ paved

10

Lakefront Trail and Park Access

Design Guidelines: Trail separation

Pedestrian trail:

14’ paved 3’ crushed limestone shoulders Lakefront promenade

slide-11
SLIDE 11

11

Lakefront Trail and Park Access

Design Guidelines: Junctions

Bike trail access

Direct access to pedestrian trail Grade-separate bike trail from access path

slide-12
SLIDE 12

12

Lakefront Trail and Park Access

Design Guidelines: Underpasses & Bridges

Access without interaction with vehicles

Skylight

Comfortable width;

Opportunity to separate bikes and pedestrians

Museum Campus, Chicago, IL

slide-13
SLIDE 13

13

Support Bike Trail

  • LaSalle Dr. to Briar Pl.

Lakefront Trail and Park Access

Support Bike Trail

DRAFT

Pedestrian Promenade

Pedestrian Promenade

  • Grand Ave. to Fullerton Ave.
slide-14
SLIDE 14

14

Bus and motor vehicle access to park

Lakefront Trail and Park Access

North Ave Beach Drop Off North Ave Beach CTA Bus Stop & Turnaround

DRAFT

North Ave Beach Parking

slide-15
SLIDE 15

15

Shoreline Protection

Lakefront Trail and Park Access

slide-16
SLIDE 16

16

Lakefront Trail and Park Access

slide-17
SLIDE 17

Lakefront Trails and Park Access Workshop

Breakout 1: 40 min Breakout 2: 40 min Break: 10 min Breakout Feedback Report

BREAKOUT GROUPS (color assigned groups)

17

slide-18
SLIDE 18

18

Lakefront Trail and Park Access Workshop

We’d appreciate your comments on:

  • Lakefront Trail and park access design elements
  • Locations where additional information is needed
slide-19
SLIDE 19

Breakout Feedback Report

19

slide-20
SLIDE 20

Context Tailored Treatments Alternatives Update

20

slide-21
SLIDE 21

Context Tailored Treatment Definition

Context Tailored Treatments (CTT) are:

  • Base layer of roadway improvements needed to improve safety

and operations

  • Improvements that include Transit Advantages such as queue

jump lanes, bus turnarounds, and bus staging and layover areas

  • Specifically tailored to the varying roadway, transit, bike,

pedestrian, and shoreline protection needs

21

slide-22
SLIDE 22

Context Tailored Treatments

22

All 3 CTTs modernize the existing facility, improve safety, and reduce bottlenecks

Previous Meetings: Task Force #5, Task Force #6, Public Meeting #3

slide-23
SLIDE 23

23

Transitways and Managed Lanes

Previous Meeting: Task Force #7

slide-24
SLIDE 24

Context Tailored Treatments

24

We are here Alternatives Development & Evaluation

slide-25
SLIDE 25

Context Tailored Treatments (CTT)

Corridor Modernization Concept (Alternative 1)

25

Features

  • A continuous landscaped median along the length of NLSD
  • Increased separation between the Inner and Outer drives between Grand Ave.

and LaSalle Dr. and between Belmont Ave. and Irving Park Rd.

  • Although the design is urban and takes into account Lincoln Park’s surroundings,

it is not the most compact design

DRAFT

slide-26
SLIDE 26

Context Tailored Treatments (CTT)

Compressed Roadway Concept (Alternative 2)

26

Features

  • Minimizes transportation footprint and Inner/Outer Drive separation
  • Concrete barrier wall in place of landscaped median

DRAFT

slide-27
SLIDE 27

Context Tailored Treatments (CTT)

Frontage Drive Concept (Alternative 3)

27

Features

  • Lowers Outer Drive below grade and splits Inner Drive into one-way frontage

drives: Grand Ave. to East Lake Shore Dr. and Belmont Ave. to Montrose Ave.

  • Improves pedestrian access and circulation within Lincoln Park
  • Increased separation between the Inner and Outer drives, between Oak St.

and LaSalle Dr.; this creates separate local and regional park spaces

DRAFT

slide-28
SLIDE 28

Level 2 Screening Criteria – Part A

28

  • Opportunity to mix and match CTT Alternatives at specific

locations

  • Top performing alternatives from Part A will then be used in

combination with one another during Part B screening

slide-29
SLIDE 29

Level 2 Screening Criteria – Part A

29

  • Chicago Ave.
  • Michigan Ave.
  • LaSalle Dr.
  • Fullerton Ave.
  • Belmont Ave.
  • Addison St.
  • Irving Park Rd.
  • Montrose Ave./Wilson

Ave.

  • Lawrence Ave.
  • Foster Ave.
  • Bryn Mawr Ave./

Hollywood Ave.

NLSD Junctions

slide-30
SLIDE 30

30

CTT Alternatives

Alternative 3: Frontage Drive Concept with Transit Advantages

Grand Avenue to Diversey Parkway

Alternative 2: Compressed Roadway Concept with Transit Advantages Alternative 1: Corridor Modernization Concept with Transit Advantages

Dismissed based on impacts to Lincoln Park, visual impacts, construction costs and/or constructability issues Several positive elements taken from these and incorporated into others

slide-31
SLIDE 31

31

CTT Alternatives – Chicago Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Grade-separated, full-access junction

slide-32
SLIDE 32

32

CTT Alternatives – Chicago Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Pedestrian and bicycle access Bus turnaround

slide-33
SLIDE 33

33

CTT Alternatives – Chicago Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Pump station

slide-34
SLIDE 34

34

CTT Alternatives

Typical Pump Station

slide-35
SLIDE 35

CTT Alternatives – Chicago Avenue

35

Alternative 3 – Frontage Drive Concept with Transit Advantages

DRAFT

NLSD lowered below grade

slide-36
SLIDE 36

CTT Alternatives – Chicago Avenue

36

Alternative 3 – Frontage Drive Concept with Transit Advantages

DRAFT

Bus turnaround Street level pedestrian and bicycle access Pedestrian underpass

slide-37
SLIDE 37

CTT Alternatives – Chicago Avenue

37

Alternative 3 – Frontage Drive Concept with Transit Advantages

DRAFT

Pump station

slide-38
SLIDE 38

38

DRAFT

CTT Alternatives – Michigan Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages Realignment of Oak St curve and relocation of Oak St Beach

slide-39
SLIDE 39

39

DRAFT

CTT Alternatives – Michigan Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages Street level pedestrian and bicycle access

slide-40
SLIDE 40

40

DRAFT

CTT Alternatives – Michigan Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages Increased separation between Inner and Outer drives

slide-41
SLIDE 41

41

DRAFT

CTT Alternatives – Michigan Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages Lakefront access facilities

slide-42
SLIDE 42

42

CTT Alternatives – LaSalle Drive

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

In review: CTA bus staging and turnaround In review: parking and pick up/drop off location

slide-43
SLIDE 43

43

CTT Alternatives – LaSalle Drive

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Expanded boardwalk around North Ave Beach Boat House

slide-44
SLIDE 44

44

CTT Alternatives – LaSalle Drive

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Pedestrian and bicycle underpasses

slide-45
SLIDE 45

45

CTT Alternatives – Fullerton Parkway

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

NLSD shifted west to accommodate bike path

slide-46
SLIDE 46

46

CTT Alternatives – Fullerton Parkway

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Replace a portion of aging seawall

slide-47
SLIDE 47

47

CTT Alternatives – Fullerton Parkway

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Pedestrian and bicycle access

slide-48
SLIDE 48

48

CTT Alternatives – Fullerton Parkway

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

West side bike trail

slide-49
SLIDE 49

49

CTT Alternatives

Grand Avenue to Diversey Parkway

Alternative 1: Corridor Modernization Concept with Transit Advantages Alternative 3: Frontage Drive Concept with Transit Advantages Alternative 2: Compressed Roadway Concept with Transit Advantages

slide-50
SLIDE 50

50

CTT Alternatives

Diversey Parkway to Montrose Avenue

Alternative 1: Corridor Modernization Concept with Transit Advantages Alternative 3: Frontage Drive Concept with Transit Advantages Alternative 2: Compressed Roadway Concept with Transit Advantages

Dismissed due to costly tri-level junction at Belmont Ave. with a 4,000-foot long tunnel for the northbound travel lanes Dismissed due to cost and constructability concerns with lowering the Drive near Belmont Harbor

slide-51
SLIDE 51

51

CTT Alternatives –Belmont Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Motor vehicle, bike, pedestrian underpass

slide-52
SLIDE 52

52

CTT Alternatives –Belmont Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Modification to boat slip layout

slide-53
SLIDE 53

53

CTT Alternatives –Addison Street

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Cornelia Ave.

Motor vehicle access to and from the south

slide-54
SLIDE 54

54

CTT Alternatives –Addison Street

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

In review: parking added east of current lot One-way circulation driveway with angled parking

Cornelia Ave.

slide-55
SLIDE 55

55

CTT Alternatives –Addison Street

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Cornelia Ave.

Pump station

slide-56
SLIDE 56

56

CTT Alternatives – Irving Park Road

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Four lanes reduced to three lanes north of Irving Park Rd.

slide-57
SLIDE 57

57

CTT Alternatives

Diversey Parkway to Montrose Avenue

Alternative 3: Frontage Drive Concept with Transit Advantages Alternative 2: Compressed Roadway Concept with Transit Advantages Alternative 1: Corridor Modernization Concept with Transit Advantages

slide-58
SLIDE 58

58

CTT Alternatives

Montrose Avenue to Hollywood Avenue

Alternative 1: Corridor Modernization Concept with Transit Advantages Alternative 3: Frontage Drive Concept with Transit Advantages Alternative 2: Compressed Roadway Concept with Transit Advantages

Dismissed based on larger footprint and/or constructability issues Dismissed based on larger footprint and/or constructability issues

slide-59
SLIDE 59

59

CTT Alternatives – Montrose Avenue/Wilson Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Compressed diamond junction Consolidated southbound ramps

slide-60
SLIDE 60

60

CTT Alternatives – Montrose Avenue/Wilson Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages

DRAFT

Simplified intersection

slide-61
SLIDE 61

61

CTT Alternatives – Montrose Avenue/Wilson Avenue

Alternative 1 – Corridor Modernization Concept with Transit Advantages Gateway to Lincoln Park

DRAFT

slide-62
SLIDE 62

62

CTT Alternatives – Lawrence Avenue

Alternative 2 – Compressed Roadway Concept with Transit Advantages

DRAFT

Compressed diamond junction

slide-63
SLIDE 63

63

CTT Alternatives – Lawrence Avenue

Alternative 2 – Compressed Roadway Concept with Transit Advantages

DRAFT

Bus turnaround and layover

slide-64
SLIDE 64

64

CTT Alternatives – Foster Avenue

Alternative 2A

Compressed Roadway Concept with Transit Advantages

DRAFT

Marine Dr.

Half diamond junction with compressed ramps

slide-65
SLIDE 65

65

CTT Alternatives – Foster Avenue

Alternative 2A

Compressed Roadway Concept with Transit Advantages

DRAFT

Marine Dr.

Pedestrian trail grade separated from Foster Ave.

slide-66
SLIDE 66

66

CTT Alternatives – Foster Avenue

Alternative 2A

Compressed Roadway Concept with Transit Advantages

DRAFT

Marine Dr.

Single signalized intersection Alternative 2B

Compressed Roadway Concept with Transit Advantages and Realigned Marine/Foster Intersection

slide-67
SLIDE 67

67

CTT Alternatives – Bryn Mawr/Hollywood

Alternative 2 Compressed Roadway Concept with Transit Advantages

DRAFT

Half diamond junction

slide-68
SLIDE 68

68

CTT Alternatives – Bryn Mawr/Hollywood

Alternative 2 Compressed Roadway Concept with Transit Advantages

DRAFT

Bus turnaround

slide-69
SLIDE 69

69

CTT Alternatives

Montrose Avenue to Hollywood Avenue

Alternative 1: Corridor Modernization Concept with Transit Advantages Alternative 2: Compressed Roadway Concept with Transit Advantages Alternative 3: Frontage Drive Concept with Transit Advantages

slide-70
SLIDE 70

70

Context Tailored Treatments (CTT)

Feedback Summary

slide-71
SLIDE 71
  • Incorporate feedback and finalize one CTT top

performing alternative

– Provide feedback by Monday, March 26

  • Task Force #9: Spring/Summer 2018

– Review Transitways and Managed Lanes Level 2 (Part A) Screening Results

NLSD Phase I Study Next Steps

71

slide-72
SLIDE 72

North Lake Shore Drive

Thank You

www.northlakeshoredrive.org

72
