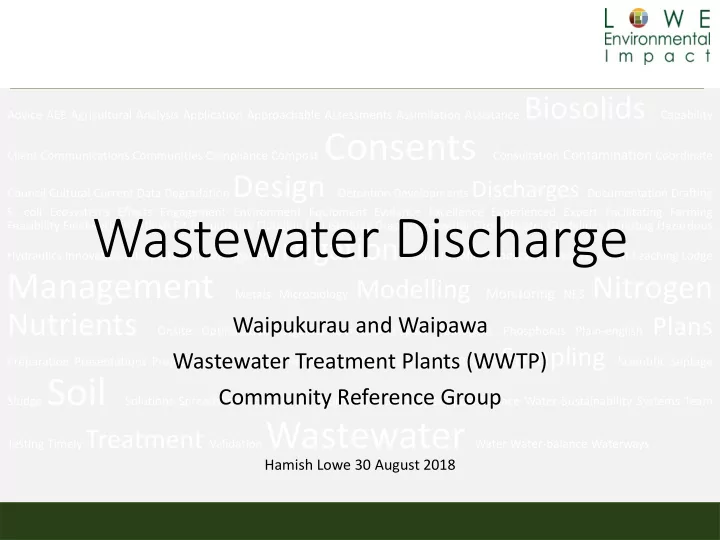

Wastewater Discharge

Waipukurau and Waipawa Wastewater Treatment Plants (WWTP) Community Reference Group

Hamish Lowe 30 August 2018

slide-2
SLIDE 2
  • LEI – who?
  • Wastewater discharge basics
  • Previous Investigations
  • Waipukurau
  • Waipawa

Overview

slide-3
SLIDE 3

Wastewater discharge

Reticulation Treatment Storage Discharge

slide-4
SLIDE 4

Receiving Environment

Water Land

Wastewater discharge

slide-5
SLIDE 5

Wastewater discharge

After wastewater has been treated, it needs to be discharged somewhere – it doesn’t just disappear or evaporate. The options are:

  • discharge to land
  • freshwater bodies (lakes, rivers, streams)
  • estuaries, and
  • the ocean.
slide-6
SLIDE 6

Wastewater discharge

The soils, terrain and adjacent water bodies determine the most feasible choices. The use of treatment can assist that choice. In CHB’s case, there are both land and river

  • ptions.
slide-7
SLIDE 7

Any discharge requires consideration and balancing

Cultural Social/ Recreational Financial Ecological/ Environmental

Wastewater discharge

slide-8
SLIDE 8

Wastewater discharge

slide-9
SLIDE 9

What others do

There are 330 council

  • perated wastewater

treatment plants around the country, most servicing populations <35,000 people. Smallest caters for 7 households; Waiotira, Northland; Largest 1.2 million people; Mangere, Auckland Three categories

  • f discharge
  • Land (54 M m³ of

wastewater per year)

  • Water (352 M m³ of

wastewater per year)

  • Combined land and

water (59 M m³ of wastewater per year)

slide-10
SLIDE 10

What others do

1% 75% 11% 13%

NZ Wide Treatment Plant Discharges

Unknown Water Discharges Land Discharges Combined Land/Water Discharges

slide-11
SLIDE 11

Legend

Cities>30,000 people Towns <5,000 people Settlement <750 people Discharge Method Irrigation to land River/stream Ocean

Wastewater discharge

slide-12
SLIDE 12

What others do

21% 4% 75%

NZ Surface Water Discharge Methods

River Unknown Ocean

slide-13
SLIDE 13

What others do

2% 12% 0% 36% 4% 46%

NZ Land Discharge Methods

Unknown Trees Dairy Grazed Cut & Carry High Rate

slide-14
SLIDE 14

Cultural vs tangata whenua

Consider states

Waiora to Waimate

Allows for tapu to noa Papatuanuku

slide-15
SLIDE 15

100 % Land 100 % Water

Irrigation - High-rate Irrigation - Non-deficit Irrigation - Deficit Overland - Rock trench Rapid Infiltration Pipe to Water Overland - Wetland

Wastewater discharge

slide-16
SLIDE 16

River Wetland Forestry Small Holdings Large Holdings

Are combinations possible or needed?

Water Land

Direct to Water Indirect to Water Stay on Land

Wastewater discharge

slide-17
SLIDE 17

Principles of Land Discharge

Land treatment of waste utilises the biological, chemical and physical properties of the land to further treat solid and liquid wastes and/or allow for land passage before reaching the underlying groundwater environment.

slide-18
SLIDE 18

Principles of Land Treatment

Land treatment is philosophically and practically distinct from land disposal.

Land treatment seeks to utilise the environment to its maximum extent treat the waste, and in so doing may also seek to improve the environment through the characteristics of the waste. Land disposal seeks only to dispose of the waste, using the land as a mechanism to allow the waste to enter the environment with limited or no treatment.

slide-19
SLIDE 19

Land Treatment systems

slide-20
SLIDE 20

Land Treatment systems

slide-21
SLIDE 21

Land - Investigations

  • How close is the land to the WWTP and how many sensitive neighbours are nearby?

Location

  • Gentle slopes or flat land at similar height to WWTP are ideal.

Terrain and elevation

  • Water holding capacity, drainage rate, and particle size or soil type will determine loadings

rates.

Soil properties

  • will wastewater irrigation integrate with the current land use (eg reserve, farm, or forestry) or

will the land use need to change to accommodate the wastewater irrigation? How will harvesting or stock grazing regimes integrate with irrigation regimes?

Land use

  • how much land is available after subtracting buffers and unsuitable land?

Land area

  • what are the normal and extreme ranges of rainfall, soil moisture deficit, and wind for each

month and year? How will these variations limit irrigation design and operation?

Climate

  • Cultural, community, society

Values

slide-22
SLIDE 22

Land - System design

  • Examples are subsurface dripper lines, fixed

irrigators, travelling irrigators, border dyke or infiltration basin, and (artificial) wetland basin.

Method of discharge

  • Choices are deficit, non-deficit, rapid discharge

for disposal to groundwater or wetland, and land passage prior to entering waterways.

Application rate and purpose

  • What seasons, weather or soil moisture

conditions will restrict or prevent discharges (eg wet soils, heavy rain, or strong winds)?

Timing of discharges

slide-23
SLIDE 23

Land - System design

  • How much storage volume will

be needed? Where will an additional pond be located?

Storage for deferred discharges

  • What will happen to excess

wastewater volumes and what limits would be appropriate?

Emergency or large storm contingencies

slide-24
SLIDE 24

Land - System design

In developing a land discharge system there are a series of basic design parameters which need to be considered.

Basic design parameters:

Cultural acceptability Hydraulic Loading Organic Loading Nutrient Loading Pathogen Loading

slide-25
SLIDE 25

Principles of Water Discharge

Discharge at a rate and composition that is within the seasonal assimilative capacity of the waterway.

slide-26
SLIDE 26

Water - Investigations

  • How close is the land to the WWTP to the waterway

Location

  • Fast flowing, slow moving

Characteristics

  • How does flow go up and down and how does this match

wastewater flows

Flow seasonality

  • Contact recreation, stock water

Water use

  • What is the level of nutrient enrichment existing and can

more be accommodated

Chemical status

  • What lives there – macroinvertebrates, fish, algae

Biological status

  • Cultural, community, society

Values

slide-27
SLIDE 27

Water - System design

  • Direct, indirect – pipe, near bank, gallery

Method of discharge

  • Is it culturally acceptable and will

nutrient enrichment influence quality and habitat

What is the impact

  • How is volume and treatment level

adjusted to reflect flow and limitations

Timing of discharges

slide-28
SLIDE 28

Water - System design

  • Can storage be used to avoid

low flow discharges?

Storage for deferred discharges

  • What will happen to excess

wastewater volumes and what limits would be appropriate?

Emergency or large storm contingencies

slide-29
SLIDE 29

Water - System design

In developing a water discharge there are a series of basic design parameters which need to be considered.

Basic design parameters:

Cultural acceptability Hydraulic Loading Organic Loading Nutrient Loading Pathogen Loading

slide-30
SLIDE 30

CLAWD

  • What criteria will be used to determine when the best

times will be to discharge to these environments and how much is to be discharged each day? How will they be prioritised and balanced?

Criteria for selecting Combined Land and Water Discharges

  • How much storage volume will be needed for times

when neither environment (land and water) can receive the discharges? Where will an additional pond be located?

Storage for deferred discharges

  • What will happen to excess wastewater volumes and

what limits would be appropriate?

Emergency or large storm contingencies

slide-31
SLIDE 31

Benefits and Opportunities

Community should decide Can it be expanded One system or multiple Is water a resource

slide-32
SLIDE 32

Previous investigations

  • Irrigating the existing quality effluent on to

forests that had been planted by the Regional Council at Waipawa and Waipukurau.

  • Storing effluent when the forests were not

capable of accepting the spray irrigation.

  • Discharging excess stored effluent into the

Tukituki and Waipawa Rivers at times when the river flows were 3 times the median flow.

In 2007 the Hawke’s Bay Regional Council and CHBDC together investigated a forest treatment

  • ption. This

consisted of:

slide-33
SLIDE 33

Waipukurau

Image Credit: Sarah Platt

slide-34
SLIDE 34

Waipukurau

slide-35
SLIDE 35

Waipukurau

slide-36
SLIDE 36

Waipukurau

slide-37
SLIDE 37

Waipawa

Image Credit: Sarah Platt

slide-38
SLIDE 38

Waipawa

slide-39
SLIDE 39

Waipawa

slide-40
SLIDE 40

Waipawa

slide-41
SLIDE 41

Waipawa

slide-42
SLIDE 42

Your choice

Water Land

slide-43
SLIDE 43
