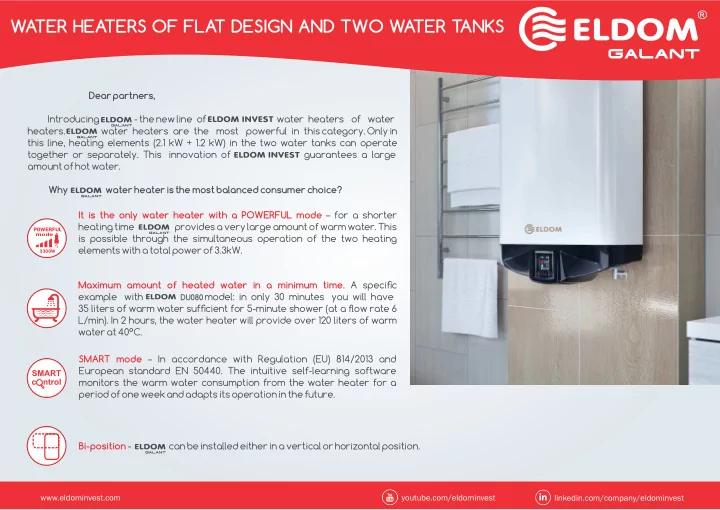

WA TER HEA TERS OF FLA T DESIGN AND TWO WA TER T ANKS example - - PowerPoint PPT Presentation

linkedin.com/company/eldominvest

• heaters. water heaters are the most powerful in this category. Only in

this line, heating elements (2.1 kW + 1.2 kW) in the two water tanks can operate together or separately. This innovation of guarantees a large amount of hot water. Why water heater is the most balanced consumer choice?

www.eldominvest.com

Dear partners, Introducing - the new line of water heaters of water

POWERFUL

mode

3300W

It is the only water heater with a POWERFUL mode – for a shorter heating time provides a very large amount of warm water. This is possible through the simultaneous operation of the two heating elements with a total power of 3.3kW.

youtube.com/eldominvest

SMART mode – In accordance with Regulation (EU) 814/2013 and European standard EN 50440. The intuitive self-learning software monitors the warm water consumption from the water heater for a period of one week and adapts its operation in the future.

WA TER HEA TERS OF FLA T DESIGN AND TWO WA TER T ANKS

Maximum amount of heated water in a minimum time. A specic example with DU080 model: in only 30 minutes you will have 35 liters of warm water sufcient for 5-minute shower (at a ow rate 6 L/min). In 2 hours, the water heater will provide over 120 liters of warm water at 40°С. Bi-position - can be installed either in a vertical or horizontal position.

galant galant galant galant galant

Model DU060 Model DU080 Model DU100 linkedin.com/company/eldominvest www.eldominvest.com

Guaranteed origin – all models are manufactured in Bulgaria by .

youtube.com/eldominvest

SUPER SA VING – regimes enabling operation during night low-cost periods.

slim

An option to be mounted in conned areas thanks to its slim design (only 279 mm). SECURITY – models have the unique 6-stage protection of all ELDOM water heaters, including a unique oval-shaped ange of each water tank that protects from over pressure incidents. LONG LIFE – we use SHIELD technology – hot-water resistant zirconia- based coating of water tanks. Adaptive color display – the layout is rotated according to the mounting position.

3

3-year full warranty Anticorrosion protection – only have four anodes (two in each water tank), which guarantees perfect protection of the entire storage volume.

STOP

corrosion

galant

WA TER HEA TERS OF FLA T DESIGN AND TWO WA TER T ANKS

galant galant

youtube.com/eldominvest linkedin.com/company/eldominvest www.eldominvest.com

... ... L ... kWh Mpa V~ kW L min kg ... ... ... ... ... ... ... ... ... mm mm mm mm DU060 60 50 B 1274 0.7 230 2.1 + 1.2 98 114 25 G 1/2"M G 1/2"M yes yes yes yes yes yes yes 838 511 279 468 DU080 80 65 B 1238 0.7 230 2.1 + 1.2 125 120 29.6 G 1/2"M G 1/2"M yes yes yes yes yes yes yes 1033 511 279 663 DU100 100 80 B 1311 0.7 230 2.1 + 1.2 166 126 34.5 G 1/2"M G 1/2"M yes yes yes yes yes yes yes 1228 511 279 858 Model Volume range Rated Volume Energy efficiency class Annual electricity consumption Rated pressure Rated voltage Maximum electrical power MIX 40°C at T set 75°C Heating time Weight CONNECTIONS: 1: Hot water outlet 2: Cold water inlet - Drain EXTRAS: POWERFUL mode SMART mode Bi-Position Режим SUPER SA VE 6-rate protection STOP corrosion system SHIELD technology DIMENSIONS: High Wide Deep B

WA TER HEA TERS OF FLA T DESIGN AND TWO WA TER T ANKS

galant

Video instruction for Installation of water heater see here: Video instruction for electronic control settings of water heater see here:

galant
