Voting: Issues, Problems, and Systems, Continued 9 March 2012 Voting III 9 March 2012 1/1 Last Time Weve discussed several voting systems and conditions which may or may not be satisfied by a system. Well review them. But first,


slide-1
SLIDE 1

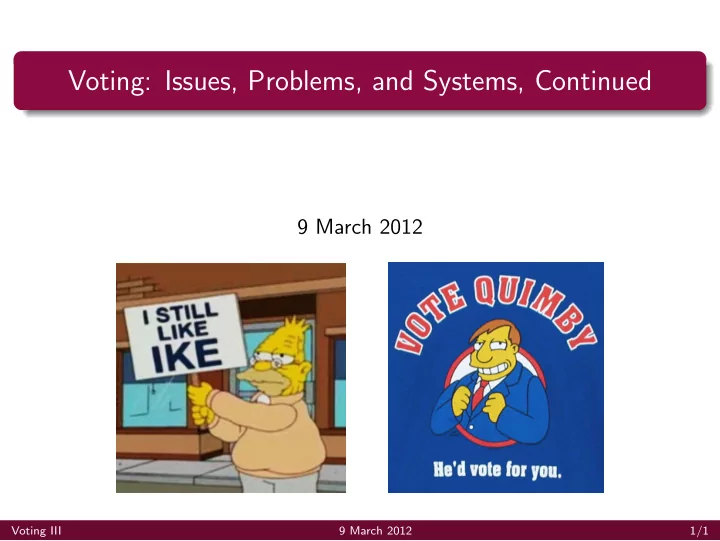

Voting: Issues, Problems, and Systems, Continued

9 March 2012

Voting III 9 March 2012 1/1

slide-2
SLIDE 2

Last Time

We’ve discussed several voting systems and conditions which may or may not be satisfied by a system. We’ll review them. But first, let’s look at some clips from reporting of the 2000 presidential election.

1

Florida called for Gore

2

Gore declared the winner in Pennsylvania

3

The vote in Florida is now too close to call

Voting III 9 March 2012 2/1

slide-3
SLIDE 3

Plurality Voting

The method we use in the U.S. to decide most elections is called Plurality

  • Voting. In this method, a voter chooses one candidate, and the candidate

with the most votes wins. It is nearly the most simple method of deciding elections.

Voting III 9 March 2012 3/1

slide-4
SLIDE 4

The Borda Count

With the Borda count voters rank order the candidates. If there are n candidates, each first place vote is worth n − 1 points, each second place vote is worth n − 2 points, and so on. The person who received the most points wins the election.

Voting III 9 March 2012 4/1

slide-5
SLIDE 5

Sequential Pairwise Voting

In this voting system, voters rank candidates as in the Borda count. The winner is determined by comparing pairs of candidates. The loser between a comparison is eliminated and the winner is then compared to the next

  • candidate. The last person remaining is then the winner of the election.

Voting III 9 March 2012 5/1

slide-6
SLIDE 6

The Hare System

In the Hare system, candidates are ranked. The candidate (or candidates) with the fewest number of first place votes is eliminated. This process continues until one candidate remains, and is then elected. Once a candidate is elected, we remove that candidate from each ballot. For example, if B is eliminated, then a ballot which lists C > B > A would then be reinterpreted to have C > A. That is, C would be listed first and A second.

Voting III 9 March 2012 6/1

slide-7
SLIDE 7

The Four Conditions

Condorcet winner criterion: The Condorcet winner (preferred over all

  • thers head to head), if there is one, always wins the election.

Voting III 9 March 2012 7/1

slide-8
SLIDE 8

The Four Conditions

Condorcet winner criterion: The Condorcet winner (preferred over all

  • thers head to head), if there is one, always wins the election.

Independence of Irrelevant Alternatives: It is impossible for a non-winning candidate B to change to winner unless at least one voter reverses the order in which they listed B and the winner.

Voting III 9 March 2012 7/1

slide-9
SLIDE 9

The Four Conditions

Condorcet winner criterion: The Condorcet winner (preferred over all

  • thers head to head), if there is one, always wins the election.

Independence of Irrelevant Alternatives: It is impossible for a non-winning candidate B to change to winner unless at least one voter reverses the order in which they listed B and the winner. Pareto: If everybody prefers one candidate to another, then the latter is not elected.

Voting III 9 March 2012 7/1

slide-10
SLIDE 10

The Four Conditions

Condorcet winner criterion: The Condorcet winner (preferred over all

  • thers head to head), if there is one, always wins the election.

Independence of Irrelevant Alternatives: It is impossible for a non-winning candidate B to change to winner unless at least one voter reverses the order in which they listed B and the winner. Pareto: If everybody prefers one candidate to another, then the latter is not elected. Monotonicity: If no voter were to switch his/her preference between the winner and another, then the outcome of the election would be the same.

Voting III 9 March 2012 7/1

slide-11
SLIDE 11

The following table summarizes how each system behaves with respect to each of the conditions. A yes means the system satisfies the condition. CWC IIA Pareto Mono Plurality no no yes yes Borda no no yes yes Sequential yes no no yes Hare no no yes no CWC = Condorcet Winner Condition IIA = Independence of Irrelevant Alternatives Mono = Monotonicity Condition

Voting III 9 March 2012 8/1

slide-12
SLIDE 12

Back to the 1998 Minnesota Gubernatorial Election

How would the 1998 Minnesota gubernatorial election come out if

  • ther voting systems were used?

Voting III 9 March 2012 9/1

slide-13
SLIDE 13

Back to the 1998 Minnesota Gubernatorial Election

How would the 1998 Minnesota gubernatorial election come out if

  • ther voting systems were used?

To answer this we’d need to have had candidates rank ordered. Let’s suppose the voters would rank the three candidates, Coleman, Humphrey, and Ventura, as follows. This table is not based on exit

  • polls. I made up the table, trying to make a reasonable guess as to

what would have happened.

Voting III 9 March 2012 9/1

slide-14
SLIDE 14

Back to the 1998 Minnesota Gubernatorial Election

How would the 1998 Minnesota gubernatorial election come out if

  • ther voting systems were used?

To answer this we’d need to have had candidates rank ordered. Let’s suppose the voters would rank the three candidates, Coleman, Humphrey, and Ventura, as follows. This table is not based on exit

  • polls. I made up the table, trying to make a reasonable guess as to

what would have happened. Recall that Ventura received 37% of the first place votes, while Coleman received 35% and Humphrey 28%. 20% 25% 8% 10% 20% 17% H C H C V V C H V V C H V V C H H C

Voting III 9 March 2012 9/1

slide-15
SLIDE 15

Using the Borda Count

With the Borda count, since there are three candidates, we assign 2 points for first place votes, 1 point for second place votes, and 0 points for third place votes. To make it easier, we pretend there are 100 votes, so the percentage refers to the number of votes.

Voting III 9 March 2012 10/1

slide-16
SLIDE 16

Using the Borda Count

With the Borda count, since there are three candidates, we assign 2 points for first place votes, 1 point for second place votes, and 0 points for third place votes. To make it easier, we pretend there are 100 votes, so the percentage refers to the number of votes. 20% 25% 8% 10% 20% 17% H C H C V V C H V V C H V V C H H C

Voting III 9 March 2012 10/1

slide-17
SLIDE 17

Using the Borda Count

With the Borda count, since there are three candidates, we assign 2 points for first place votes, 1 point for second place votes, and 0 points for third place votes. To make it easier, we pretend there are 100 votes, so the percentage refers to the number of votes. 20% 25% 8% 10% 20% 17% H C H C V V C H V V C H V V C H H C first place votes 2nd 3rd total points C 35 40 25 110 H 28 42 30 98 V 37 18 45 92

Voting III 9 March 2012 10/1

slide-18
SLIDE 18

We computed Coleman’s totals by: 35 · 2 + 40 · 1 + 25 · 0 = 70 + 40 = 110. The other totals were computed similarly. Thus, with the Borda count, Coleman wins the election.

Voting III 9 March 2012 11/1

slide-19
SLIDE 19

Sequential Pairwise Voting

20% 25% 8% 10% 20% 17% H C H C V V C H V V C H V V C H H C

Voting III 9 March 2012 12/1

slide-20
SLIDE 20

Sequential Pairwise Voting

20% 25% 8% 10% 20% 17% H C H C V V C H V V C H V V C H H C If we use sequential pairwise voting, and order them C, H, V, then Coleman is preferred to Humphrey 55% to 45%, so Humphrey is

  • eliminated. Since Coleman is also preferred 55% to 45% over

Ventura, so Coleman is elected in this system.

Voting III 9 March 2012 12/1

slide-21
SLIDE 21

Sequential Pairwise Voting

20% 25% 8% 10% 20% 17% H C H C V V C H V V C H V V C H H C If we use sequential pairwise voting, and order them C, H, V, then Coleman is preferred to Humphrey 55% to 45%, so Humphrey is

  • eliminated. Since Coleman is also preferred 55% to 45% over

Ventura, so Coleman is elected in this system. It turns out that, in this election, the order in which we list the candidates does not affect the outcome

Voting III 9 March 2012 12/1

slide-22
SLIDE 22

Hare System

If we use the Hare system, then Humphrey is eliminated since he received the fewest first place votes, 28%, compared to 35% and 37% for the other two candidates. We then reinterpret the ballot by eliminating Humphrey. This gives

Voting III 9 March 2012 13/1

slide-23
SLIDE 23

Hare System

If we use the Hare system, then Humphrey is eliminated since he received the fewest first place votes, 28%, compared to 35% and 37% for the other two candidates. We then reinterpret the ballot by eliminating Humphrey. This gives 20% 25% 8% 10% 20% 17% C C V C V V V V C V C C

Voting III 9 March 2012 13/1

slide-24
SLIDE 24

After reinterpreting the ballots, Coleman then has 55% first place votes to Ventura’s 45%, so Coleman would win under the Hare system.

Voting III 9 March 2012 14/1

slide-25
SLIDE 25

After reinterpreting the ballots, Coleman then has 55% first place votes to Ventura’s 45%, so Coleman would win under the Hare system. So, in all of the systems, other than plurality voting, Coleman would win the election.

Voting III 9 March 2012 14/1

slide-26
SLIDE 26

The 1992 Presidential Election Revisited

Let’s make an estimate of how the voting would have been conducted if voters ranked the three main candidates, and determine who would be elected in each of the four systems we have studied.

Voting III 9 March 2012 15/1

slide-27
SLIDE 27

The 1992 Presidential Election Revisited

Let’s make an estimate of how the voting would have been conducted if voters ranked the three main candidates, and determine who would be elected in each of the four systems we have studied. I’ve made an attempt to predict how voters would rank the candidates, in order to come up with the following table.

Voting III 9 March 2012 15/1

slide-28
SLIDE 28

The 1992 Presidential Election Revisited

Let’s make an estimate of how the voting would have been conducted if voters ranked the three main candidates, and determine who would be elected in each of the four systems we have studied. I’ve made an attempt to predict how voters would rank the candidates, in order to come up with the following table. Rank 30% 13% 12% 25% 6% 13% First Clinton Clinton Bush Bush Perot Perot Second Bush Perot Clinton Perot Clinton Bush Third Perot Bush Perot Clinton Bush Clinton

Voting III 9 March 2012 15/1

slide-29
SLIDE 29

Borda count

We assign 2 points for each first place vote and 1 point for each second place vote. To make the arithmetic easier, we interpret the percentages as votes.

Voting III 9 March 2012 16/1

slide-30
SLIDE 30

Borda count

We assign 2 points for each first place vote and 1 point for each second place vote. To make the arithmetic easier, we interpret the percentages as votes. Clinton: 43 first place votes and 18 second place votes. Total points, 43 · 2 + 18 · 1 = 104

Voting III 9 March 2012 16/1

slide-31
SLIDE 31

Borda count

We assign 2 points for each first place vote and 1 point for each second place vote. To make the arithmetic easier, we interpret the percentages as votes. Clinton: 43 first place votes and 18 second place votes. Total points, 43 · 2 + 18 · 1 = 104 Bush: 37 first place votes and 43 second place votes. Total points, 37 · 2 + 43 · 1 = 117

Voting III 9 March 2012 16/1

slide-32
SLIDE 32

Borda count

We assign 2 points for each first place vote and 1 point for each second place vote. To make the arithmetic easier, we interpret the percentages as votes. Clinton: 43 first place votes and 18 second place votes. Total points, 43 · 2 + 18 · 1 = 104 Bush: 37 first place votes and 43 second place votes. Total points, 37 · 2 + 43 · 1 = 117 Perot: 19 first place votes and 38 second place votes. Total points, 19 · 2 + 38 · 1 = 76 Since Bush has the most points, he would be elected.

Voting III 9 March 2012 16/1

slide-33
SLIDE 33

Pairwise Sequential Voting

Rank 30% 13% 12% 25% 6% 13% First Clinton Clinton Bush Bush Perot Perot Second Bush Perot Clinton Perot Clinton Bush Third Perot Bush Perot Clinton Bush Clinton

Voting III 9 March 2012 17/1

slide-34
SLIDE 34

Pairwise Sequential Voting

Rank 30% 13% 12% 25% 6% 13% First Clinton Clinton Bush Bush Perot Perot Second Bush Perot Clinton Perot Clinton Bush Third Perot Bush Perot Clinton Bush Clinton Let us first order the candidates Bush, Clinton, Perot. We compare Clinton and Bush head to head. Bush is preferred to Clinton by 51%

  • f the voters. Therefore, Clinton is eliminated. Bush is then

compared to Perot head to head, and Bush is preferred. Perot is then eliminated.

Voting III 9 March 2012 17/1

slide-35
SLIDE 35

Pairwise Sequential Voting

Rank 30% 13% 12% 25% 6% 13% First Clinton Clinton Bush Bush Perot Perot Second Bush Perot Clinton Perot Clinton Bush Third Perot Bush Perot Clinton Bush Clinton Let us first order the candidates Bush, Clinton, Perot. We compare Clinton and Bush head to head. Bush is preferred to Clinton by 51%

  • f the voters. Therefore, Clinton is eliminated. Bush is then

compared to Perot head to head, and Bush is preferred. Perot is then eliminated. Bush is the one remaining, so he is elected. Other orderings of the candidates turn out to produce the same result.

Voting III 9 March 2012 17/1

slide-36
SLIDE 36

Hare System

We first eliminate the candidate with the fewest first place votes. This is Perot, so he is eliminated. We next reinterpret each vote to rank only Clinton and Bush. This yields the following table.

Voting III 9 March 2012 18/1

slide-37
SLIDE 37

Hare System

We first eliminate the candidate with the fewest first place votes. This is Perot, so he is eliminated. We next reinterpret each vote to rank only Clinton and Bush. This yields the following table. Original vote Rank 30% 13% 12% 25% 6% 13% First Clinton Clinton Bush Bush Perot Perot Second Bush Perot Clinton Perot Clinton Bush Third Perot Bush Perot Clinton Bush Clinton

Voting III 9 March 2012 18/1

slide-38
SLIDE 38

Hare System

We first eliminate the candidate with the fewest first place votes. This is Perot, so he is eliminated. We next reinterpret each vote to rank only Clinton and Bush. This yields the following table. Original vote Rank 30% 13% 12% 25% 6% 13% First Clinton Clinton Bush Bush Perot Perot Second Bush Perot Clinton Perot Clinton Bush Third Perot Bush Perot Clinton Bush Clinton Reinterpreted vote Rank 30% 13% 12% 25% 6% 13% First Clinton Clinton Bush Bush Clinton Bush Second Bush Bush Clinton Clinton Clinton Bush

Voting III 9 March 2012 18/1

slide-39
SLIDE 39

In the reinterpreted vote, Clinton receives 49% of the first place votes and Bush 51%. Therefore, Clinton is eliminated.

Voting III 9 March 2012 19/1

slide-40
SLIDE 40

In the reinterpreted vote, Clinton receives 49% of the first place votes and Bush 51%. Therefore, Clinton is eliminated. Thus, Bush is elected with the Hare system.

Voting III 9 March 2012 19/1

slide-41
SLIDE 41

In the reinterpreted vote, Clinton receives 49% of the first place votes and Bush 51%. Therefore, Clinton is eliminated. Thus, Bush is elected with the Hare system. Thinking about the various voting systems we have considered, and the fact that all of them violate a reasonable condition, leads one to ask the following question:

Voting III 9 March 2012 19/1

slide-42
SLIDE 42

In the reinterpreted vote, Clinton receives 49% of the first place votes and Bush 51%. Therefore, Clinton is eliminated. Thus, Bush is elected with the Hare system. Thinking about the various voting systems we have considered, and the fact that all of them violate a reasonable condition, leads one to ask the following question: Is there a voting system which satisfies all four conditions we have introduced?

Voting III 9 March 2012 19/1

slide-43
SLIDE 43

The 2000 Presidential Election

Since Gore won the popular vote, he would have won with plurality voting.

Voting III 9 March 2012 20/1

slide-44
SLIDE 44

The 2000 Presidential Election

Since Gore won the popular vote, he would have won with plurality voting. Gore would also have won with sequential pairwise voting, and with the Hare system.

Voting III 9 March 2012 20/1

slide-45
SLIDE 45

The 2000 Presidential Election

Since Gore won the popular vote, he would have won with plurality voting. Gore would also have won with sequential pairwise voting, and with the Hare system. It is less clear to me who would have won with the Borda count.

Voting III 9 March 2012 20/1

slide-46
SLIDE 46

Arrow’s Theorem

Kenneth Arrow, who won the Nobel prize in Economics in 1972, proved in 1951 that all voting systems have flaws. More precisely, he proved that there does not and cannot exist a voting system which satisfies both the Condorcet Winner condition and the Independence

  • f Irrelevant Alternatives.

Voting III 9 March 2012 21/1

slide-47
SLIDE 47

Arrow’s Theorem

Kenneth Arrow, who won the Nobel prize in Economics in 1972, proved in 1951 that all voting systems have flaws. More precisely, he proved that there does not and cannot exist a voting system which satisfies both the Condorcet Winner condition and the Independence

  • f Irrelevant Alternatives.

Arrow’s theorem says, therefore, that no matter what voting system we use, there will be flaws with it.

Voting III 9 March 2012 21/1

slide-48
SLIDE 48

Arrow’s Theorem

Kenneth Arrow, who won the Nobel prize in Economics in 1972, proved in 1951 that all voting systems have flaws. More precisely, he proved that there does not and cannot exist a voting system which satisfies both the Condorcet Winner condition and the Independence

  • f Irrelevant Alternatives.

Arrow’s theorem says, therefore, that no matter what voting system we use, there will be flaws with it. To determine what voting system to use in a given situation, we should then consider what advantages and disadvantages systems have, and what are our priorities. We can then try to pick a reasonable system that will reflect the priorities.

Voting III 9 March 2012 21/1

slide-49
SLIDE 49

Arrow’s Theorem

Kenneth Arrow, who won the Nobel prize in Economics in 1972, proved in 1951 that all voting systems have flaws. More precisely, he proved that there does not and cannot exist a voting system which satisfies both the Condorcet Winner condition and the Independence

  • f Irrelevant Alternatives.

Arrow’s theorem says, therefore, that no matter what voting system we use, there will be flaws with it. To determine what voting system to use in a given situation, we should then consider what advantages and disadvantages systems have, and what are our priorities. We can then try to pick a reasonable system that will reflect the priorities. In practice, this is a complicated political problem.

Voting III 9 March 2012 21/1

slide-50
SLIDE 50

Homework #6, due next Friday

Assignment 6 is on the course website. It is due by next Friday.

Voting III 9 March 2012 22/1

slide-51
SLIDE 51

Homework #6, due next Friday

Assignment 6 is on the course website. It is due by next Friday. Next week we will discuss Apportionment. More specifically, we will discuss how seats in the U.S. House of Representatives have been and are assigned, or apportioned, among the states.

Voting III 9 March 2012 22/1

slide-52
SLIDE 52

Quiz Question

True or false: Every voting system has some flaw. A True B False

Voting III 9 March 2012 23/1
