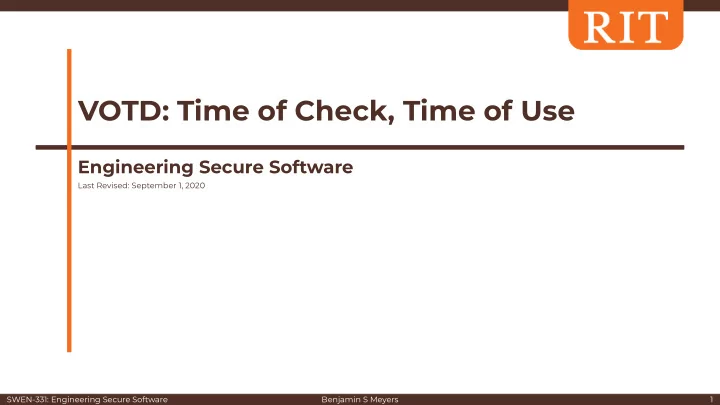

VOTD: Time of Check, Time of Use Engineering Secure Software Last - - PowerPoint PPT Presentation

SWEN-331: Engineering Secure Software Benjamin S Meyers

VOTD: Time of Check, Time of Use

Engineering Secure Software

Last Revised: September 1, 2020 1

SWEN-331: Engineering Secure Software Benjamin S Meyers

What is Time of Check, Time of Use?

• Analogy: Jill asks Dan to have tea ready for her when she gets

home from work. Dan checks that he has a clean cup, tea, and sugar for Jill’s cup of tea; there is just enough sugar. Satisfied that he can make Jill’s tea, Dan takes a nap. While napping, Dan & Jill’s son, Paul, makes a cup of tea and uses all

• f the sugar. When Dan wakes up to make tea for Jill, he sees

that all of the sugar is gone and panics!

2

SWEN-331: Engineering Secure Software Benjamin S Meyers

What is Time of Check, Time of Use?

• Dan (Process 1): checks for sugar
• Paul (Process 2): uses all of the sugar
• Dan (Process 1): tries to use the sugar, but it isn’t there
• Dan and Paul are separate processes competing for the same

resources

• This is a race condition, a change in the state of the system

between when a condition was checked and when action is taken based on that condition

3

SWEN-331: Engineering Secure Software Benjamin S Meyers

Examples

• L1 Terminal Fault

○ Microprocessors have different layers of cache (L1, L2, L3) ○ L1 cache is very small (32KB) ○ Processors use virtual and physical memory and try to swap data between the two for optimization purposes ○ A process could check the L1 cache, see that data is there, go do

• ther stuff, but then reference the memory address of that data,

which has been swapped to virtual memory ○ More information from the RedHat blog

4

SWEN-331: Engineering Secure Software Benjamin S Meyers

Examples

• PHP

○ CVE-2004-0594 ○ The fix

• Debian’s checkinstall script

○ CVE-2008-2958 ○ Original bug report

5

SWEN-331: Engineering Secure Software Benjamin S Meyers

Mitigations

• Whenever possible, make transactions as atomic as possible

○ If the technology provides a way to check the data and act on it in a single transaction, always do that

• If you can’t be atomic, reduce the time between the check

and use as much as possible

• Limit the number of processes that can access a resource
• Recheck the resource for integrity after using it

6

SWEN-331: Engineering Secure Software Benjamin S Meyers

Notes

• Sometimes, depending on the technology or the situation,

TOCTOU vulnerabilities cannot be fully mitigated

• TOCTOU is usually a concurrency issue

○ All of the best design practices for concurrency apply here

7
